  1. Run inference

IAR library

PreviousDRP-AI TVM i8 on Renesas RZ/V2HNextLinux EIM executable

Last updated 1 year ago

Was this helpful?

is one of the leading development solutions for Arm processors. Their product offers device support for most of the ARM silicon and development boards and includes a rich set of build and debugging tools. In Edge Impulse studio you can deploy your model to a library format that can be imported into a IAR Embedded Workbench project with ease.

IAR Project Connection

IAR developed a tool for external applications to contribute into an IAR Embedded Workbench project. This mechanism is called IAR Project Connection and allows to define a project config in a XML style config file (.ipcf). IAR Embedded Workbench updates the project dynamically if this file is changed.

Deploy to an IAR Embedded Workbench Library

In the deployment section of Edge Impulse Studio select the IAR deployment option. Depending on your model optimization preferences you can enable the EON compiler and choose between Quantized and Unoptimized data format. Clicking Build will initiate the library build process and, when finished, downloads a zip file containing the library to you computer.

IAR Embedded Version

The library export function for IAR is developed and tested using IAR Embedded Workbench version 9.40. Please contact us if you see issues with older versions of the IAR product.

Import the library into IAR Embedded Workbench

To import the ML model and inference SDK follow these steps:

  1. Place and unzip the downloaded library in the root folder of your project.

  2. Open your project in IAR Embedded Workbench.

  3. Open the IAR Project Connection by selecting Project->Add Project Connection->IAR Project Connection.

  4. Select the import file from the library folder.

Project configuration for Edge Impulse Inference library

Our pre-processing and neural network code relies on CMSIS DSP and NN algorithms for ARM based processors. CMSIS is therefor included in the edge-impuse-sdk folder. Multiple instances of the CMSIS library can exist in a single project, but be sure the edge-impulse-sdk references and links to the included CMSIS library. Safest way would be either to disable CMSIS in your project, or to build the model and inference code as a library and link to that library in your main project.

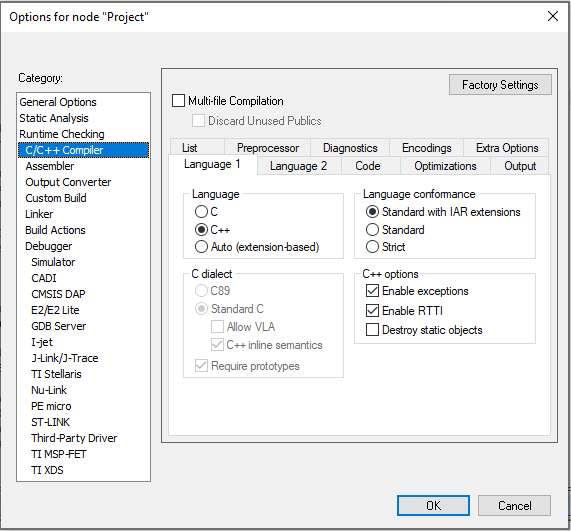

Compiling the edge-impulse-sdk requires the C++ compiler. Check your project settings matches the following image:

ST example project

Standalone example

This standalone example project contains minimal code required to run the imported impulse on a STMicroelectronics MCU. This code is located in ei_standalone.cpp. In this minimal code example, inference is run from a static buffer of input feature data. To verify that our embedded model achieves the exact same results as the model trained in Studio, we want to copy the same input features from Studio into the static buffer in ei_standalone.cpp.

To do this, first head back to the studio and click on the Live classification tab. Then load a validation sample, and click on a row under 'Detailed result'.

To verify that the local application classifies the same result, we need the raw features for this timestamp. To do so click on the 'Copy to clipboard' button next to 'Raw features'. This will copy the raw input values from this validation file, before any signal processing or inferencing happened.

In ei_standalone.cpp paste the raw features inside the static const float features[] definition, for example:

static const float features[] = {
    -19.8800, -0.6900, 8.2300, -17.6600, -1.1300, 5.9700, ...
};

The project will repeatedly run inference on this buffer of raw features once built. This will show that the inference result is identical to the Live classification tab in Studio. From this starting point, the example project is fully compatible with existing SimpleLink SDK plugins, drivers or custom firmware. Use new sensor data collected in real time on the device to fill a buffer. From there, follow the same code used in ei_standalone.cpp to run classification on live data.

To get started with Edge Impulse in IAR quickly, we've created an . This project is based on a STM32F4 Nucleo board and allows running inference over a static buffer.

Follow the instructions from the to get started.

IAR Embedded Workbench
example project
Readme
IAR Disable CMSIS
IAR Compiler config
Selecting the row with timestamp '320' under 'Detailed result'.
Copying the raw features.
