Arduino Machine Learning Tools

Arduino and Edge Impulse have partnered to bring machine learning tools to all Arduino Cloud users with a branded and integrated experience.

The video below contains an example of the full workflow to train a keyword spotting and to run the model on the Arduino Nano 33 BLE Sense using Arduino ML Tools solution:

SSO (Single Sign On)

Arduino Pro users

Arduino Pro users will benefit a 60-min per job limit instead of the default 20-min per job limit.

You can log in the ML Tools platform using your Arduino Cloud credentials. To access the Arduino Machine Learning Tools platform, either go to cloud.arduino.cc or mltools.arduino.cc.

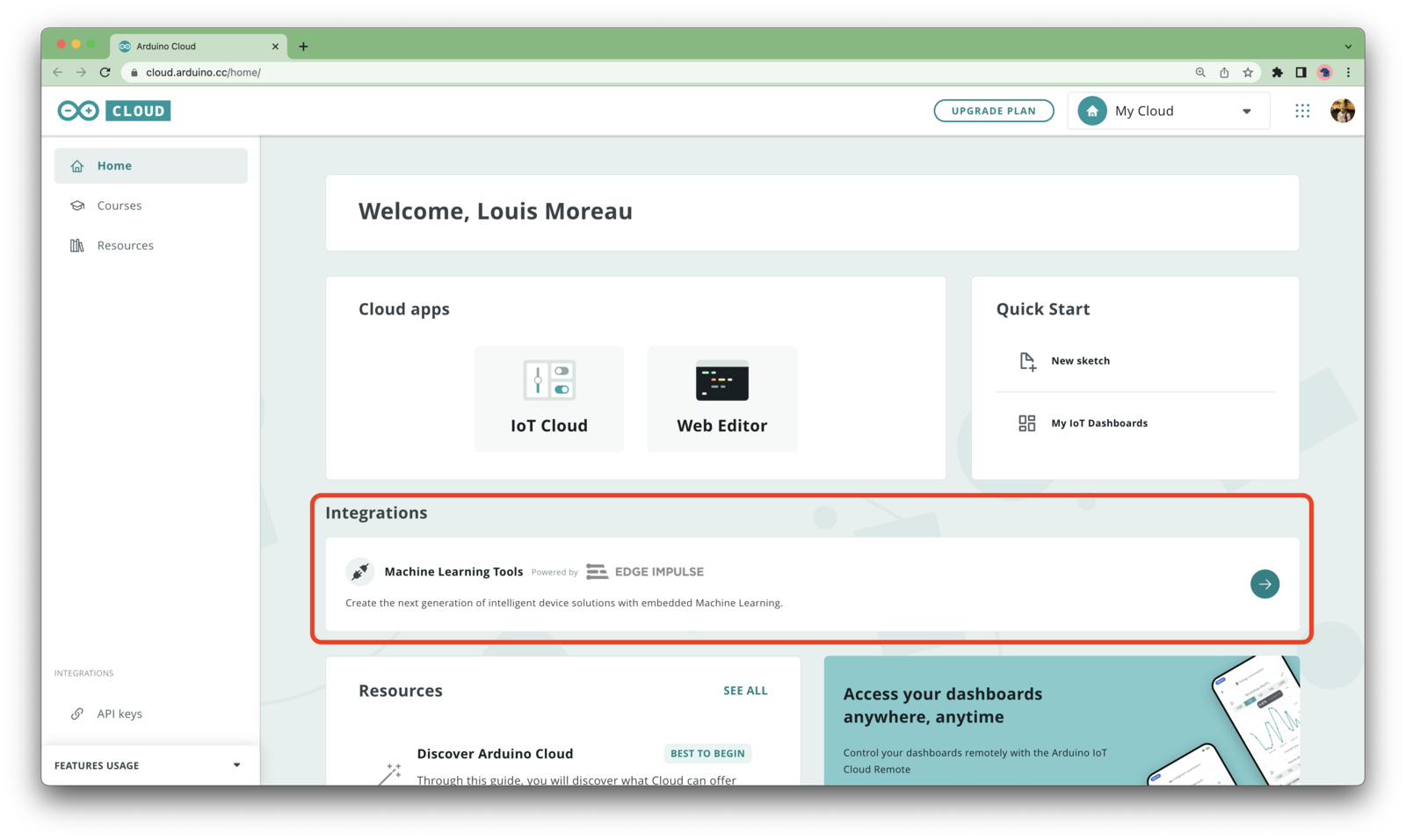

Arduino Cloud home page

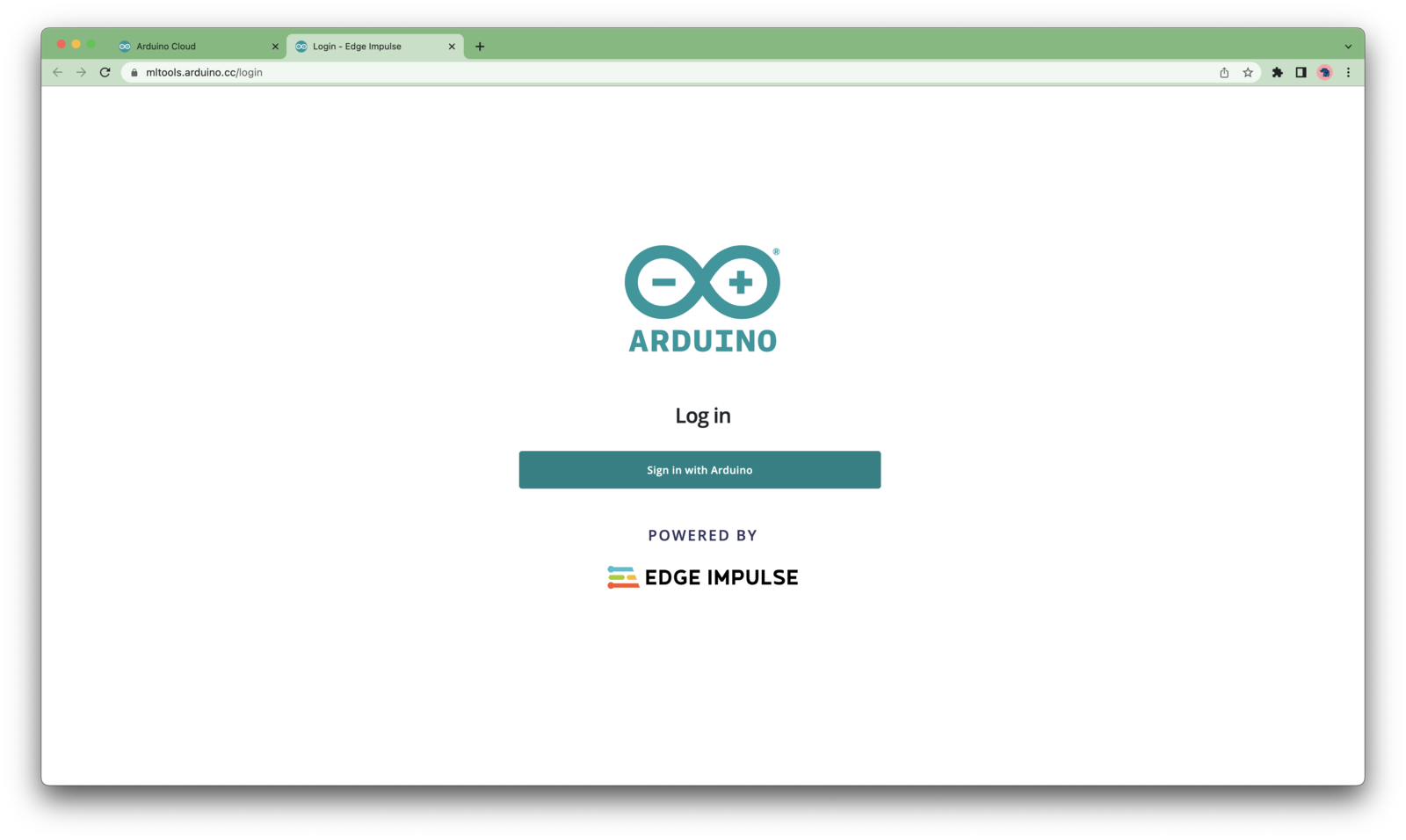

Arduino ML Tools SSO

Create and build a machine learning project

To create a new project, click on your profile picture in the upper right corner and select + Create new project.

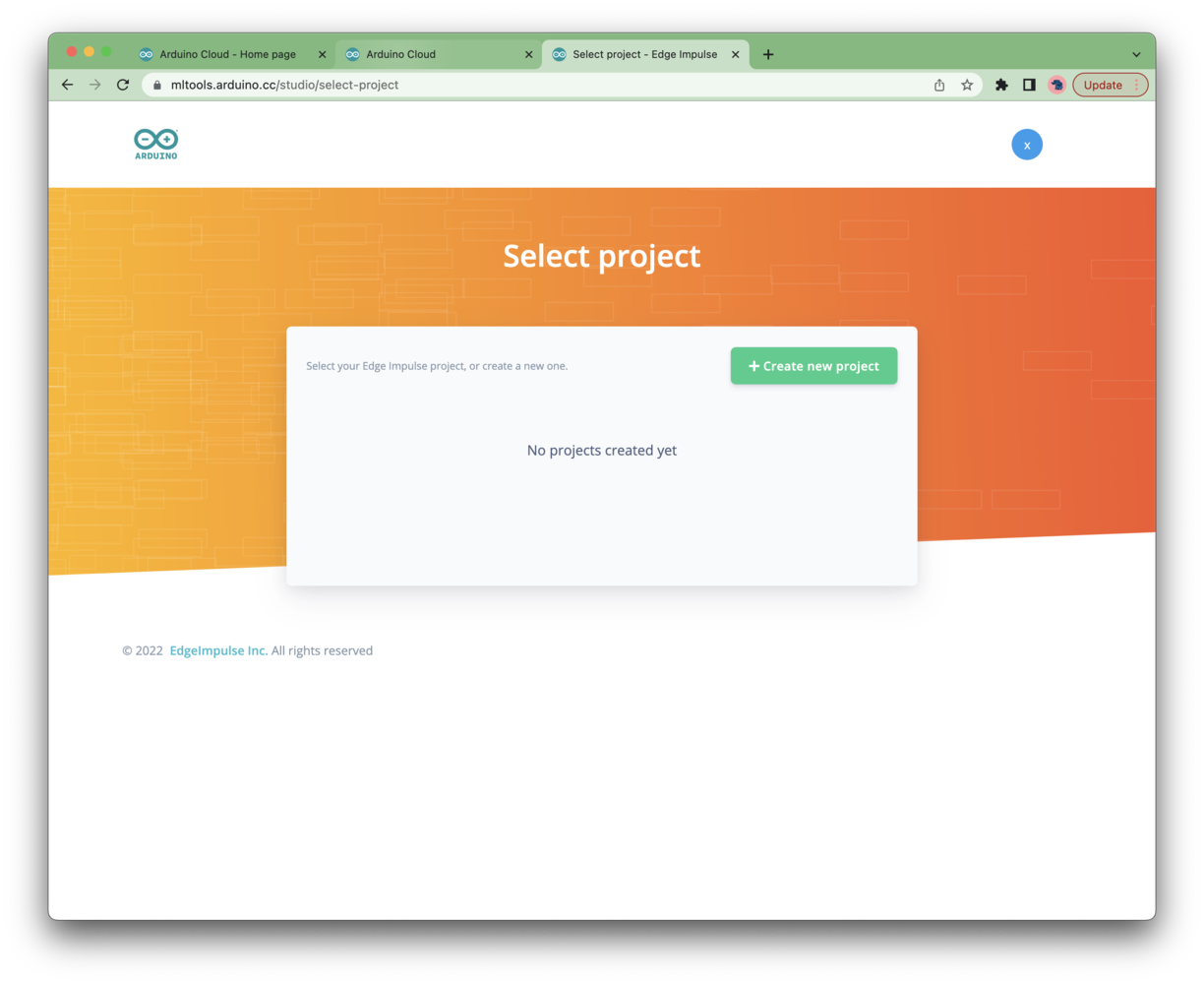

Arduino ML Tools - first login

Once you create a project, select the project type you want to build using the helper. You will then arrive on your project's Dashboard:

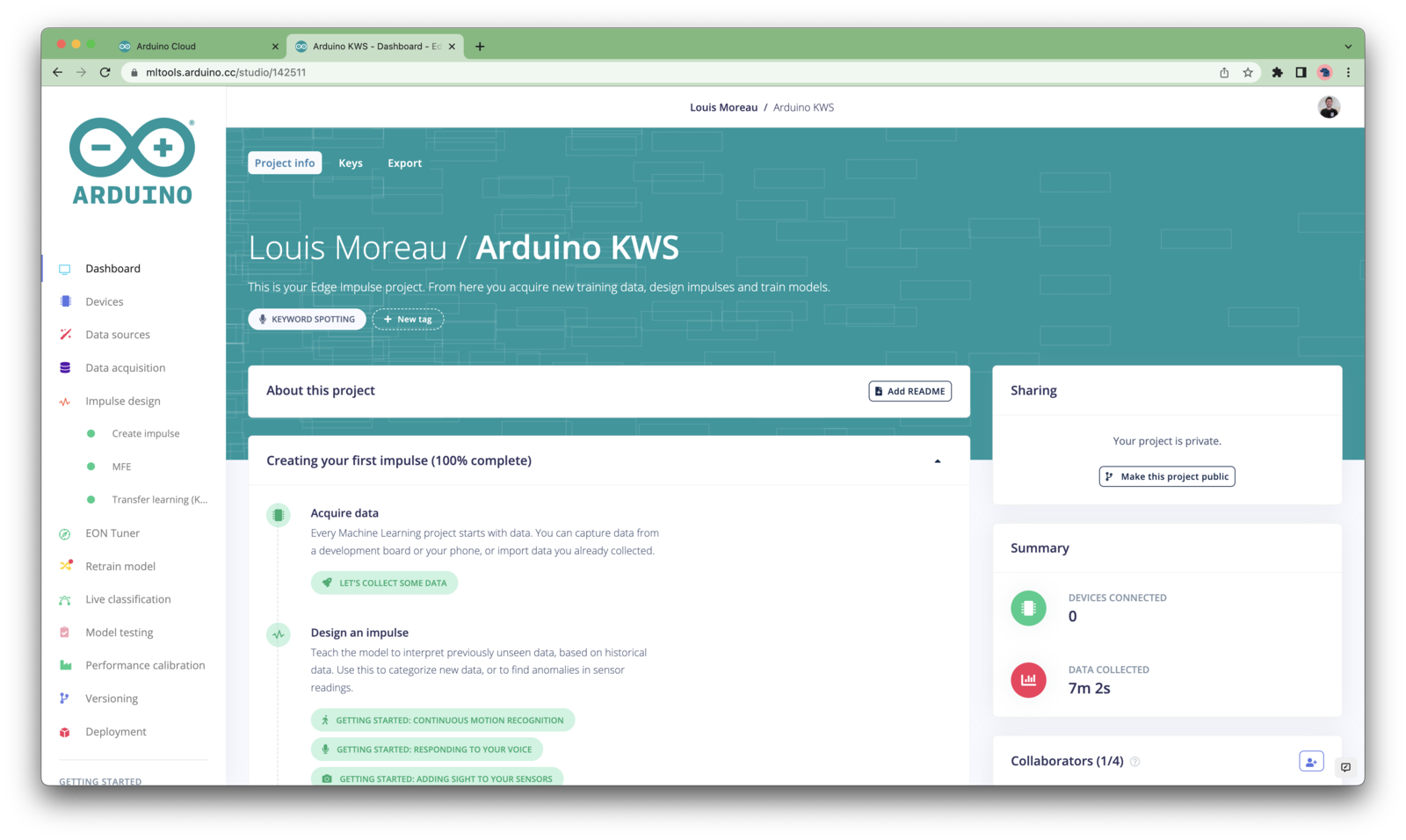

Arduino ML Tools Dashboard

You can also select which board you are using on the Project Info card, in the bottom-right corner.

The following boards are currently supported in Arduino ML Tools:

• Arduino Nano 33 BLE Sense

• Arduino Nicla Vision

• Arduino Portenta H7 + Vision Shield

• Arduino Nicla Sense ME*

*(only using the ingestion sketch and arduino library deployment, latency calculations may not be available)

With everything set up you can now build your first machine learning model with these tutorials:

• Responding to your voice

• Recognize sounds from audio

• Adding sight to your sensors

• object detection.

• Counting objects using FOMO

Looking to connect different sensors? The Data forwarder lets you easily send data from any sensor into Edge Impulse.

Deployment

Once your project is ready, you can either download an Arduino library or a ready-to-use firmware

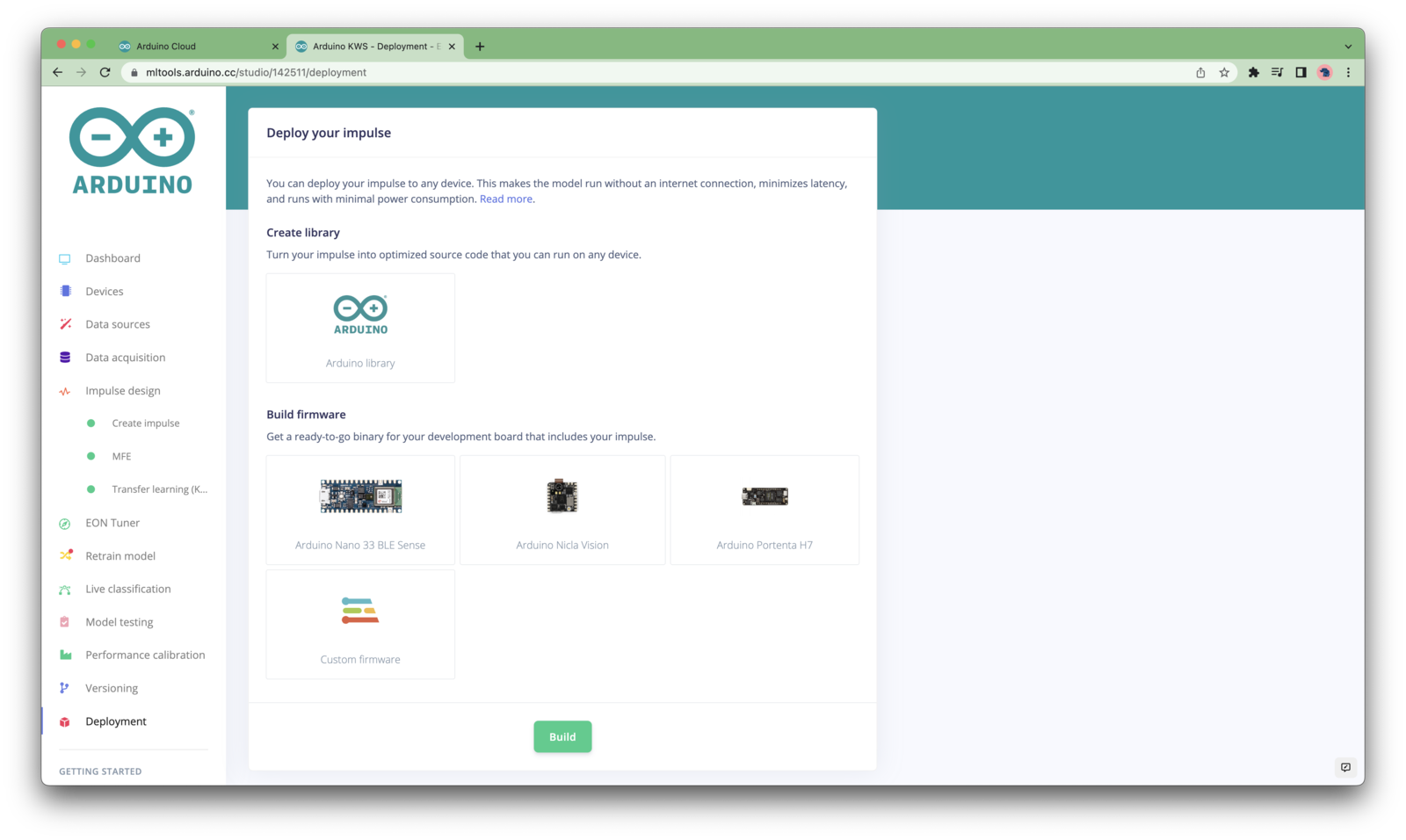

Arduino ML Tools Deployment

Share your project

Once you are happy with the results, please share your project publicly and let everyone knows about it:

Here is an example of the public project made after from the video at the top of this page: Arduino KWS public project.

Use the Edge Impulse CLI

By default, no password is set for your user profile as you have logged using Arduino Cloud SSO. If you want to use Edge Impulse CLI, you need to set a password. To do so, click on Your profile from the upper-right corner menu:

Arduino ML Tools - Set user password
