Particle Photon 2

The Photon 2 with Edge ML Kit is a development module with a microcontroller and Wi-Fi networking containing a Realtek RTL8721DM MCU ARM Cortex M33. The form-factor is similar to the Argon (Adafruit Feather), but the Photon 2 supports 2.4 GHz and 5 GHz Wi-Fi, BLE, and has much larger RAM and flash that can support larger applications. Included in the kit are sensors used for embedded machine learning inferencing.
It is intended to replace both the Photon and Argon modules. It contains the same module as the P2, making it easier to migrate from a pin-based development module to a SMD mass-production module if desired.
Particle Photon 2)

Installing dependencies

To set this device up in Edge Impulse, you will need to install the following software:
  1. 1.
    ​Edge Impulse CLI​
  2. 2.
    ​Particle CLI​
  3. 3.
    ​Particle Workbench (Optional, only required if deploying to Particle Library)
Problems installing the CLI?
See the Installation and troubleshooting guide.

Setup the Particle Photon 2 with the accelerometer and PDM microphone

  1. 1.
    Connect the ADXL362 to the Photon 2 as follows:
ADXL362
Photon 2
VCC
3V3
GND
GND
CS
D18
SCK
D17
MISO (SDO)
D16 (MISO)
MOSI (SDA)
D15 (MOSI)
INT1
not connected
INT2
not connected
  1. 2.
    Connect the microphone to the Photon 2 as follows:
PDM Mic
Photon 2
VCC
3V3
GND
GND
SEL
Not connected
CLK
A0
DAT
A1

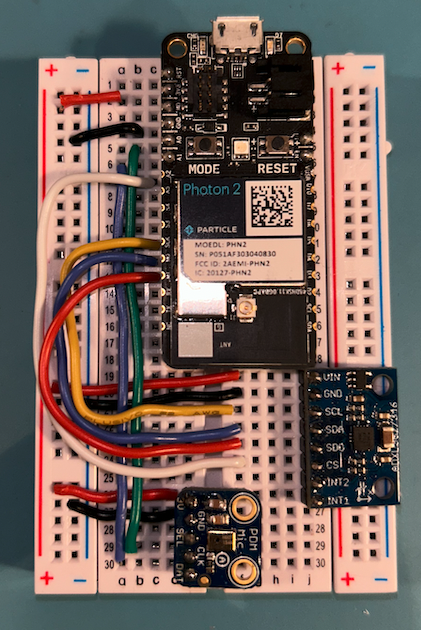

Particle Photon 2 with accelerometer and microphone connected
  1. 3.
    Plug in the USB Cable to the device

Connecting to Edge Impulse

Working directly with the device through the Particle Library deployment option involves the use of the Particle Workbench in VS Code, but if you simply want to start gathering data for a project you only need to install the Edge Impulse CLI and flash the following firmware to your device with your sensor(s) connected as described in the section below.
Alternatively you can clone the Particle Firmware repo and build the firmware locally.

Flash a Particle Photon 2 Binary

Flashing your Particle device requires the Particle command line tool. Follow these instructions to install the tools.
Navigate to the directory where your Photon2 firmware downloaded and decompress the zip file. Open a terminal and use the following command to flash your device:
particle flash --local firmware-particle.bin

Collecting Data from the Particle Photon 2

Before starting ingestion create an Edge Impulse account if you haven't already. Also, be sure to setup the device per the instructions above.
To collect data from the Photon2 please follow these steps:
  1. 1.
    Create a new Edge Impulse Studio project, remember the name you create for it.
  2. 2.
    Connect your device to the Edge Impulse studio by running following command in a terminal:
edge-impulse-daemon --clean
  1. 3.
    After connecting, the Edge Impulse Daemon will ask to login to your account and select the project. Alternatively, you can copy the API Key from the Keys section of your project and use the --api-key flag instead of --clean.
  2. 4.
    Open your Edge Impulse Studio Project and click on Devices. Verify that your device is listed here.

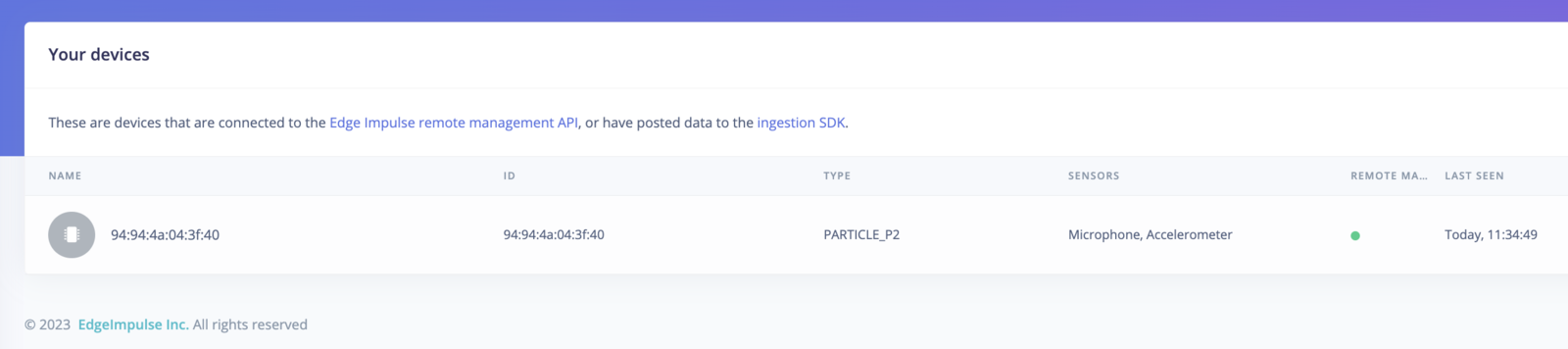

    Photon2 in Devices tab
    ​
  3. 5.
    Start gathering data by clicking on Data acquisition

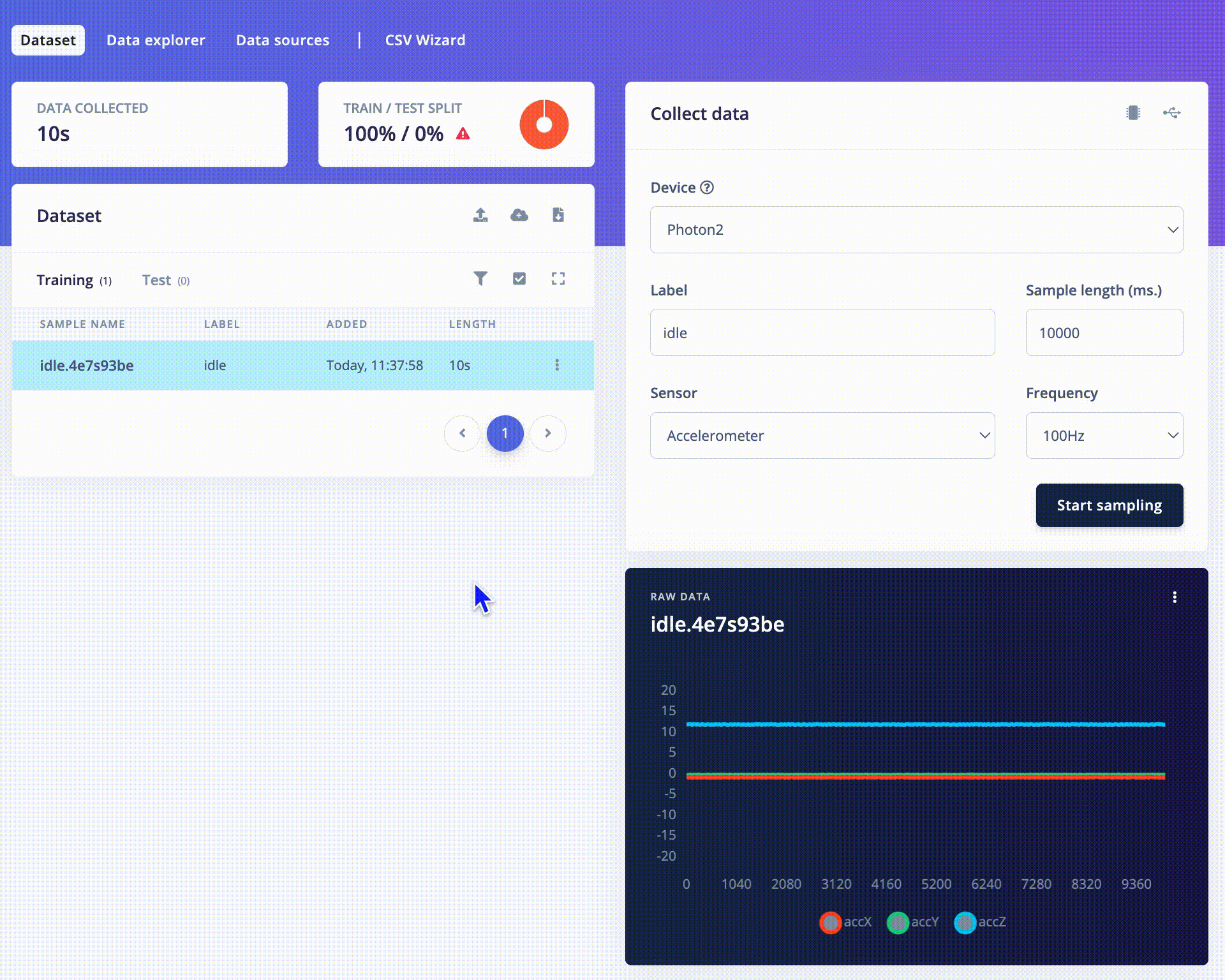

Select Accelerometer and click Start sampling to begin collecting IMU data

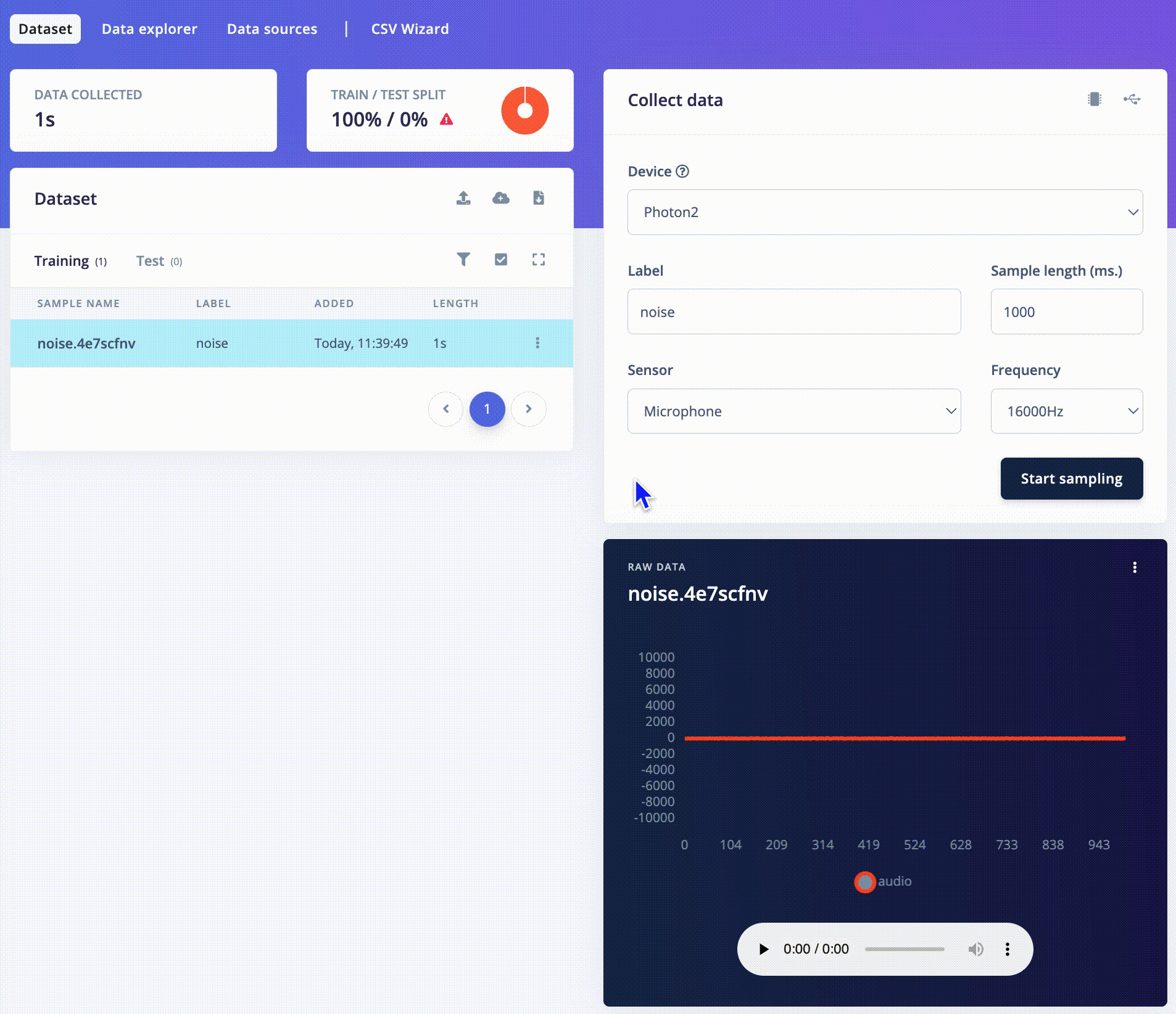

Select Microphone and click Start sampling to begin collecting IMU data

Next steps: Building a machine learning model

With everything set up you can now build your first machine learning model with these tutorials:
Looking to connect different devices or sensors? The Data forwarder lets you easily send data from any sensor into Edge Impulse.

Advanced Deployment

Flash a Particle Photon 2 Project via the Particle Library Deployment option

If you choose to deploy your project to a Particle Library and not a binary follow these steps to flash the your firmware from Particle Workbench:
  1. 1.
    Open a new VS Code window, ensure that Particle Workbench has been installed (see above)
  2. 2.
    Use VS Code Command Palette and type in Particle: Import Project
    1. 1.
      Select the project.properties file in the directory that you just downloaded and extracted from the section above.
  3. 3.
    Use VS Code Command Palette and type in Particle: Configure Project for Device
    1. 1.
      Select [email protected]
    2. 2.
      Choose a target. (e.g. P2 , this option is also used for the Photon 2).
  4. 4.
    It is sometimes needed to manually put your Device into DFU Mode. You may proceed to the next step, but if you get an error indicating that "No DFU capable USB device available" then please follow these step.
    1. 1.
      Hold down both the RESET and MODE buttons.
    2. 2.
      Release only the RESET button, while holding the MODE button.
    3. 3.
      Wait for the LED to start flashing yellow.
    4. 4.
      Release the MODE button.
  5. 5.
    Compile and Flash in one command with: Particle: Flash application & DeviceOS (local)
Local Compile Only! At this time you cannot use the Particle: Cloud Compile or Particle: Cloud Flash options; local compilation is required.

Training data Ingestion via Particle Webhook:

If you would like to use the Particle webhook to send training data from your particle board directly to Edge Impulse, or indeed any other of our apis follow these steps:
  1. 1.
    Access Particle Console:
  2. 2.
    Navigate to Integrations:
    • Click on the "Integrations" tab in the left-hand menu.
    • Select "Webhooks" from the available options.
  3. 3.
    Create a New Webhook:
    • Click "New Integration".
    • Choose "Webhook".
  4. 4.
    Webhook Configuration:
    • Name: Assign a descriptive name to your webhook.
    • Event Name: Specify the event name that triggers the webhook (e.g., "edge/ingest").
    • URL: Set this to the Edge Impulse ingestion API URL, typically something like https://ingestion.edgeimpulse.com/api/training/data.
    • Request Type: Choose "POST".
    • Request Format: Select "Custom".
  5. 5.
    Custom Request Body:
    • Input the JSON structure required by Edge Impulse. This will vary based on your project's data schema.
  6. 6.
    HTTP Headers:
    • Add necessary headers:
      • x-api-key: Your Edge Impulse API key.
      • Content-Type: "application/json".
      • x-file-name: Use a dynamic data field like {{PARTICLE_EVENT_NAME}}.
  7. 7.
    Advanced Settings:
    • Response Topic: Create a custom topic for webhook responses, e.g., {{PARTICLE_DEVICE_ID}}/hook-response/{{PARTICLE_EVENT_NAME}}.
    • Enforce SSL: Choose "Yes" for secure transmission.
  8. 8.
    Save the Webhook:
    • After entering all details, click "Save".
  9. 9.
    Test the Webhook:
    • Use example device firmware to trigger the webhook.
    • Observe the responses in the Particle Console.
  10. 10.
    Debugging:
  • If errors occur, review the logs for detailed information.
  • Ensure payload format aligns with Edge Impulse requirements.
  • Verify the accuracy of your API key and other details.

Custom Template Example:

If you have any trouble with the config you can copy and paste the following into the Custom Template section of the webhook:
{
"name": "edgeimpulse.com",
"event": "edge/ingest",
"responseTopic": "",
"disabled": true,
"url": "http://ingestion.edgeimpulse.com/api/training/data",
"requestType": "POST",
"noDefaults": true,
"rejectUnauthorized": false,
"headers": {
"x-api-key": "ei_1855db...",
"x-file-name": "{{PARTICLE_EVENT_NAME}}",
"x-label": "coffee"
},
"json": "{\n \"payload\": {\n \"device_name\": \"0a10a...\",\n \"device_type\": \"photon2\",\n \"interval_ms\": 20,\n \"sensors\": [\n {\n \"name\": \"volt\",\n \"units\": \"V\"\n },\n {\n \"name\": \"curr\",\n \"units\": \"A\"\n }\n ],\n \"values\": [\n{{{PARTICLE_EVENT_VALUE}}}\n ]\n },\n \"protected\": {\n \"alg\": \"none\",\n \"ver\": \"v1\"\n },\n \"signature\": \"00\"\n}"
}
​

Troubleshooting

Should you have any issues with your Particle device please review Particle's Support & Troubleshooting page.
If you have issues with Edge Impulse please reach out!
