On this page
  • Advantages of Processing with Edge Devices
  • Building a Predictive Maintenance Demonstration
  • Hardware Requirements
  • Hardware Setup
  • Software Setup
  • Create an Edge Impulse project
  • Set Up the Akida Development Kit
  • Data Acquisition to create ML Dataset
  • Acquiring Accelerometer Data
  • Less Code with Two Edge Impulse Projects
  • The First Project: Impulse Setup for Classification Project
  • Timing Series Block
  • Processing Block: Custom Spectral Features
  • Learn Block: Classification - BrainChip Akida™
  • Feature Generation
  • Training the Classifier
  • The Second Project: Impulse Setup for the Anomaly Project
  • Download Data and Create Second Project
  • Timing Series Block
  • Processing Block: Spectral Analysis
  • Learn Block: Anomaly Detection (K-means)
  • Download of MetaTF FBZ File
  • Download of Edge Impulse Anomaly Scoring model .eim
  • On-Device Inferencing
  • Conclusion
  • Important links

Was this helpful?

Edit on GitHub
Export as PDF
  1. Predictive Maintenance and Defect Detection Projects

Vibration Classification with BrainChip's Akida

With predictive maintenance, you can monitor your equipment while it’s running: This means that there is less downtime for inspections and repair jobs because the monitoring process takes place during operation instead of waiting until something breaks or wears out.

The Edge Impulse platform and solutions engineering team enables companies to make more accurate predictions about when devices might fail, which lets them optimize their fleet maintenance and use service crews most effectively. This saves the companies money by letting them lower overall asset downtime and allows customers to be more satisfied with their product and services.

In this article, we will explain some of the beneficial applications of predictive maintenance, and then show how to build a predictive maintenance solution that will detect abnormal vibrations using Edge Impulse’s platform, the BrainChip Akida hardware, and a computer cooling fan.

Business Case Examples for Edge Predictive Maintenance

Predictive maintenance provides a wide variety of business benefits, such as:

Predicting asset depreciation and maintenance timelines The security and building-access industry have been experiencing increasing pressure due to the global pandemic, and it’s imperative for customers to understand when a security door or component might fail. By anticipating maintenance, companies can reduce unplanned out-of-service intervals, allowing for minimal disruption in office buildings where there is huge traffic of people.

Lowering cost and gaining more ROI Global shipping companies are looking for ways to lower their costs and increase efficiency. Focusing on predictive maintenance can allow them to proactively address any issues before they become costly or cause unsafe conditions in order to avoid downtime on ships.

Advantages of Processing with Edge Devices

Data complexity: If you’ve got a factory or manufacturing floor with hundreds of cameras and sensors in it then there’s just no way to send that information across the Internet to the cloud for processing — it’s going to overwhelm whatever kind of connection you have.

Latency: This is the time it takes for something to happen after a key event happened. It’s important in industrial and manufacturing because if there are sudden changes, such as a potential machine malfunction — then those cloud-based compute devices won’t be able to make decisions or predictions quick enough. Cloud processing is simply too slow. Predictive models running on the edge is the way to go.

Cost: The economics of cloud computing are getting better and cheaper all the time, but it still costs money. Edge Computing can reduce data consumption by sending less information to a server in a remote location, which saves energy as well as provides faster network speeds for users on competitive websites who do not have this advantage over them yet.

Reliability: The local processing of an asset-monitoring system means that it will be able to work even when connectivity goes down. Edge machine learning is great for both on- and off-grid industrial assets.

Privacy: With edge compute, sensitive live operational sensor data does not need to leave the facility or be shared with third parties.

Building a Predictive Maintenance Demonstration

Let’s look at how to assemble a solution that detects anomalous hardware vibrations.

Hardware Requirements

  • Standoffs and screws — used are a #2-52 screw/nut to secure to fan

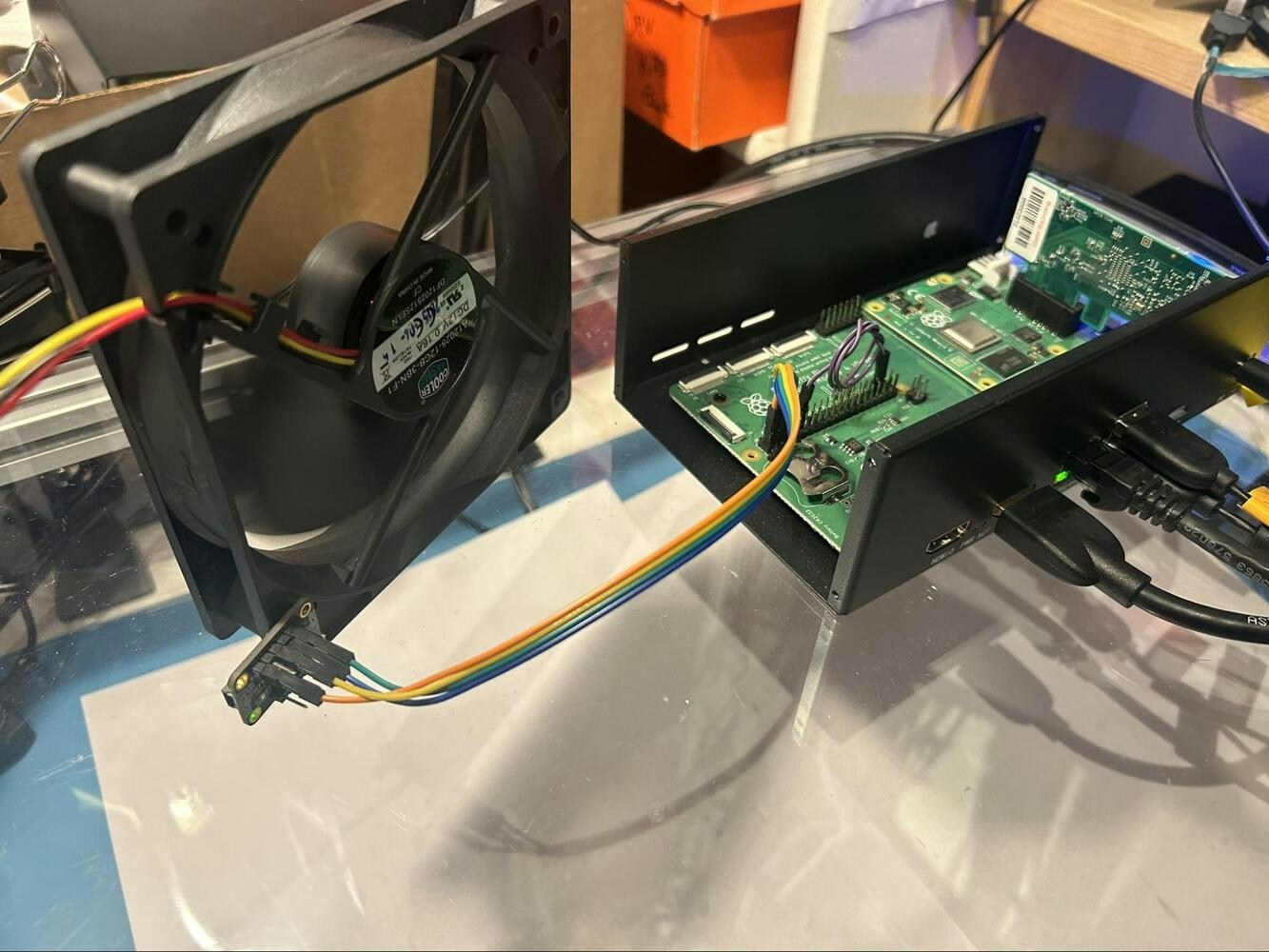

Hardware Setup

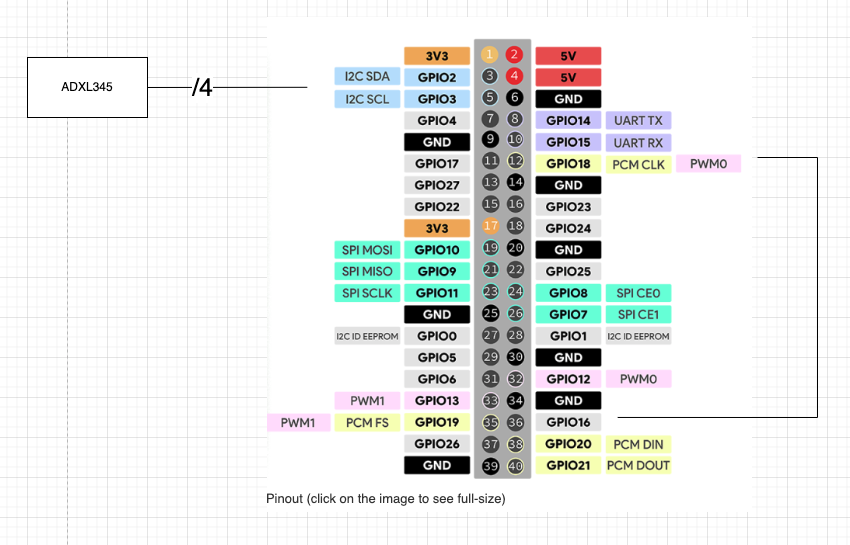

First, connect the accelerometer to the Raspberry Pi header like so:

Software Setup

Create an Edge Impulse project

Set Up the Akida Development Kit

pip show akida # will show the installed version.
lspci | grep Co-processor # will check if the PCIe card is plugged in correctly.
python3 --version # will check the installed Python version (3.8 is required).
curl -sL https://deb.nodesource.com/setup_14.x | sudo -E bash -
sudo apt-get install -y nodejs
node -v

The last command should return the node version, v14 or above.

sudo apt-get install libatlas-base-dev libportaudio0 libportaudio2 libportaudiocpp0 portaudio19-dev
pip3 install edge_impulse_linux -i https://pypi.python.org/simple

Data Acquisition to create ML Dataset

After getting the Akida Development Kit configured and having the accelerometer connected you will need to collect data from the accelerometer/fan setup. Since you are using custom devices we have developed code that you can use immediately.

You can download with git using:

git clone https://github.com/edgeimpulse/brainchip-accelerometer.git

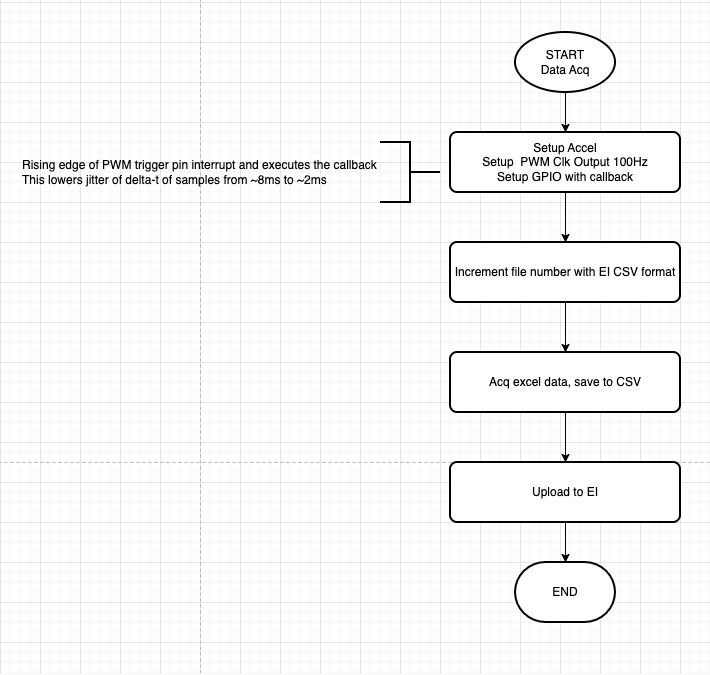

Inside the directory you will find accel-hw-timed-fixed-dt.py. This file has the needed components to collect accelerometer data. Here is a flow chart of how it runs:

To run use this command

python3 accel-hw-timed-fixed-dt.py --output_dir <name of folder> —number_of_files <number of files>

This will start collecting data in the folder specified. For the project to have a good data we recommend taking at least 300 samples for each of the following conditions:

  • Fan off — label as “off”

  • Fan on — label as “on”

  • Fan on with finger lightly rubbing the spinning center hub of the motor — label this as “center”. This is to simulate one possible fault condition.

  • Fan on with finger light touching the spinning blade at the outermost edge — label this as “edge”. This simulates another possible fault condition.

cd <samples directory>

edge-impulse-uploader --category split --label off *.csv

You may be prompted for username and password for Edge Impulse. After successful connection you should select the empty project you had created earlier.

Acquiring Accelerometer Data

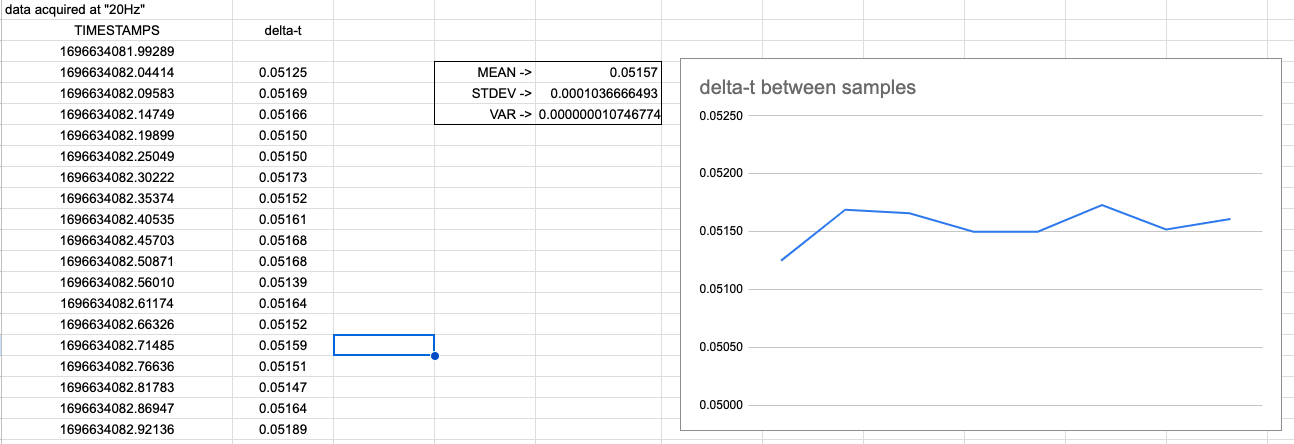

The Ubuntu operating system running on Raspberry Pi is not an RTOS and so it is impossible to get consistently spaced accelerometer samples. That is, the data acquisition is not hardware timed as the OS has to be interrupted to service the sampling and it can be delayed by other tasks. Therefore there is no guarantee that samples are acquired at a fixed delta-t.

In order to get good performance the code implements a hardware interrupt with the PWM and GPIO pins. Our testing showed that the maximum delay in servicing the interrupt went from approximately 8ms to 2ms. The codemake an assumption that the delta-t is fixed at the sample frequency and no variance is recorded.

Lastly, it is important to get the data out of the accelerometer as fast as possible so that it is ready for the next sample. In the code you ensure that the fastest speed is enabled. The code is set up to take 100 samples of data for 1 second and transfer off the device as quickly as possible.

Less Code with Two Edge Impulse Projects

Since you have not implemented custom C++ processing code for this custom processing block, you are not able to deploy an EIM compiled model from Edge Impulse Studio. That is, if you tried to build an EIM for “Linux (AARCH64 with AKD1000 MINI PCIe)” there would be a build error because of the lack of C++ code to run the DSP on the CPU.

You can work around this issue by creating two projects: One that does the custom feature generation (the customer DSP block) to which you select the FBZ file for Akida. Then, a second project that is used only for anomaly detection. This second project you will output the EIM for the anomaly detection to run on the CPU.

The Python code that runs on the Enablement device will tie all the pieces together.

The First Project: Impulse Setup for Classification Project

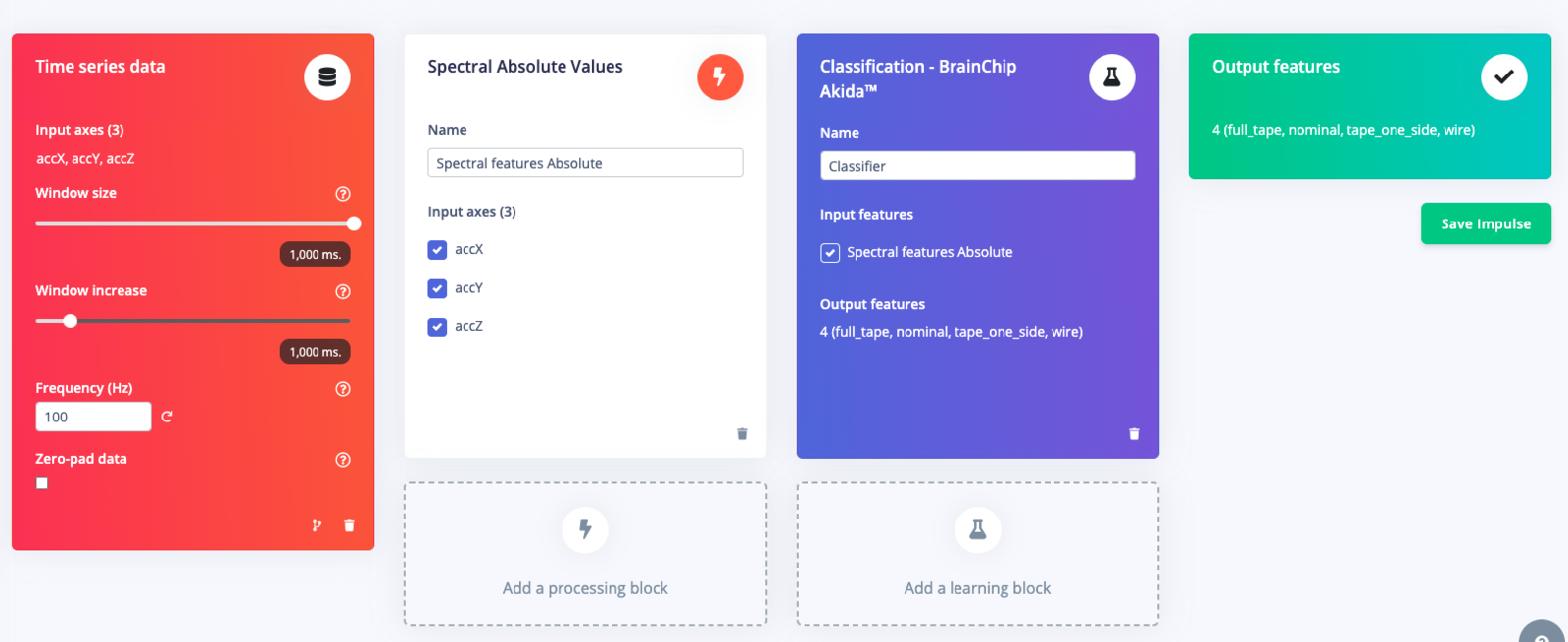

Once you have collected the data it is time to design the rest of the Edge Impulse Studio project. This is what your Impulse design should eventually look like.

Timing Series Block

Since you have taken accelerometer data at 100Hz for 1-second record lengths it is important to use those values in the Timing series data block.

Processing Block: Custom Spectral Features

Learn Block: Classification - BrainChip Akida™

Select the Classification - BrainChip Akida™ as the learn block and ensure that the Spectral Features input box is checked. Save the Impulse and proceed onto feature generation.

Feature Generation

This process of generating features and determining the most important features of your data will further reduce the amount of signal analysis needed on the device with new and unseen data. An obstruction in the fan will create a much different waveform on all three accelerometer axes than a nominal sample; you can use the most important features to more quickly and accurately determine if a new incoming signal is an obstruction or a fan failure, etc.

Training the Classifier

When using the Akida blocks it is important to review the accuracy of the model. Akida heavily quantizes the model and without proper training (especially quantization ware training). The Akida Learning Blocks have this training code implemented and the defaults can work really well with this type of data.

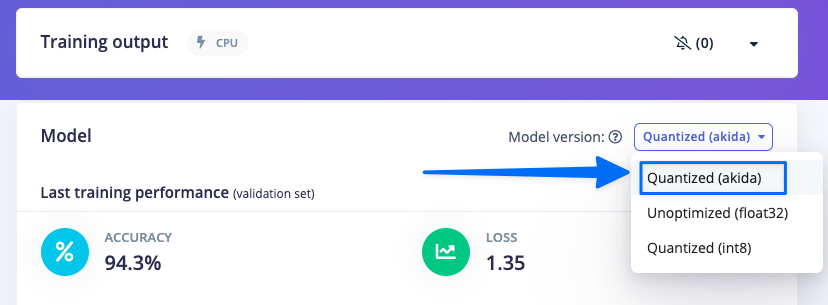

To view the model accuracy and Akida specific metrics be sure to select the “Quantized (akida)” as the model version.

When this option is selected you will see the Confusion Matrix for the Validation Dataset and Akida Performance parameters.

The Second Project: Impulse Setup for the Anomaly Project

Download Data and Create Second Project

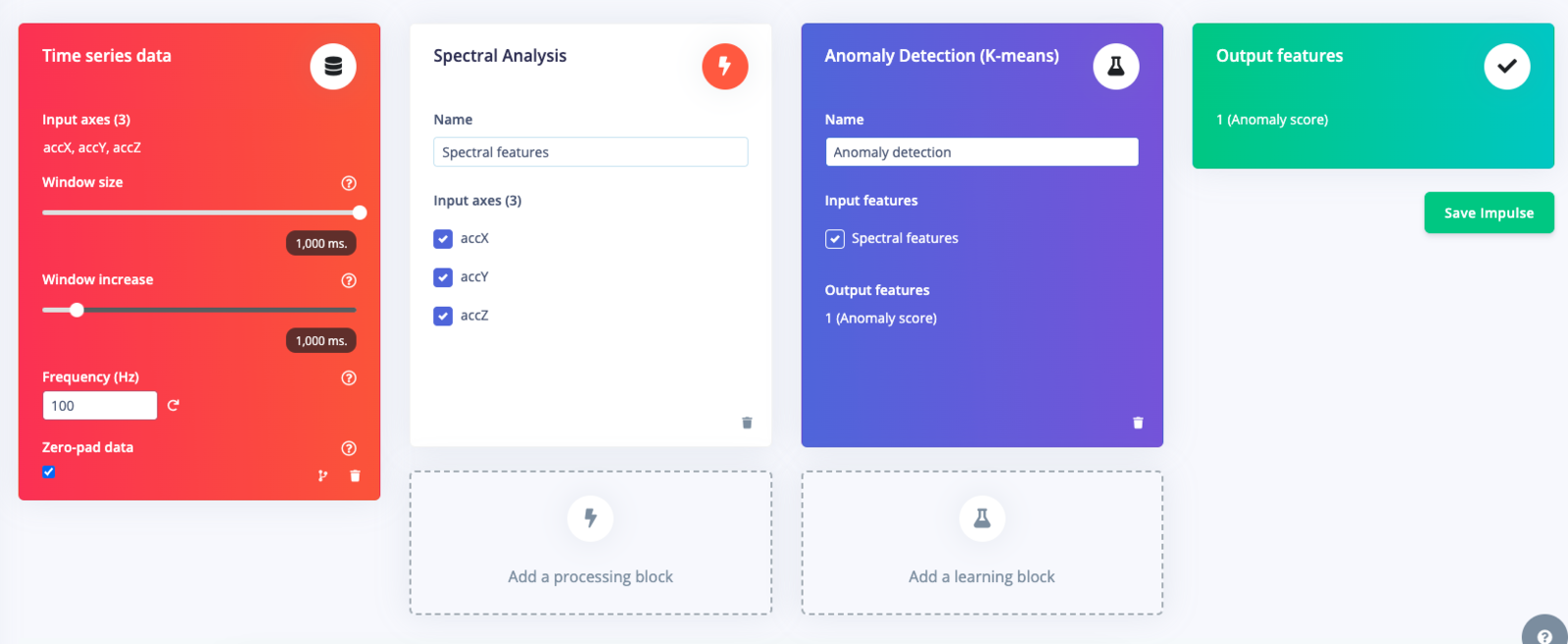

With the data uploaded you will need to create a new Impulse as shown below.

Timing Series Block

Since you have taken accelerometer data at 100Hz for 1 second record lengths it is important to use those values in the Timing series data block.

Processing Block: Spectral Analysis

The k-mean algorithm does not have the restriction of 4-bit, unsigned data and so does not require a custom block. Please select the default Spectral Analysis block.

Learn Block: Anomaly Detection (K-means)

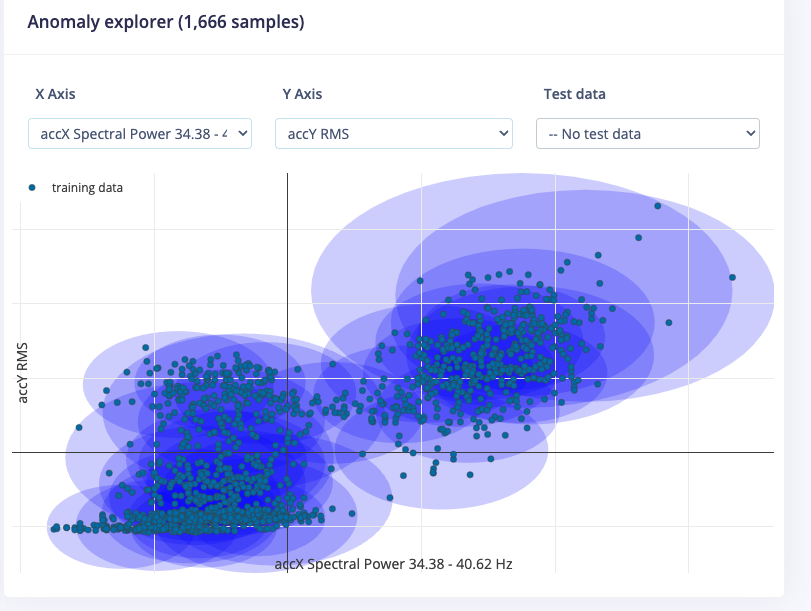

In the anomaly detection block, make sure to click the “Select Suggested Axes” to highlight the features of importance . Without selecting this button, the anomaly detection settings will default to your data's Root-Mean-Square value (or RMS) for each of the axes. Prior to the release of the feature importance view in the DSP block, the anomaly detection block would prioritize the RMS values, and you would then have to make a decision by yourself if the RMS values were most meaningful for your anomaly detection use case. With feature importance, you take the guesswork out of this and get your model to production even faster!

Download of MetaTF FBZ File

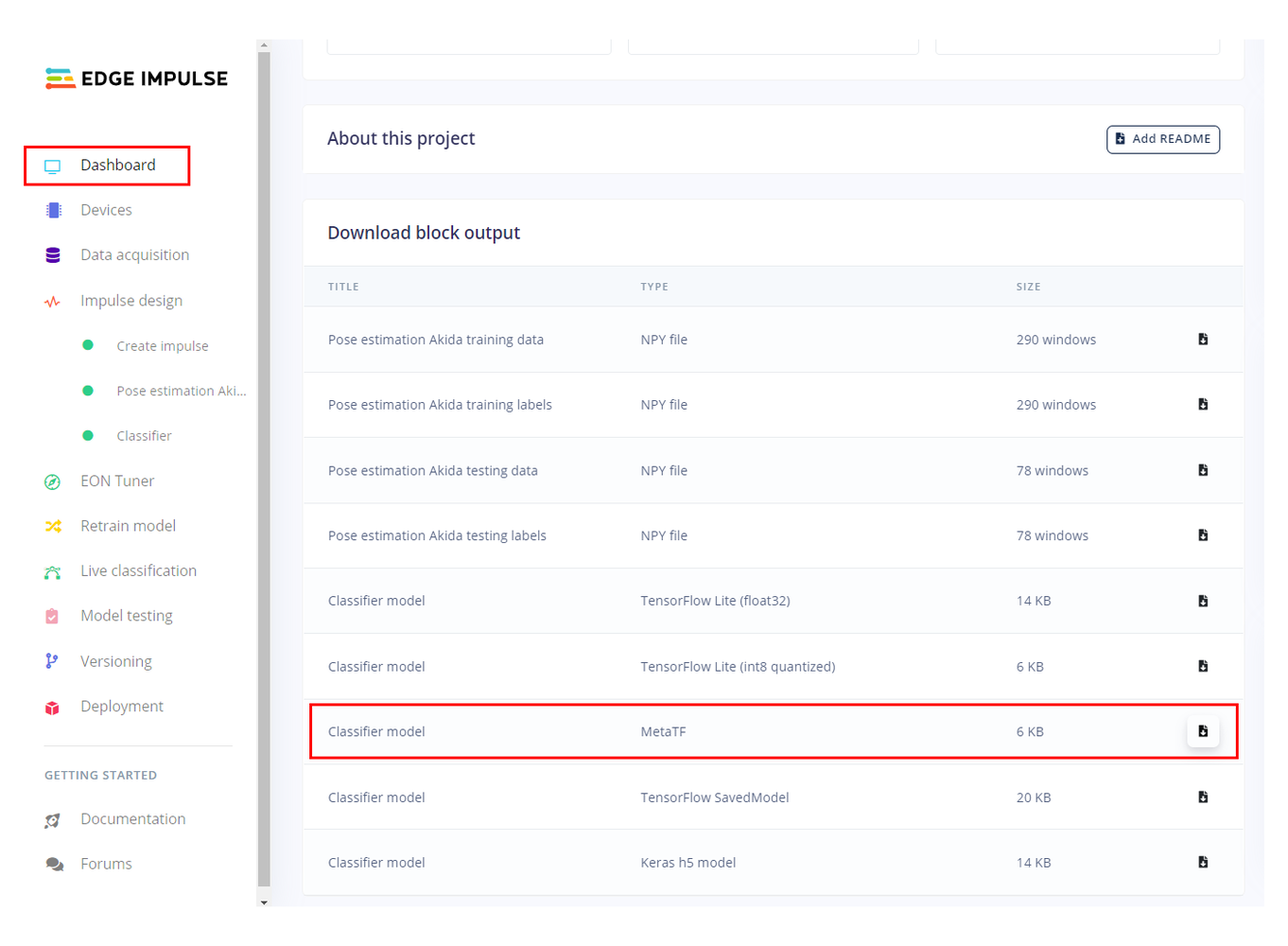

You are using custom code for this project and you will need the Akida compatible model file stored in FBZ format. Proceed to the dashboard of the first project (the classifier project) and select the Classifier model - MetaTF file. Once the file is presented download to your machine and then drag and drop into the brainchip_accelerometer folder in the open Visual Studio Code file viewer.

Download of Edge Impulse Anomaly Scoring model .eim

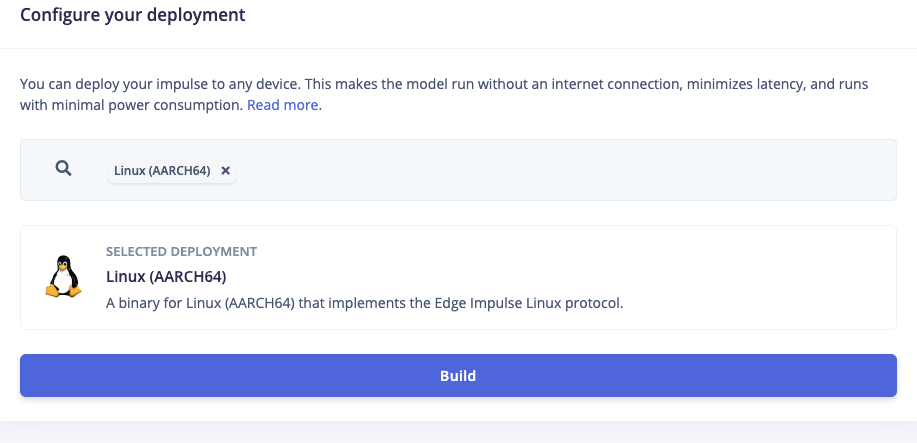

The anomaly scoring algorithm can be neatly packaged into an Edge Impulse .eim file. To do so go to the Deployment tab of the second Edge Impulse project (the one with the k-mean anomaly scoring) and select Linux (AARCH64) from the drop down menu and click Build. Once the file is presented, download it to your machine and then drag and drop into the brainchip_accelerometer folder in the open Visual Studio Code file viewer.

On-Device Inferencing

Once all the files are in the correct directory you can run the inference demo with

python3 class-hw-timed-anom.py --fbz_file <name-of-fbz-file> --anomaly_eim <name-of-anomaly-eim-file>

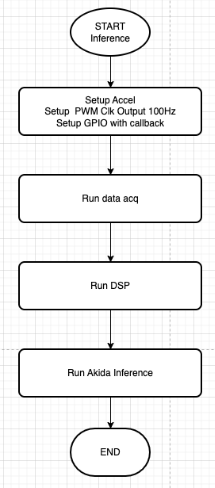

Below is a flow chart of how the code works.

And the results of the inference will be displayed below. For example, here is where there the center hub is rubbing:

ubuntu@ubuntu:~/brainchip-accelerometer$ python3 class-hw-timed-anom.py --fbz_file accel.fbz --anomaly_eim anom.eim
[[[[ -2.256891 -24.837664 -0.38746595 -2.5941396 ]]]]
center: 0.121976525
edge: 1.9035794e-11
off: 0.790965
on: 0.08705848
/home/ubuntu/brainchip-accelerometer
Loaded runner for "Brainchip / bc-pred-main-anom"
classification:
{'anomaly': -0.4078322649002075}
timing:
{'anomaly': 0, 'classification': 0, 'dsp': 0, 'json': 0, 'stdin': 28}

Conclusion

In this example we have shown how you can easily implement new solutions for BrainChip’s Akida enablement devices to test your predictive maintenance projects. Demonstrated are the abilities to use custom sensors with Akida and Edge Impulse, adjust Edge Impulse DSP blocks, train an Akida compatible model, and then download the trained model to run on your Akida device. The model is able to run fast, detect anomalies, and then be further customized with new data with easy upload back into Edge Impulse Studio for continuous improvement to the abilities of the model (new classes, higher accuracy etc).
