  1. Computer Vision Projects

Visual Anomaly Detection - Seeed Grove Vision AI Module V2

Perform visual anomaly detection using the Arm Ethos NPU found in the Seeed Grove Vision AI Module V2.

PreviousCar Detection and Tracking System for Toll Plazas - Raspberry Pi AI KitNextObject Counting with FOMO - OpenMV Cam RT1062

Last updated 7 months ago

Was this helpful?

Created By: Roni Bandini

Public Project Link:

GitHub Repository:

Introduction

In the 1970s, a Russian engineer named Bikov trained pigeons for visual anomaly detection. According to Bikov, pigeons have better sight and concentration than humans (Máquinas del siglo XX, Muslin, E., 1974). Fortunately, today we have better options than becoming bird experts or paying people not to blink in front of an inspection line. With the right tools, we can easily train a Machine Learning model and set up a system to spot visual anomalies, to automatically remove faulty pieces from the manufacturing production line.

Parts Required

For the inspection servo arm, I will use a separate module made with an Arduino Nano and an SG90 servo motor.

  • Seeed Grove Vision AI Module V2

  • OV5647-62 Raspberry Pi Cam

  • CSI Cable

  • Arduino Nano

  • Servo motor SG90

Connect the servo to the Arduino Nano using VCC, GND and digital PIN 3.

Connect the cam to the module using a CSI cable.

Model Training

Connect the Grove Vision AI V2 to a PC/Mac/Linux via a USB Type-C cable.

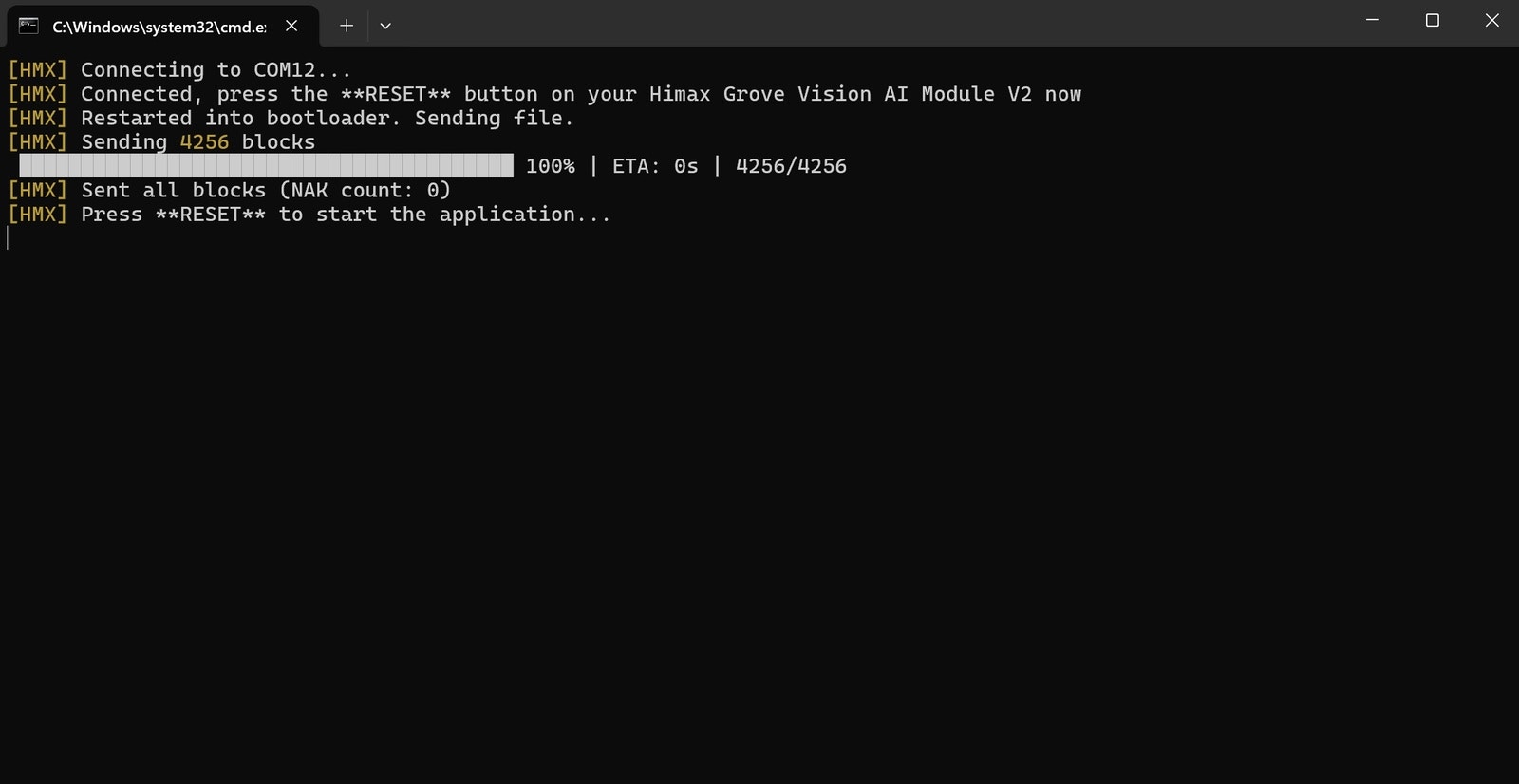

Within the contents of the extracted firmware .zip file, there are install scripts that will flash your device:

  • For MacOS run flash_mac.command

  • For Windows run flash_windows.bat

  • For Linux run flash_linux.sh

Now install the Edge Impulse CLI:

  1. Open a terminal and execute npm install -g edge-impulse-cli --force

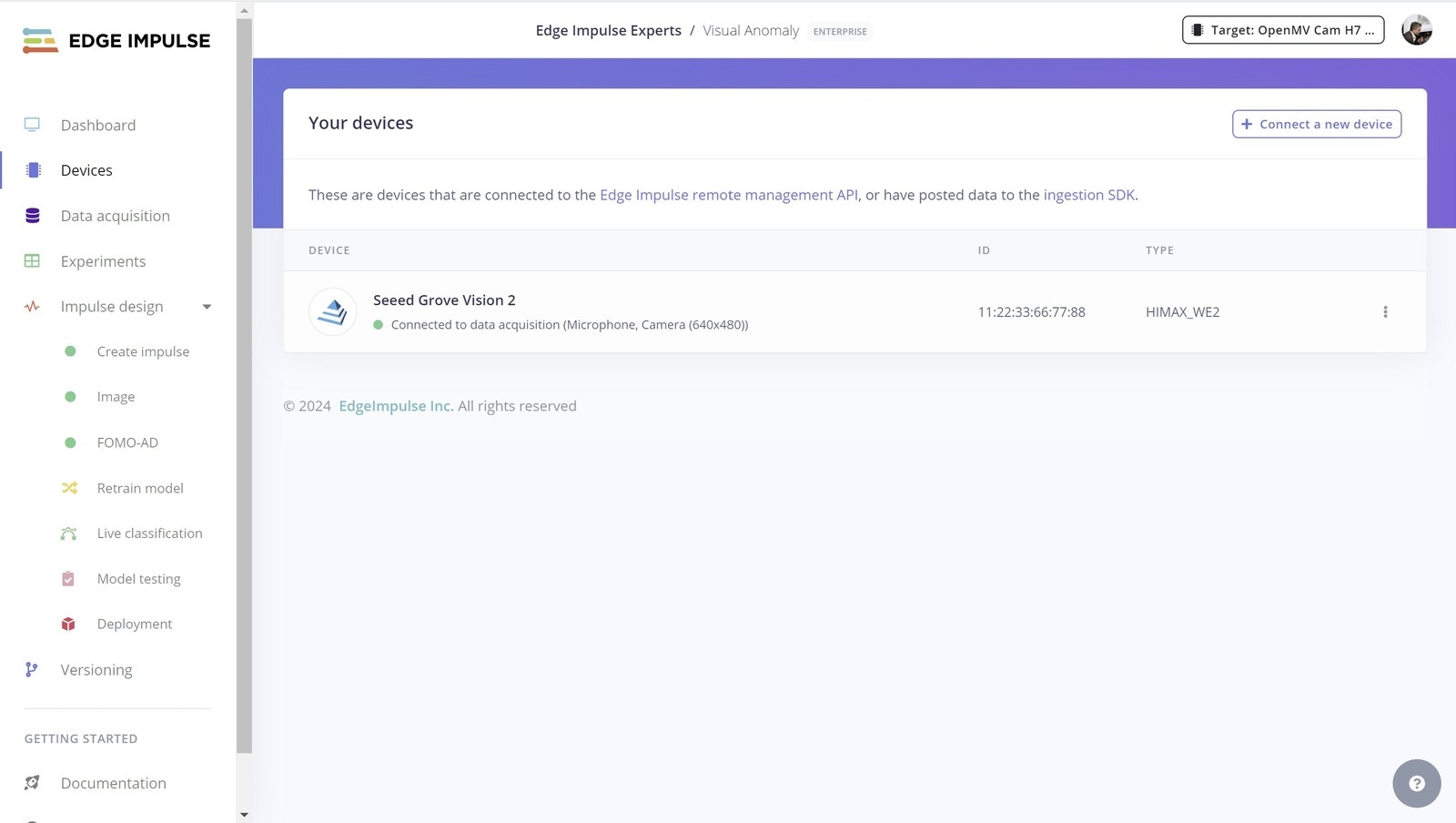

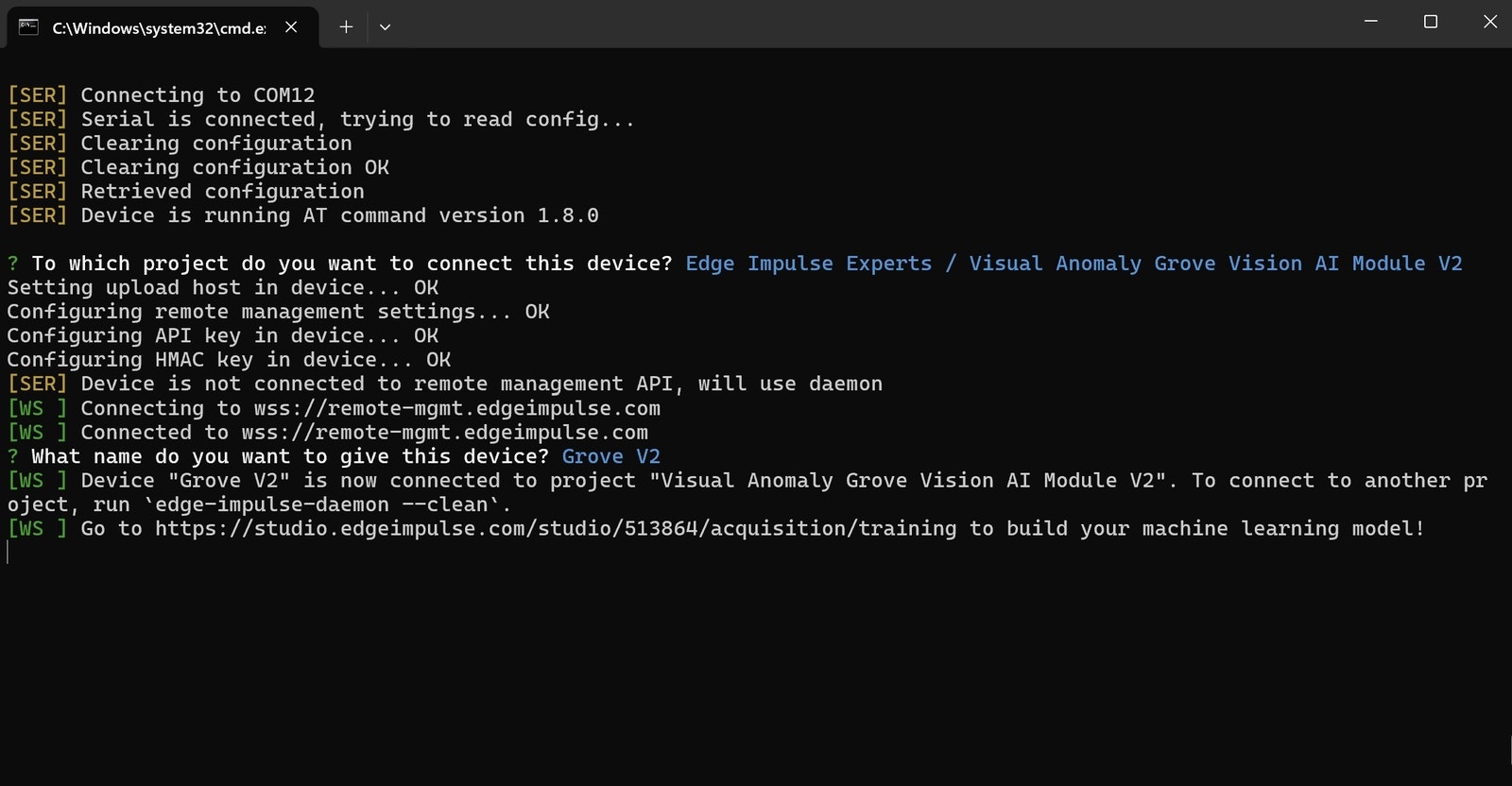

  1. Run edge-impulse-daemon, login to Edge Impulse, and select your project to start collecting data.

  • Sample around 100 pictures using no anomaly as the label.

  • Select Image Data, 96x96 pixels, "Squash" as the resize mode, and Visual Anomaly Detection as the Learn block.

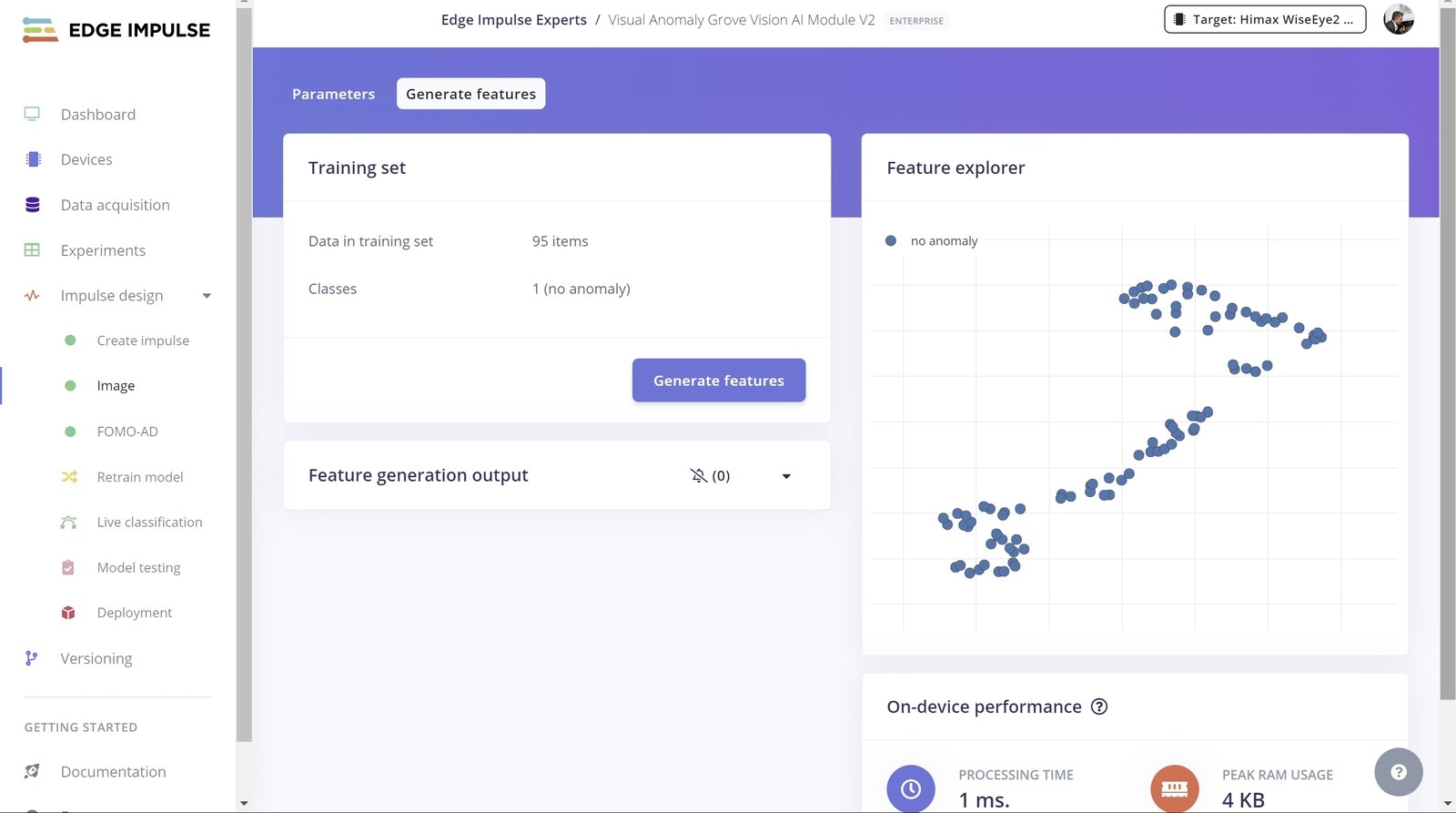

  • Select Image, RGB Image, Generate Features.

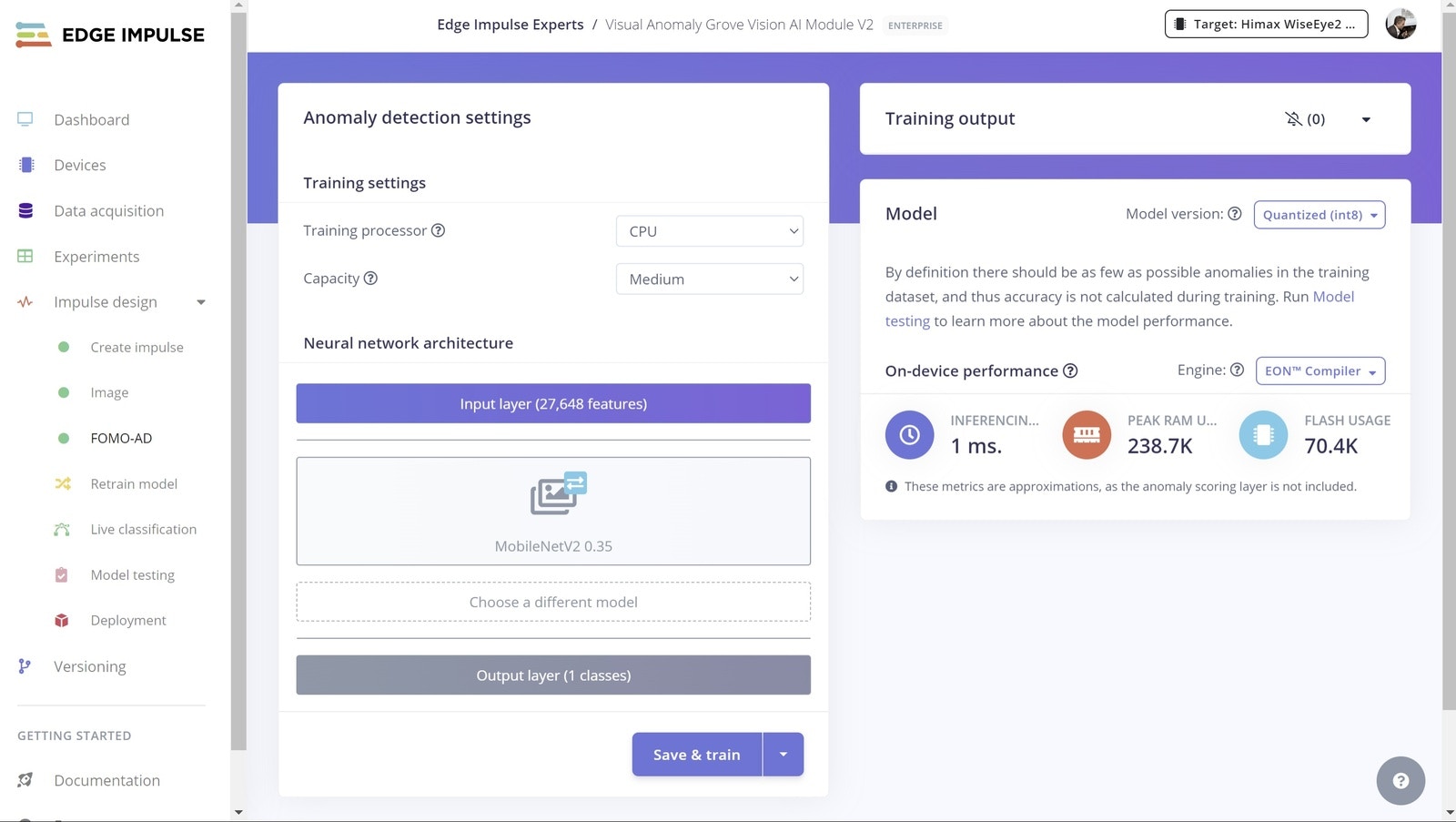

  1. On the Neural Network settings page, choose FOMO-AD as the architecture, and then select Medium capacity.

Capacity setting: the higher the capacity, the higher the number of Gaussian components, and the more adapted the model becomes to the original distribution.

There should not be any anomalies in the training dataset, as we are only interested in "good" examples, thus accuracy is not calculated here.

To calculate an F1 score, after the training has completed, you can upload a set of anomaly pictures and label them as anomaly.

Every learning block has a threshold. This can be the minimum confidence that a neural network needs to have, or the maximum anomaly score before a sample is tagged as an anomaly. You can configure these thresholds to tweak the sensitivity of these learning blocks. This affects both live classification as well as model testing.

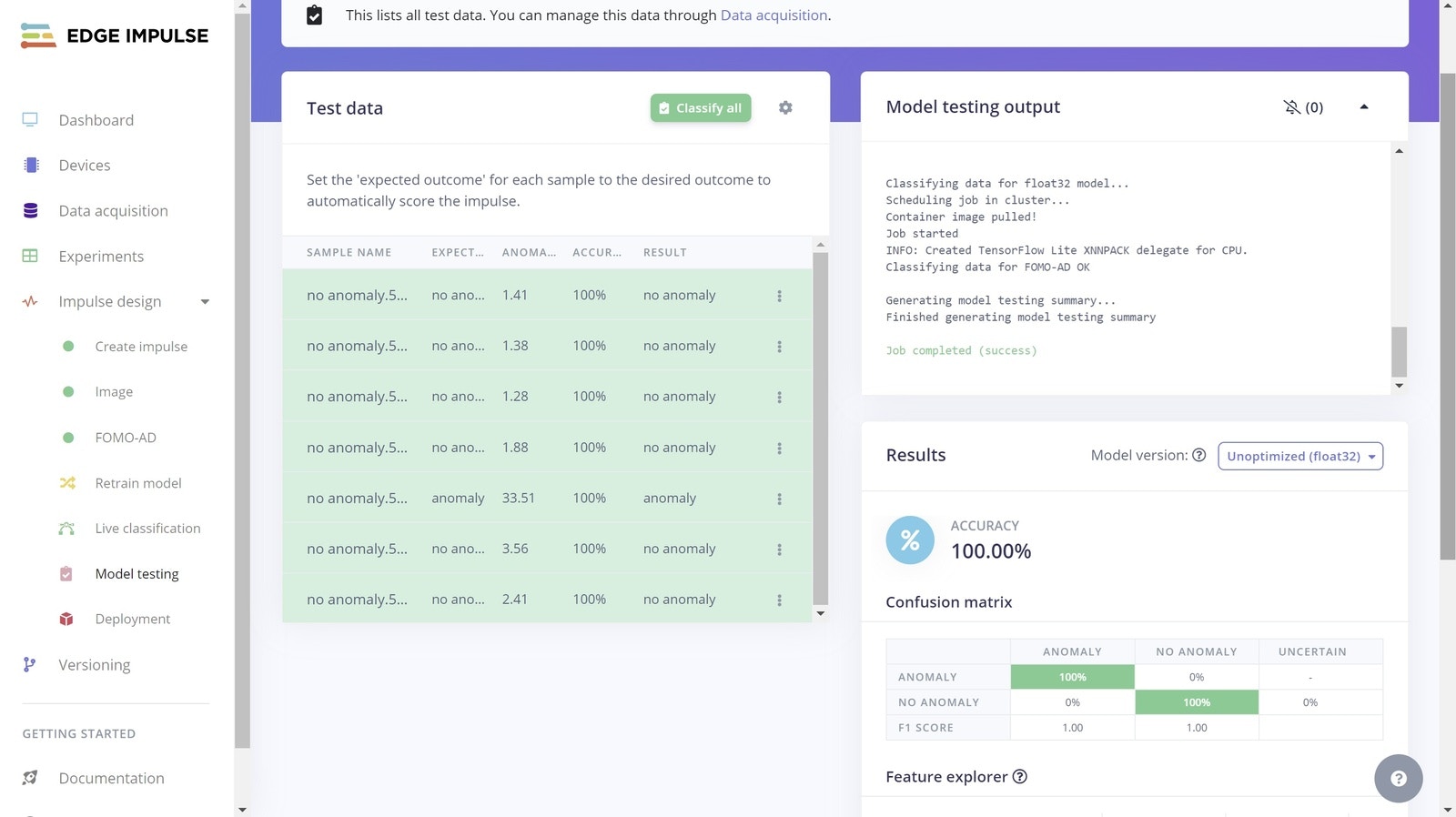

Then you can click Classify All and analyze both the global results and specific classifications.

Deployment

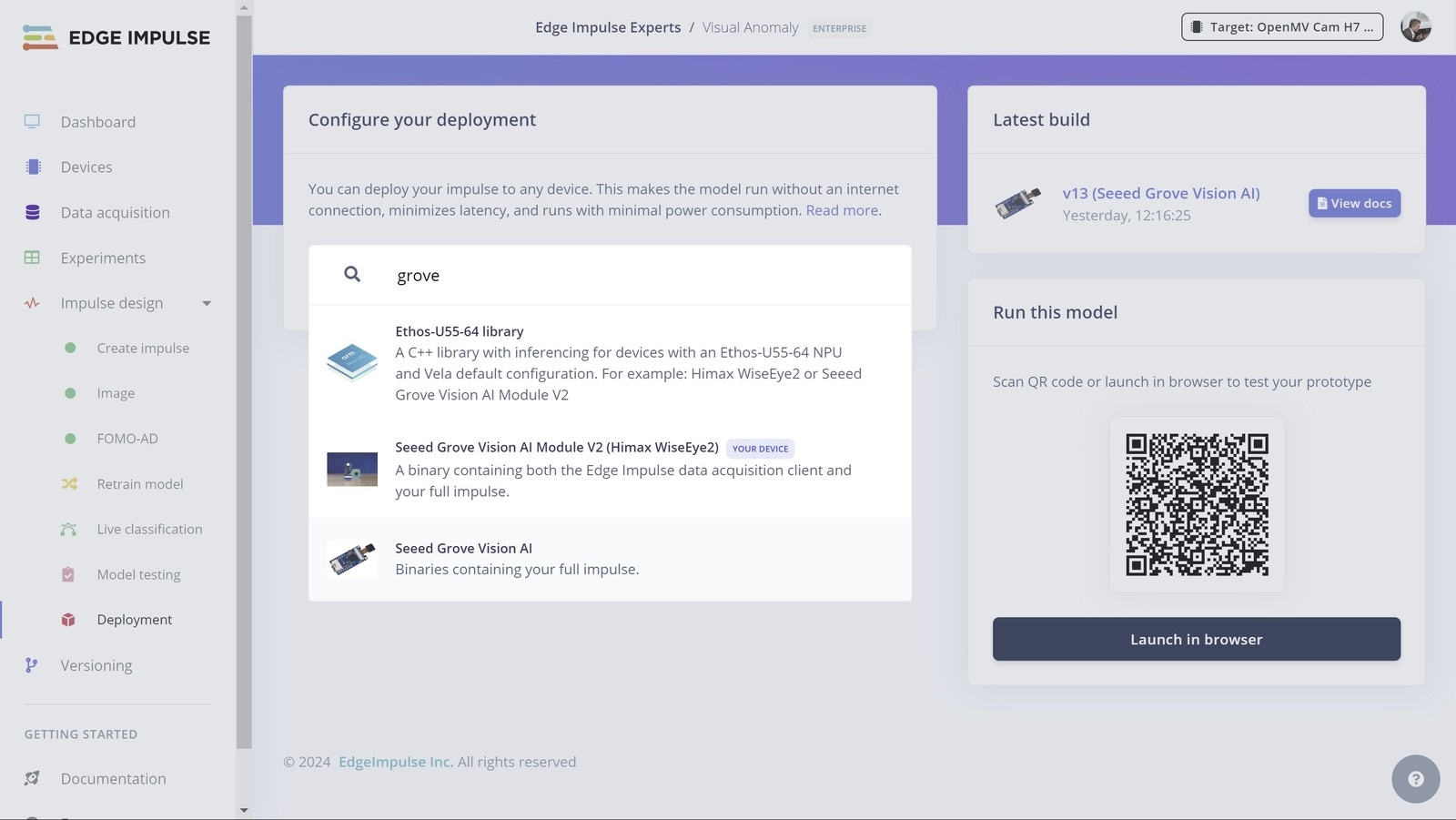

On the Deployment page, select Seeed Grove Vision AI Module V2.

Note: that there is also a Seeed Grove Vision AI for the previous version of the hardware. That should not be selected.

Download the .zip file by clicking Build, and then extract the contents. Connect the Grove Vision AI Module V2 to your computer using a USB-C cable.

Like before, run the flashing script inside of the extracted .zip file that corresponds to your OS. If you get a security warning, you will need to Allow or Accept in order to continue with the flashing of the device.

Now the Grove Vision AI Module V2 is ready to take pictures and identify visual anomalies.

Results

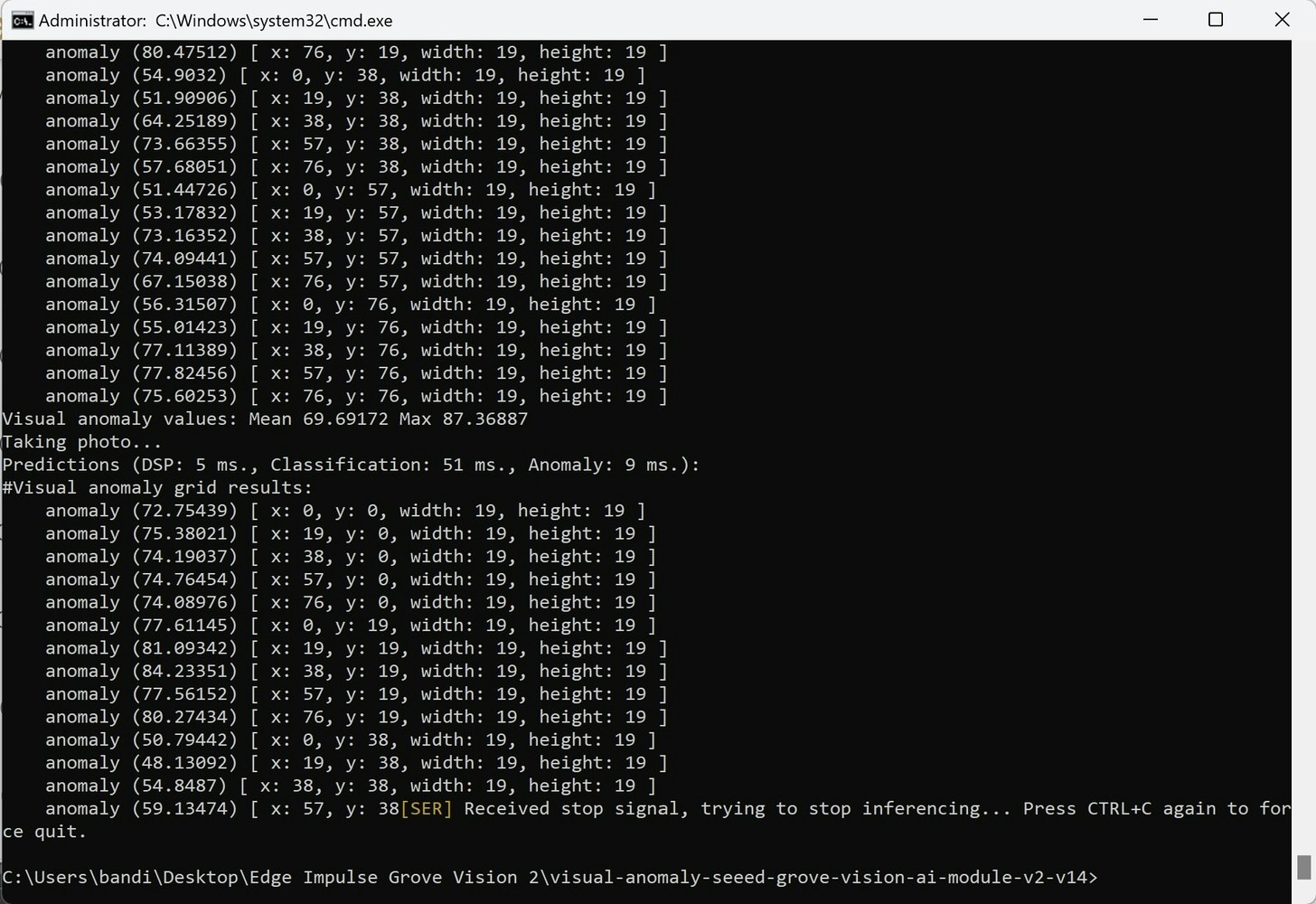

In a terminal, run edge-impulse-run-impulse, login to your Edge Impulse account, and you will notice the inferences begin in the terminal.

As you can see in the output, there is a grid to spot any anomalies per image sector, and there are also Mean and Max Anomaly scores for the entire picture.

Since we want to remove pieces automatically from the inspection line, we need a way to parse the Max Anomaly value and then move a servo arm.

Next, install these dependencies in your development environment:

pip install keyboard
pip install art

Then edit these settings:

outputFile = open('output.txt', 'w')  #file name used for parsing
arduino = serial.Serial(port='COM26', baudrate=115200, timeout=.1)  #configure here the USB port assigned to the Arduino Nano
discardLines=30  #how many lines to be discarted to avoid sending extra signals to servo arm
anomalyThreshold=85  #limit to consider an anomaly

Note: If you are going to use Linux, please remove shell=True and bufsize from the procedure call on line 35.

Run the script using: python anomalyParser.py

This script will call edge-impulse-run-impulse as a subprocess, parse the inference values being output, and send a serial signal to the arm unit made with an Arduino Nano and servo motor.

On the Arduino Nano, we will monitor the serial communication and if there is a 1 we will move the servo.

One issue I found is that having 2 USB devices connected will require a port selection to be made with edge-impulse-run-impulse. With the keyboard Python library, I'm just forcing an Enter for the first option - COM12 in my case - which is my Grove Module port. If you have a COM number higher than the COM assigned to the Arduino servo arm, just insert a down arrow before the "Enter".

Final Notes

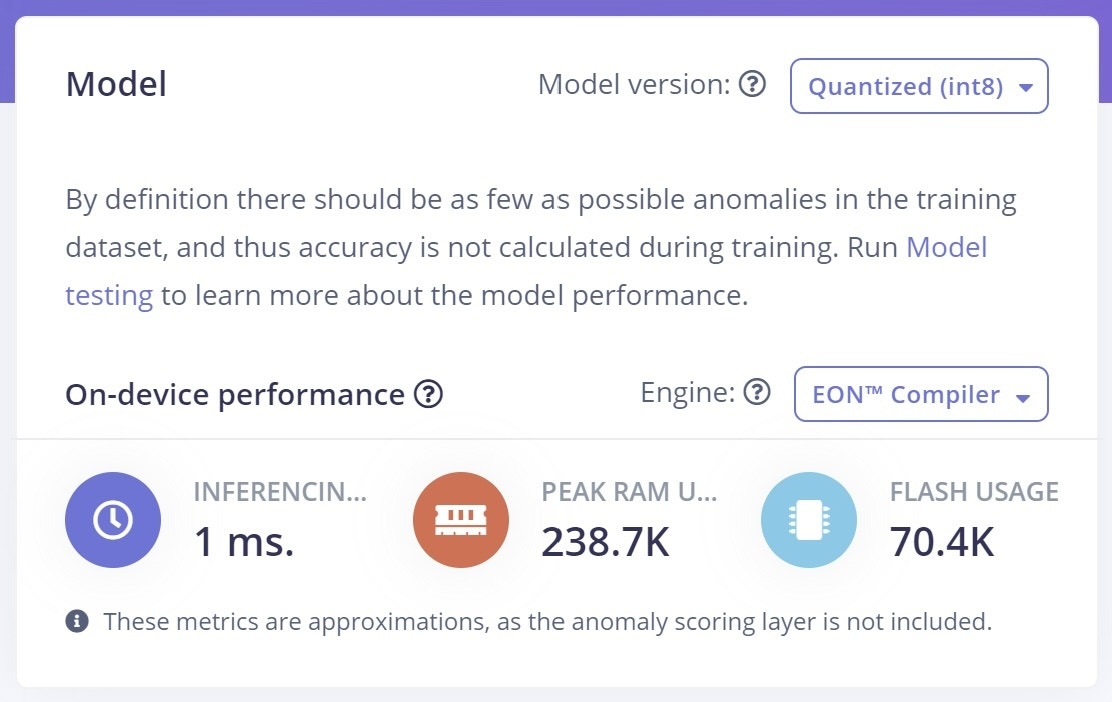

As we saw in this project, implementing automated visual anomaly detection for a production line is neither complicated nor expensive, as long as you have the right tools. For this project, using the Grove Vision AI Module V2 and Edge Impulse, data ingestion, model training, and firmware deployment were easy and straightforward. Being an inexpensive module, the Seeed Grove Vision AI V2 still delivers an impressive 1ms inference time.

Besides using this firmware method, you can also deploy the Edge Impulse model as an Arduino Library, add a XIAO ESP32 to the Grove Module V2, and set up a tiny offline, standalone Visual Anomaly Detection device.

Links

Demo video:

References

For this project I will use the . This module has a WiseEye2 HX6538 processor with a dual-core Arm Cortex-M55 and integrated Arm Ethos-U55 neural processing unit (NPU). It also has 16mb flash memory, a PDM microphone, SD card slot, USB Type-C, and Grove interface.

FOMO-AD requires an Enterprise version of Edge Impulse. To explore the capability, you can sign up for a free Enterprise Trial at , then create a new project named Visual Anomaly.

The Seeed Grove Vision AI V2 board does not come with Edge Impulse firmware out-of-the-box, so it will need to be flashed. To update the firmware, and extract it.

For Windows, (it is required later for the parsing script)

Install

For other OS'es, visit

I've put together some Python to get started with the process. Download anomalyParser.py from .

Project:

Source Code:

Seeed Grove Vision AI Module V2
https://studio.edgeimpulse.com/trial-signup
download this file
install Python 3
Node.js
https://docs.edgeimpulse.com/docs/tools/edge-impulse-cli/cli-installation
https://github.com/ronibandini/visualAnomalyGroveV2
https://studio.edgeimpulse.com/public/513864/live
https://github.com/ronibandini/visualAnomalyGroveV2
https://www.edge-ai-vision.com/2023/06/visual-anomaly-detection-with-fomo-ad-a-presentation-from-edge-impulse
https://docs.edgeimpulse.com/docs/edge-ai-hardware/mcu-+-ai-accelerators/himax-seeed-grove-vision-ai-module-v2-wise-eye-2#deploy-model-to-seeed-grove-vision-ai-module-v2-himax-wiseeye2
https://bandini.medium.com/ia-palomas-y-detecci%C3%B3n-de-anomal%C3%ADas-a9870850795a
https://studio.edgeimpulse.com/public/513864/live
https://github.com/ronibandini/visualAnomalyGroveV2
