Gesture Appliances Control with Pose Detection - BrainChip AKD1000

Created By: Christopher Mendez Public Project Link: https://studio.edgeimpulse.com/public/319871/latest

Introduction

Today more than ever we live with smart devices and personal assistants that work together to make our environment a more comfortable, efficient and personalized place. This project aims to contribute to the same field by suggesting a radical change in how we interact with smart things. Sometimes it can be inconvenient to have to ask a personal assistant to turn our appliances on or off. Because it’s simply too late at night to be talking, or because we’re watching our favorite movie and we don’t want annoying audio interrupting us. This is why I thought “What if we could control the whole house with just gestures?” It would be amazing to just point to the air conditioner and turn it on, turn off the light, and turn on our TV.

Hardware and Software Requirements

To develop this project we will use a BrainChip Akida Development Kit and a Logitech BRIO 4K Webcam, together with an Edge Impulse Machine Learning model for pose identification.

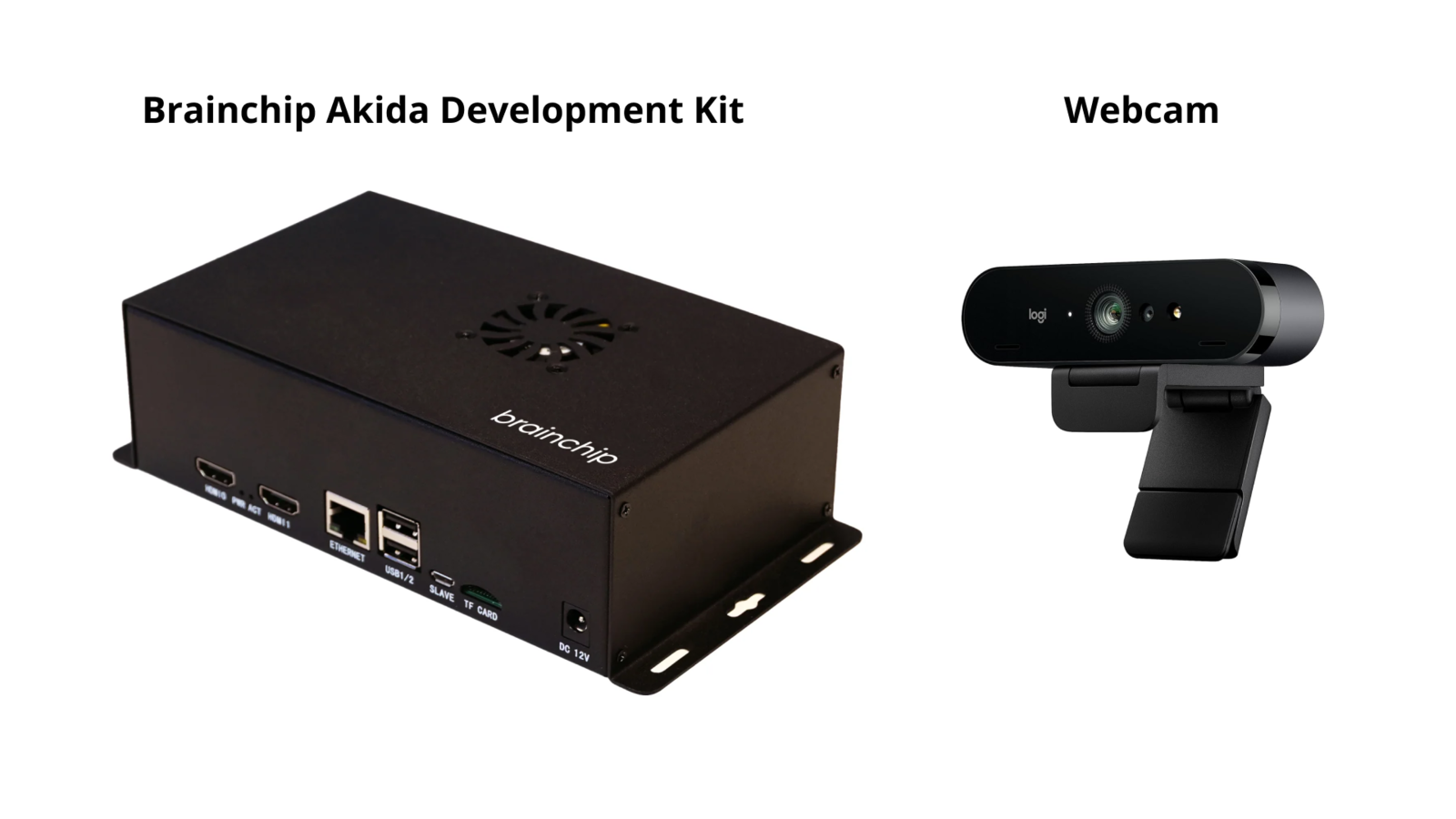

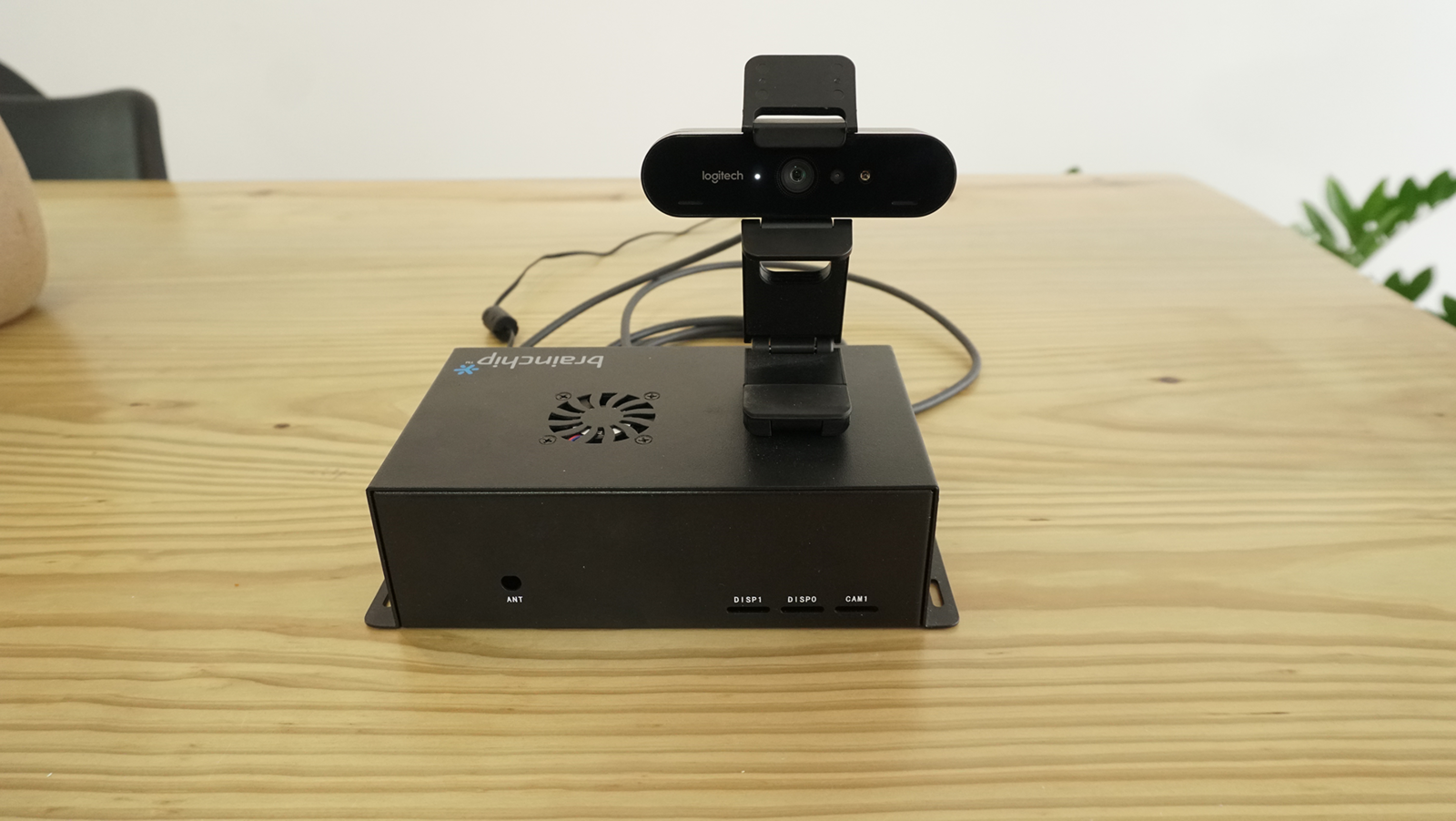

Hardware required for the project

Akida Dev Kit

It should be noted that this kit is the main component of this project thanks to some interesting characteristics that make it ideal for this use case. This kit consists of a Raspberry Pi Compute Module 4 with Wi-Fi and 8 GB RAM, also its IO Board, which includes a PCIe interface to carry an Akida PCIe board with the AKD1000 Neuromorphic Hardware Accelerator. Considering that our project will end up being one more smart device that we will have at home, it’s crucial that it can do its job efficiently and with very low energy consumption. This is where BrainChip’s technology makes sense. Akida™ neuromorphic processor mimics the human brain to analyze only essential sensor inputs at the point of acquisition—processing data with unparalleled performance, precision, and economy of energy.

Software

The whole system will be running independently identifying poses, if a desired pose is detected it will send an HTTP request to the Google Assistant SDK being hosted by a Raspberry Pi with Home Assistant OS.

Setting up the Development Environment

The system comes with the basic requirements installed to run machine learning models using Akida processor acceleration. Once the system is powered up and connected to the internet (I used an ethernet cable), you can access it by an SSH connection: you will need to know the device’s local IP address, in my case, I got it from the list of connected devices of my router.

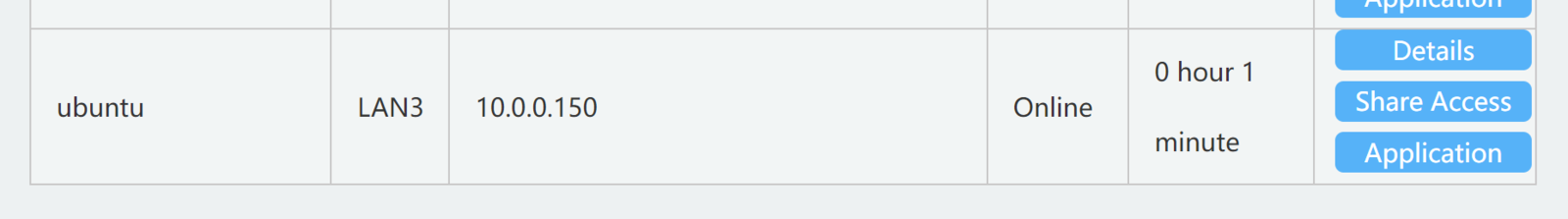

Device IP Address

To verify the device is working properly, you can try an included demo by navigating to http://<your_kit_IP>, in my case to http://10.0.0.150 and try some of the examples:

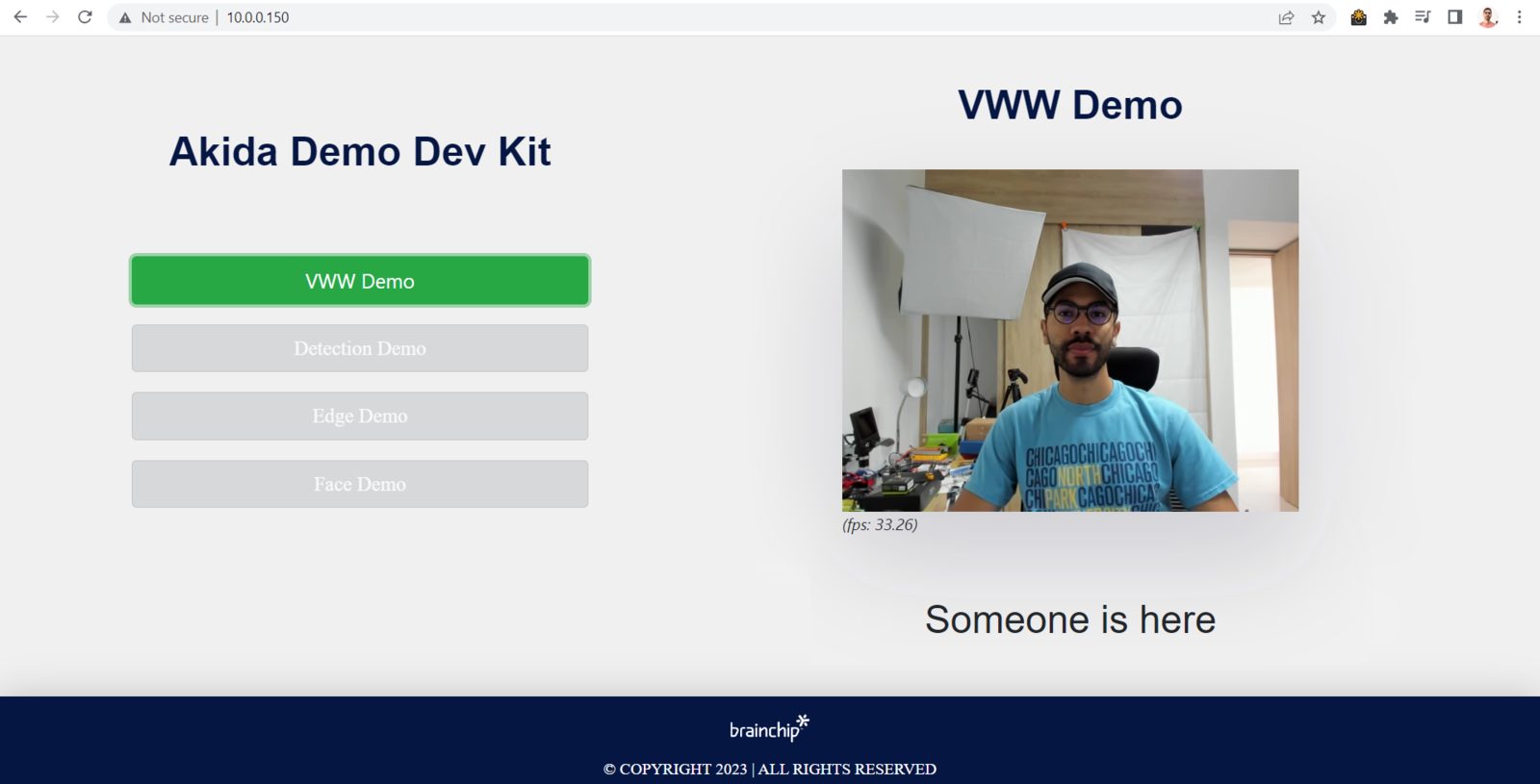

Built-in demo running

To start setting up the device for a custom model deployment, let’s verify we have installed all the packages we need. I am using Putty for the SSH connection. Log in using the Administrator credentials, in this case, the username is ubuntu and the password is brainchip. Once inside you will be able to install some required dependencies: Running the built-in demos ensures us that the system already recognizes the Akida package and the PCIe drivers for the AKD1000, but we can verify it by running the following commands:

bash
pip show akida # will show the installed version.
lspci | grep Co-processor # will check if the PCIe card is plugged in correctly.
python3 --version # will check the installed Python version (3.8 is required).

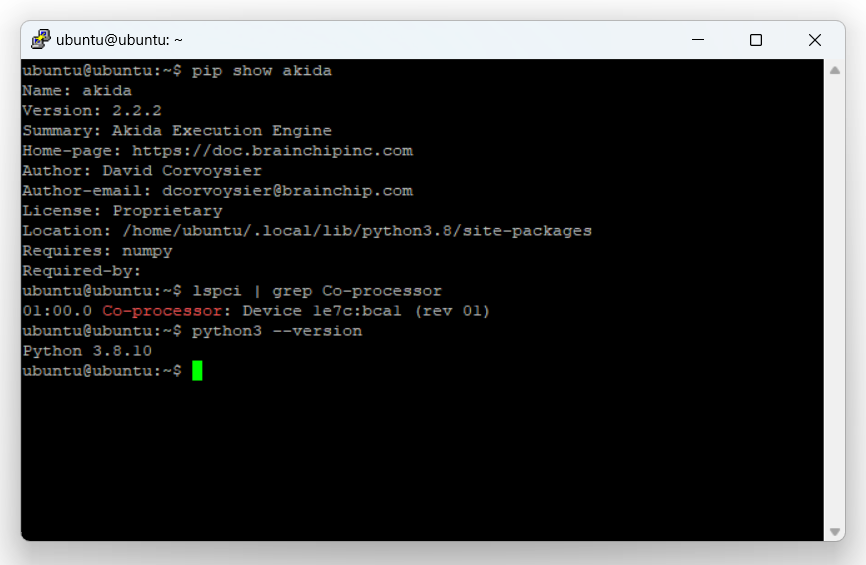

Verifying packages

You will also need Node Js v14.x to be able to use the Edge Impulse CLI. Install it by running these commands:

bash
curl -sL https://deb.nodesource.com/setup_14.x | sudo -E bash -
sudo apt-get install -y nodejs
node -v

The last command should return the node version, v14 or above. Finally, let’s install the Linux Python SDK, you just need to run these commands:

bash
sudo apt-get install libatlas-base-dev libportaudio0 libportaudio2 libportaudiocpp0 portaudio19-dev
pip3 install edge_impulse_linux -i https://pypi.python.org/simple

As we are working with computer vision, we will need “opencv-python>=4.5.1.48, “PyAudio”, “Psutil”, and “Flask”

Data Collection

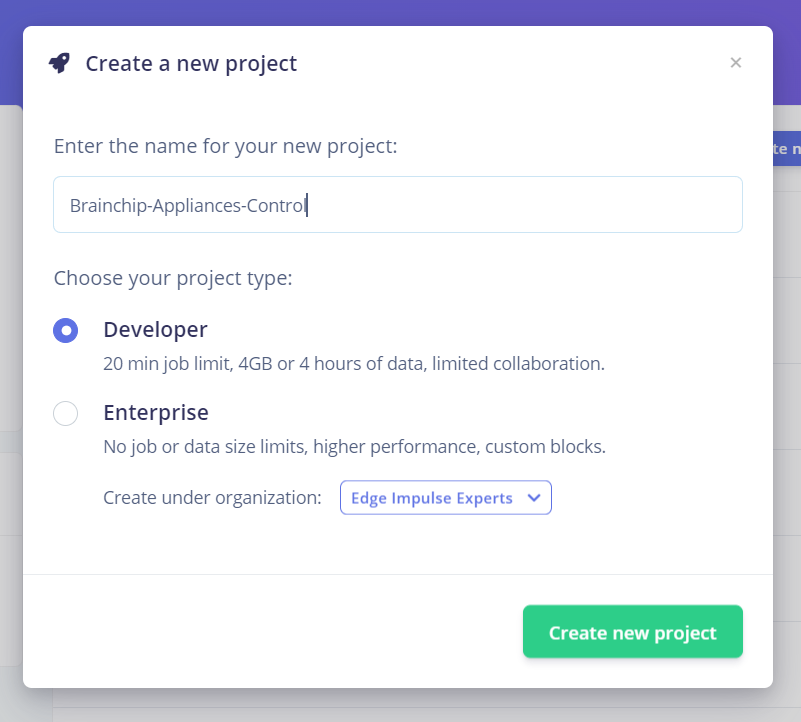

First, we need to create an Edge Impulse Studio account if we haven’t yet, and create a new project:

New project creation

For the creation of the dataset of our model, we have two options, uploading the images from the BrainChip Development Kit or using our computer or phone. In this case, I chose to take them from the computer using the same webcam that we are finally going to use in the project.

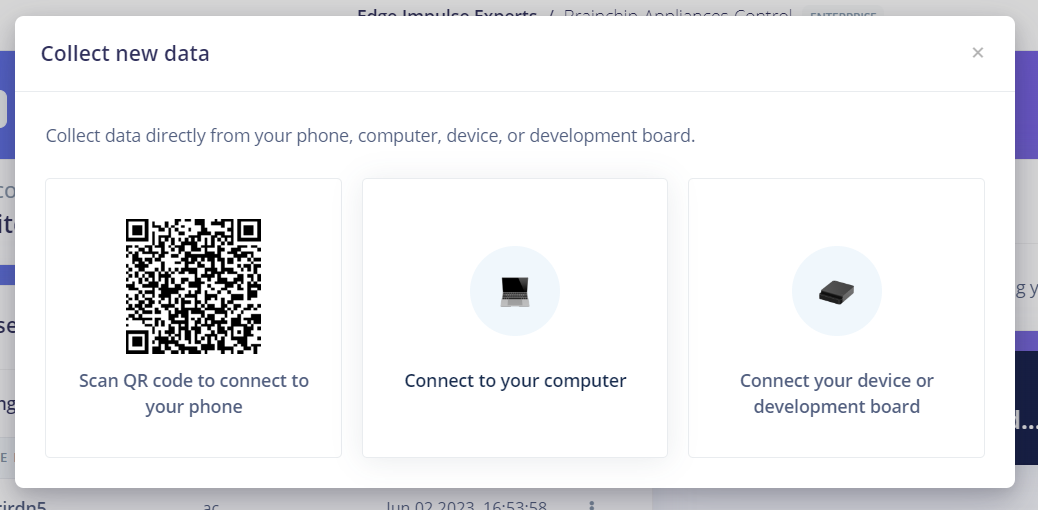

Dataset creating source

The dataset consists of 3 classes in which we finger point each appliance and a last one of unknown cases.

Raw image & PoseNet output

Taking at least +50 pictures of each class will let you create a robust enough model

Impulse Design

After having the dataset ready, it is time to define the structure of the model. In the left side menu, we navigate to Impulse design > Create impulse and define the following settings for each block, respectively:

Input block (Image data):

Image width: 192
Image height: 192
Resize mode: Fit longest

Processing block (PoseNet):

Use this block to turn raw images into pose vectors, then pair it with an ML block to detect what a person is doing. PoseNet processing block is just enabled for Enterprise projects, if we want to use it on a Developer one, we need to locally run the block, for this, you must clone the PoseNet block repository and follow the README steps. You will end up with an URL similar to “https://abe7-2001-1308-a2ca-4f00-e65f-1ff-fe27-d3aa.ngrok-free.app” hosting the processing block, click on Add a processing block > Add custom block, then paste the ngrok generated URL, and click on Add block.

Adding a Custom Block

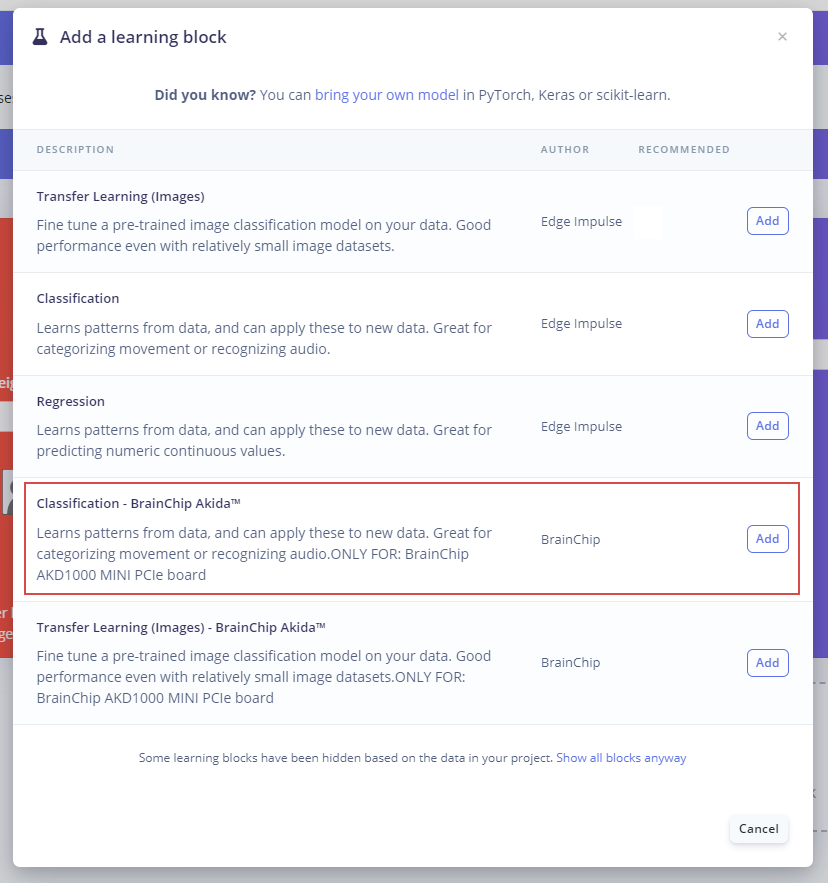

Learning block (BrainChip Akida)

To classify the features extracted from the different poses, we’ll use a classification learn block specifically designed for the hardware we’re using.

Adding a Custom Block

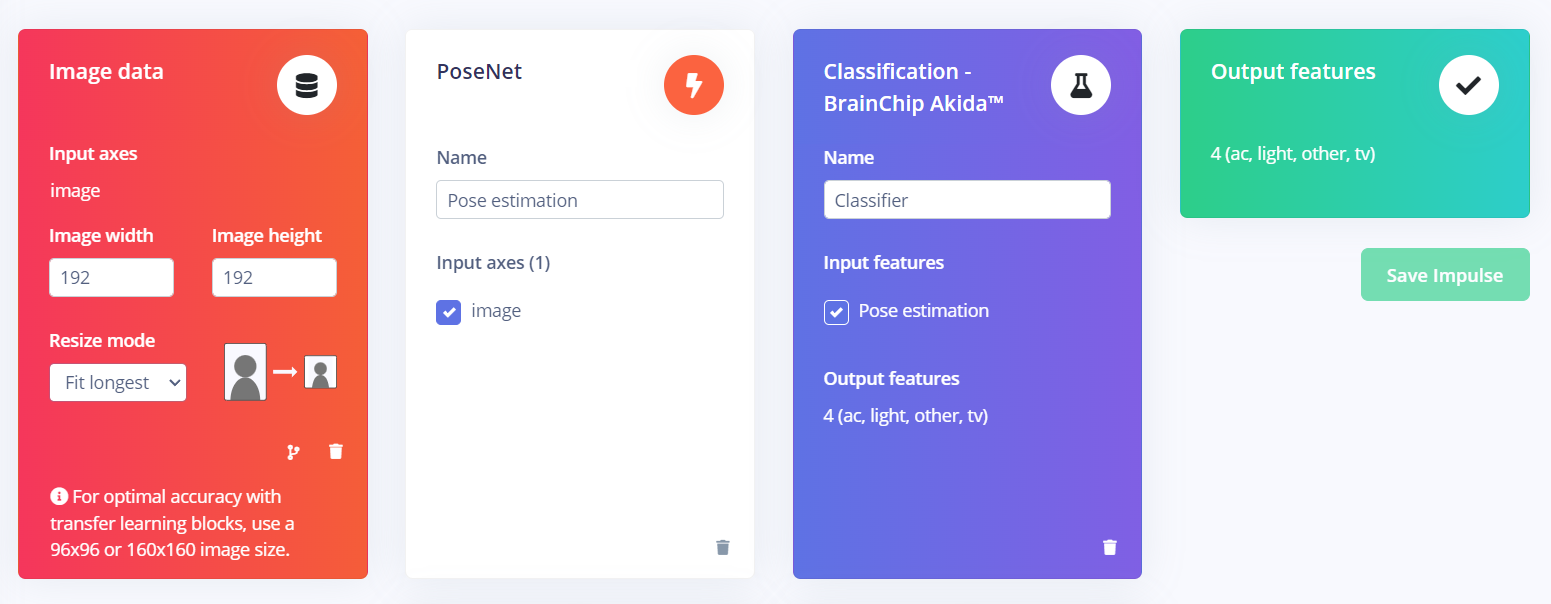

Finally, we save the Impulse design, it should end up looking like this:

Adding a Custom Block

Model Training

After having designed the impulse, it’s time to set the processing and learning blocks. The Pose estimation block doesn’t have any configurable parameters, so we just need to click on Save parameters and then Generate features. In the classifier block define the following settings:

Number of training cycles: 100
Learning rate: 0.001

In the Neural network architecture, add 3 Dense layers with 35, 25 and 10 neurons respectively. Here is the architecture “Expert mode” code (you can copy and paste it from here):

python
import tensorflow as tf
from tensorflow.keras.models import Sequential
from tensorflow.keras.layers import Dense, InputLayer, Dropout, Conv1D, Conv2D, Flatten, Reshape, MaxPooling1D, MaxPooling2D, AveragePooling2D, Rescaling, BatchNormalization, Permute, ReLU, Softmax
from tensorflow.keras.optimizers.legacy import Adam
EPOCHS = args.epochs or 100
LEARNING_RATE = args.learning_rate or 0.001
# this controls the batch size, or you can manipulate the tf.data.Dataset objects yourself
BATCH_SIZE = 32
train_dataset = train_dataset.batch(BATCH_SIZE, drop_remainder=False)
validation_dataset = validation_dataset.batch(BATCH_SIZE, drop_remainder=False)

# model architecture
model = Sequential()
#model.add(Rescaling(7.5, 0))
model.add(Dense(35,
    activity_regularizer=tf.keras.regularizers.l1(0.00001)))
model.add(ReLU())
model.add(Dense(25,
    activity_regularizer=tf.keras.regularizers.l1(0.00001)))
model.add(ReLU())
model.add(Dense(10,
    activity_regularizer=tf.keras.regularizers.l1(0.00001)))
model.add(ReLU())
model.add(Dense(classes, name='y_pred'))
model.add(Softmax())

# this controls the learning rate
opt = Adam(learning_rate=LEARNING_RATE, beta_1=0.9, beta_2=0.999)
callbacks.append(BatchLoggerCallback(BATCH_SIZE, train_sample_count, epochs=EPOCHS))

# train the neural network
model.compile(loss='categorical_crossentropy', optimizer=opt, metrics=['accuracy'])
model.fit(train_dataset, epochs=EPOCHS, validation_data=validation_dataset, verbose=2, callbacks=callbacks)

import tensorflow as tf


def akida_quantize_model(
    keras_model,
    weight_quantization: int = 4,
    activ_quantization: int = 4,
    input_weight_quantization: int = 4,
):
    import cnn2snn

    print("Performing post-training quantization...")
    akida_model = cnn2snn.quantize(
        keras_model,
        weight_quantization=weight_quantization,
        activ_quantization=activ_quantization,
        input_weight_quantization=input_weight_quantization,
    )
    print("Performing post-training quantization OK")
    print("")

    return akida_model


def akida_perform_qat(
    akida_model,
    train_dataset: tf.data.Dataset,
    validation_dataset: tf.data.Dataset,
    optimizer: str,
    fine_tune_loss: str,
    fine_tune_metrics: "list[str]",
    callbacks,
    stopping_metric: str = "val_accuracy",
    fit_verbose: int = 2,
    qat_epochs: int = 200,
):
    early_stopping = tf.keras.callbacks.EarlyStopping(
        monitor=stopping_metric,
        mode="max",
        verbose=1,
        min_delta=0,
        patience=10,
        restore_best_weights=True,
    )
    callbacks.append(early_stopping)

    print("Running quantization-aware training...")
    akida_model.compile(
        optimizer=optimizer, loss=fine_tune_loss, metrics=fine_tune_metrics
    )

    akida_model.fit(
        train_dataset,
        epochs=qat_epochs,
        verbose=fit_verbose,
        validation_data=validation_dataset,
        callbacks=callbacks,
    )

    print("Running quantization-aware training OK")
    print("")

    return akida_model


akida_model = akida_quantize_model(model)
akida_model = akida_perform_qat(
    akida_model,
    train_dataset=train_dataset,
    validation_dataset=validation_dataset,
    optimizer=opt,
    fine_tune_loss='categorical_crossentropy',
    fine_tune_metrics=['accuracy'],
    callbacks=callbacks)

Click on the Start training button and wait for the model to be trained and the confusion matrix to show up.

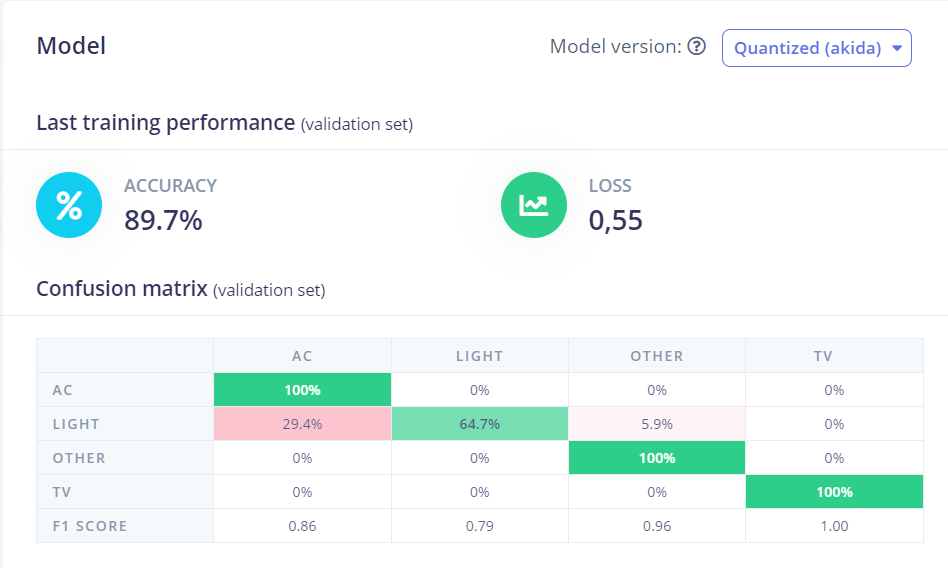

Confusion Matrix

Confusion matrix results

The results of the confusion matrix can be improved by adding more samples to the dataset.

Project Setup

To be able to run the project, we need to go back to our SSH connection with the device and clone the project from the Github repository, for this, use the following command:

bash
git clone https://github.com/edgeimpulse/pose-akida-classification.git

Install all the project requirements with the following command, and wait for the process to be done.

bash
pip install -r requirements.txt

Install these other required packages with:

bash
apt-get update && apt-get install ffmpeg libsm6 libxext6  -y

Deployment

Once the project is cloned locally in the Akida Development Kit, you can download the project model from Edge Impulse Studio by navigating to the Dashboard section and downloading the MetaTF .fbz file.

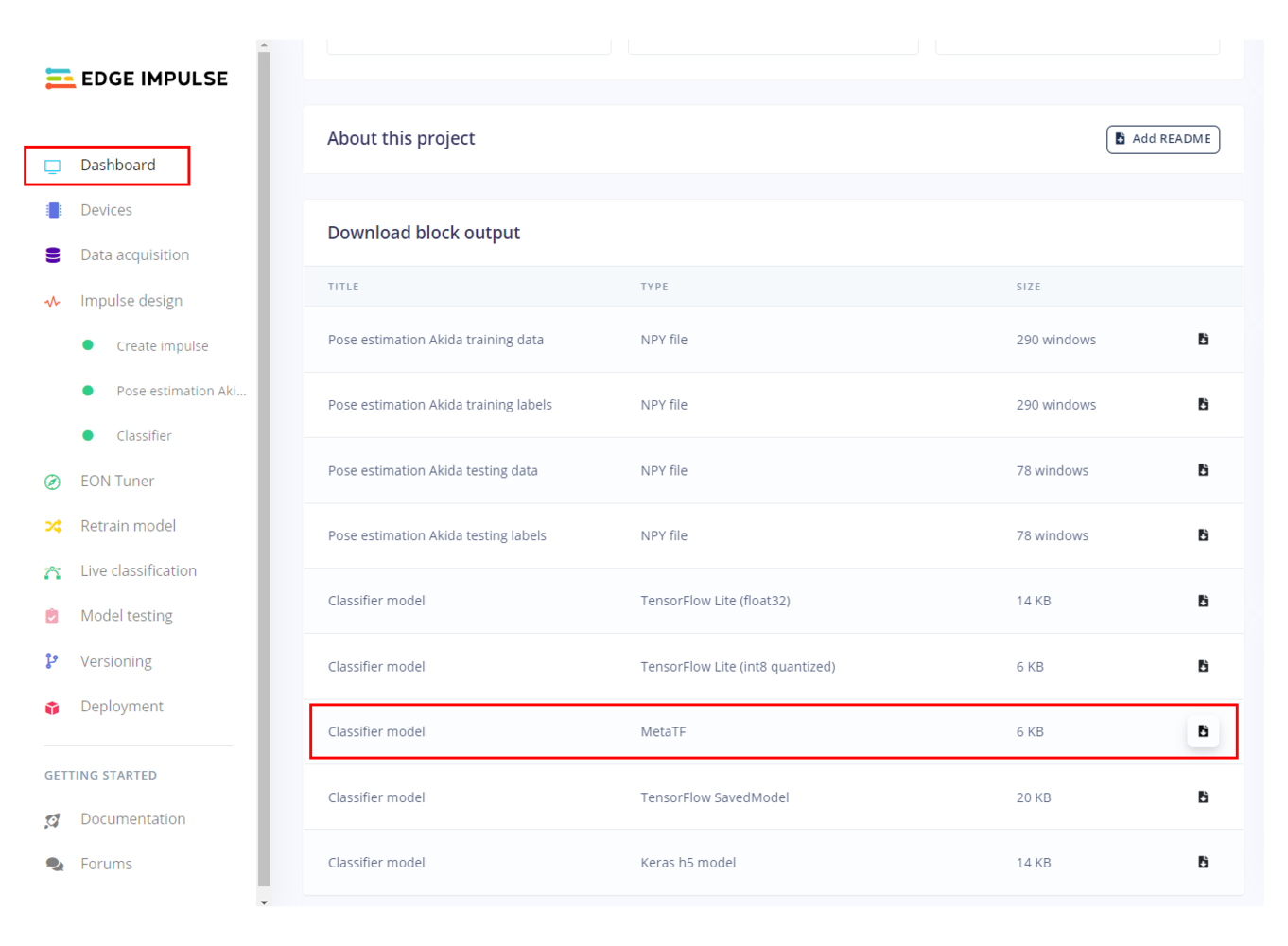

Downloading the project model

Once downloaded, from the model path, open a new terminal and copy the model to the Dev Kit using scp command as follows:

bash
scp <model file>.fbz ubuntu@<Device IP>:~ # command format
scp akida_model.fbz ubuntu@10.0.0.154:~ # actual command in my case

You will be asked for your Linux machine login password.

Now, the model is on the Akida Dev Kit local storage (/home/ubuntu) and you can verify it by listing the directory content using ls. Move the model to the project directory with the following command:

bash
mv akida_model.fbz ./pose-akida-classification/

Here we have the model on the project directory, so now everything is ready to be run.

Project directory

Run Inferencing

To run the project, type the following command:

bash
python3 class-pose.py akida_model.fbz 0

The first parameter class-pose.py is the project’s main script to be run.
akida_model.fbz is the Meta TF model name we downloaded from our Edge Impulse project.
0 force the script to use the first camera available.

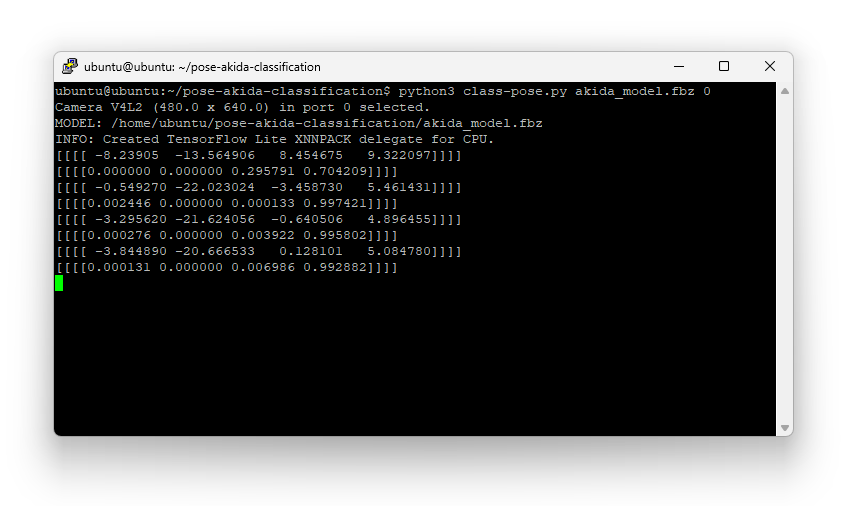

The project will start running and printing the inference results continuously in the terminal.

Project running and printing the results

To watch a preview of the camera feed, you can do it by opening a new ssh session and running the make-page.py script from the project directory:

bash
python3 make-page.py

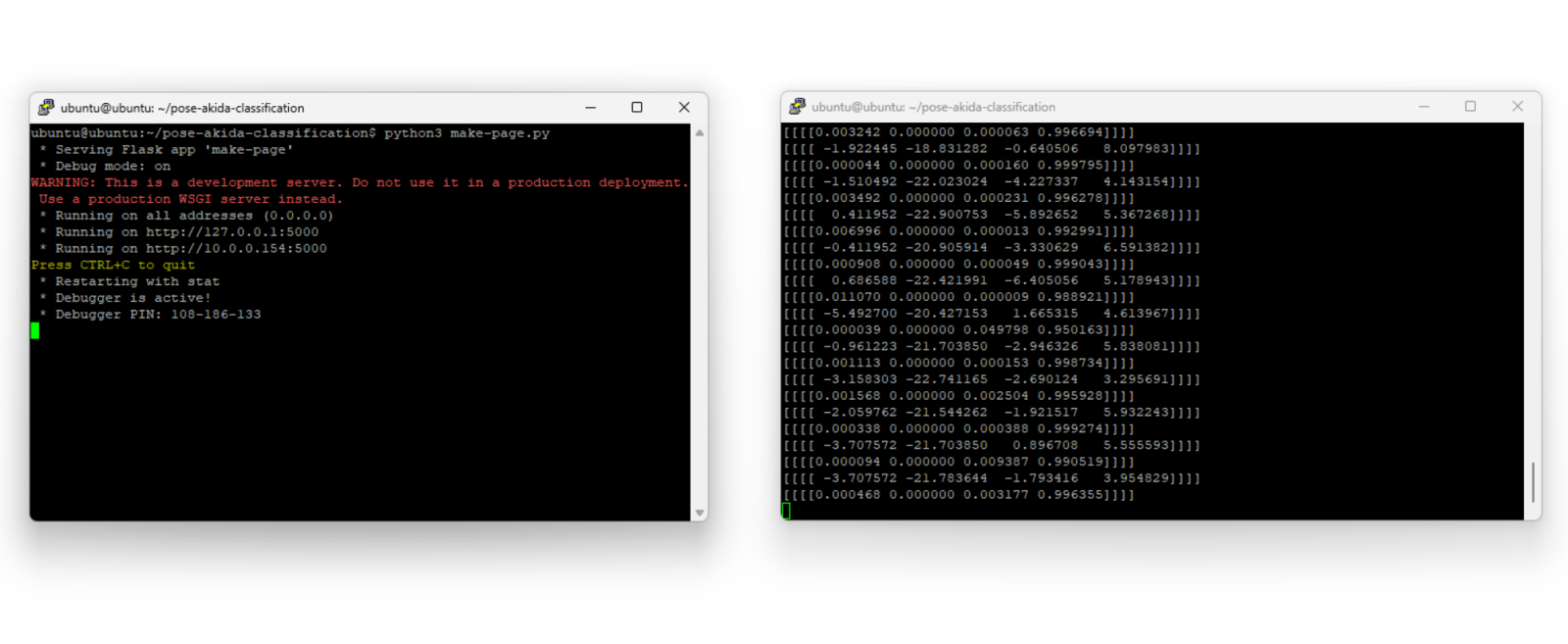

Preview Web Page script command

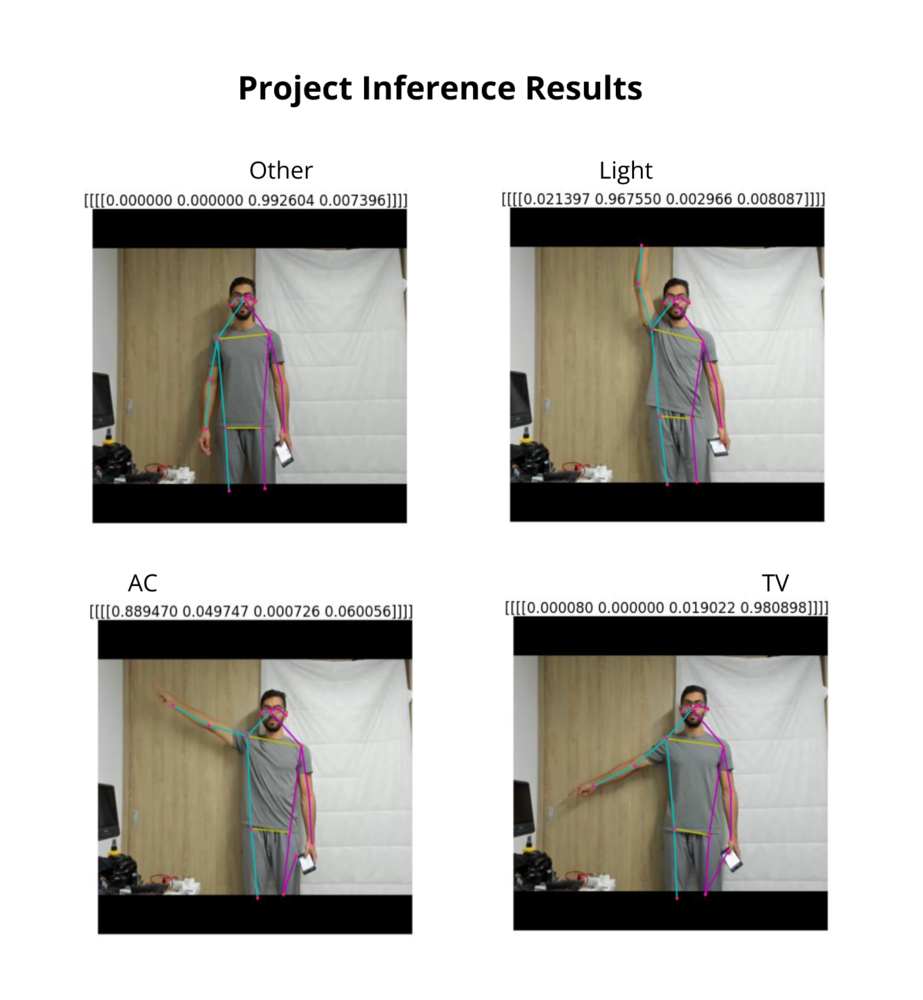

Finally, you will be able to see the camera preview alongside the inference results organized in the following order: AC, Light, Other and TV.

Project running | Inference results

Google Assistant Setup

For the actual appliance control, I used the Google Assistant SDK integration for Home Assistant. Follow the documentation to configure it for your setup.

The Home Assistant is running on a separate Raspberry PI.

Once the integration is set, we can send HTTP requests to it with the following format:

URL: http://<Raspberry Pi IP>:8123/api/services/google_assistant_sdk/send_text_command
Headers:
- Authorization: "Bearer"
- Content-Type: "application/json"
Body: {"command":"turn on the light"}

You must edit the url and auth variables in the code with the respective ones of your setup.

python
url = 'http://<Raspberry Pi IP>:8123/api/services/google_assistant_sdk/send_text_command'
auth = 'Bearer ******************************************************************************'

Demo

Final project deployment

Here I show you the whole project working and controlling appliances when they are pointed.

Conclusion

This project leverages the Brainchip Akida Neuromorphic Hardware Accelerator to propose an innovative solution to home automation. It can be optimized to work as a daily used gadget that may be at everyone’s house in the near future.
