Build a customized exercise classification ML model and deploy it to the Bangle.js smartwatch.
Last updated
Created By: Thomas Vikström
Public Project Link: https://studio.edgeimpulse.com/public/544247/latest
This tutorial demonstrates how to use Edge Impulse to classify various exercises or daily activities. This project uses the Bangle.js 2 programmable smartwatch, but any programmable smartwatch with an accelerometer and TensorFlow Lite support can be used if you replicate the Bangle app accordingly.
Extensive evidence suggests that lifelong exercise extends health span and delays the onset of 40 chronic conditions and diseases. The health benefits of doing regular exercise have been shown in many studies. For instance, one study highlights how physical activity reduces stress and anxiety, boosts mood, improves self-confidence, sharpens memory, and strengthens muscles and bones. It also helps in preventing and reducing heart disease, obesity, blood sugar fluctuations, cardiovascular diseases and cancer.
While some of us exercise intuitively without technology, others, like me, find motivation in tracking statistics and trends using devices like smartwatches or smart rings. Any decent smartwatch today uses GPS, accelerometer, gyro meter and other sensors to collect different types of data and consolidates this data into activity summaries. They perform exceptionally well with correctly classifying long repetitive exercises like running and walking outdoors or on a treadmill, skiing, cycling, rowing, etc. Where several of them still have room for improvement though, is correctly classifying the many different activities you might be performing in a gym. I've been a Garmin fan for over 10 years, and is is currently on my fourth Garmin sport watch, but none of them can consistently correctly classify gym activities, even if all of the watches are considered premium sport watches.

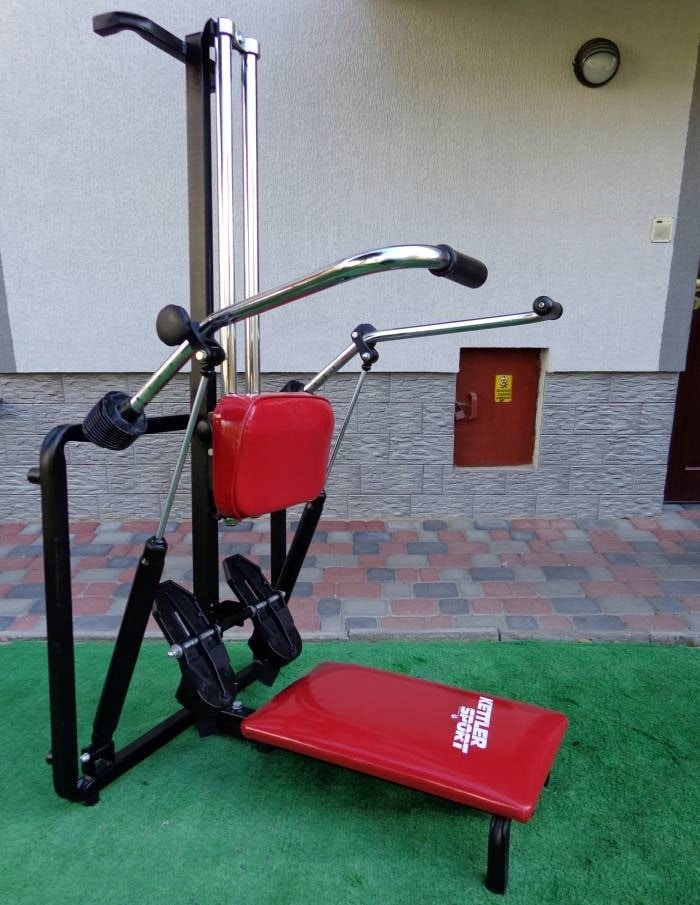

Last winter I started working out with my three-decades-old Kettler Sport Variant home gym, and it bothered me that I needed to constantly switch activities on my Garmin watch when I changed from one activity to another, especially as I like to avoid longer monotonous repetitions. This made me wonder if I come up with my own solution with machine learning. Since I have experience with using Tensorflow Lite on the affordable Bangle.js smartwatch, I thought I could at least try.
The result is an app where you first collect exercise training data for export to Edge Impulse, and after uploading a trained ML-model just click on Exercise to let the watch classify all different exercises you're performing and the length of them. Afterwards you can upload the collected data to e.g. Excel for further analysis or storage.

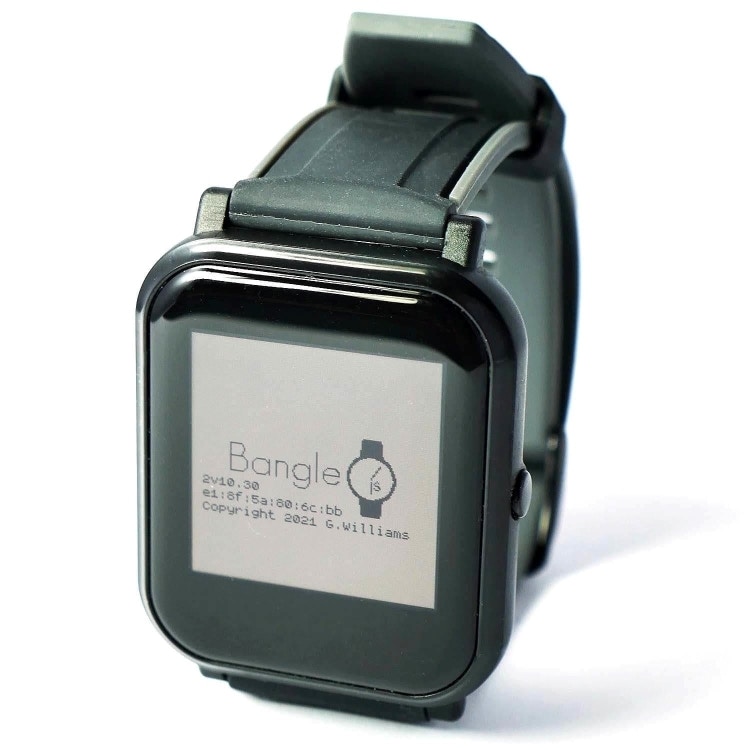

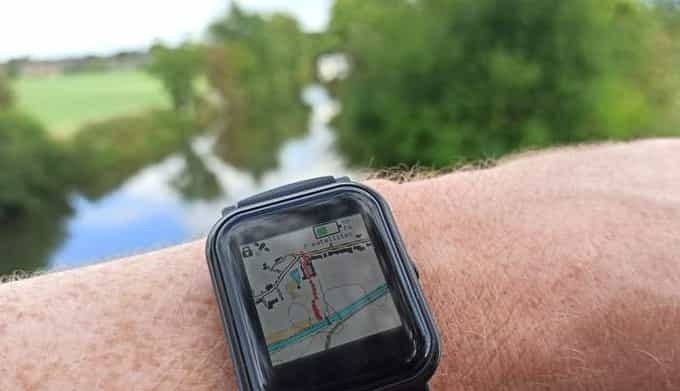

A programmable smartwatch supporting Tensorflow Lite, in this case I used Bangle.js 2 which is slightly under €100 (with taxes).
A computer supporting Bluetooth Low Energy (BLE). More or less any computer manufactured the last decade is equipped with BLE, but there are also BLE-adapters with USB-connector for older computers.
Depending on the activities you plan to do, you might need shoes for walking/running outdoors, gym equipment, kettle bells etc. If you go to a gym, they probably have all the exercise equipment you need.
There's practically nothing to configure hardware wise! Although Bangle isn't in the same premium class as Apple or Samsung watches, the initial experience is quite similar—everything usually works seamlessly out of the box, making it easy to get started. Do read the Getting Started guide though.
By following the getting started steps you'll learn how to develop apps on the smartwatch.

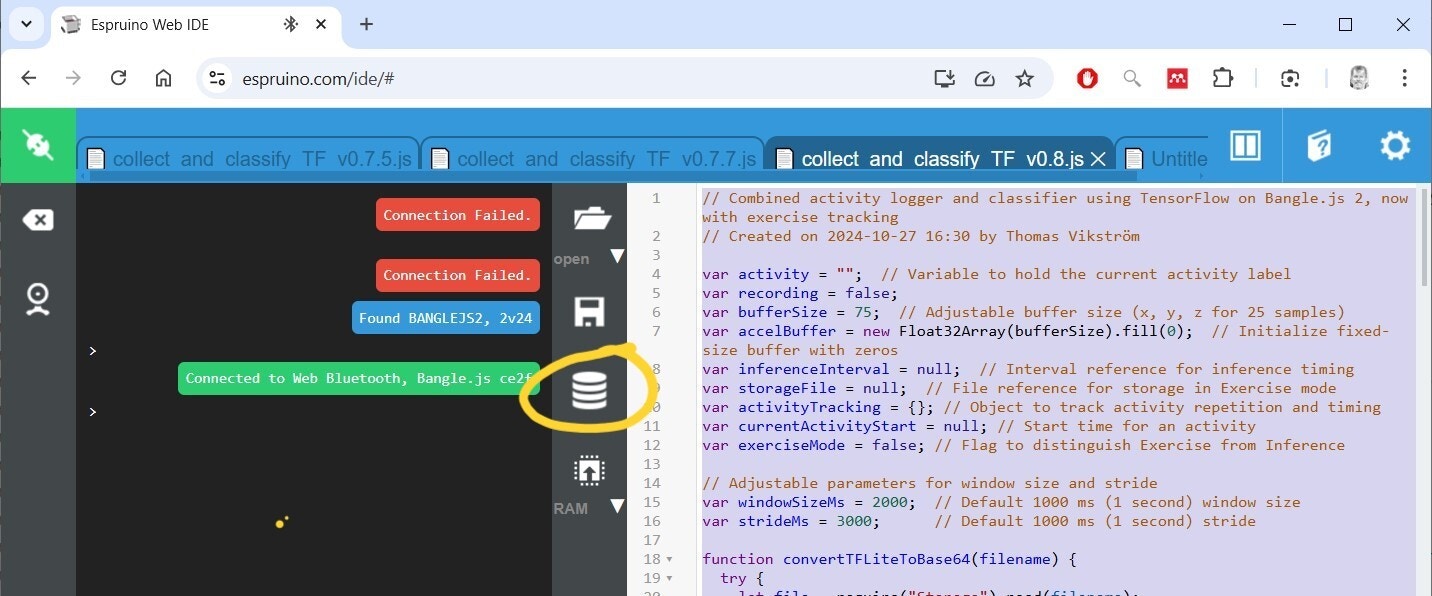

For this tutorial, it's enough to open the Espruino IDE, connect to your Bangle according to the instructions found in above guide, and paste this program to the right side in the IDE.

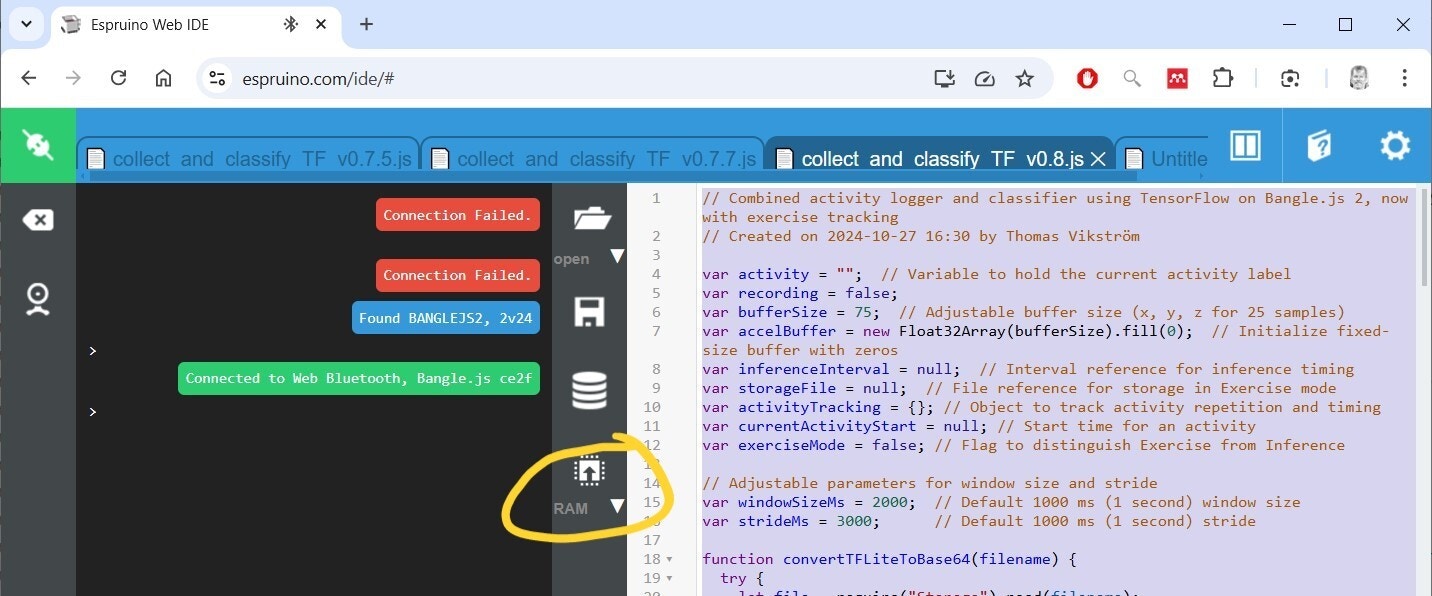

Click on the RAM-button to upload the program to the watch. Bangle has both volatile RAM-memory as well as flash-memory for long-term storage. RAM content disappears after power-down, while content in flash remains. When testing and developing, it is safer to just upload to RAM as possible serious program crashes won't mess up the watch that much as if you save to flash. That said, it is close to impossible to completely brick the watch with a buggy program, a factory reset should help in almost all cases.

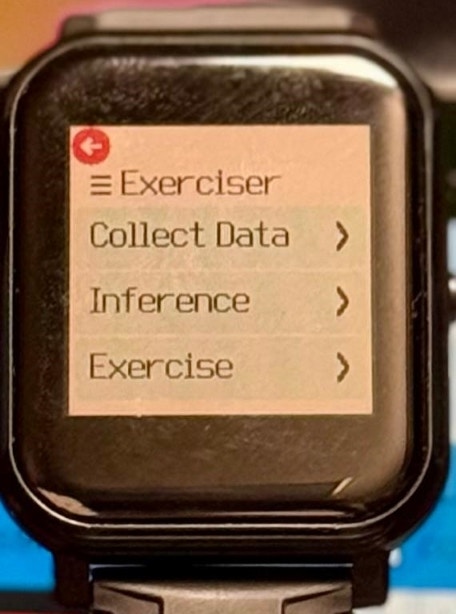

You'll be presented with a simple menu with three options:
Collect Data - collect data for different activities
Inference - run inference to test the current ML-model without storing any further data
Exercise - run inference and also collect what activities were performed and the length of them into a CSV-file
Strap the watch to your non-dominant hand.

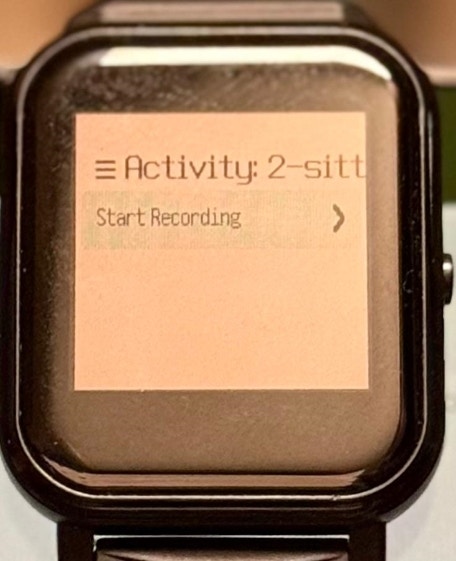

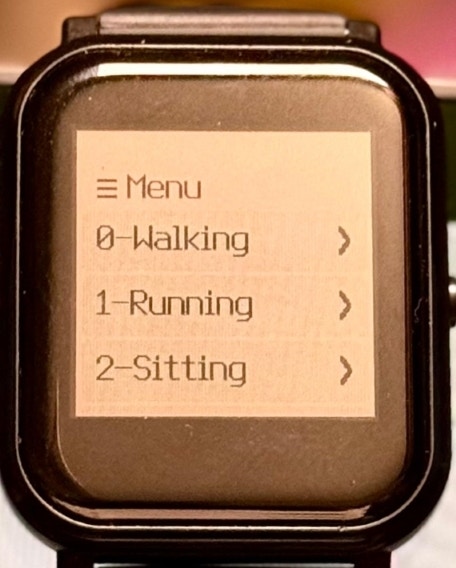

Select Collect Data on the watch, and select one of the predefined activities, scroll down to see more.
When you're ready to do the activity, select Start Recording.
Start performing the activity, e.g. walking.
Don't change from one activity to another while you are collecting data.
There's however no need to try to perform the activity as a robot, just do it naturally. E.g., when walking, just walk as you normally do, take a few turns every now and then, and vary the speed a bit.
For the first time, collect a minute or so of data for each activity.
Stop recording by quickly pressing the physical button. This will take you back to the main menu.
Repeat the above for each activity.
Also collect data for a "non-activity", like sitting.
Building and training a ML-model in this project consist of following major steps:
Downloading the recorded activity files to your computer
Creating an Edge Impulse project
Uploading the activity files to Edge Impulse
Creating and training the model
In the Espruino IDE, click on the Storage icon
Your activity files start with ´acti_...` followed by a timestamp when the file was created.

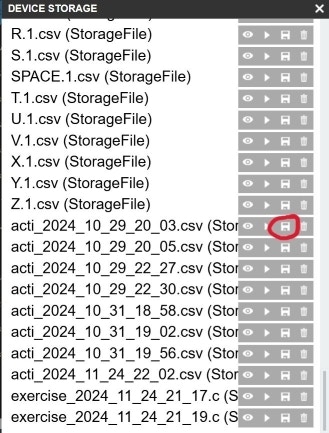

Click the Save icon for each activity file individually.
Files will be stored in your Downloads folder on your computer
Files will be in CSV-format, but have an (StorageFile)-appendix that you'll need to remove. So, rename acti_2024_10_29_20_03.csv (StorageFile) to acti_2024_10_29_20_03.csv.
Head over to Edge Impulse, and create a new project. If you are completely new to the platform, check out their getting started tutorial.
This consists of two steps:
3.1 Configure the CSV-Wizard
3.2 Uploading the activity files themselves
Here you'll use one of your activity files as an example model to let the wizard know how the file is structured. This configuration only needs to be done once. Documentation for the CSV-Wizard is found here.
For this project I've used the following steps:
Click on Data acquisition
Click on CSV-Wizard
Click on Choose File, select any of your activity files, and click Upload file
Check that you have the following columns:
Row #, timestamp, x, y, z, activity
Click Looks good, next
Fill in the screen like this:
Is this time-series data?: Yes, this is time-series data...
How is your time-series data formatted?: Each row contains a reading, and sensor values are columns.
Do you have a timestamp or time elapsed column?: Yes, it's <timestamp>
What type of data is in your timestamp column?: Time elapsed in milliseconds
Override timestamp difference?: 80 ms (the default accelerometer is 12.5 Hz which means one sample is 80 ms in length)
Click Great, let's look at your values
Now you are in Step 4, fill in it like this:
Do you have a column that contains the label (the value you want to predict)? Yes, it's <activity>
Which columns contain your values? <x, y, z>
Click Next, split up into samples
In this Step 5, use these settings:
How long do you want your samples to be? Limit to <3040> ms
How should we deal with multiple labels in a sample? Use the last value of "activity" as the label for each sample...
Click Finish wizard
Now you can upload all activity files, including the one you used to configure the CSV-Wizard, to Edge Impulse. See the documentation for detailed steps.
This consists of a few steps, all done within Edge Impulse:
4.1 Create an impulse
4.2 Generate features
4.3 Train the model
4.4 Test the model

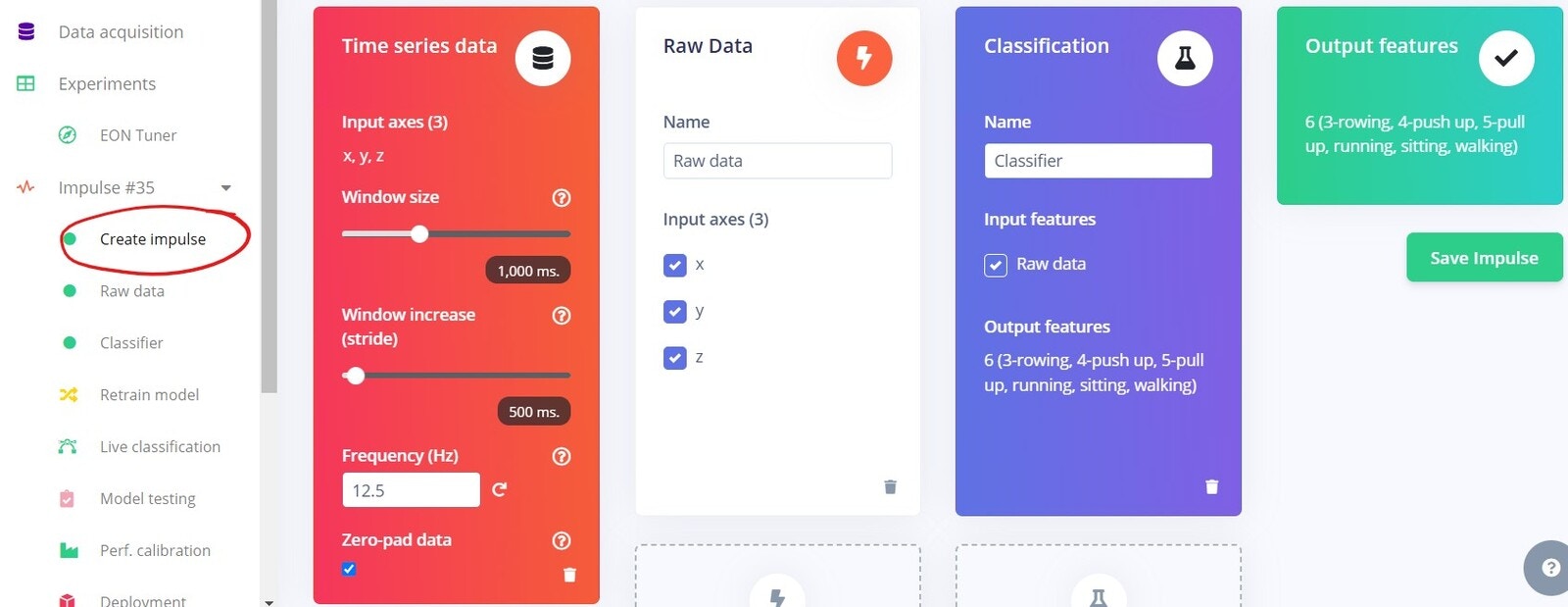

In Edge Impulse, navigate to Create impulse and configure the following settings:
Time-series data:
Window size 1,000 ms.
Window increase 500 ms.
Frequency (Hz) 12.5
Zero-pad data [x]
Select Raw data as Processing block and Classification as Learning block. As Bangle isn't one of the officially supported devices, the other available blocks for accelerometer data would need to be developed in Espruino to work identically as the Edge Impulse ones. I actually tried to replicate the Spectral Analysis processing block, but was not successful.
Select Raw data from the menu.
As we're using default settings:
click Save parameters

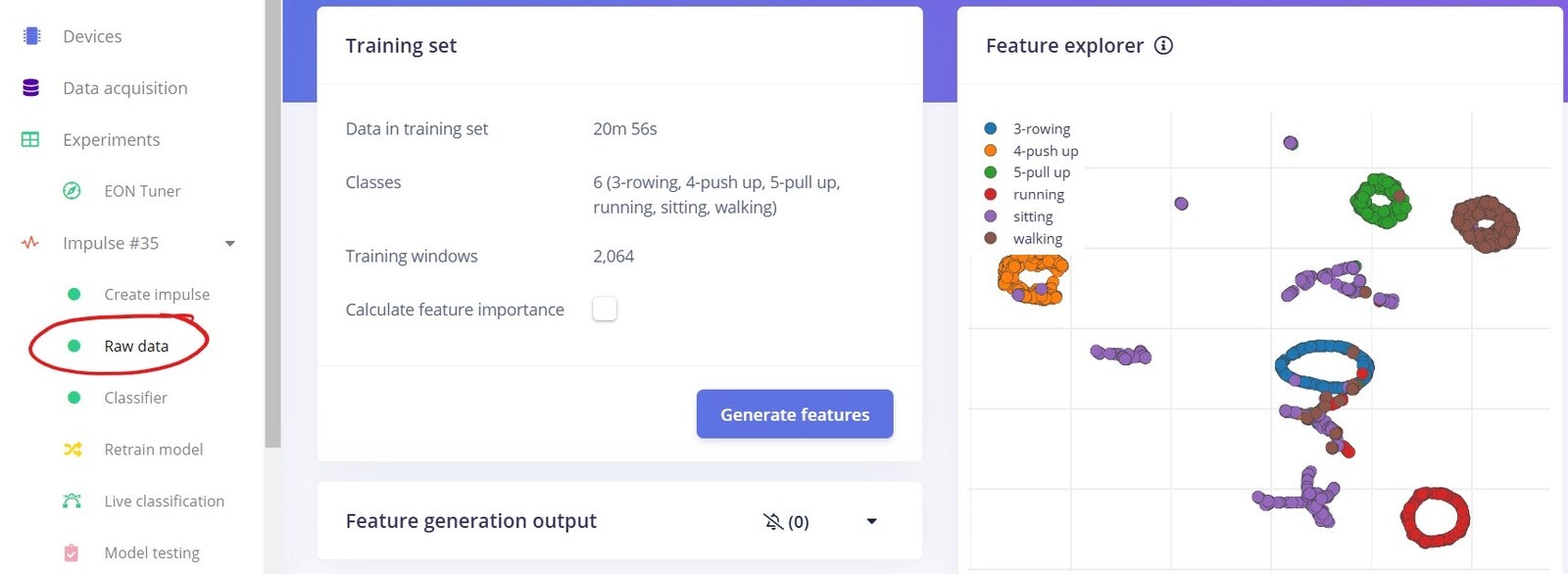

in next screen, click Generate features
After a couple of minutes you'll see how well the activities can be separated in this stage. As you see I have quite a good separation, only sitting is scattered around, the reason being that I by purpose was not sitting completely still all the time, I did a few different random hand movements.
Select Classifier from the menu.
You are recommended to try different settings, but to start with why not use mine:

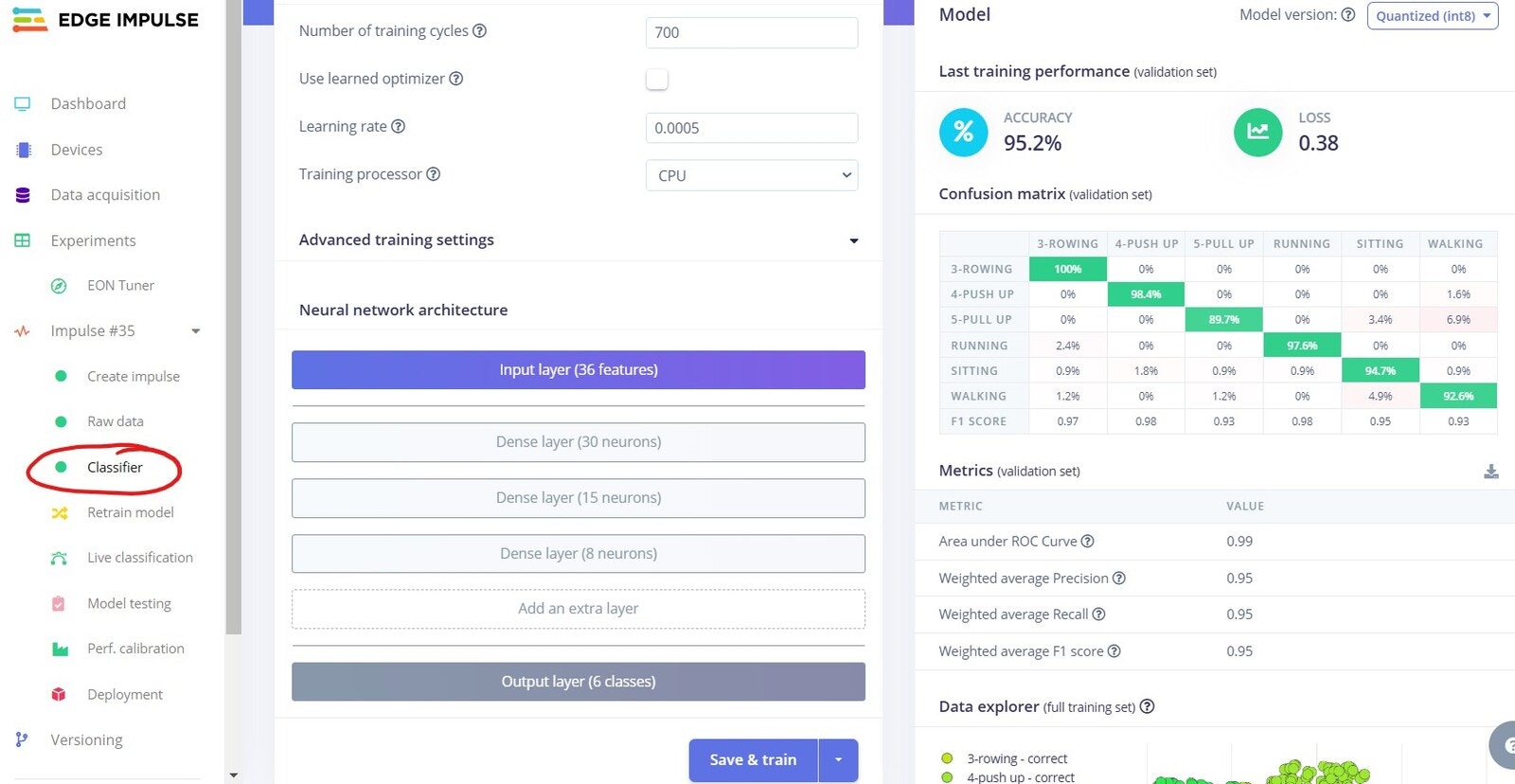

Number of training cycles 700
1st dense layer 30 neurons
2nd dense layer 15 neurons
3rd dense layer 8 neurons
Click Save & train to start training
My results were fairly good with an accuracy of 95%, but to improve the model even further, I'd collect more data.
This section is testing the ML model on some test data which was automatically placed aside and not used during the training. The objective is to see how well the model performs with data it has not encountered before, thus simulating use in real-life situations.

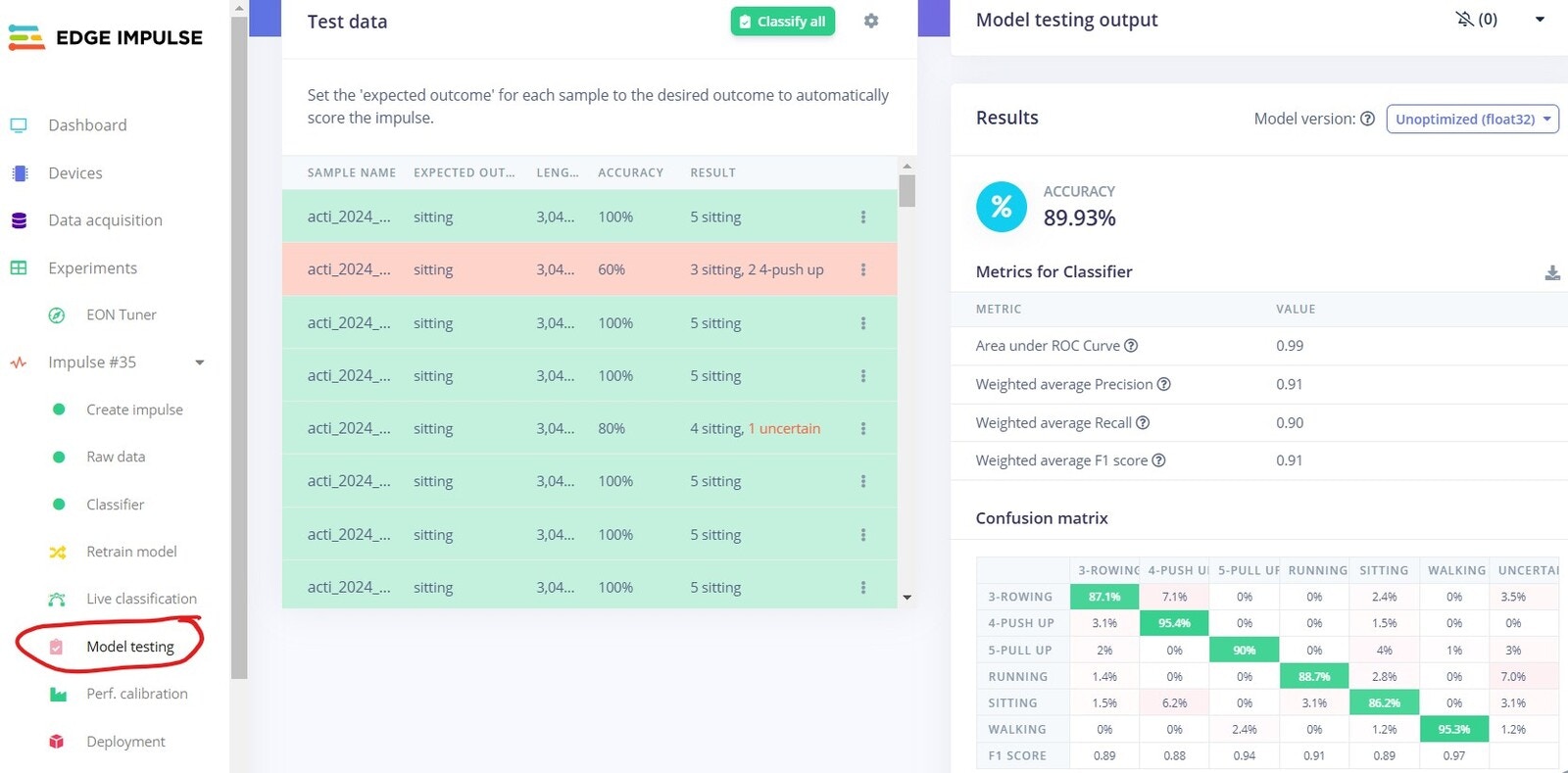

Select Model testing from the menu.
Click Classify all
After a while you'll get the results.
My results were not as good as in the training, but this is quite often the case. The final verdict of model performance is when you try it in the field, or as in this case, on your hand!
As mentioned, Bangle is not officially supported by Edge Impulse, so you can't use the Deployment menu option. This doesn't of course stop you as the only thing that really matters is that both Bangle and Edge Impulse support Tensorflow Lite.
Select Dashboard from the menu.
Click on the Save icon next to Tensorflow Lite (float32)
This downloads a model file to your computer's downloads folder.
Click on the Storage icon

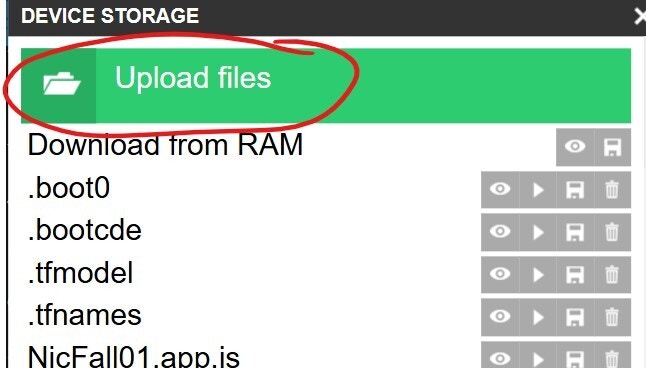

Click Upload files
Find the model you downloaded from Edge Impulse

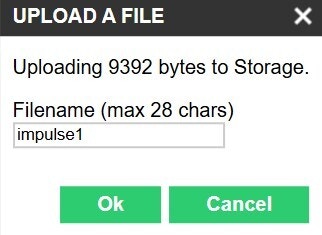

Type impulse1 as file name and click Ok.
FYI: When the Bangle-program is run it will convert the Tensorflow Lite file to base64-format and create an internal file named impulse4
Now it's time to test the model in real life!
Here you'll use the same program as earlier in Software Configuration, so unless the app is still running on your Bangle, just upload it to RAM once again.
When you want to test the app without storing any activity data, just select Inference.

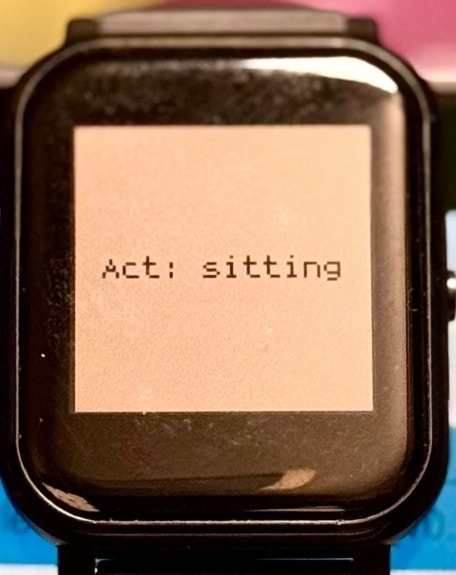

This shows the current activity you are doing, in my case unfortunately sitting...
Click wherever on the display to go back.
Start exercising (yay!) by selecting Exercise.
This runs inference as the previous one, but also collects data to a CSV-file.
In this app there are no bells and whistles shown on the watch display, feel free to learn Javascript to enhance the Bangle app!

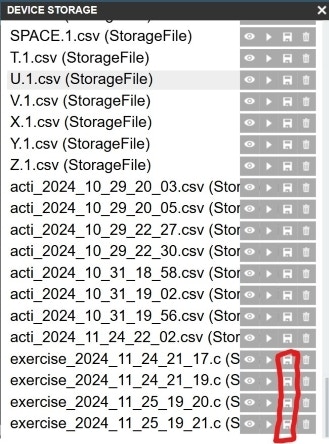

Access the Storage again from within Espruino IDE, and download the exercise files (named exercise + timestamp when file created)

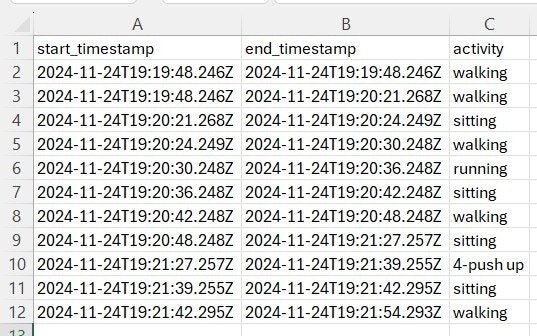

The file contains timestamps when the inferred activity started and ended as well as the activity itself. As you see below, it classified several activities I did. I also simulated rowing, but as I could not use the real rowing machine, it registered it as sitting.
The program registers an activity only after detecting the same activity for at least 10 seconds. In a real scenario this should probably be increased to 30 seconds or more as you are probably not all the time very quickly switching between different activities.
The results from the Edge Impulse part completely met the objectives and expectations I had, i.e. to be able to classify which exercise was performed. The training result of 95% can be considered good, especially considering raw data is used. I also tested the spectral features in Edge Impulse, and was not surprised to find that it consistently gave better results with different settings.
As for the Bangle app, the results only partially met my objectives. While the watch itself is excellent for its price point, I only have basic Javascript skills and was not completely successful in getting the exercise registering logic as good as I'd wanted. Testing the app during exercises is also in practice somewhat challenging as you can't easily watch the inferred activity while performing it!

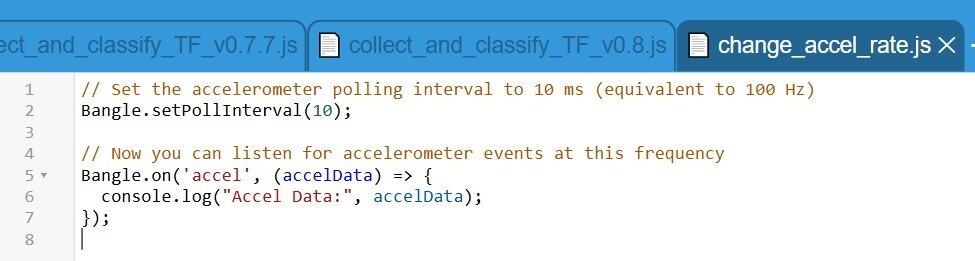

One thing that might improve the accuracy somewhat is to change the accelerometer frequency from 12.5 Hz to e.g. 100 Hz, I've tested that this is possible. With help of ChatGPT I also tried to replicate the spectral features in Edge Impulse, but finally needed to leave it out of the scope. The app already outperforms my Garmin watch in switching from one activity to another without me taking any actions on the watch. Another, quite straightforward improvement, is to make the app a real Bangle app, this can be done by following the steps in the paragraph Making an App here. New features can of course be added to the app, heart rate data, steps, altitude etc.
As a summary, the concept as such is working, and there's a prototype of an exercise app that can be improved upon. As my gym season begins during the dark winter months, I plan to collect extensive data to further improve the model.
This tutorial aimed to build a machine learning model and a corresponding Bangle app capable of accurately classifying activities, particularly those performed in a gym, where users frequently switch between different exercises. As has been demonstrated, this goal was largely met.
All the code and files used in this write-up are found from Github, the public Edge Impulse project is here. Feel free to clone the project for your own use case.
