Community board

This is a community board by RAKwireless and is not maintained by Edge Impulse. For support, head to the RAKwireless homepage or the RAKwireless forums.
The RAKwireless WisBlock is a modular development system that lets you combine different cores and sensors to easily construct your next Internet of Things (IoT) device. The following WisBlock cores work with Edge Impulse:
  • RAK11200 (ESP32)
  • RAK4631 (nRF52840)
  • RAK11310 (RP2040)

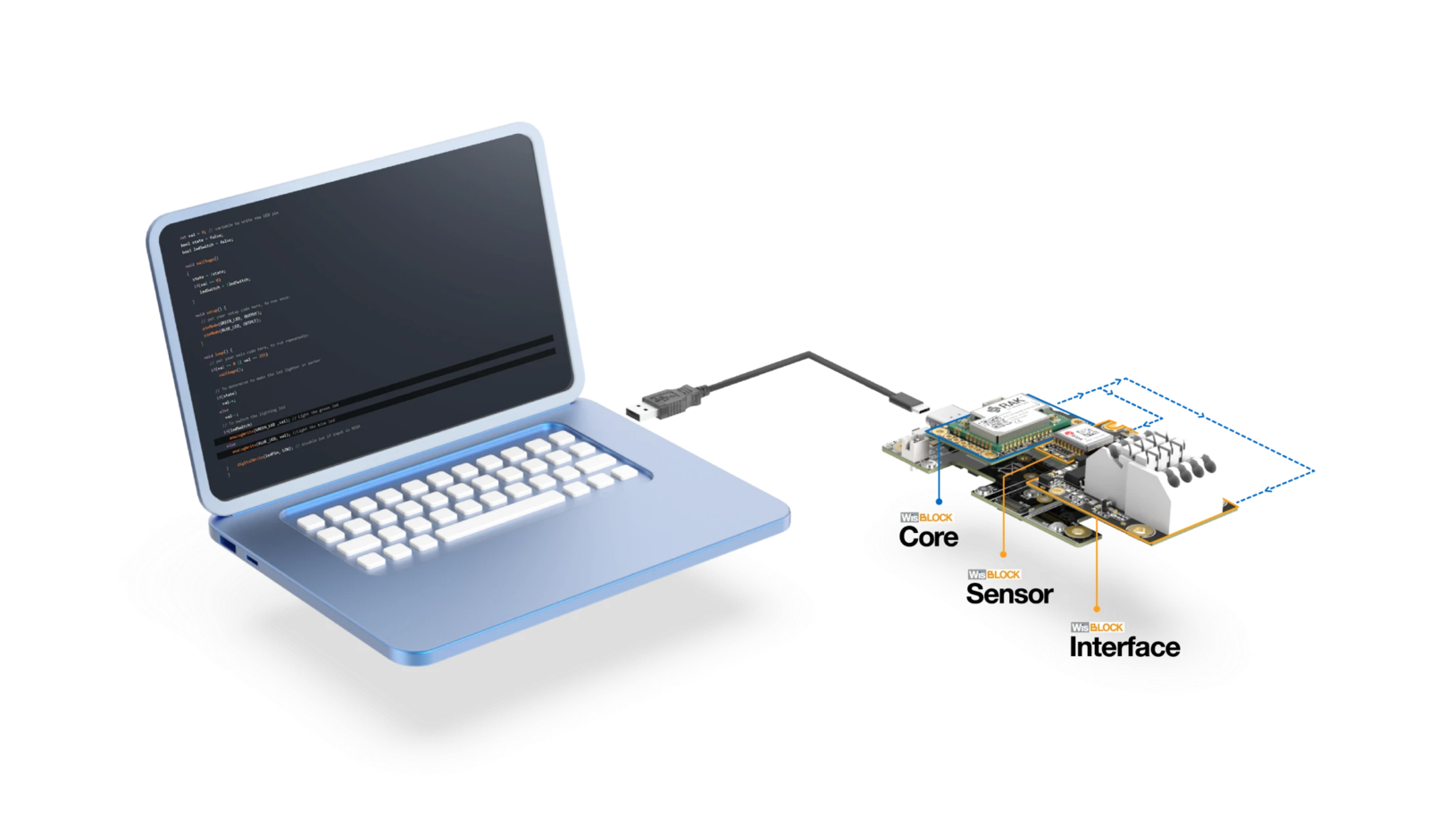

RAKwireless WisBlock modular system diagram

RAKwireless has created an in-depth tutorial on how to get started using the WisBlock with Edge Impulse, including collecting raw data from a 3-axis accelerometer or a microphone, training a machine learning, and deploying the model to the WisBlock core. A WisBlock starter kit can be found in the RAKwireless store.

​
Installing dependencies

Install the following software:

​
Connecting to Edge Impulse

Follow the guide for your particular core to collect data, train a machine learning model, and deploy it to your WisBlock: By the end of the guide, you should have machine learning inference running locally on your WisBlock!

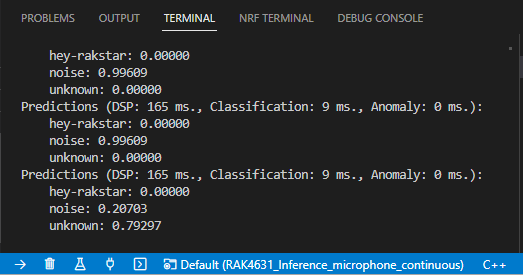

Edge Impulse inference running on a RAKwireless WisBlock
