Build a Mobile Inspection System with Edge Impulse and ROS 2

Build an industrial inspection robot that combines mobility, local perception, and structured inspection logging. The architecture is based on a Waveshare UGV-style rover with a pan/tilt camera system and an Edge Impulse perception pipeline running on edge compute such as a Qualcomm QCS6490-class device.

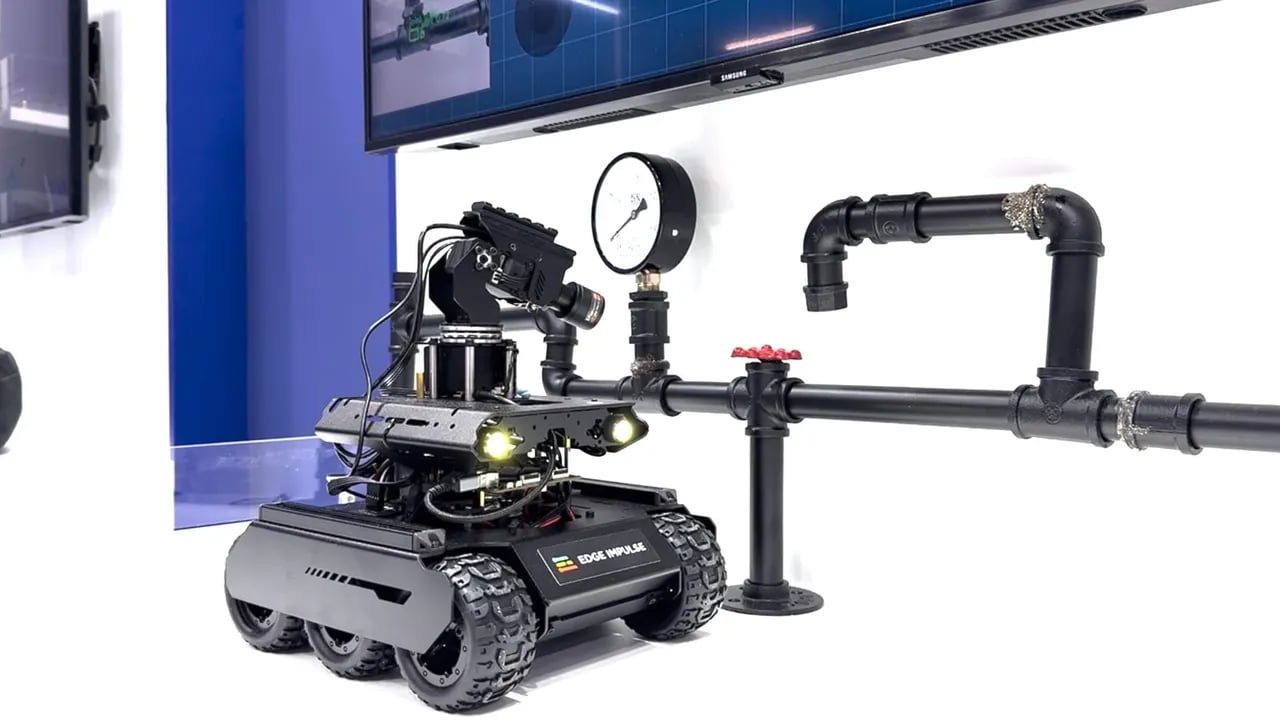

Wheeled inspection rover with a camera gimbal for Edge AI inspection — Inspection rover demoed with a Waveshare UGV-style base, pan/tilt gimbal, and two-stage Edge Impulse perception pipeline.

This tutorial is based on Moe Sani’s Embedded World 2026 inspection-robot demo. Read the full build story: A Look Inside my Edge AI Inspection Robot (ROS 2-Native).

Problem statement

Inspection in industrial settings such as pipelines, refineries, utilities, and infrastructure has several constraints:

Hazardous or awkward access: Manual inspection can put people in unsafe or difficult-to-reach environments.
Inconsistent data capture: Operators may collect images from different angles, distances, and lighting conditions.
Limited connectivity: Field sites may have restricted, intermittent, or intentionally isolated networks.
Audit requirements: Every decision should be traceable, repeatable, and reviewable after the run.

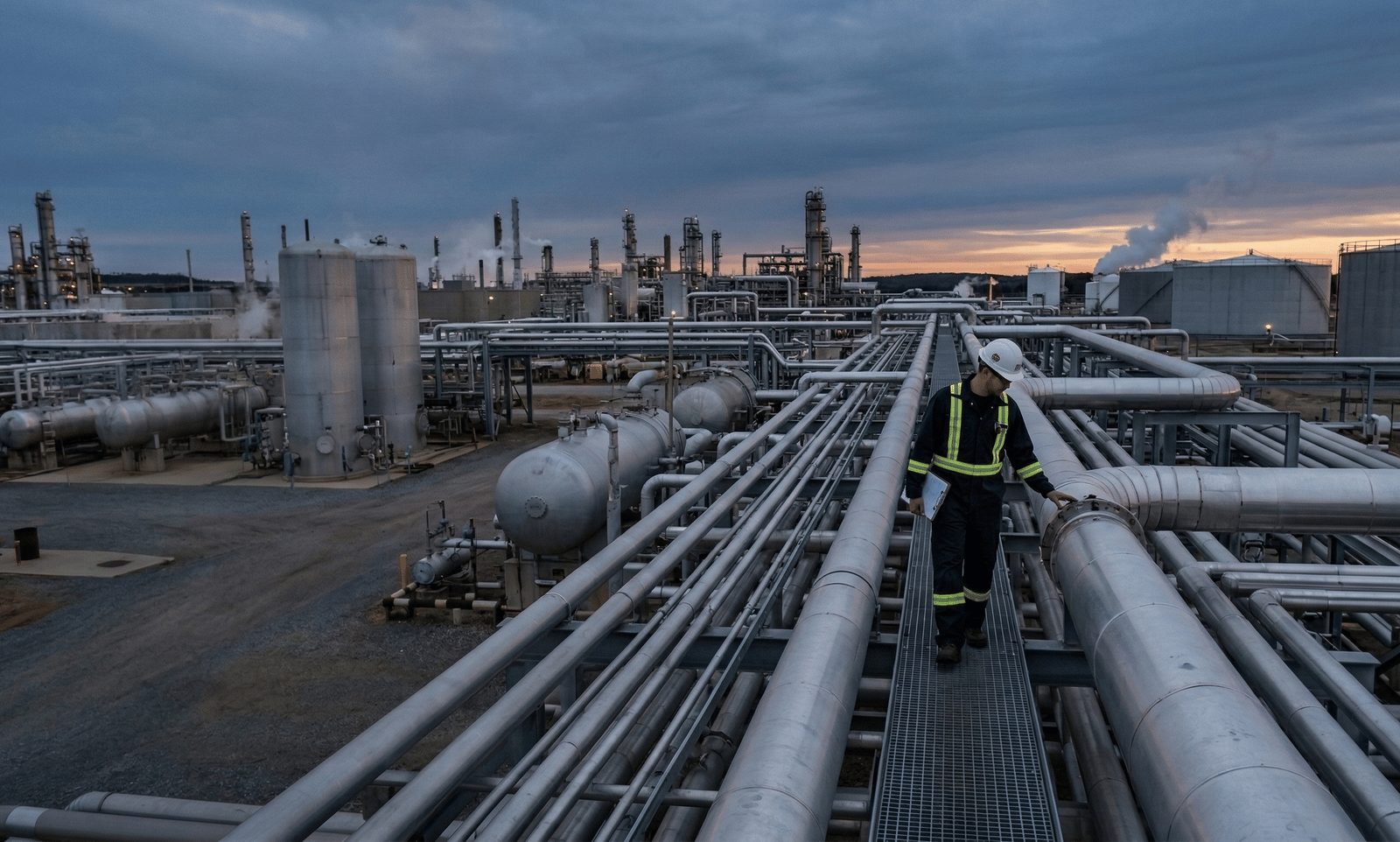

Human inspection in an industrial environment — Many inspection tasks still require expert personnel in hazardous or difficult-access environments. A robot can standardize data capture and keep people away from risk.

Effective systems make decisions locally, stream compact results, and keep data on-site. Edge AI helps by placing inference next to the sensors, reducing latency, and supporting stronger data governance because raw imagery can remain on-device unless an operator explicitly needs it.

System architecture

Hardware minimum

Mobile base: A rover with reliable velocity control, such as a Waveshare UGV-class platform.
Gimbal: A 2-DOF pan/tilt mechanism for aiming the close-up camera.
Cameras: A wide-view camera for search and a close-up camera for inspection.
Compute: Linux edge hardware capable of running ROS 2 and Edge Impulse Linux inference.
Safety controls: Emergency stop, command watchdog, conservative speed limits, and a manual override path.

Perception pipeline

A two-stage perception design separates search from inspection:

Stage	Camera	Task	Model	Output
Search	Wide view	Find candidate inspection points	Object detector	Bounding boxes and confidence scores
Inspect	Close-up	Evaluate quality or damage	Anomaly detector or classifier	Anomaly score or class result

This approach keeps the robot efficient. The detector can run continuously or during short search windows, while higher-resolution anomaly scoring only runs after the gimbal has moved to a candidate point.

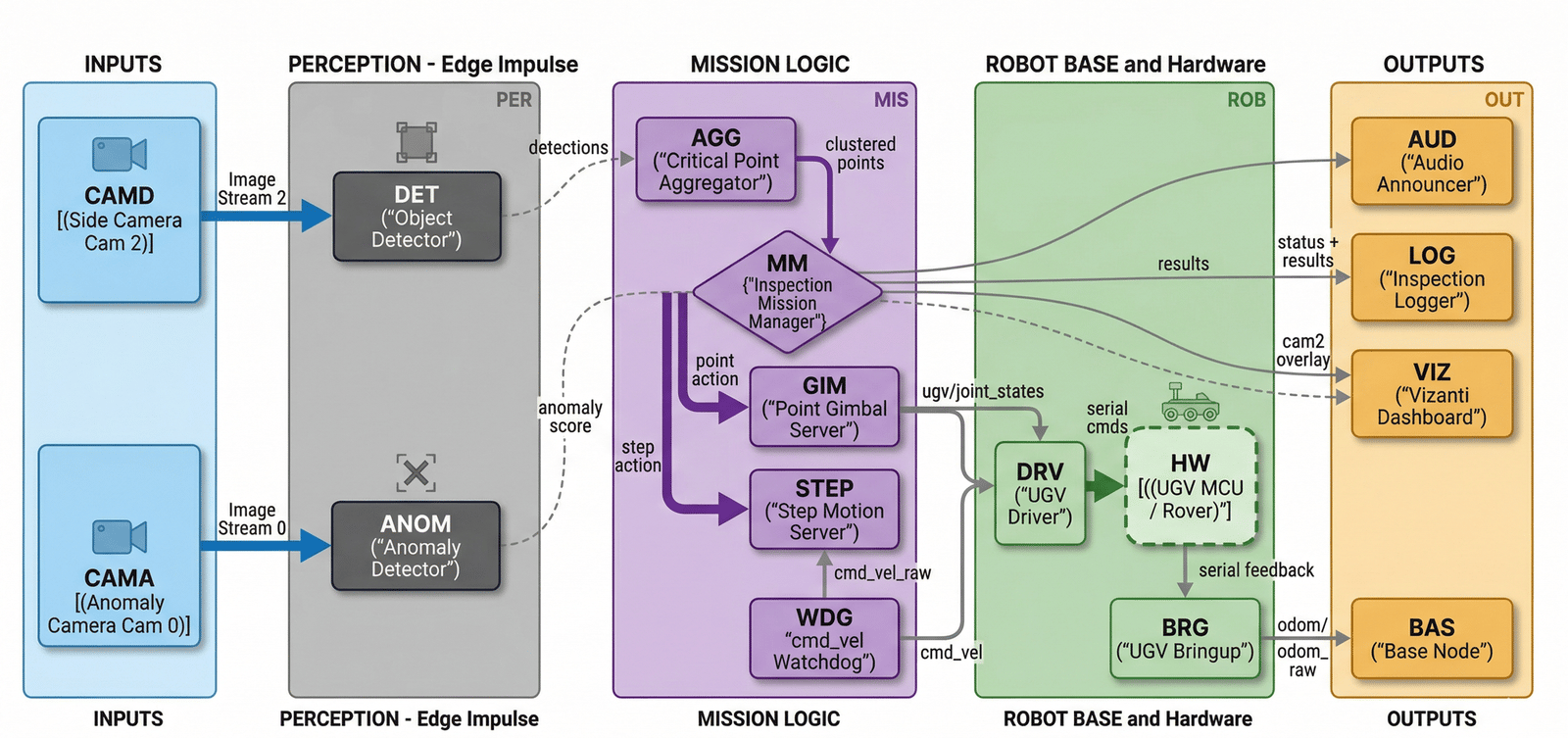

ROS 2 architecture

The system is designed to feel native in ROS 2: perception publishes standard messages, mission logic orchestrates long-running behaviours as Actions, safety gating sits between mission logic and the motor driver, and visualization is a separate consumer.

Node	Role
DET — Object Detector	Runs the wide-view detection model and publishes `vision_msgs/Detection2DArray`.
ANOM — Anomaly Detector	Runs the close-up inspection model and publishes an anomaly score or class result.
AGG — Critical Point Aggregator	Clusters detections into stable candidate points for inspection.
MM — Inspection Mission Manager	Orchestrates the move-inspect-move loop as ROS 2 Actions.
GIM — Point Gimbal Server	Controls pan and tilt to aim the close-up camera at a candidate point.
STEP — Step Motion Server	Advances the rover one controlled step along the inspection path.
WDG — cmd_vel Watchdog	Independently gates motor commands and stops the robot if control messages stall.
DRV — UGV Driver	Translates `/cmd_vel` into serial or hardware-specific motor commands.
VIZ — Vizanti Dashboard	Provides a web-based operator view of overlays and mission state.
LOG — Inspection Logger	Writes structured per-point inspection records.

Key ROS interfaces:

Interface	Message type	Purpose
`/cmd_vel`	`geometry_msgs/Twist`	Motion control for the rover base.
`/joint_states`	`sensor_msgs/JointState`	Gimbal pan/tilt state.
`/edgeimpulse_detector/detections`	`vision_msgs/Detection2DArray`	Wide-view candidate detections from `edgeimpulse_ros`.
Inspection result topic	`std_msgs/String` or custom message	Structured anomaly result for each inspected point.

Mission loop

The inspection behaviour is a repeatable move-inspect-move routine. The rover advances in short, controlled steps along an inspection path, runs the detector for a short time window, and aggregates detections into a stable set of candidate critical points. For each candidate, the gimbal turns to the target, the camera settles, and the close-up model produces an inspection score.

STEP advances the rover one position along the inspection path.
DET runs the object detector on the wide-view camera.
AGG aggregates detections into stable critical point candidates.
For each candidate:
- GIM aims the gimbal at the target location.
- ANOM captures a close-up and produces an anomaly score or class result.
- LOG records the detection, position, score, timestamp, and model version.
The mission manager decides whether to continue, retry, alert, or stop.

Each stop produces a traceable record: what the robot saw, why it decided to inspect, and what the anomaly score was. That traceability is often more valuable than an over-automated policy that is difficult to debug.

Integrating Edge Impulse models

Use edgeimpulse_ros when your detector is exported as a Linux .eim model and subscribes to a sensor_msgs/Image topic published by your wide-view camera driver.

Installation

Install ROS 2 message dependencies and OpenCV:

sudo apt update
sudo apt install -y ros-$ROS_DISTRO-vision-msgs ros-$ROS_DISTRO-diagnostic-msgs \
                    ros-$ROS_DISTRO-v4l2-camera python3-opencv python3-numpy portaudio19-dev

Create or reuse a ROS 2 workspace:

mkdir -p ~/inspection_ws/src
cd ~/inspection_ws/src
git clone https://github.com/edgeimpulse/edgeimpulse-ros.git edgeimpulse_ros
pip install --user --break-system-packages edge_impulse_linux pyaudio

cd ~/inspection_ws
source /opt/ros/$ROS_DISTRO/setup.bash
rosdep install --from-paths src --ignore-src -r -y
colcon build --symlink-install
source install/setup.bash

Do not place the Edge Impulse Linux SDK source repository inside a ROS workspace src/ directory. Colcon may treat it as a ROS package. Install the SDK with pip, or add COLCON_IGNORE if a non-ROS directory must live under the workspace.

Running the detector

Use the launch file for normal operation:

ros2 launch edgeimpulse_ros edgeimpulse_detector.launch.py \
  model_path:=/home/$USER/models/inspection-detector.eim \
  image_topic:=/wide_camera/image_raw \
  image_qos:=sensor_data

Use ros2 run when you need to override individual parameters from the command line:

ros2 run edgeimpulse_ros edgeimpulse_detector --ros-args \
  -p model_path:=/home/$USER/models/inspection-detector.eim \
  -p image_topic:=/wide_camera/image_raw \
  -p image_qos:=sensor_data \
  -p confidence_threshold:=0.5 \
  -p frame_id_override:=wide_camera

Output topics

Topic	Type	Content
`/edgeimpulse_detector/detections`	`vision_msgs/Detection2DArray`	Bounding boxes and class scores for accepted detections.
`/edgeimpulse_detector/anomaly`	`std_msgs/Float32`	Peak anomaly score for models with an anomaly output.
`/diagnostics`	`diagnostic_msgs/DiagnosticArray`	FPS, latency, dropped frames, and Edge Impulse DSP/inference timings.

Configuration

Common parameters:

Parameter	Use
`confidence_threshold`	Filter low-confidence detections before downstream mission logic sees them. `<0` uses the model’s own threshold.
`image_topic`	Subscribe to the wide-view camera driver’s `sensor_msgs/Image` topic.
`image_qos`	Match the camera driver’s QoS (`sensor_data`, `reliable`, or `default`).
`publish_debug_image`	Publish an annotated overlay for operator review and dashboards.
`publish_diagnostics`	Publish the `DiagnosticArray` that dashboards and watchdogs can consume.

Building your inspection system

1. Define mission requirements

Before collecting data, define the inspection target and operational limits:

What is a critical point for the asset?
What does abnormal look like operationally?
What inspection distance, angle, lighting, and speed are acceptable?
What should happen when confidence is low or a component cannot be inspected?

2. Design data collection

Capture two views with consistent conditions. Search view: wide camera

Capture multiple angles along the inspection path.
Include expected lighting, motion blur, and partial occlusions.
Label the target components or regions of interest.

Inspection view: close-up camera

Capture high detail for anomaly detection.
Keep framing consistent after the gimbal aims at a target.
Include normal examples first, then expand with known defects or borderline cases.

3. Train two models in Edge Impulse

Detection model

Input: wide-view images.
Output: bounding boxes for critical points.
Optimize for: speed and recall.

Inspection model

Input: close-up images.
Output: anomaly score or binary/multiclass result.
Optimize for: precision, repeatability, and explainable operator review.

4. Integrate with ROS 2

Keep inference as a standard ROS 2 component:

Publish standard message types where possible.
Keep visualization as a consumer of topics, not as the owner of mission state.
Keep safety separate from ML and mission logic.
Version the model path and threshold values alongside the mission configuration.

5. Orchestrate the mission with Actions

Implement long-running behaviours as ROS 2 Actions:

Detect/Aggregate: Run detector and collect candidates.
Point Gimbal: Move pan/tilt to a target.
Capture/Inspect: Take a close-up and run inspection.
Move: Advance the rover to the next position.

Actions provide timeout handling, cancellation, and recovery mechanisms, which are essential for field robotics.

6. Add an independent safety layer

Safety should not depend on the model being correct.

Use a /cmd_vel watchdog with a short timeout.
Keep emergency stop outside the mission manager.
Gate motor driver commands independently of detection output.
Use conservative speed limits during inspection.
Add collision avoidance or protected operating zones where required.

7. Validate progressively

Test both models on representative offline images.
Run static camera tests with the robot powered but stationary.
Run controlled low-speed tests in a safe environment.
Review logs for repeatability, false positives, false negatives, and motion timing.
Expand field tests gradually.

Visualization and control

Use Vizanti or a similar ROS 2 web UI for a portable operator interface. It runs in the browser and connects directly to the ROS 2 graph, which makes it useful for demos, field validation, and debugging.

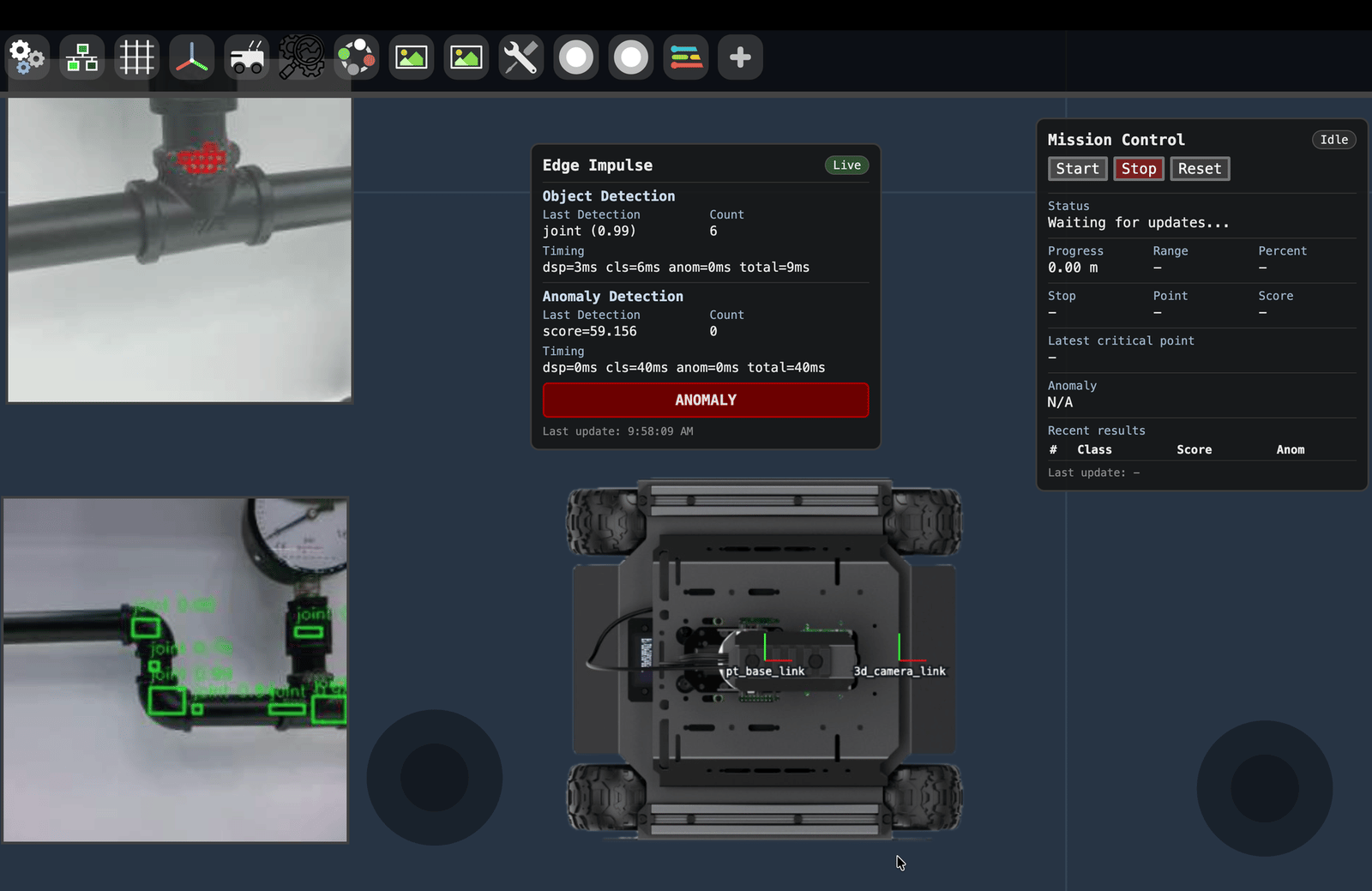

Vizanti dashboard for live ROS 2 robot inspection state — Vizanti operator dashboard showing live model overlays, rover state, and per-point inspection results.

Key outputs:

Live overlays: Detection bounding boxes on the wide-view feed and anomaly scores on the close-up feed.
Mission timeline: What the rover is doing and when, including STEP, GIM, and ANOM actions.
Inspection log: Per-point records with location, detection confidence, anomaly score, model version, and timestamp.

Deployment

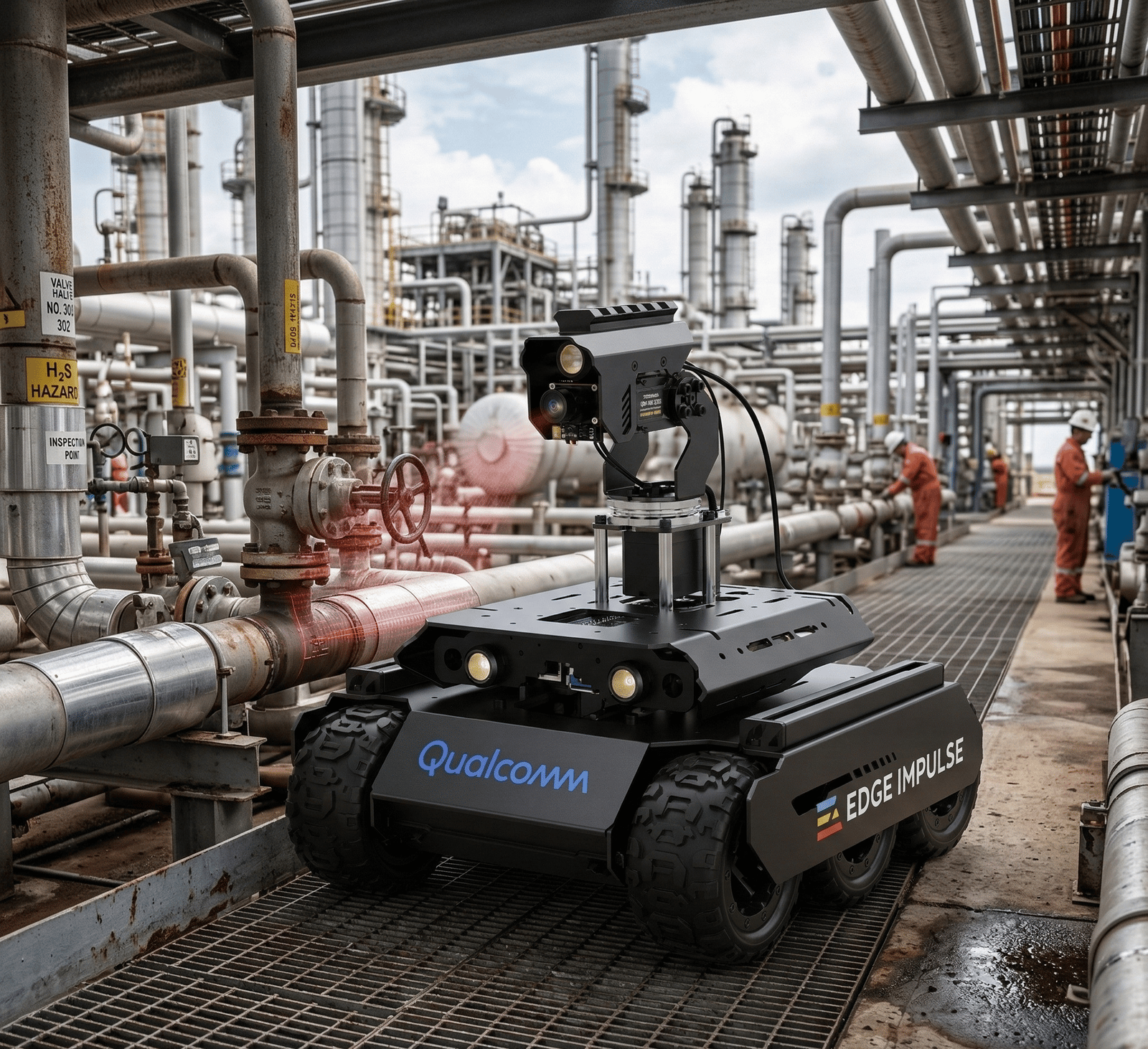

Inspection robot operating in an industrial refinery environment — Robots operating in industrial environments where access, safety, and data consistency matter — the primary motivation for this architecture.

On-device inference

Keep all inference local.
Stream compact results only.
Transmit imagery only when an operator or audit process needs it.
Maintain on-site data storage for sensitive environments.

Safety

Treat ML as advisory, not authoritative.
Keep emergency stop and collision avoidance in independent layers.
Test failure modes such as model failure, communications loss, stalled gimbal movement, and blocked motion.

Feedback loop

Log model scores, operator overrides, manual results, camera pose, and model version. Use those logs to improve datasets, thresholds, and mission policy over time.

Getting started checklist

Create an Edge Impulse project for the search detector.
Collect a small dataset from the wide-view camera.
Train and export the detection model as a Linux .eim deployment.
Create a second Edge Impulse project for close-up anomaly scoring or classification.
Collect normal and abnormal close-up examples.
Integrate the detector with edgeimpulse_ros and verify /edgeimpulse_detector/detections.
Add gimbal aiming, inspection scoring, and structured logging.
Test in a controlled environment before field deployment.

Additional resources

A Look Inside my Edge AI Inspection Robot (ROS 2-Native) — Moe Sani’s Embedded World build story and architecture walkthrough.
edgeimpulse-ros GitHub
Edge Impulse Linux SDK
ROS 2 Documentation
Vizanti web-based ROS 2 UI
