Face-following robot with Arduino UNO Q and Edge Impulse

Build a desk-sized robot that detects a human face using on-device ML and steers toward it in real time, all running on the Arduino UNO Q. Created by: Samuel Alexander
Edge Impulse public project: https://studio.edgeimpulse.com/public/953867/live
GitHub repository: https://github.com/SamuelAlexander/face-following-robot-uno-q

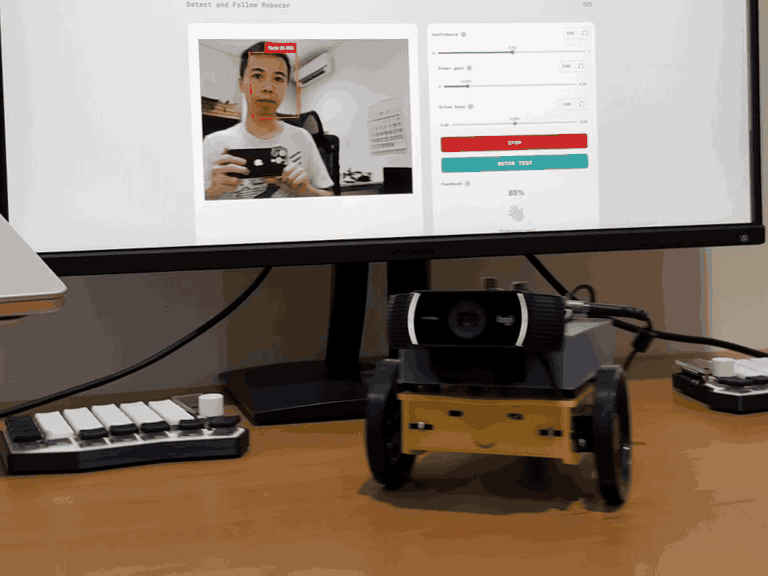

Demonstration video: https://youtu.be/TYtrBvlE7Mc

Introduction

This project combines computer vision and robotics on a single board. A camera captures video, a lightweight face-detection model (powered by Edge Impulse) locates the face, and a proportional controller converts that position into differential wheel commands, all at ~10-15 FPS. The UNO Q’s split architecture makes this possible:

MPU (Qualcomm, Linux) —> runs the ML model and control logic in Python
MCU (STM32, Zephyr RTOS) —> drives servo PWM with real-time precision

The two processors communicate over Bridge RPC, a MessagePack-based protocol over an internal serial link. This separation keeps heavy inference off the real-time path and motor control deterministic. A browser-based Web UI lets you monitor detections and tune steering parameters live, no recompilation needed.

What you’ll learn

How the UNO Q’s MPU/MCU split architecture works
Using App Lab bricks (pre-built middleware) for AI and web interfaces
Bridge RPC communication between Python and an Arduino sketch
Proportional steering control for differential-drive robots
Live parameter tuning through a Socket.IO web dashboard

Prerequisites

Hardware

Component	Used in This Project	Notes
Arduino UNO Q	—	2 GB or 4 GB variant
USB webcam	Logitech C922 Pro Stream	Most UVC-compatible webcams work
2x continuous-rotation servo	Parallax Continuous Rotation Servo	Any continuous servo with 1000-2000 us pulse range
USB-C power bank (PD)	20000 mAh, USB-C PD output	Must supply stable 5 V / 2+ A
USB-C splitter	With USB-A port	Powers UNO Q via USB-C, camera via USB-A
Small decoupling capacitors	100 uF electrolytic across servo power/GND	Reduces servo electrical noise
Robot chassis	Custom 3D-printed (STL files included)	Any two-wheel platform works
Jumper wires	—	Signal + power for servos

Software

Arduino App Lab v0.6 or later (runs in-browser, no local install needed)
A computer on the same network as the UNO Q
Edge Impulse Studio account

Source code

The full project source is available at: https://github.com/SamuelAlexander/face-following-robot-uno-q

Architecture overview

The system has three layers: Why split MPU and MCU? ML inference is computationally heavy and non-deterministic, it belongs on a Linux processor. Servo PWM timing is safety-critical and must be jitter-free, it belongs on a real-time microcontroller. Bridge RPC connects the two with ~8 ms round-trip latency.

Hardware assembly

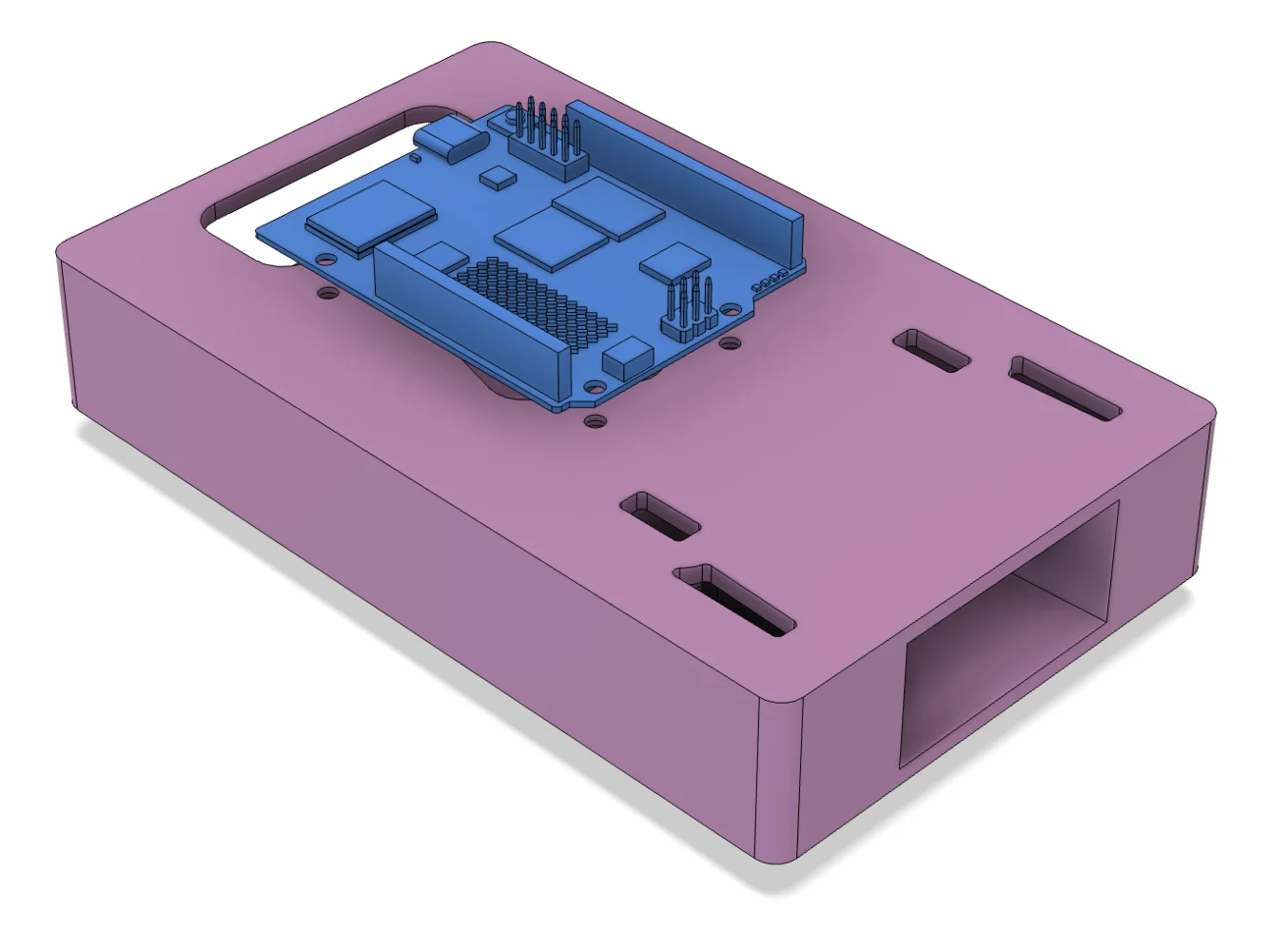

Chassis overview

The robot uses a simple differential-drive layout:

Two continuous-rotation servos mounted on opposite sides
A rear caster or skid point for stability
A top-mounted platform for the UNO Q and camera
The USB power bank sits on or below the platform as ballast

Continuous-rotation servos simplify wiring. A 1500 us pulse means stop, below 1500 spins one way, above 1500 spins the other.

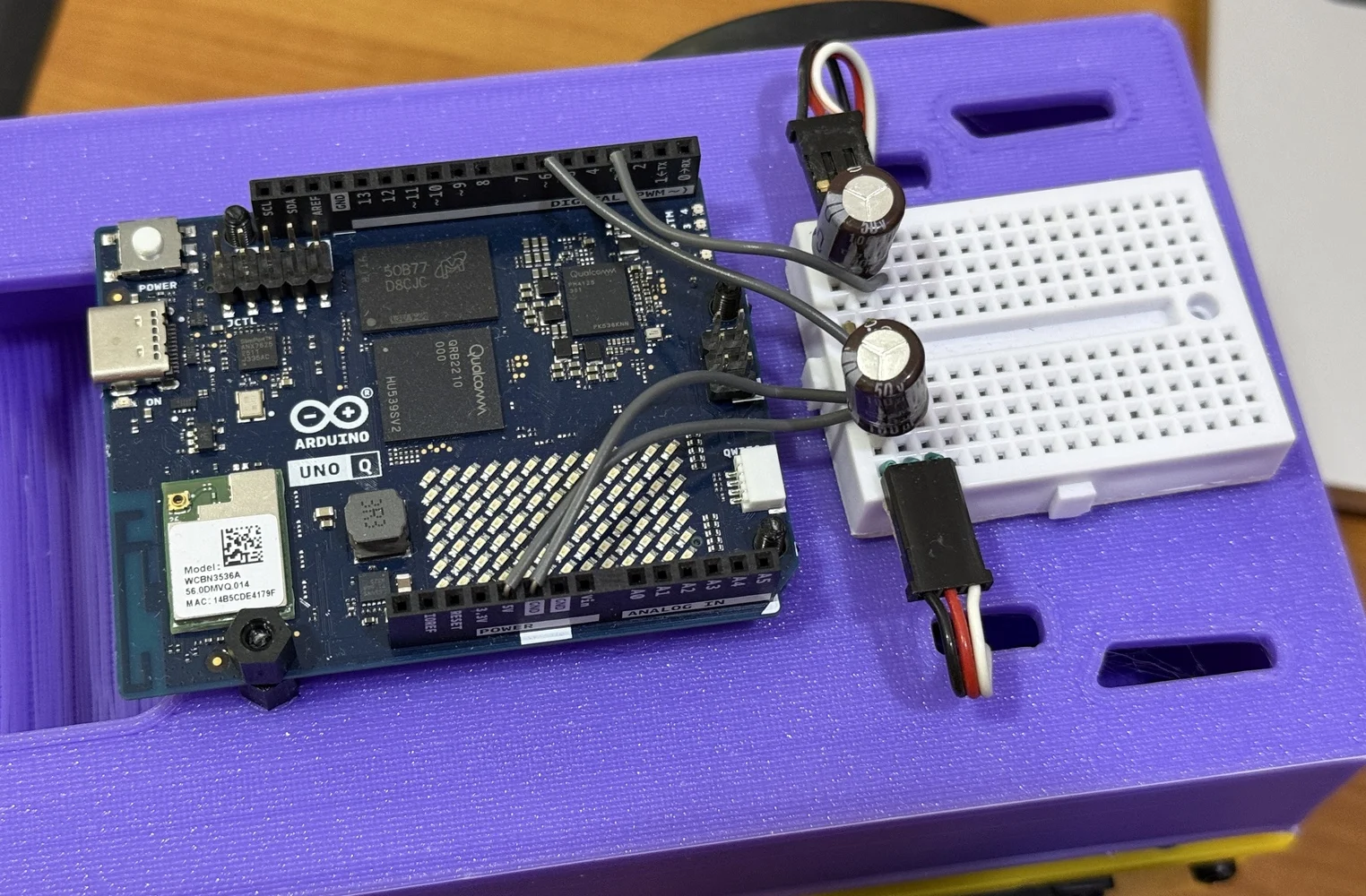

Wiring

Servo	Signal Pin	Power	Ground
Left wheel	D3	5 V	GND
Right wheel	D6	5 V	GND

Place a 100 uF capacitor across the servo power and ground rails to absorb current spikes. Connect the webcam to the USB-A port on the USB-C splitter. The USB-C side powers the UNO Q.

Note: The right servo is mounted mirrored relative to the left. The firmware handles this with a pulse inversion flag, no crossed wires needed.

Project setup in App Lab

File structure

Every App Lab project follows this layout:

detect-and-follow-robocar/
├── app.yaml              # App manifest: bricks and model selection
├── python/
│   └── main.py           # MPU application (detection + control)
├── sketch/
│   ├── sketch.ino        # MCU firmware (servo PWM)
│   └── sketch.yaml       # Build config (board, libraries)
└── assets/
    ├── index.html         # Web UI page
    ├── app.js             # Web UI logic (Socket.IO client)
    └── style.css          # Styling

Configuring bricks

Bricks are pre-built middleware packages that run on the MPU. They provide high-level capabilities without writing boilerplate. This project uses two: In app.yaml:

name: Detect and follow robocar
description: Robot car that follows a target object.
bricks:
- arduino:video_object_detection:
    model: face-detection
- arduino:web_ui: {}
icon: 🚙

video_object_detection, captures camera frames, runs the face-detection model, and delivers results to your Python code via callbacks
web_ui, serves the HTML/JS dashboard and provides a Socket.IO server for real-time communication

The model: face-detection line selects a built-in lightweight face-detection model. No training or Edge Impulse account needed.

Sketch dependencies

In sketch/sketch.yaml, the key libraries are Arduino_RouterBridge (Bridge RPC) and Servo (PWM output):

profiles:
  default:
    fqbn: arduino:zephyr:unoq
    platforms:
      - platform: arduino:zephyr
    libraries:
      - Arduino_RouterBridge (0.4.1)
      - Servo
      - MsgPack (0.4.2)

The MCU sketch: Servo control

The MCU firmware is intentionally minimal, it receives pulse-width commands over Bridge RPC and writes them to the PWM hardware. All decision-making lives on the MPU.

Bridge RPC endpoint

The sketch exposes a single function that the MPU can call. It uses the Arduino Servo library for reliable pin-level PWM output:

#include <Arduino_RouterBridge.h>
#include <Servo.h>

Servo leftServo;
Servo rightServo;

bool set_wheel_pwm(int left_us, int right_us) {
  uint32_t left  = clamp_pulse_us(left_us);   // Clamp to 1000-2000
  uint32_t right = clamp_pulse_us(right_us);

  left  = apply_invert(left,  kInvertLeftWheel);   // false
  right = apply_invert(right, kInvertRightWheel);   // true — right is mirrored

  leftServo.writeMicroseconds(left);    // D3
  rightServo.writeMicroseconds(right);  // D6
  return true;
}

void setup() {
  Bridge.begin();
  leftServo.attach(3);
  rightServo.attach(6);
  leftServo.writeMicroseconds(1500);   // Start stopped
  rightServo.writeMicroseconds(1500);
  Bridge.provide_safe("set_wheel_pwm", set_wheel_pwm);
}

void loop() {}   // All control is event-driven via RPC

Key concepts:

Arduino Servo library handles PWM output via attach(pin) and writeMicroseconds(). This is more portable than the low-level Zephyr PWM API (pwm_set_dt), which depends on devicetree index mappings that can vary between board revisions.
Bridge.provide_safe() registers the function so it runs in the Arduino loop() context, safe for hardware operations like PWM writes. Never use Bridge.provide() for GPIO/servo/motor calls, as that runs in a background RPC thread where hardware APIs can fail.
Pulse inversion handles the mirrored right servo: inverted = 3000 - pulse. This mirrors the pulse around the 1500 us stop point, so the same “forward” command from Python moves both wheels in the same physical direction.
Empty loop() is correct, the Bridge library hooks into the loop internally to dispatch queued provide_safe callbacks.

Continuous-rotation servo basics

Pulse (us)	Behavior
1500	Stop
1000	Full speed, one direction
2000	Full speed, opposite direction

The closer to 1500, the slower the wheel turns. This project uses offsets up to ±125 us for responsive but desk-safe motion.

The MPU application: Detection to steering

The Python application on the MPU handles three responsibilities: receiving detections from the vision brick, computing steering commands, and communicating with both the MCU and the web UI.

Brick initialization

from arduino.app_utils import App, Bridge
from arduino.app_bricks.web_ui import WebUI
from arduino.app_bricks.video_objectdetection import VideoObjectDetection

ui = WebUI()
detection_stream = VideoObjectDetection(confidence=0.5, debounce_sec=0.0)

The VideoObjectDetection brick fires a callback every time it processes a frame. The on_detect_all variant fires for every frame, including ones with no detections, useful for keeping a watchdog timestamp fresh:

detection_stream.on_detect_all(on_detections)
App.run()

Detection format

The brick delivers detections as a dictionary, with each label mapped to a list of detection instances:

{
    "face": [
        {"confidence": 0.89, "bounding_box_xyxy": (144, 83, 234, 209)},
        # ...more faces if multiple detected
    ]
}

Each instance contains a confidence score and a bounding_box_xyxy tuple of (x_min, y_min, x_max, y_max) in pixel coordinates. The TARGET_CLASS constant must match the model’s label exactly, “face”` for the built-in face-detection model.

Important: The per-label value is always a list, even for a single detection. Code that expects a plain dict per label (without the list wrapper) will silently miss all detections.

Proportional steering controller

The controller converts the face’s horizontal position into differential wheel commands:

Find the face's bounding box center
Normalize to 0.0 (left edge) — 1.0 (right edge)
Compute heading error: (center - 0.5) x 2.0  →  range -1.0 to +1.0
Apply deadband (ignore small errors to suppress jitter)
Shape response with a power curve (compress large errors)
Scale by STEER_GAIN → turn speed
Convert to differential pulses: left = 1500 + turn, right = 1500 - turn

heading_error = (target_cx - 0.5) * 2.0
if abs(heading_error) < CENTER_DEADBAND:
    heading_error = 0.0

shaped = math.copysign(abs(heading_error) ** STEER_CURVE, heading_error)
turn = clamp(STEER_SIGN * STEER_GAIN * shaped, -MAX_TURN_SPEED, MAX_TURN_SPEED)

left_us  = speed_to_pulse(turn)    # 1500 + turn x 500
right_us = speed_to_pulse(-turn)   # 1500 - turn x 500

The power curve (STEER_CURVE = 0.4) makes the response more aggressive for small errors and softer near the frame edges, a simple alternative to PID that works well for this use case.

Coasting and lost target

When the face momentarily disappears (occlusion, blink, brief look-away), the controller coasts on the last-known position for TRACKING_TIMEOUT seconds (default 0.5s) before declaring the target lost. This avoids jittery stop-start behavior. When the target is truly lost, the robot stops. An optional search mode (disabled by default) slowly rotates to scan for the face.

Bridge communication and rate limiting

The UNO Q Bridge has no internal queue, sending commands too fast crashes the serial link. The application rate-limits Bridge calls to a maximum of 20 Hz (50 ms intervals):

MIN_BRIDGE_INTERVAL = 0.05  # seconds

if now - _last_bridge_ts < MIN_BRIDGE_INTERVAL:
    return   # Skip this update

Bridge.notify("set_wheel_pwm", left_us, right_us)

Bridge.notify() is fire-and-forget (no response waited), which avoids blocking the inference loop. Bridge.call() would wait for a return value and slow down the control loop.

Safety note: The emergency stop bypasses rate limiting entirely to guarantee the MCU receives the stop command immediately.

Watchdog

A background thread checks whether detection callbacks have stopped arriving. If no callback fires for 1.5 seconds (indicating a camera or pipeline failure), the watchdog forces a stop command:

def _watchdog_loop():
    while True:
        time.sleep(0.25)
        if time.monotonic() - _last_detection_ts > NO_DETECTION_TIMEOUT:
            send_lost_target_command()

The web UI

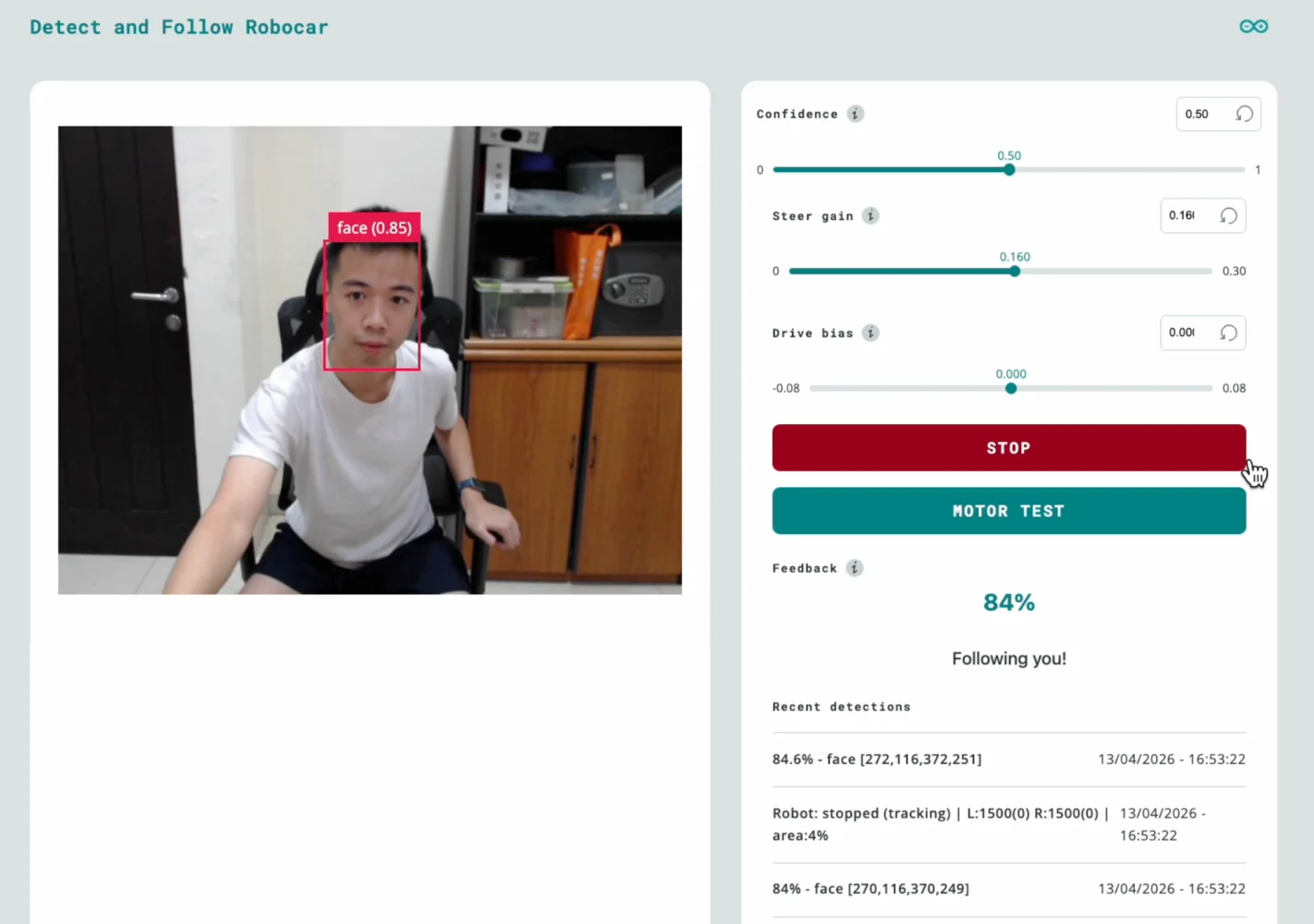

The dashboard runs in any browser on the same network and provides live monitoring and parameter tuning.

Features

Element	Function
Video stream	Live camera feed via iframe (port 4912)
Confidence slider	Adjusts minimum detection confidence (0.0-1.0)
Steer gain slider	Controls how aggressively the robot turns (0-0.30)
Drive bias slider	Adds fixed forward/backward offset (-0.08 to +0.08)
Emergency stop	Immediately halts all wheel motion
Motor test	Runs a left-right-stop sequence to verify servo wiring
Feedback	Visual confirmation when a face is detected
Recent detections	Live log of the last 5 detection and state events

All slider changes take effect immediately via Socket.IO, no restart required. This makes tuning fast: adjust a slider, observe the robot’s response, repeat.

Deploy and run

App Lab GUI

Open Arduino App Lab in your browser
Create a new app or import the project files
Click Run, App Lab compiles the sketch, flashes the MCU, and starts the Python app

First boot checklist

Check the log for the sample_detections line, it prints the raw detection payload on the first frame. Verify:
- The label is "face" (matches TARGET_CLASS)
- The bounding box coordinates are reasonable for your camera resolution
Open the Web UI at http://<UNO_Q_IP>:7000, you should see the video stream and detection events appearing in “Recent detections”
Verify servos, press the Motor Test button in the UI. Both wheels should turn left, pause, then turn right. If not, check wiring and servo power before proceeding to face tracking.

Tuning guide

Steering direction

If the robot turns away from your face instead of toward it, flip the steering sign in main.py:

STEER_SIGN = -1.0   # Flip if left/right tracking is mirrored

Frame width calibration

Check the sample_detections log output. If the max x coordinate in bounding_box_xyxy is significantly different from FRAME_WIDTH_FALLBACK (default 640), update the constant to match. A wrong value causes asymmetric or weak steering.

Gain tuning

Start with these defaults and use the Web UI sliders to adjust:

Parameter	Default	Effect
`STEER_GAIN`	0.15	Higher = faster turns, risk of overshoot
`MAX_TURN_SPEED`	0.25	Hard cap on wheel speed (~±125 us). Must exceed servo dead zone.
`CENTER_DEADBAND`	0.05	Larger = more tolerance before turning
`DRIVE_BIAS`	0.0	Positive = creep forward, negative = backward

Workflow: Start with the robot on a desk. Increase STEER_GAIN until the robot centers on your face smoothly. If it oscillates (overshoots left-right), reduce the gain. Once tuned, update the defaults in main.py so the robot starts with good values.

Troubleshooting

Symptom	Likely Cause	Fix
UI shows detections but “lost target - stopped”	`TARGET_CLASS` doesn’t match model label	Check `sample_detections` log, set `TARGET_CLASS` to the exact label string
Wheels don’t move at all	Servo power, wiring, or Bridge issue	Use the Motor Test button to isolate; check servo power rail and signal wires on D3/D6
Robot turns the wrong way	Steering sign or inversion mismatch	Flip `STEER_SIGN` to `-1.0`; or swap `LEFT/RIGHT_WHEEL_INVERTED` flags
Jerky, oscillating motion	Gain too high or deadband too low	Reduce `STEER_GAIN` via slider; increase `CENTER_DEADBAND`
Video stream not loading	Camera not detected	Check USB connection; try a powered USB hub
Emergency stop doesn’t work	Socket.IO disconnected	Check for error banner in the Web UI
