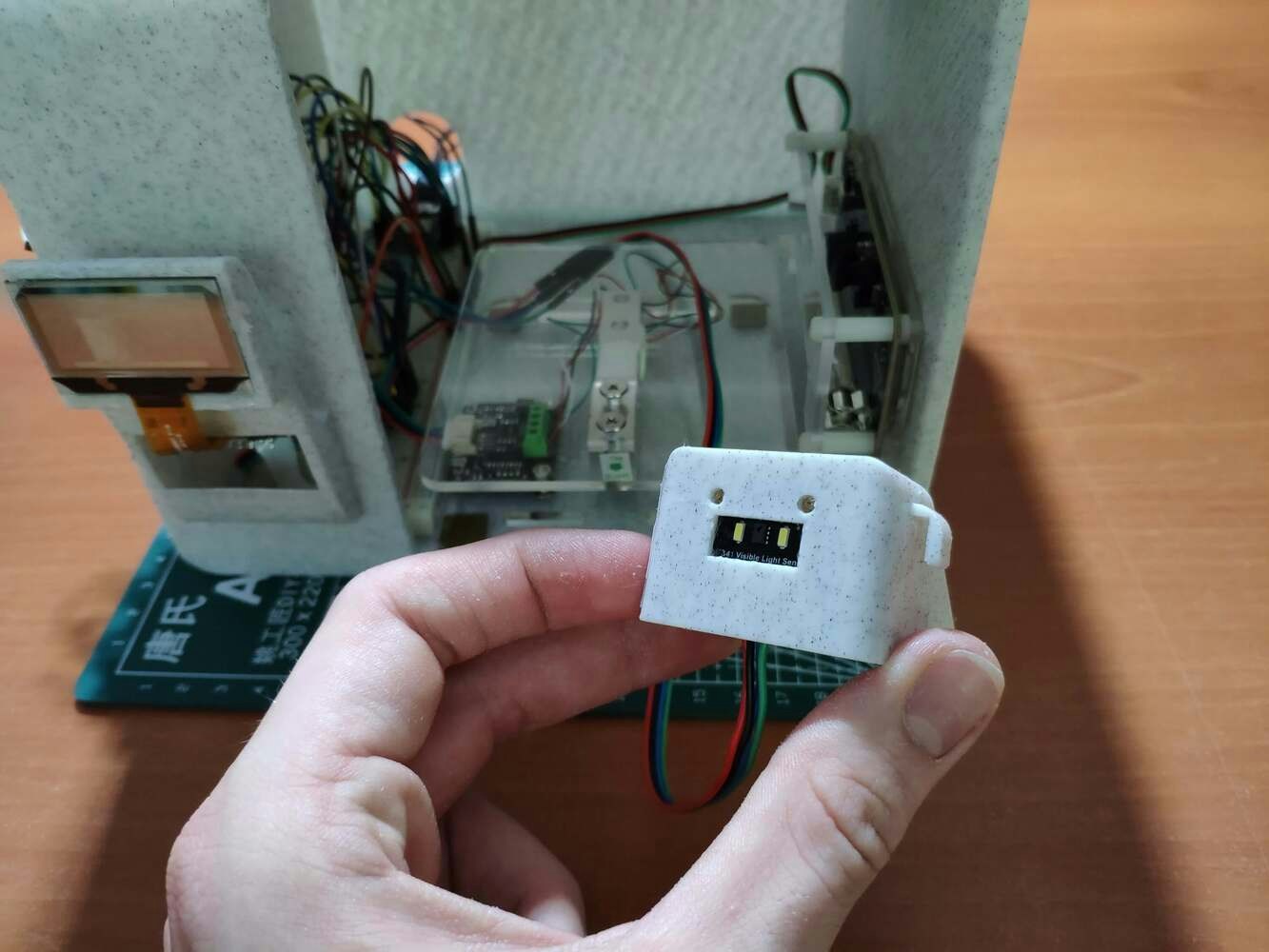

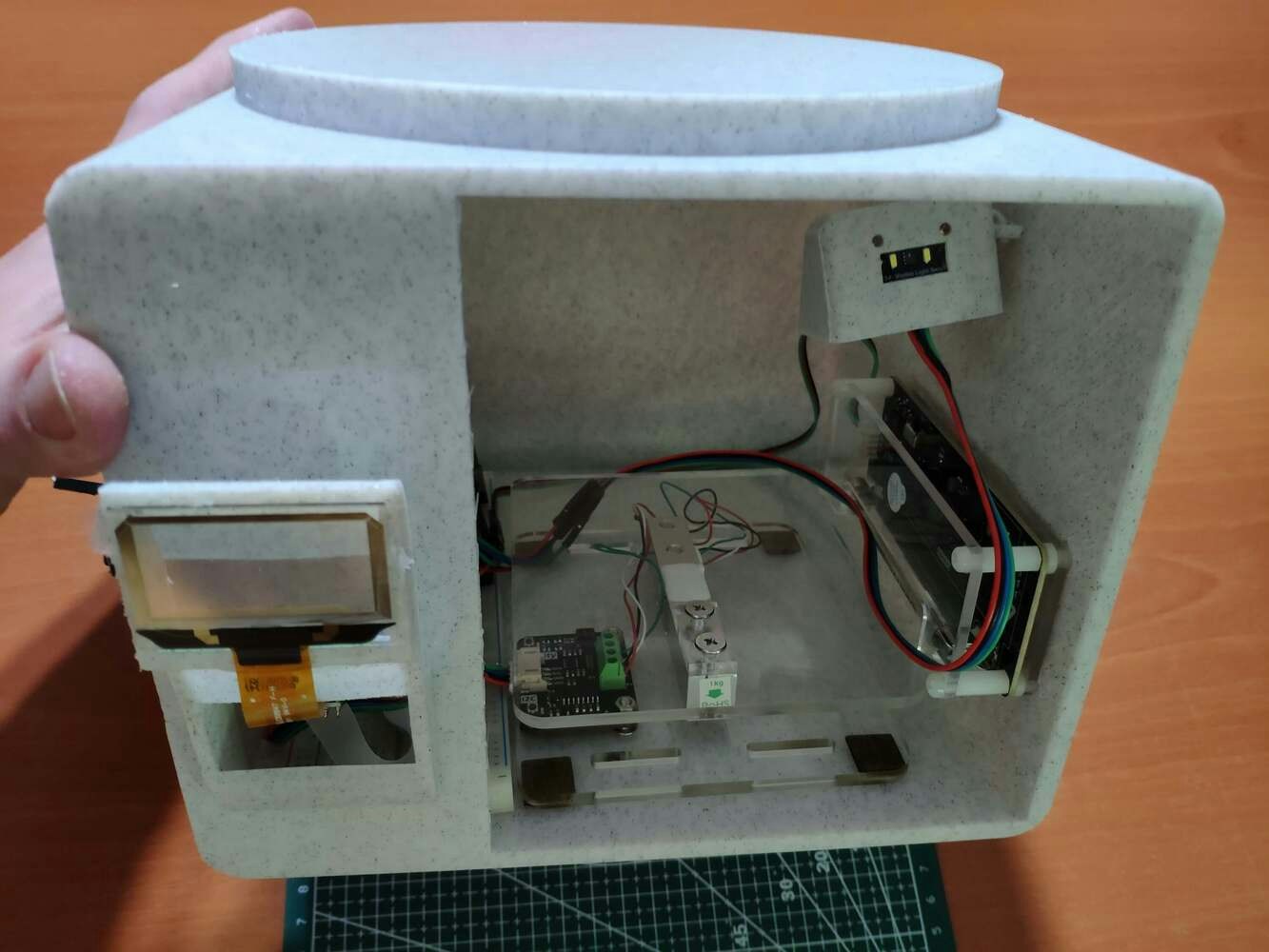

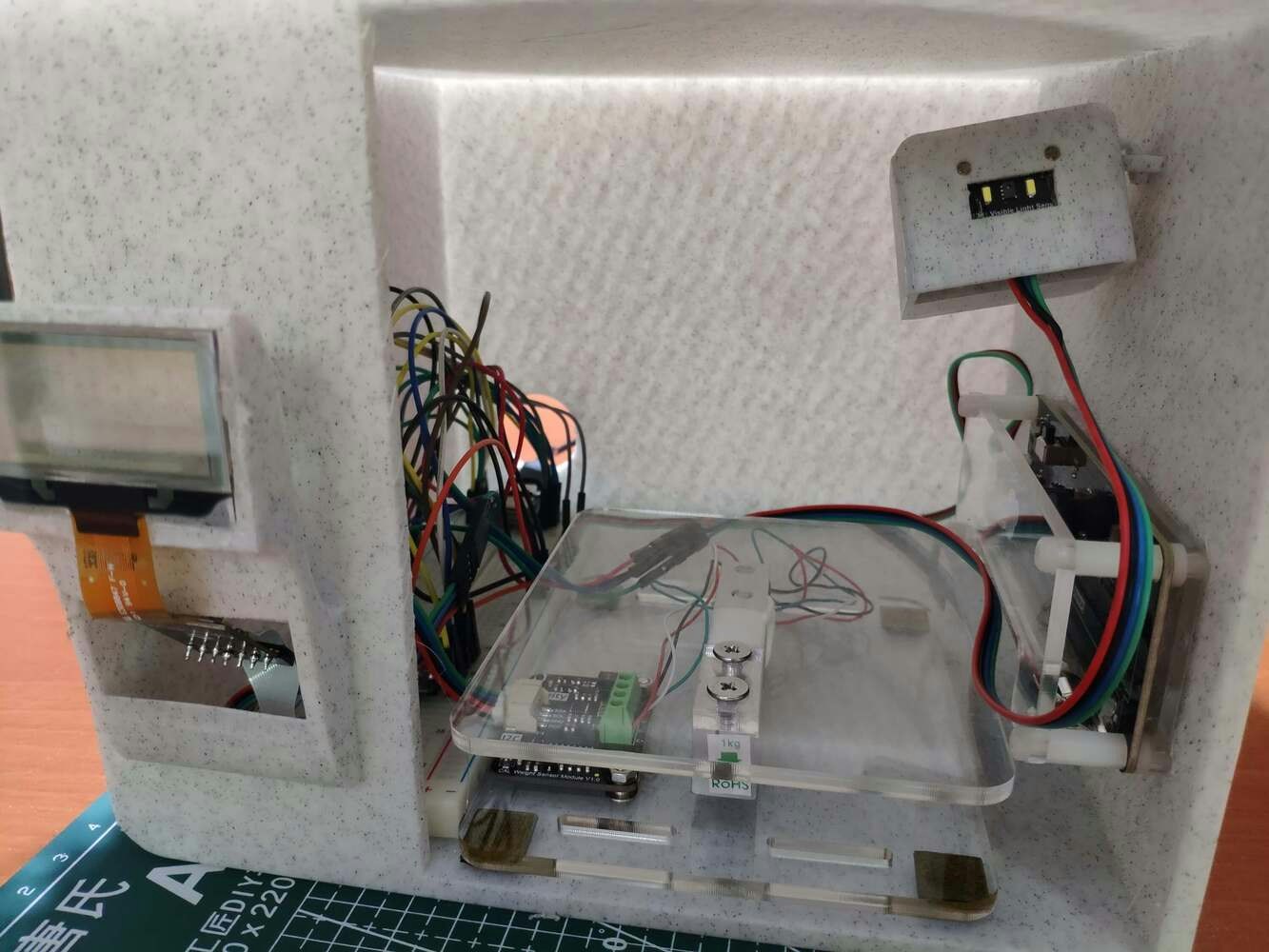

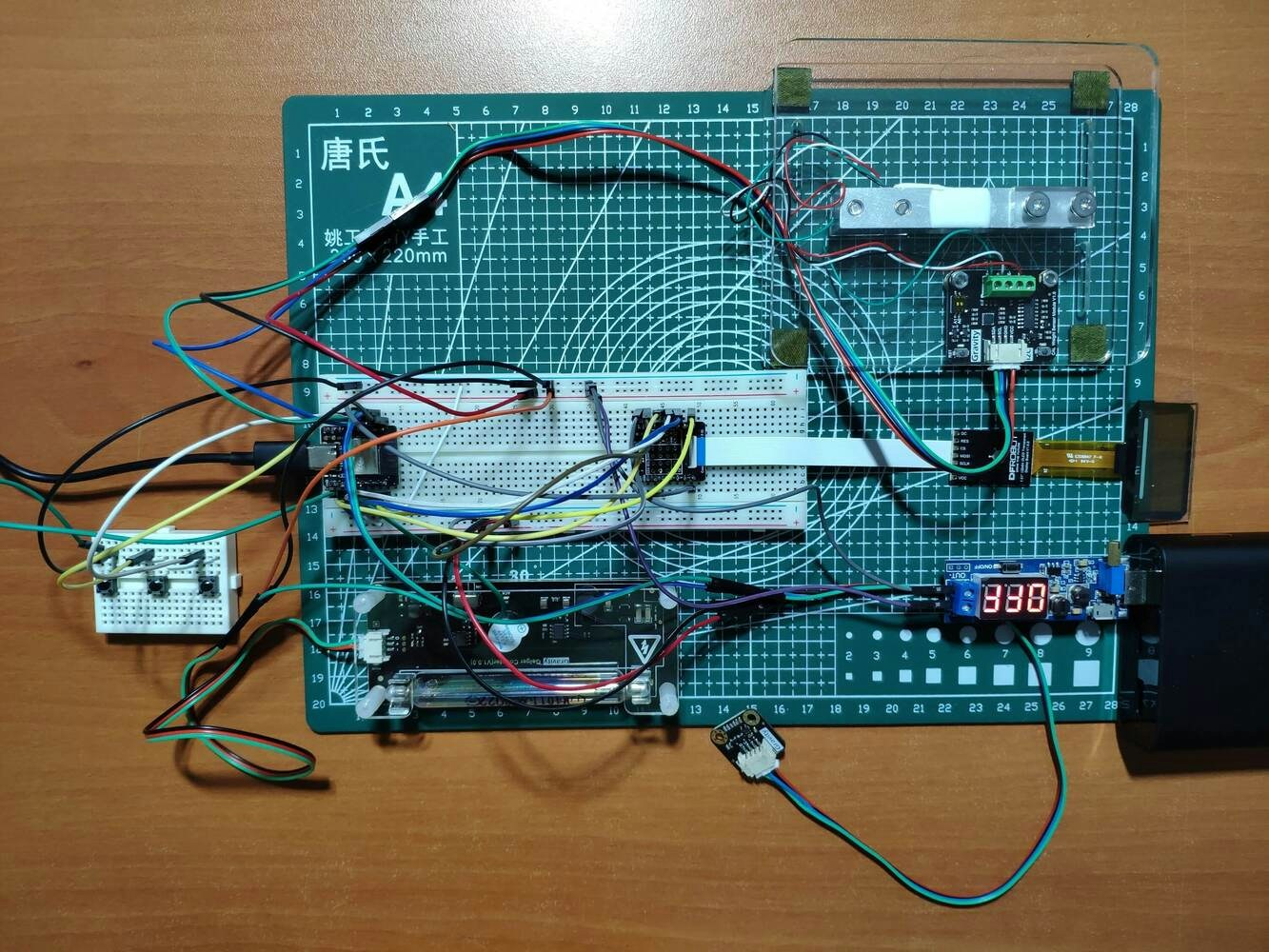

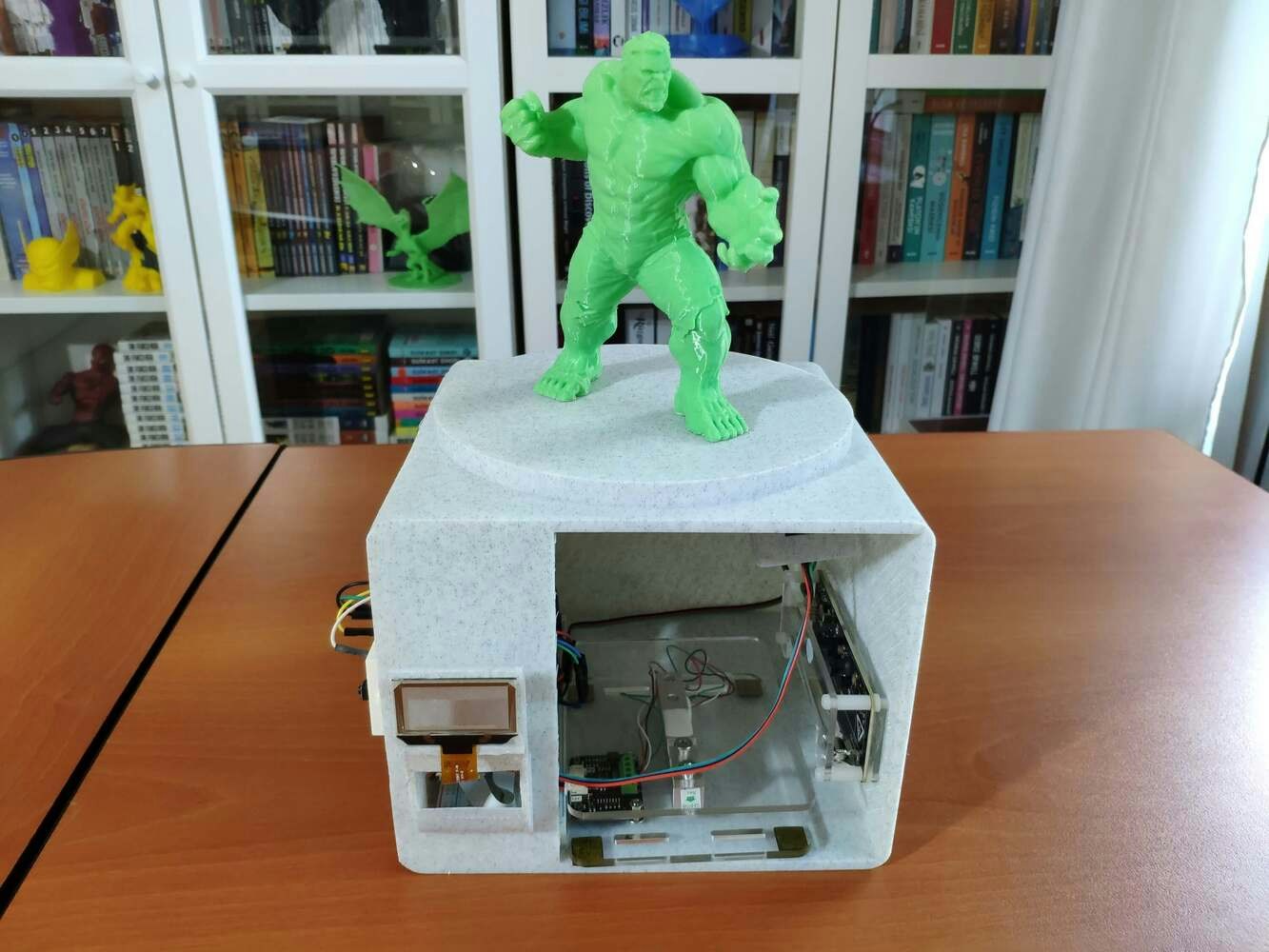

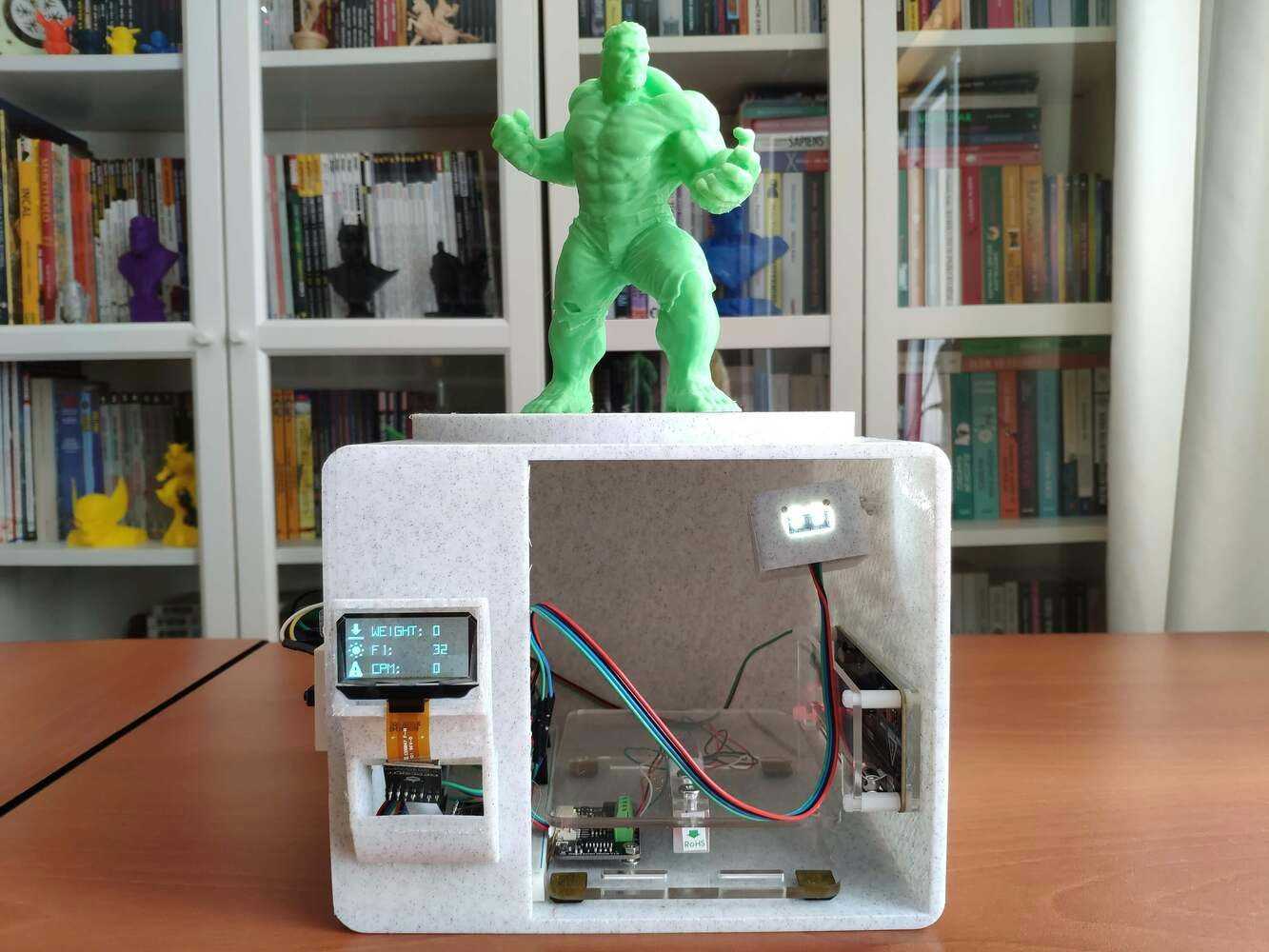

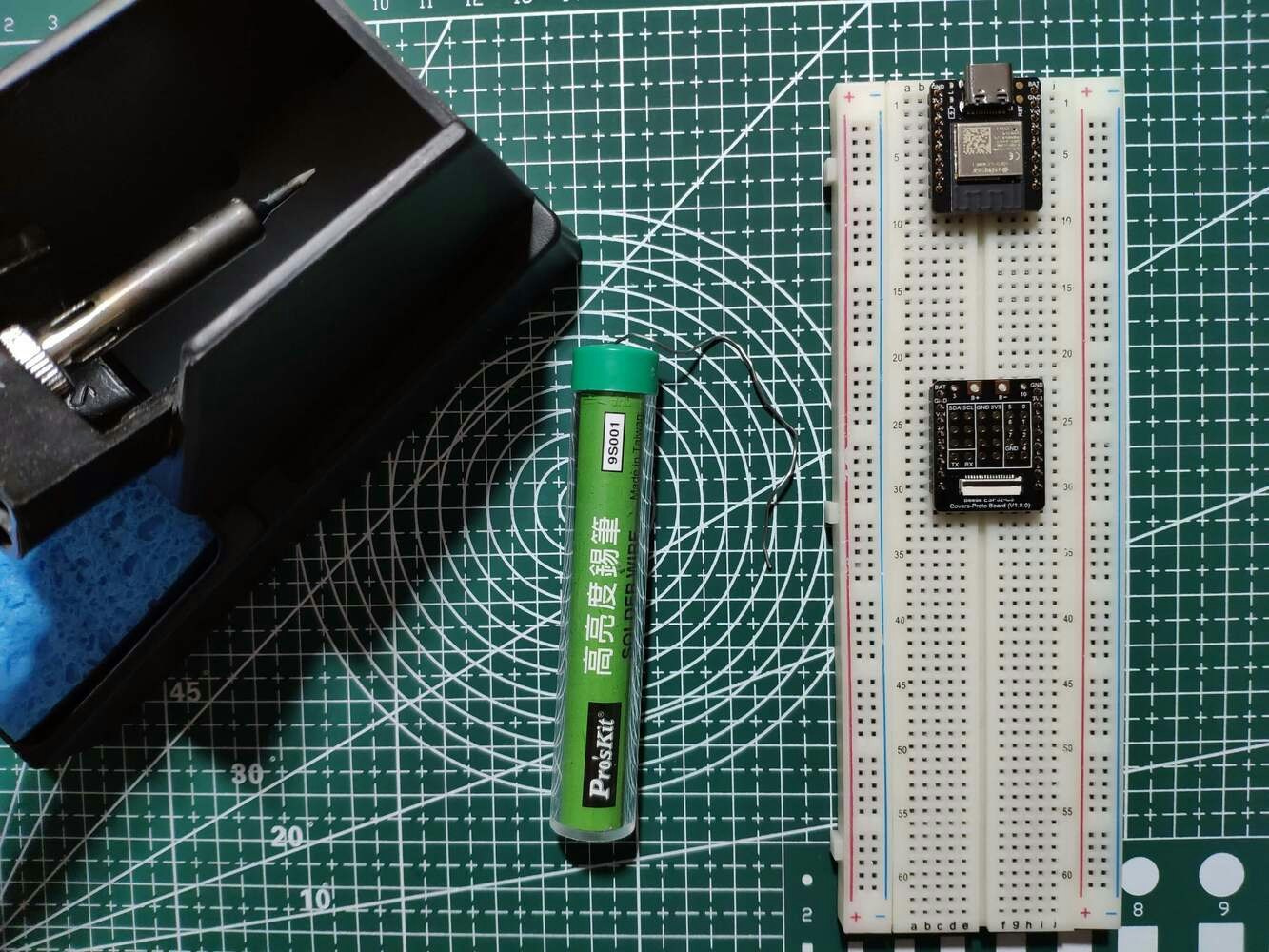

// Connections
// Beetle ESP32-C3 :
//                                Gravity: Geiger Counter Module
// D5   --------------------------- D
// VCC  --------------------------- +
// GND  --------------------------- -

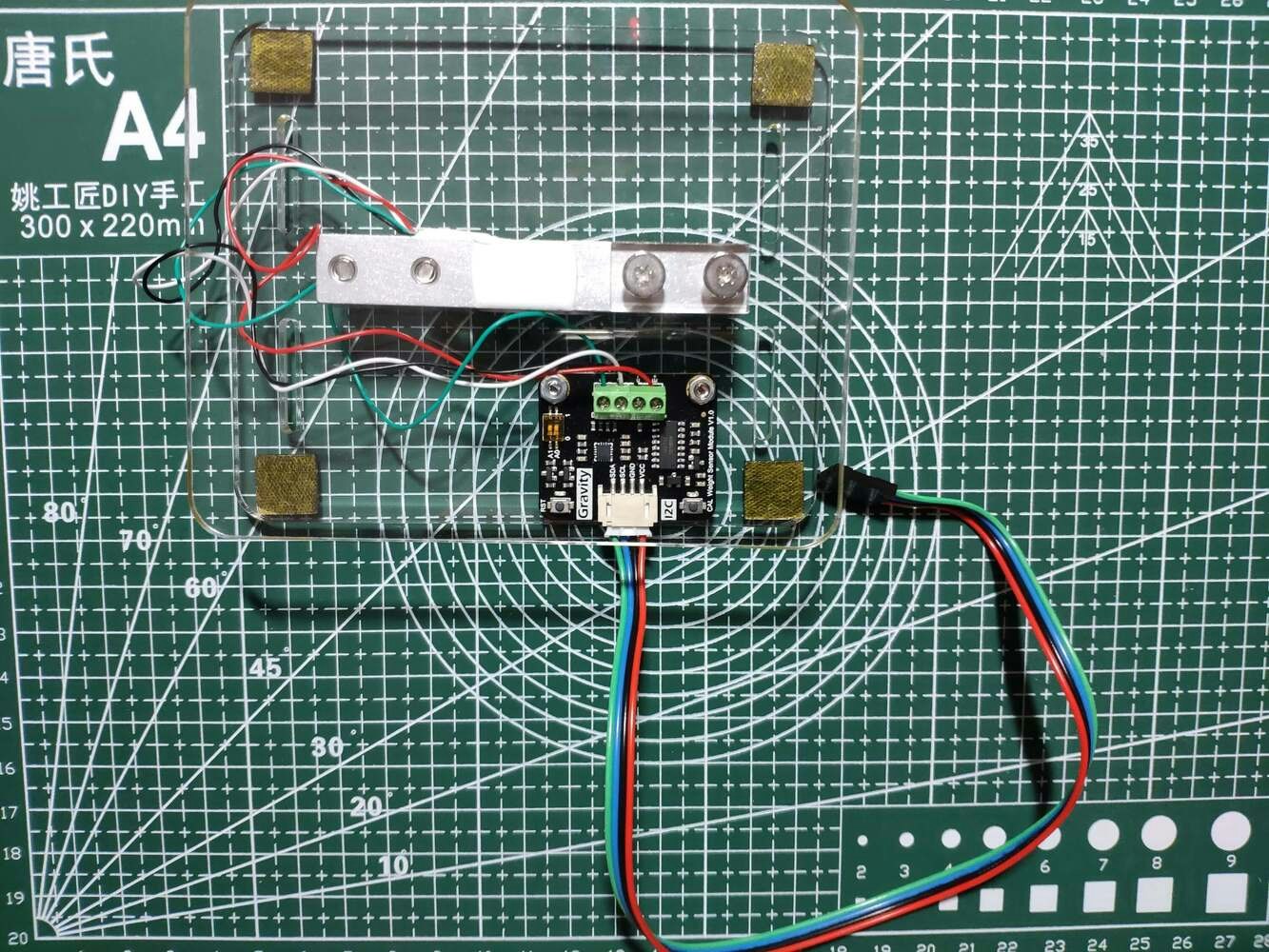

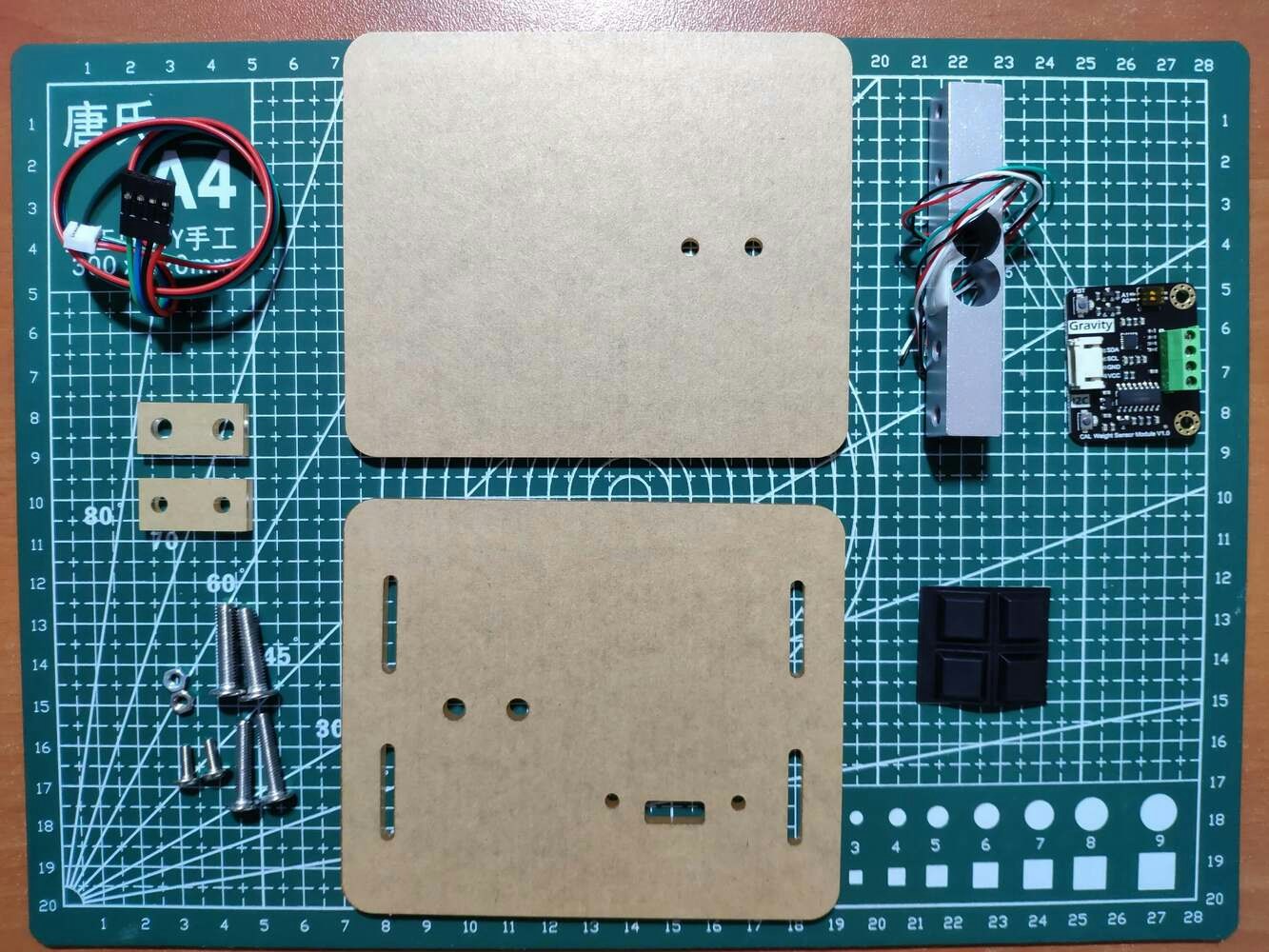

//                                Gravity: I2C 1Kg Weight Sensor Kit - HX711
// VCC  --------------------------- VCC
// GND  --------------------------- GND
// D9   --------------------------- SCL
// D8   --------------------------- SDA

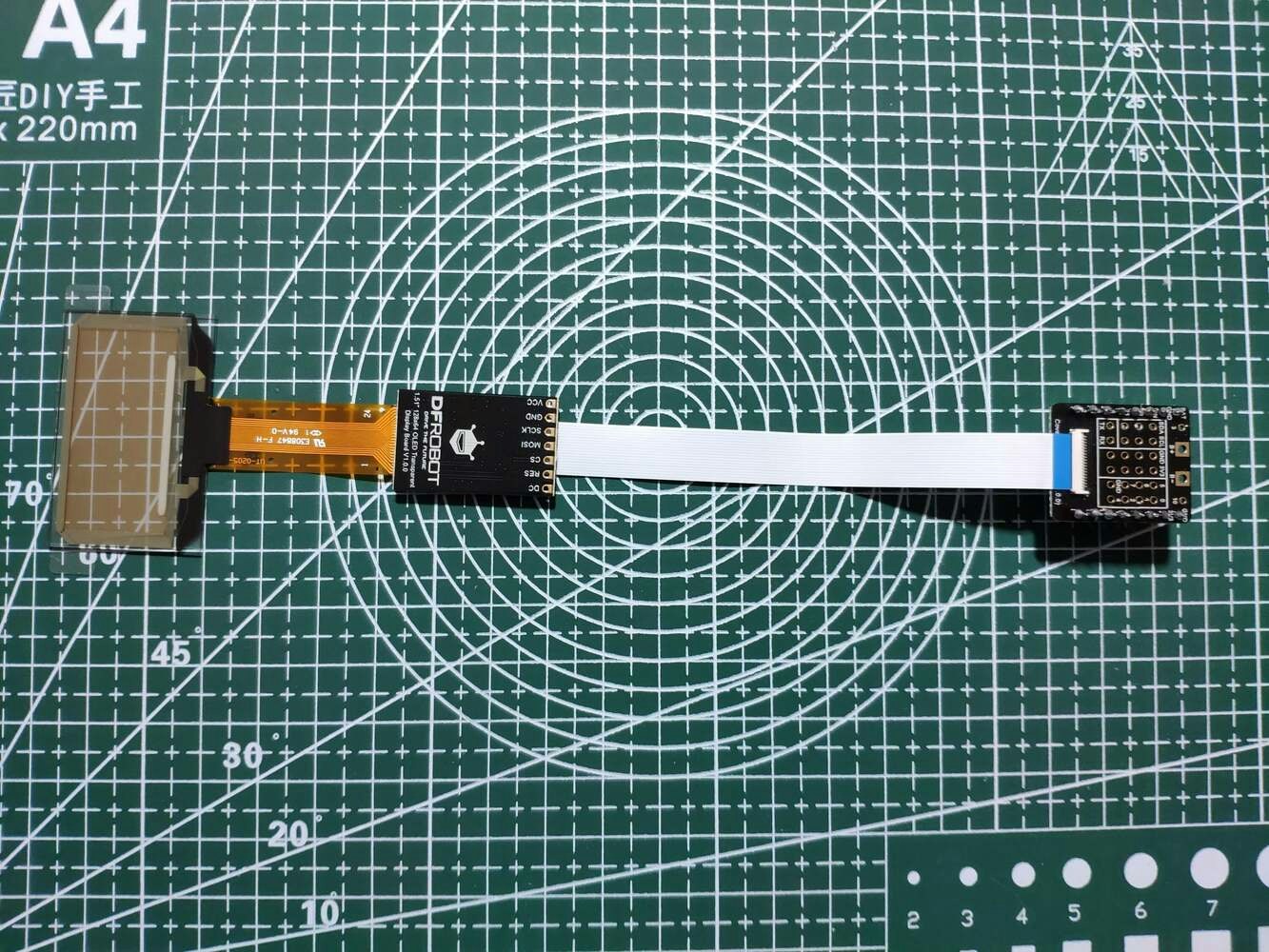

//                                Fermion: 1.51” SSD1309 OLED Transparent Display
// D4   --------------------------- SCLK
// D6   --------------------------- MOSI
// D7   --------------------------- CS
// D2   --------------------------- RES
// D1   --------------------------- DC
//                                AS7341 11-Channel Spectral Color Sensor
// VCC  --------------------------- +
// GND  --------------------------- -
// D9   --------------------------- C
// D8   --------------------------- D

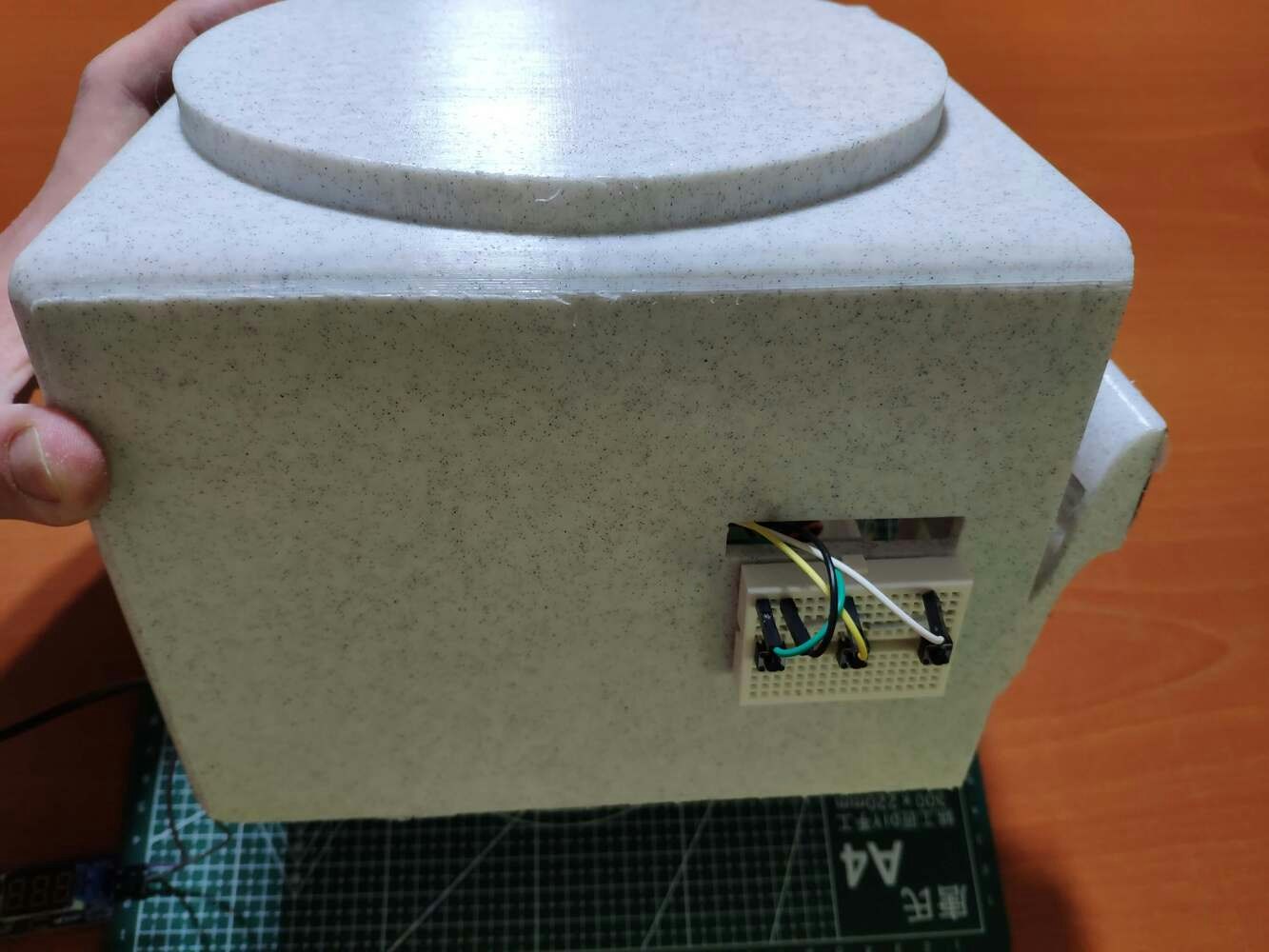

//                                Control Button (A)
// D0   --------------------------- +
//                                Control Button (B)
// D20  --------------------------- +
//                                Control Button (C)
// D21  --------------------------- +

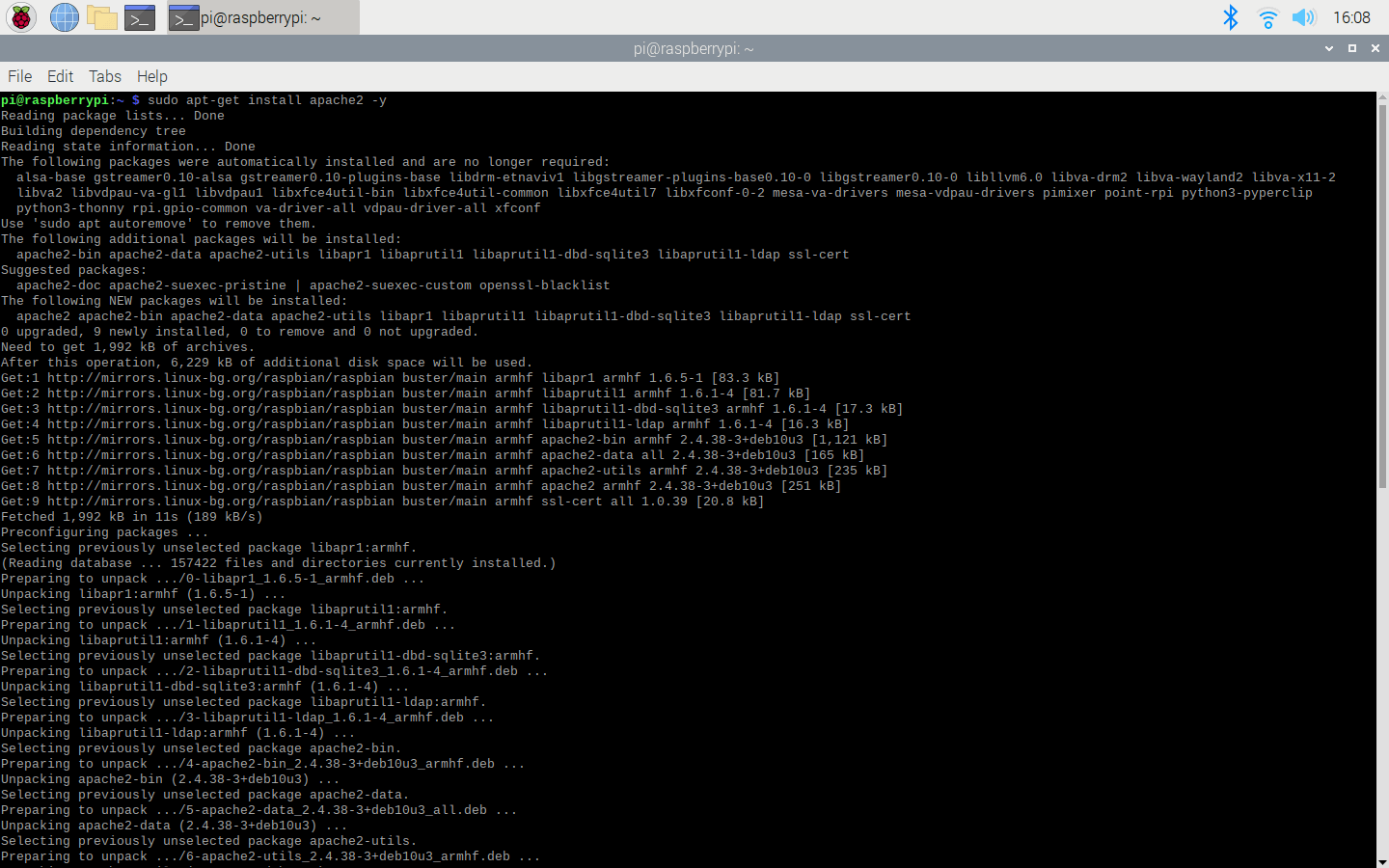

	public function __init__($conn, $table){
		$this->conn = $conn;
		$this->table = $table;
	}

	public function insert_new_data($d1, $d2, $d3, $d4, $d5, $d6, $d7, $d8, $d9, $d10, $d11, $d12, $c){
		$sql = "INSERT INTO `$this->table`(`weight`, `f1`, `f2`, `f3`, `f4`, `f5`, `f6`, `f7`, `f8`, `cpm`, `nsv`, `usv`, `class`) VALUES ('$d1', '$d2', '$d3', '$d4', '$d5', '$d6', '$d7', '$d8', '$d9', '$d10', '$d11', '$d12', '$c')";
		if(mysqli_query($this->conn, $sql)){ return true; }else { return false; }
	}

	public function database_create_table(){
		// Create a new database table.
		$sql_create = "CREATE TABLE `$this->table`(
							id int AUTO_INCREMENT PRIMARY KEY NOT NULL,
							weight varchar(255) NOT NULL,
							f1 varchar(255) NOT NULL,
							f2 varchar(255) NOT NULL,
							f3 varchar(255) NOT NULL,
							f4 varchar(255) NOT NULL,
							f5 varchar(255) NOT NULL,
							f6 varchar(255) NOT NULL,
							f7 varchar(255) NOT NULL,
							f8 varchar(255) NOT NULL,
							cpm varchar(255) NOT NULL,
							nsv varchar(255) NOT NULL,
							usv varchar(255) NOT NULL,
							`class` varchar(255) NOT NULL
					   );";
		if(mysqli_query($this->conn, $sql_create)) echo("<br><br>Database Table Created Successfully!");
	}

	public $class_names = ["Regulated", "Unsafe", "Hazardous"];

	// Count the registered data records (samples) in the given database table.
	public function count_samples(){
		$count = [
			"total" => mysqli_num_rows(mysqli_query($this->conn, "SELECT * FROM `$this->table`")),
			"regulated" => mysqli_num_rows(mysqli_query($this->conn, "SELECT * FROM `$this->table` WHERE class='0'")),
			"unsafe" => mysqli_num_rows(mysqli_query($this->conn, "SELECT * FROM `$this->table` WHERE class='1'")),
			"hazardous" => mysqli_num_rows(mysqli_query($this->conn, "SELECT * FROM `$this->table` WHERE class='2'")),
		];
		return $count;
	}

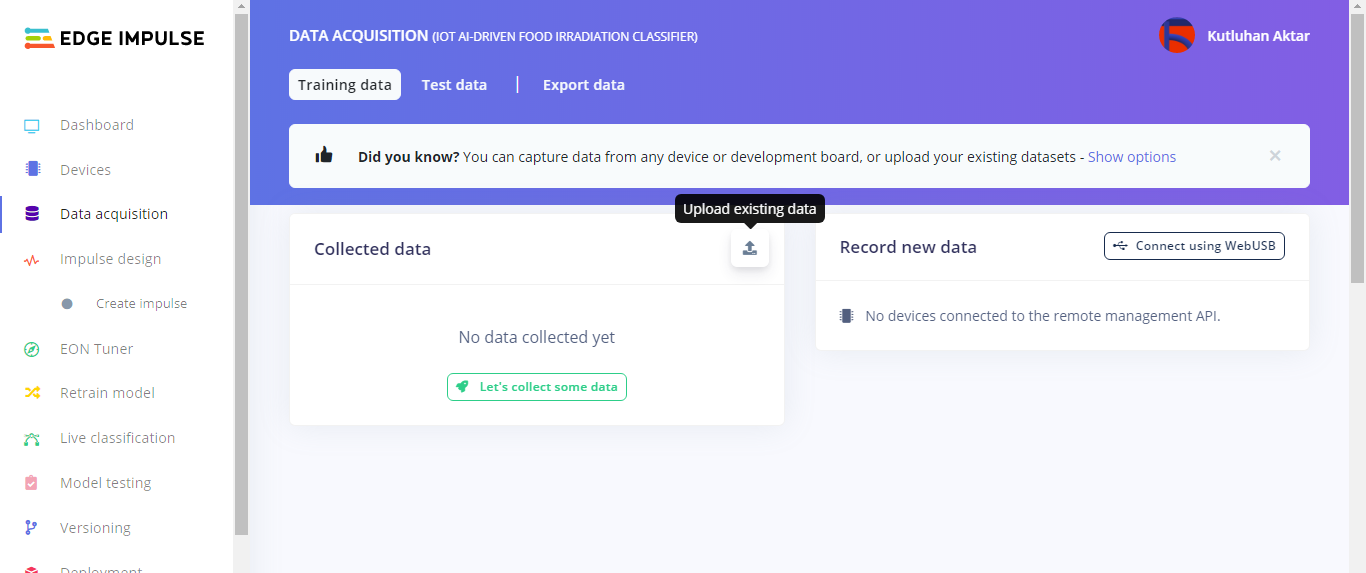

	public function create_sample_files($type){
		// Obtain the registered data records (samples) from the given database table.
		$sql = "SELECT * FROM `$this->table`";
		$result = mysqli_query($this->conn, $sql);
		$check = mysqli_num_rows($result);
		if($check > 0){
			while($row = mysqli_fetch_assoc($result)){
				// Scale (normalize) data items to define appropriately formatted inputs (samples).
				$scaled = [
					"weight" => $row["weight"] / 10,
					"f1" => $row["f1"] / 100,
					"f2" => $row["f2"] / 100,
					"f3" => $row["f3"] / 100,
					"f4" => $row["f4"] / 100,
					"f5" => $row["f5"] / 100,
					"f6" => $row["f6"] / 100,
					"f7" => $row["f7"] / 100,
					"f8" => $row["f8"] / 100,
					"cpm" => $row["cpm"] / 100,
					"nsv" => $row["nsv"] / 100,
					"usv" => $row["usv"]
				];
				// Add the header as the first row.
				$processed_data = [
					['weight','f1','f2','f3','f4','f5','f6','f7','f8','cpm','nsv','usv'],
					[$scaled["weight"],$scaled["f1"],$scaled["f2"],$scaled["f3"],$scaled["f4"],$scaled["f5"],$scaled["f6"],$scaled["f7"],$scaled["f8"],$scaled["cpm"],$scaled["nsv"],$scaled["usv"]]
				];
				$filename = "data/".$this->class_names[$row["class"]].".".$type.".sample_".$row["id"].".csv";
				$f = fopen($filename, "w");
				foreach($processed_data as $r){
					fputcsv($f, $r);
				}
				fclose($f);
			}
		}
	}

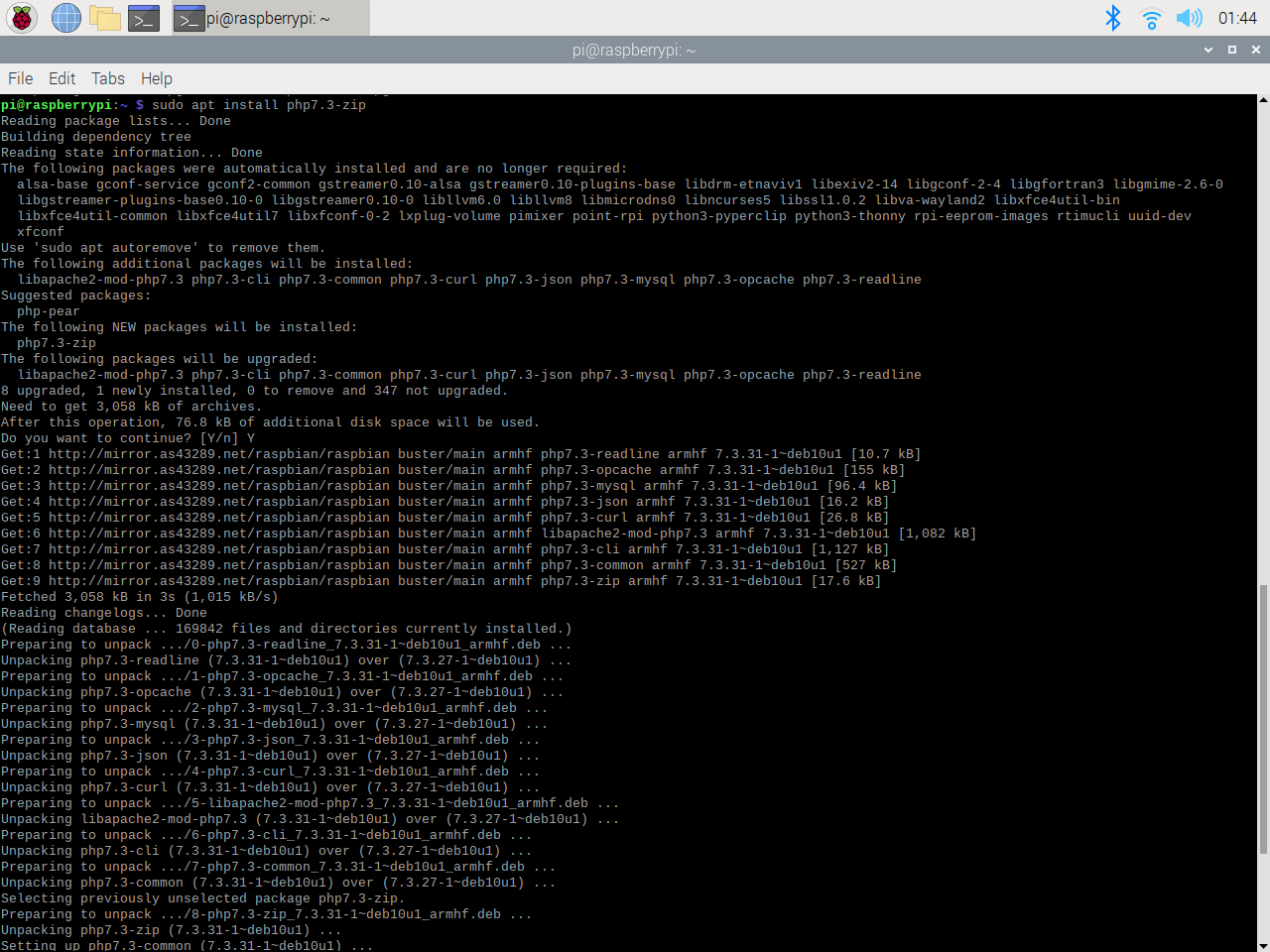

	public function download_samples($zipname){
		if(count(scandir("data")) > 2){
			$zip = new ZipArchive;
			$zip->open($zipname, ZipArchive::CREATE);
			foreach(glob("data/*.csv") as $sample){
				$zip->addFile($sample);
			}
			$zip->close();

			header('Content-Type: application/zip');
			header("Content-Disposition: attachment; filename='$zipname'");
			header('Content-Length: ' . filesize($zipname));
			header("Location: $zipname");
		}else{
			header("Location: .");
			exit();
		}
	}

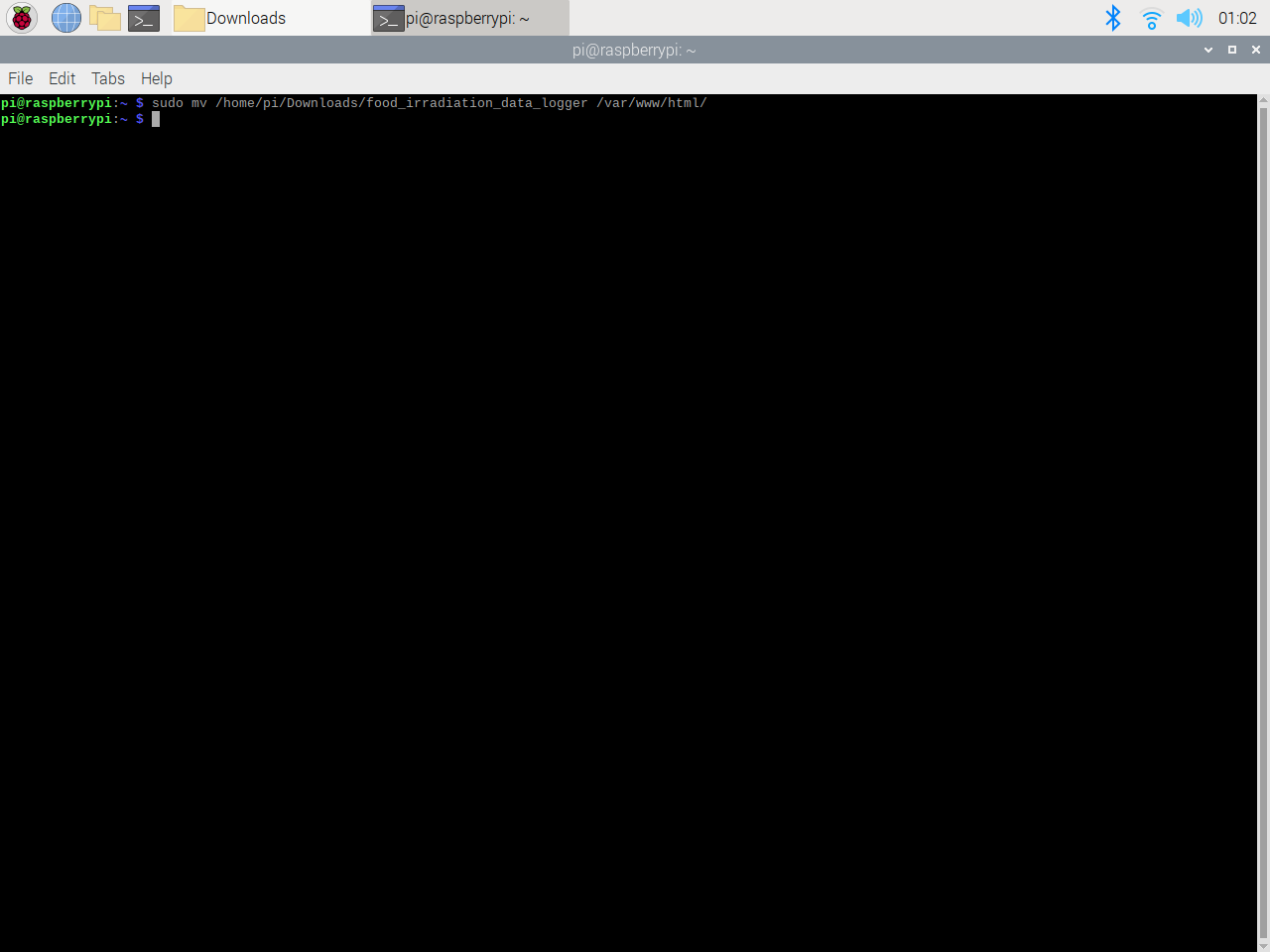

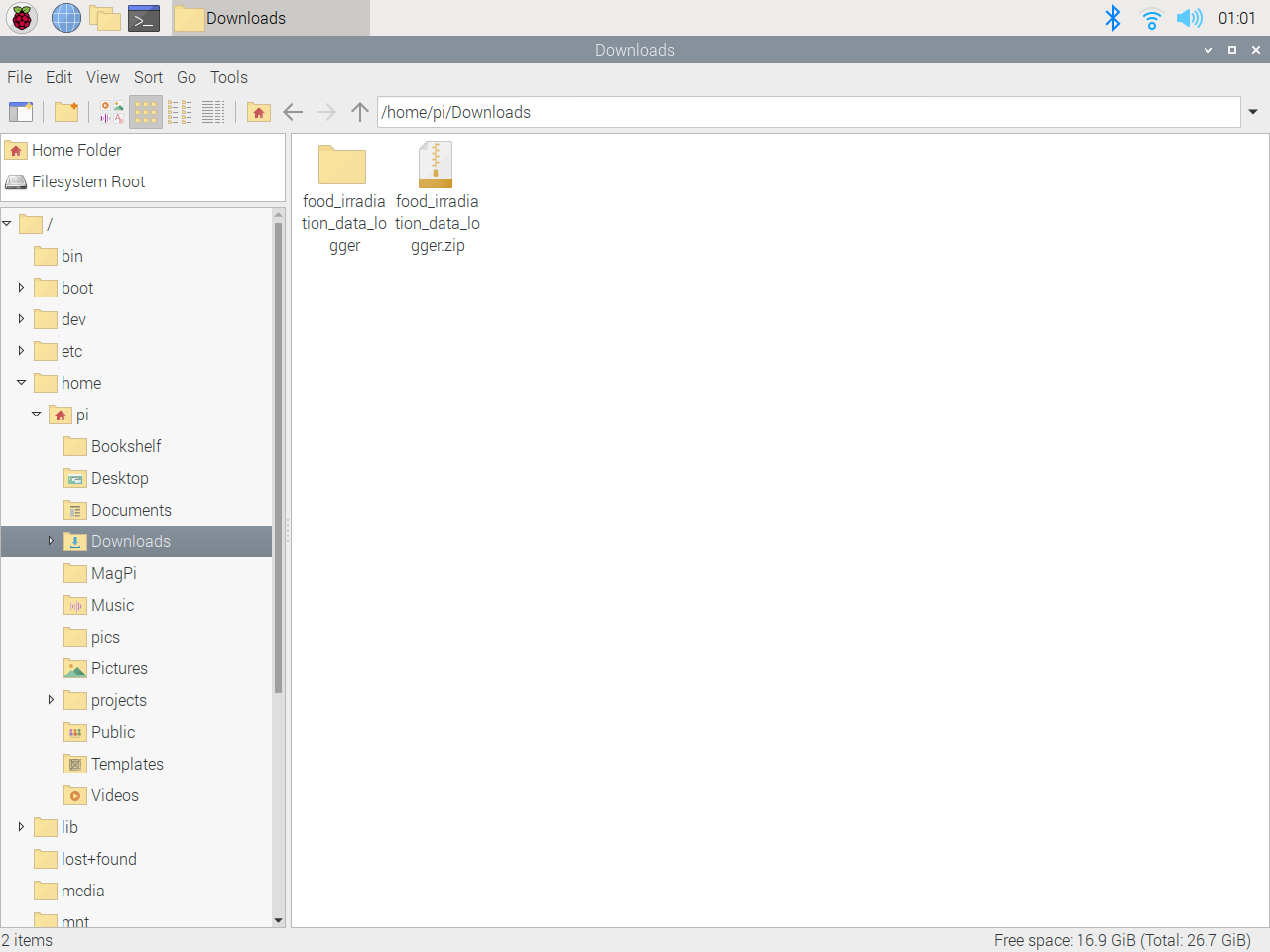

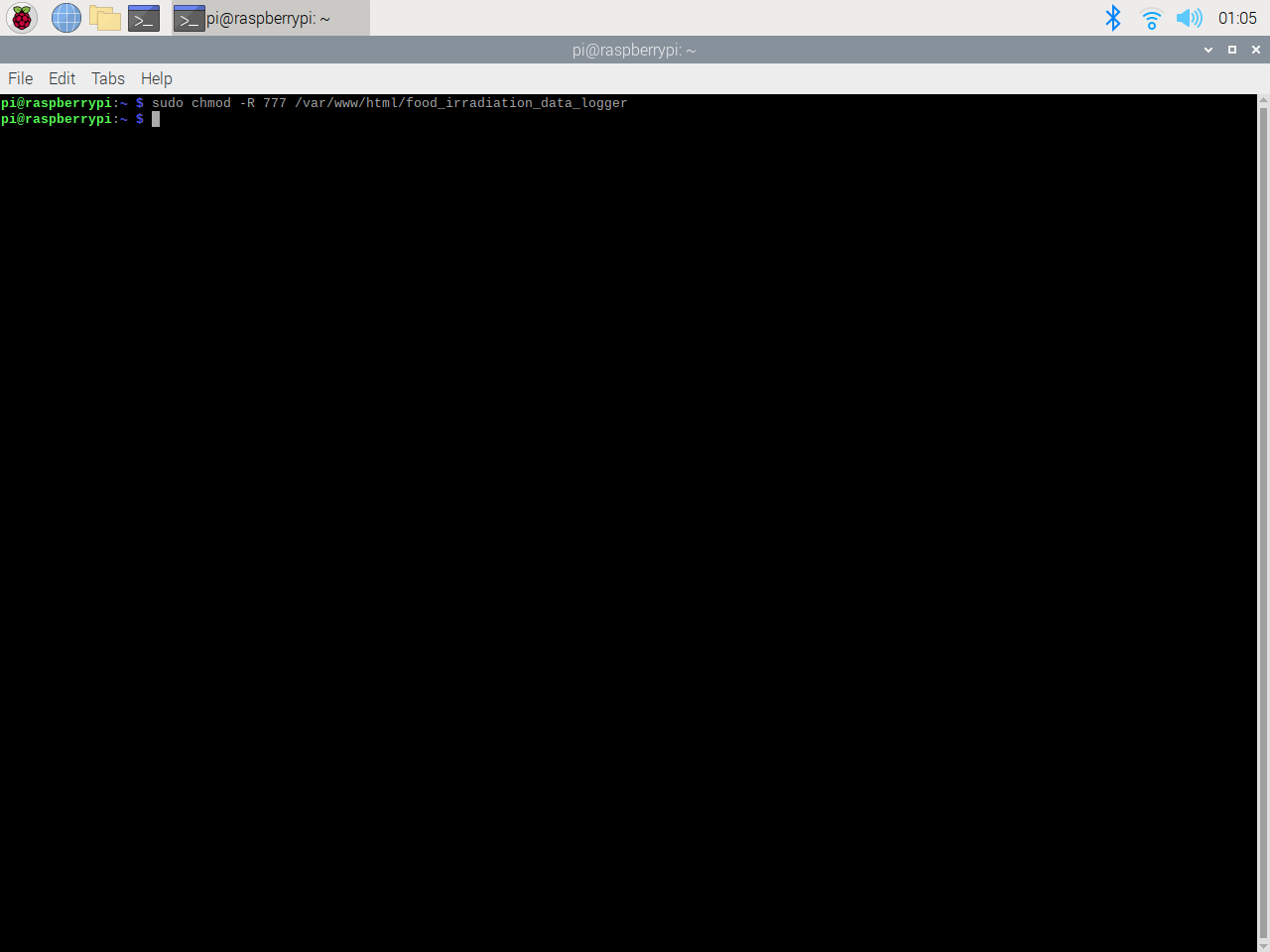

$server = array(
	"name" => "localhost",
	"username" => "root",
	"password" => "bot",
	"database" => "foodirradiation",
	"table" => "entries"

);

$conn = mysqli_connect($server["name"], $server["username"], $server["password"], $server["database"]);

include_once "assets/class.php";

// Define the new 'food' object:
$food = new _main();
$food->__init__($conn, $server["table"]);

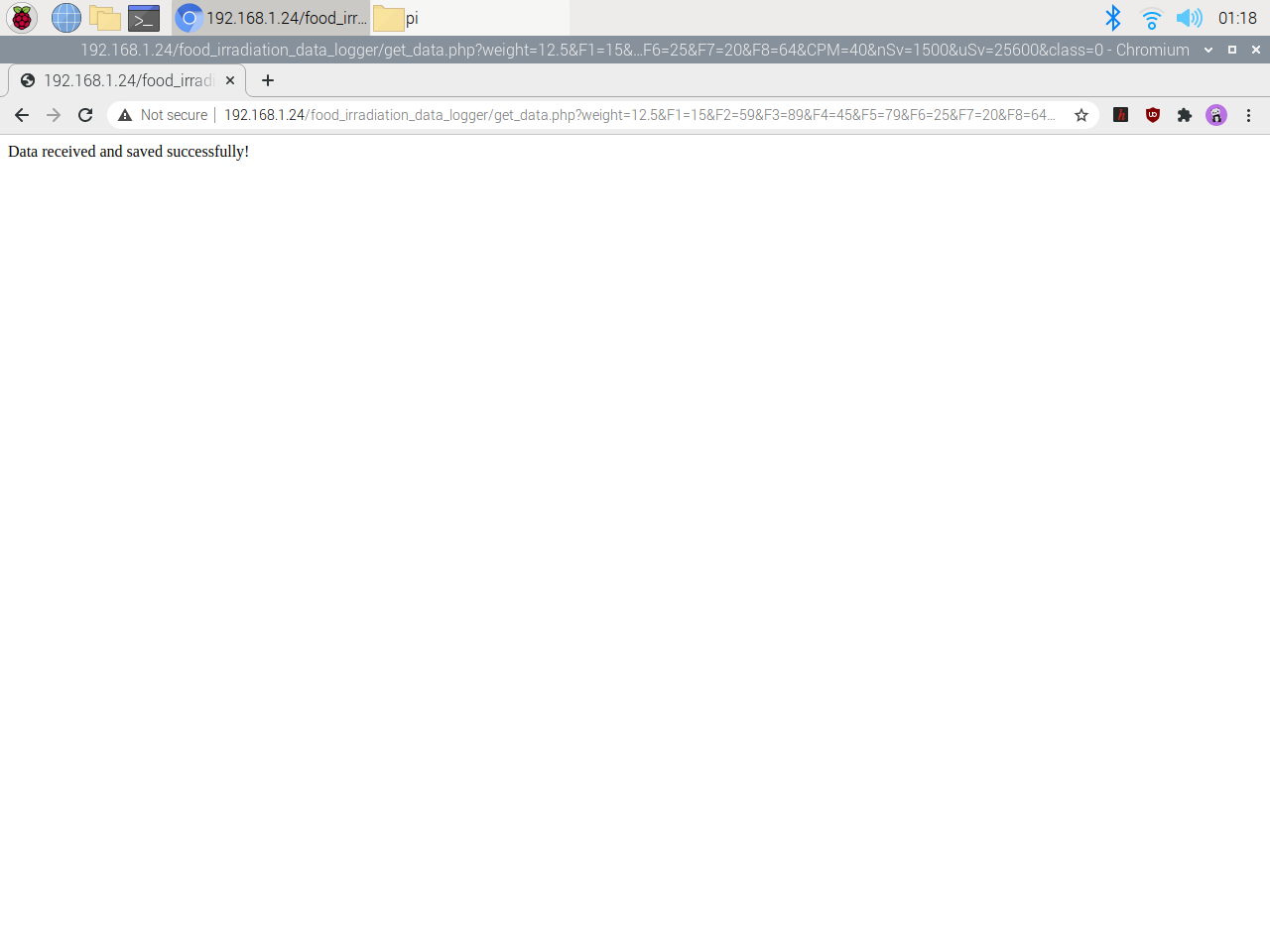

if(isset($_GET["weight"]) && isset($_GET["F1"]) && isset($_GET["F2"]) && isset($_GET["F3"]) && isset($_GET["F4"]) && isset($_GET["F5"]) && isset($_GET["F6"]) && isset($_GET["F7"]) && isset($_GET["F8"]) && isset($_GET["CPM"]) && isset($_GET["nSv"]) && isset($_GET["uSv"]) && isset($_GET["class"])){
	if($food->insert_new_data($_GET["weight"], $_GET["F1"], $_GET["F2"], $_GET["F3"], $_GET["F4"], $_GET["F5"], $_GET["F6"], $_GET["F7"], $_GET["F8"], $_GET["CPM"], $_GET["nSv"], $_GET["uSv"], $_GET["class"])){
		echo("Data received and saved successfully!");
	}else{
		echo("Database error!");
	}
}else{

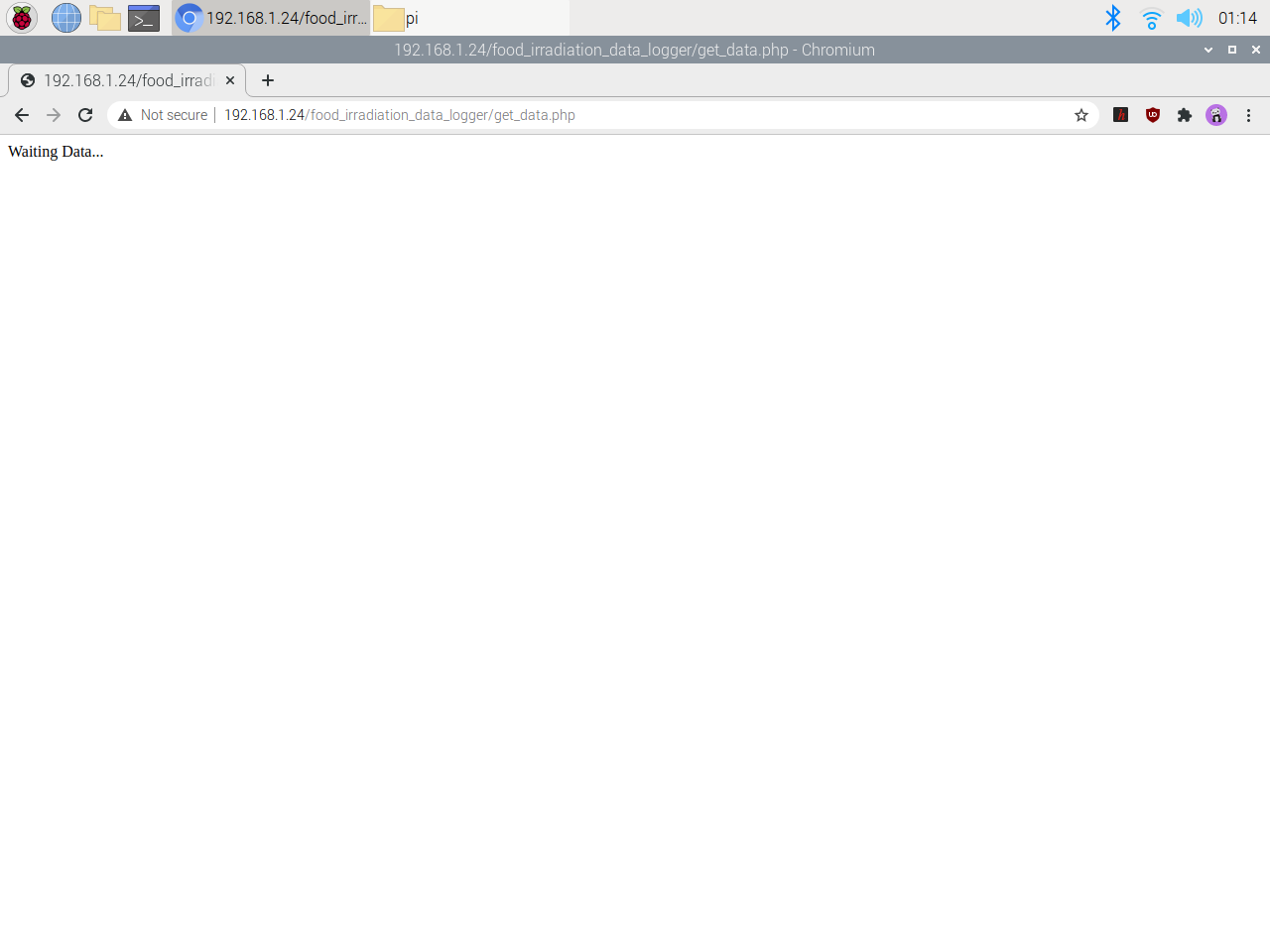

	echo("Waiting Data...");
}

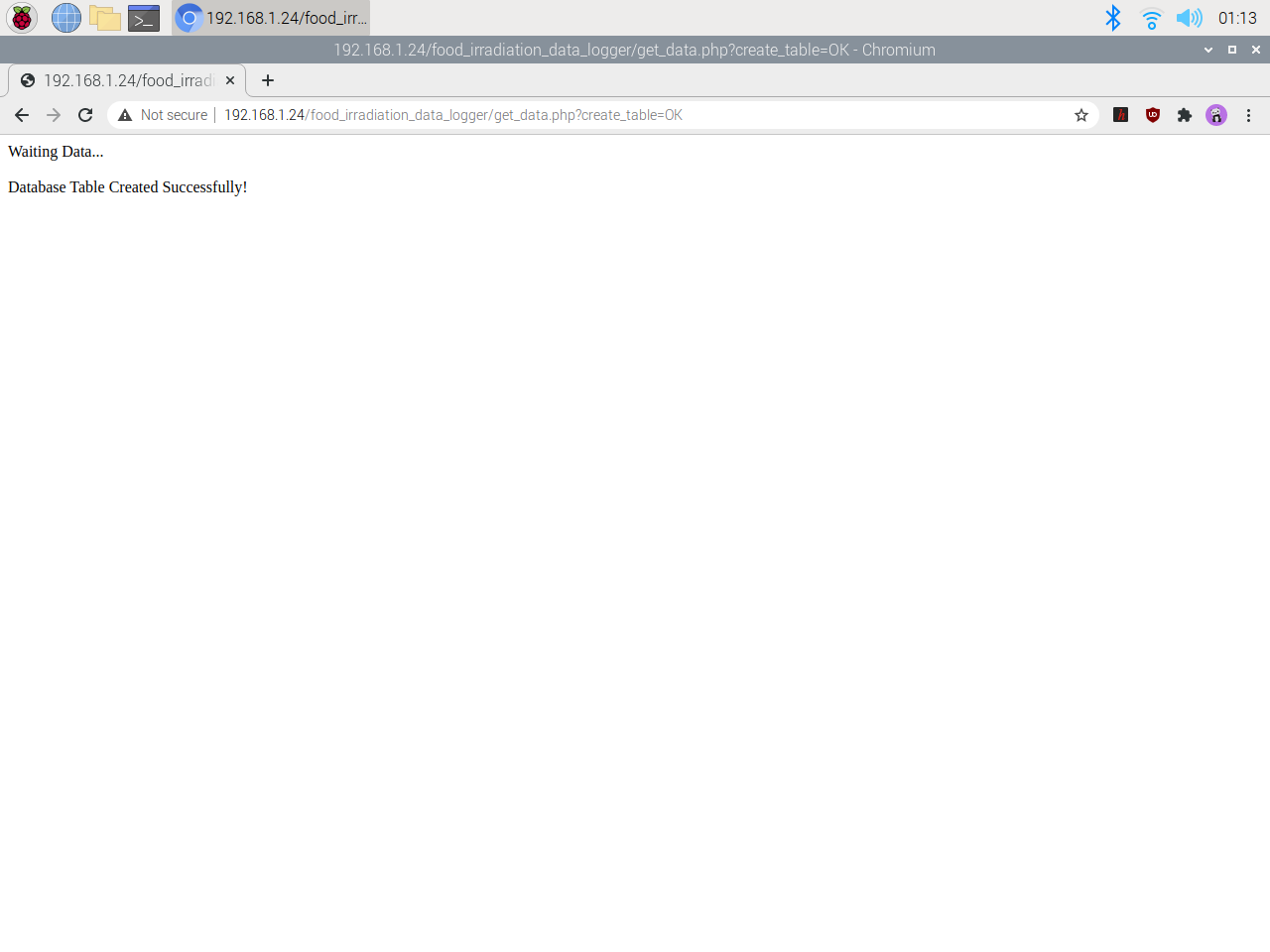

if(isset($_GET["create_table"]) && $_GET["create_table"] == "OK") $food->database_create_table();

	include_once "assets/class.php";

	// Define the new 'sample' object:
	$sample = new sample();
	$sample->__init__($conn, $server["table"]);

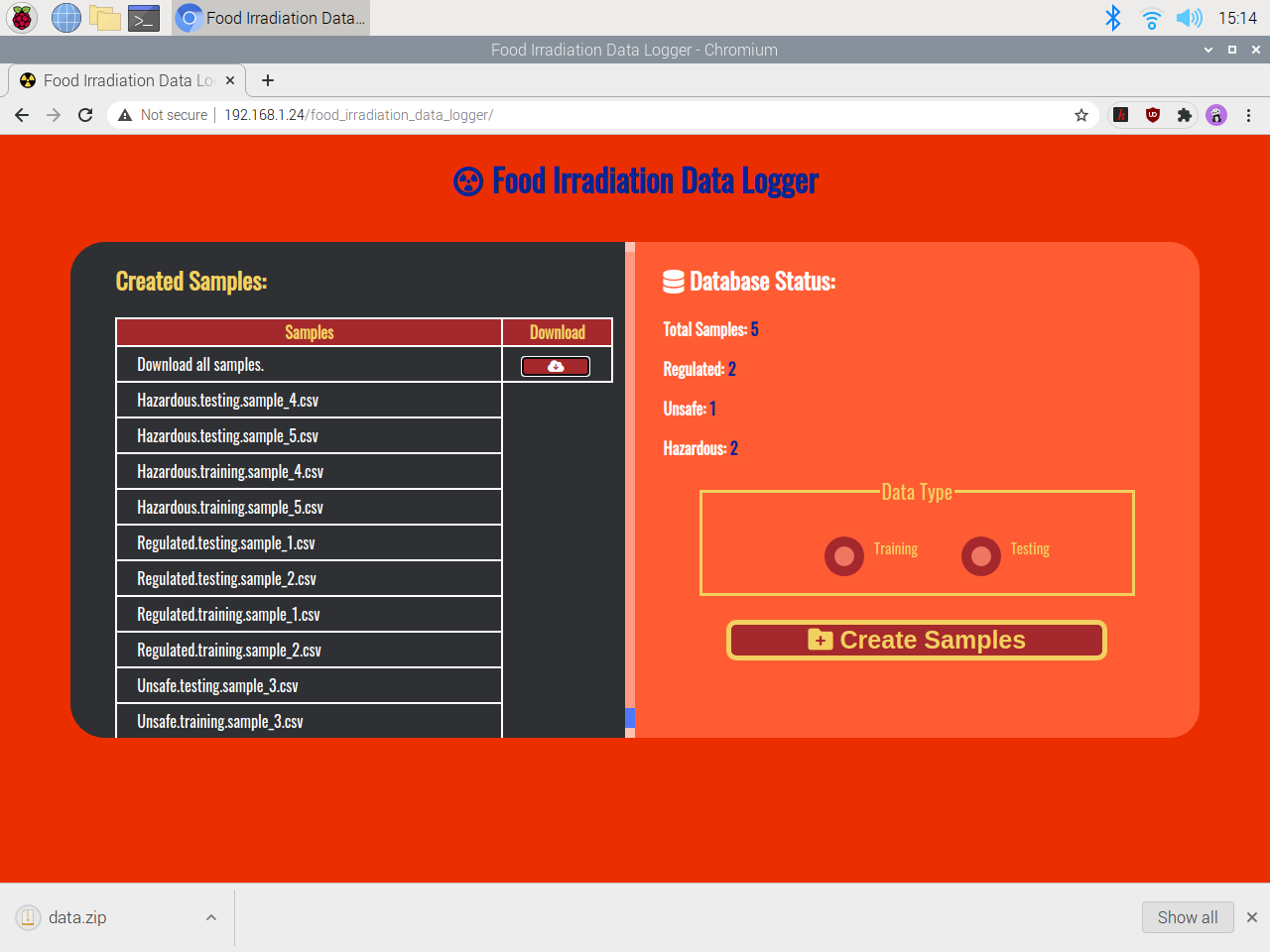

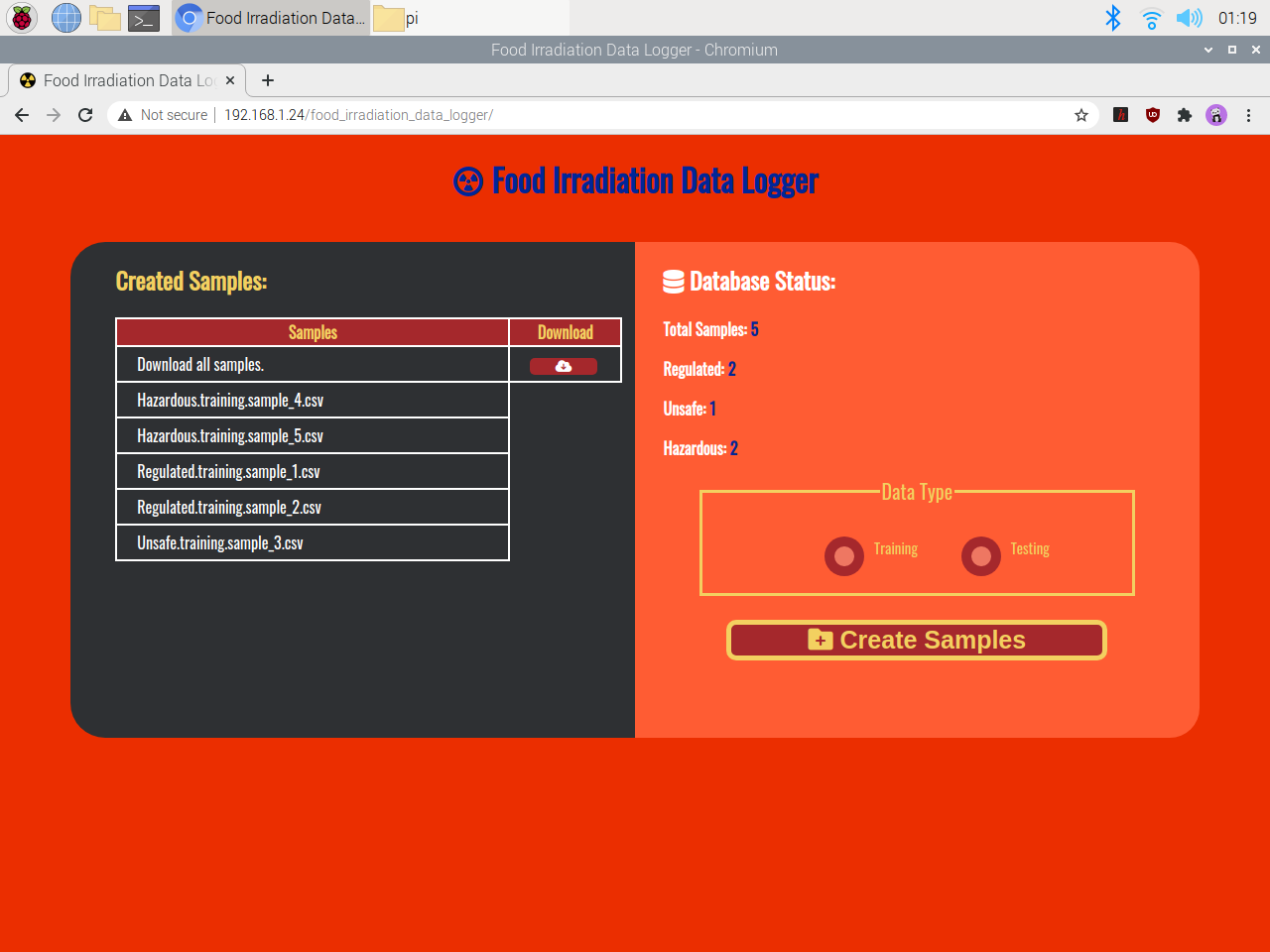

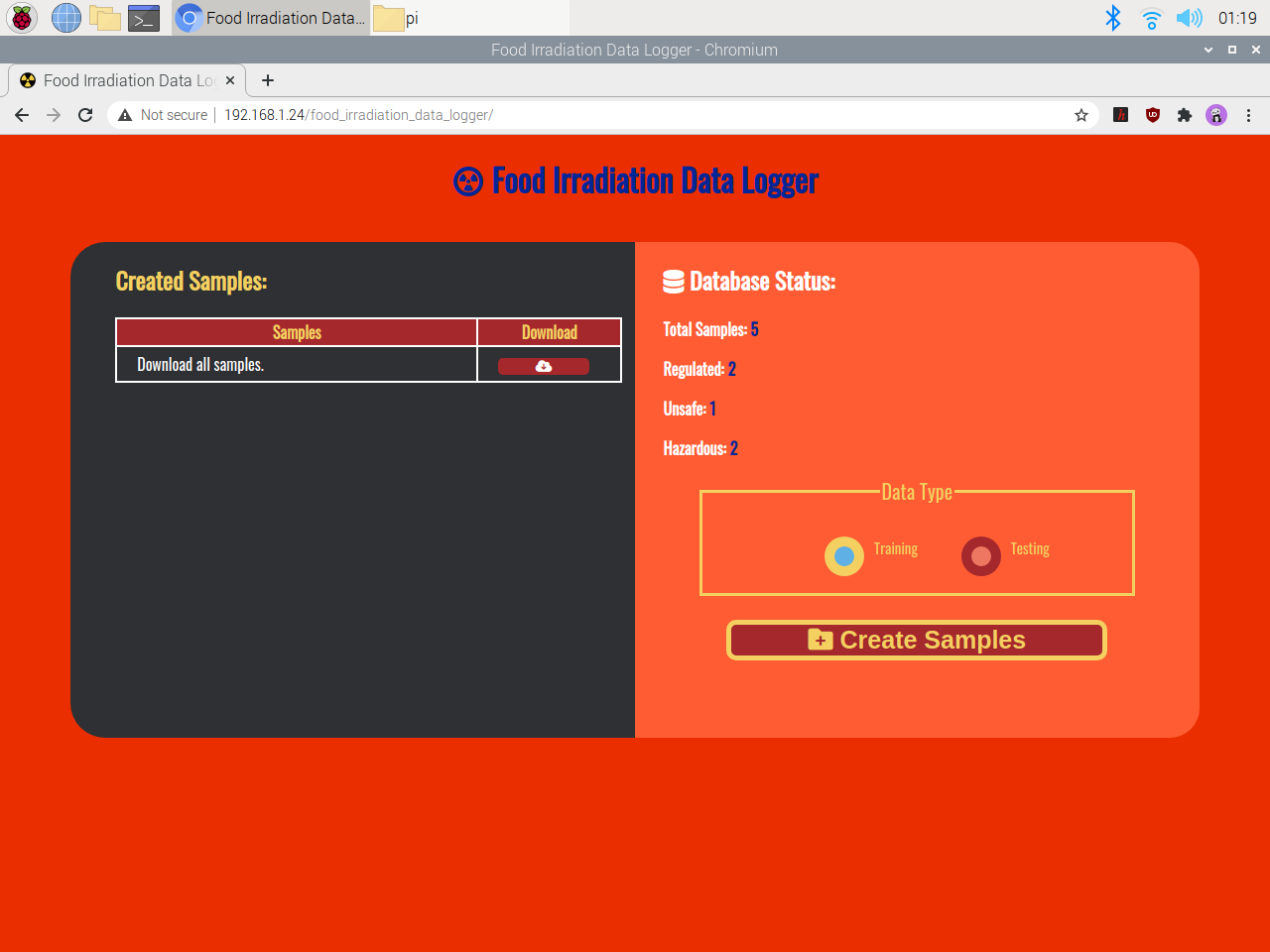

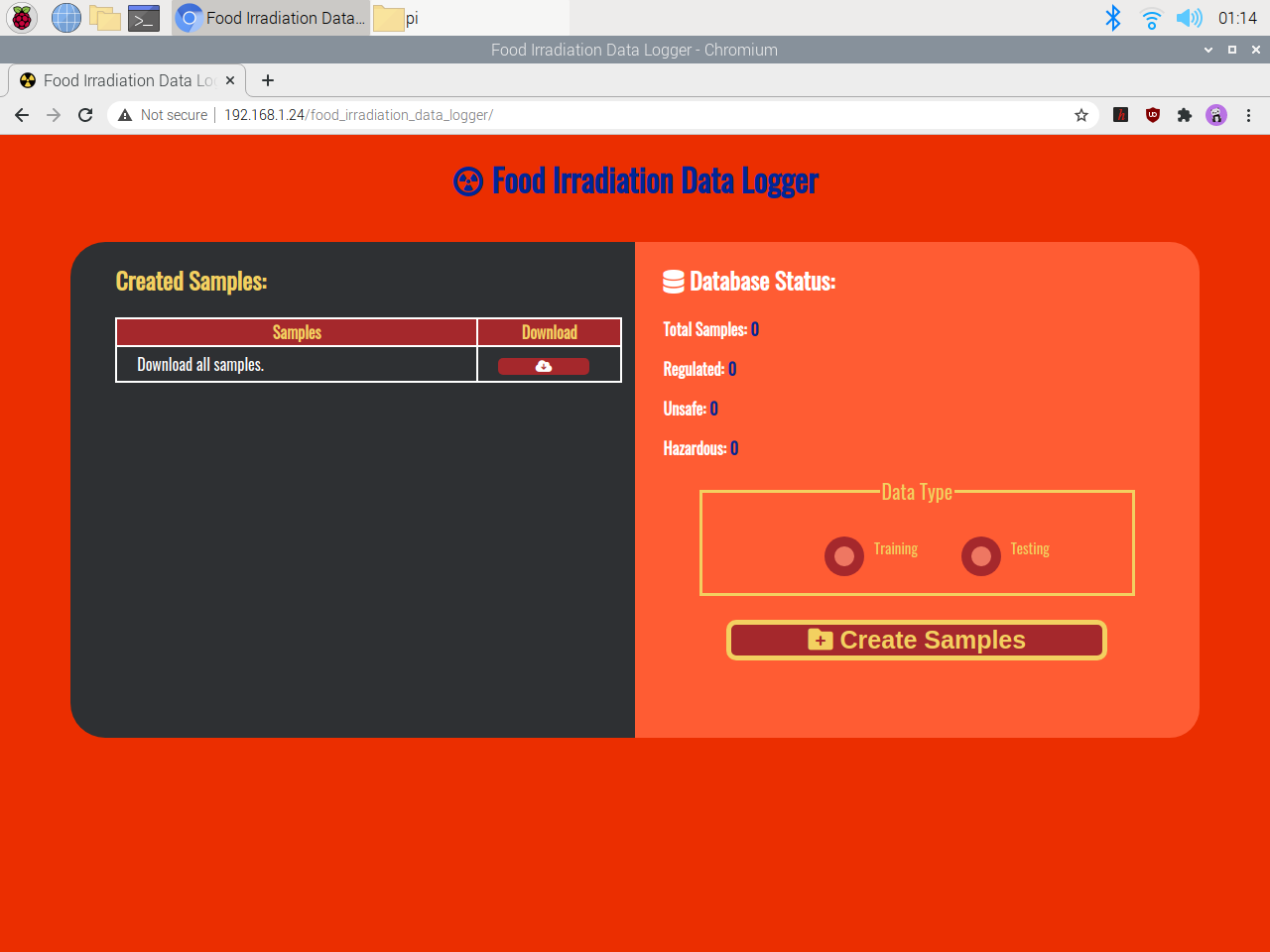

$count = $sample->count_samples();

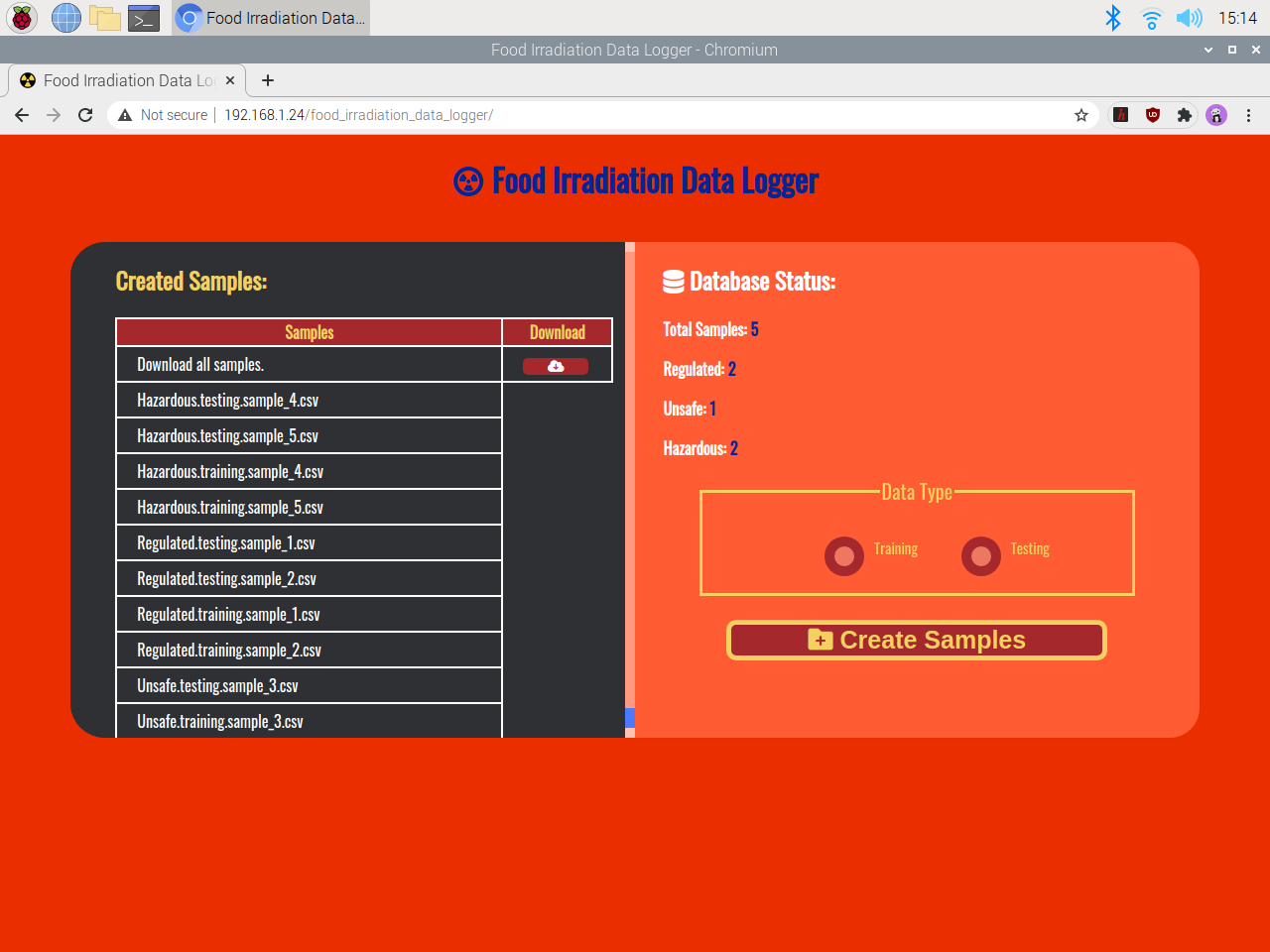

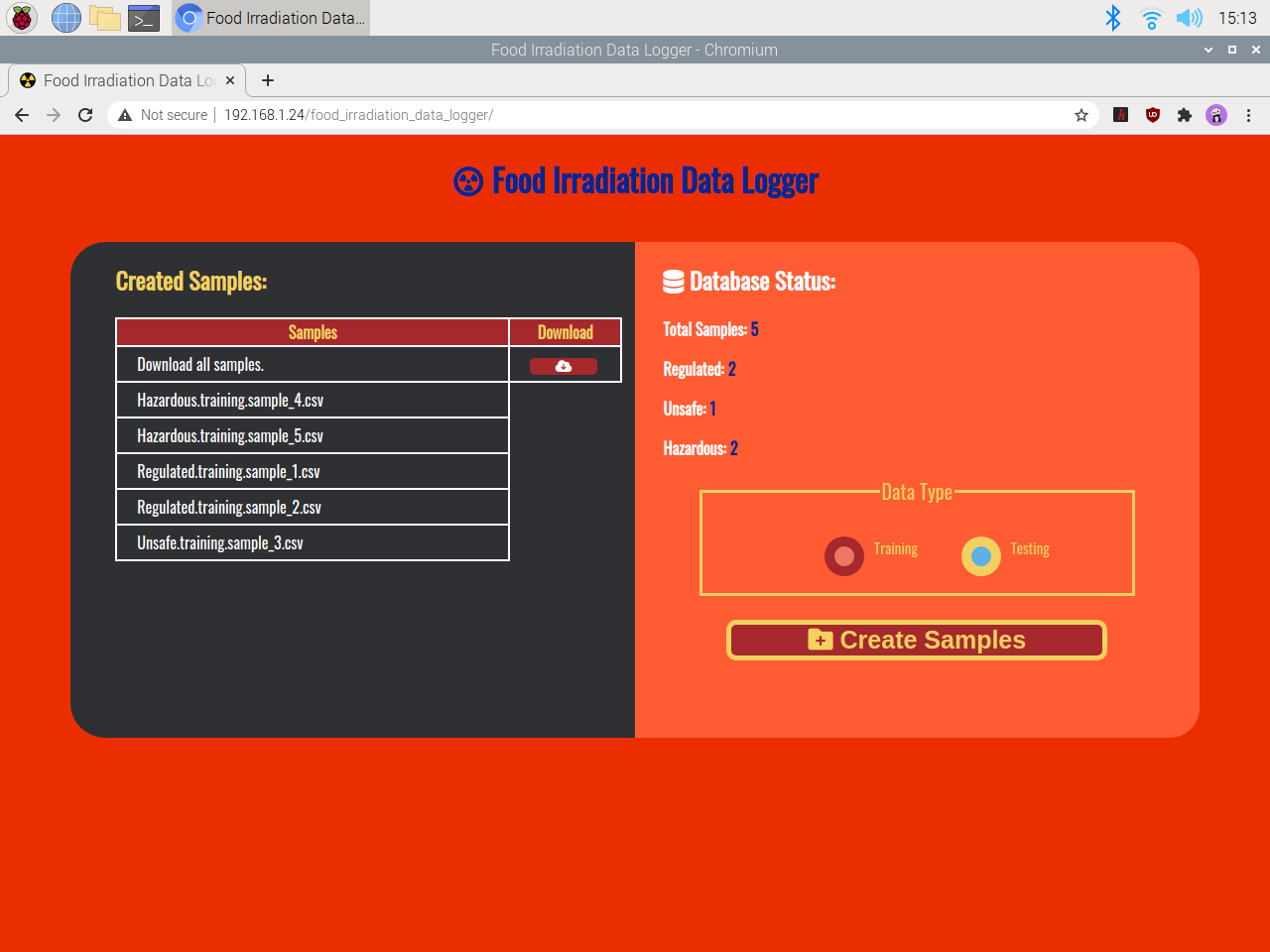

    if(isset($_POST["data"]) && $_POST["data"] != ""){
		$sample->create_sample_files($_POST["data"]);
	}

    if(isset($_GET["download"])){
		$sample->download_samples("data.zip");
	}

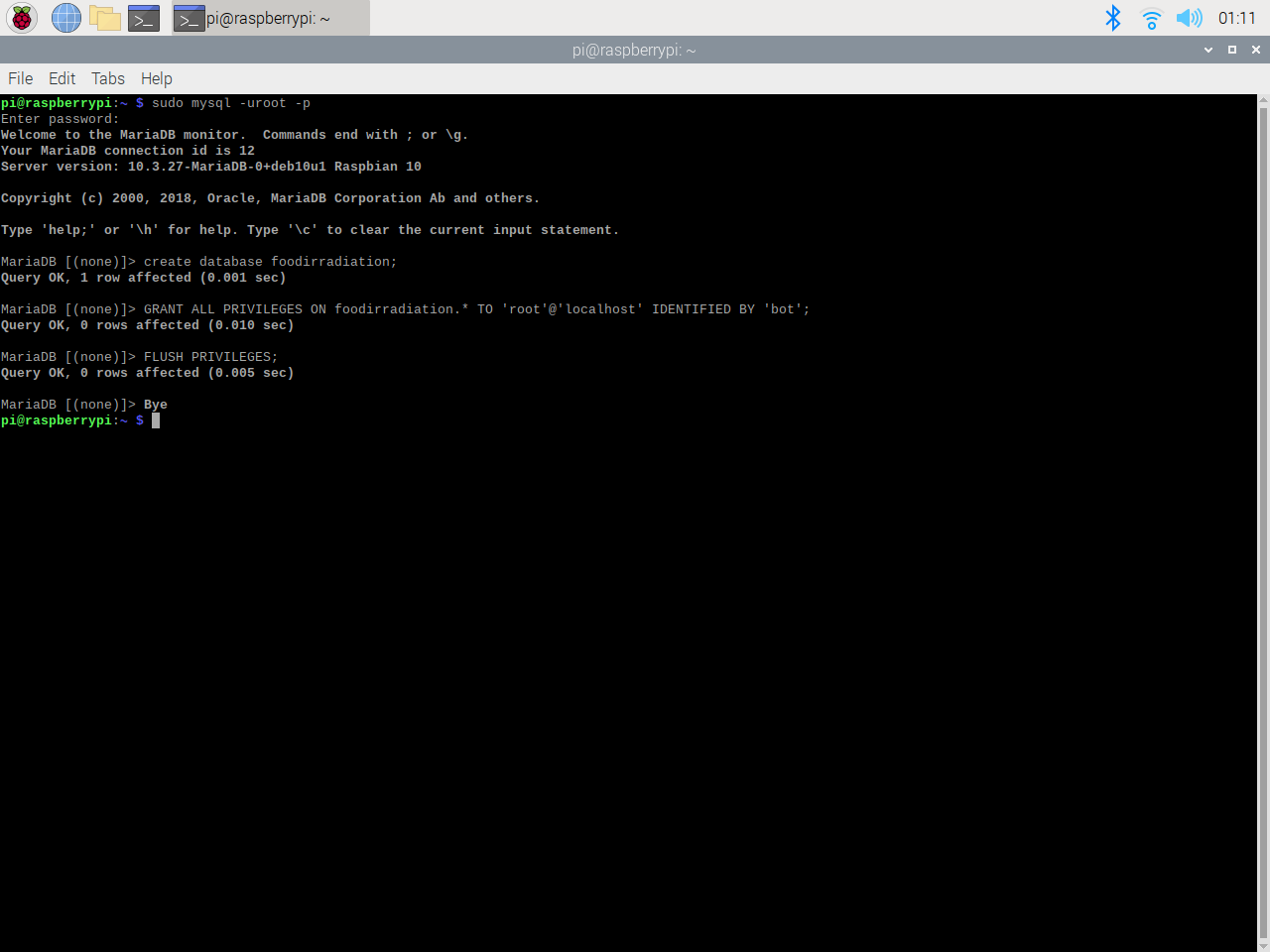

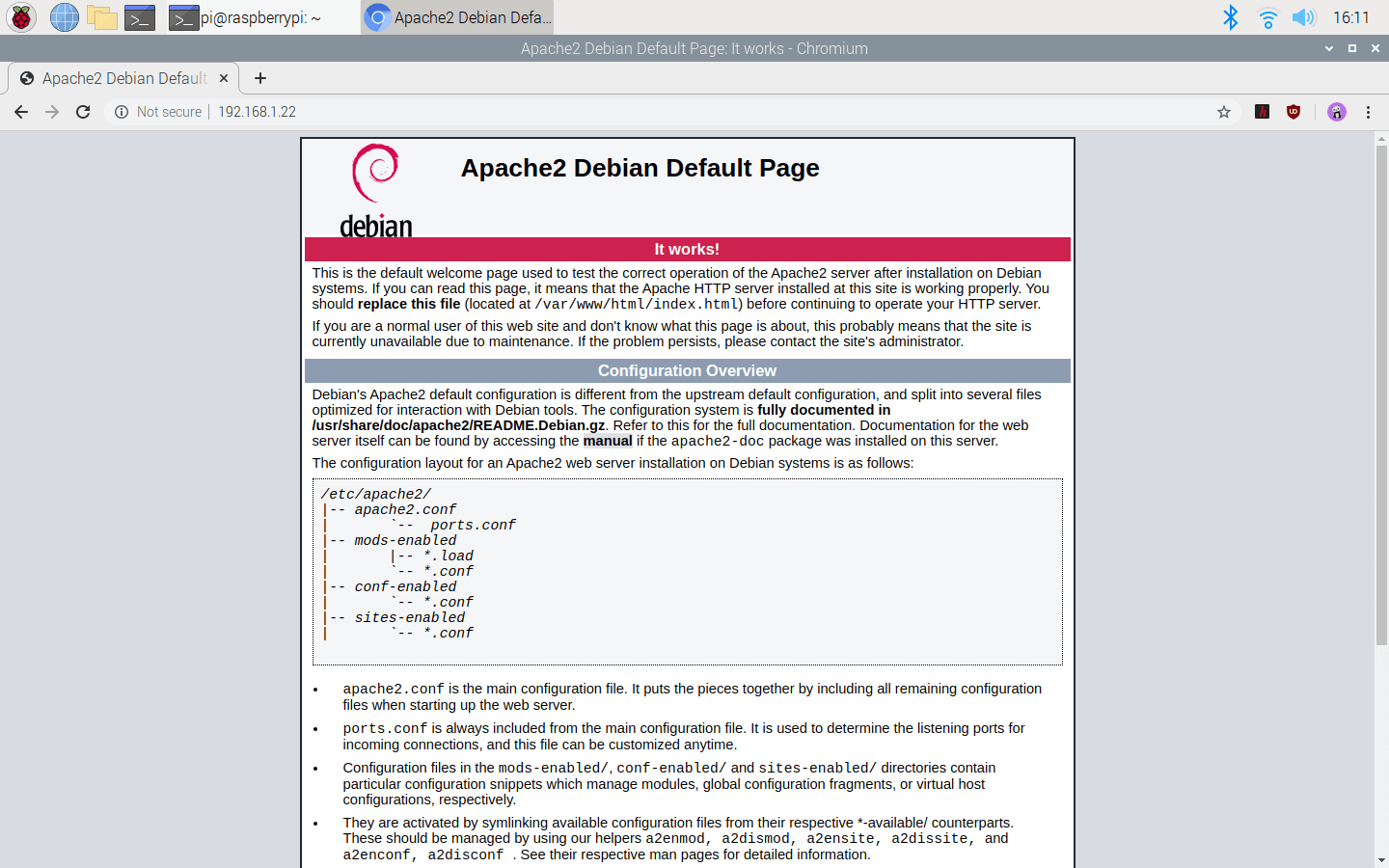

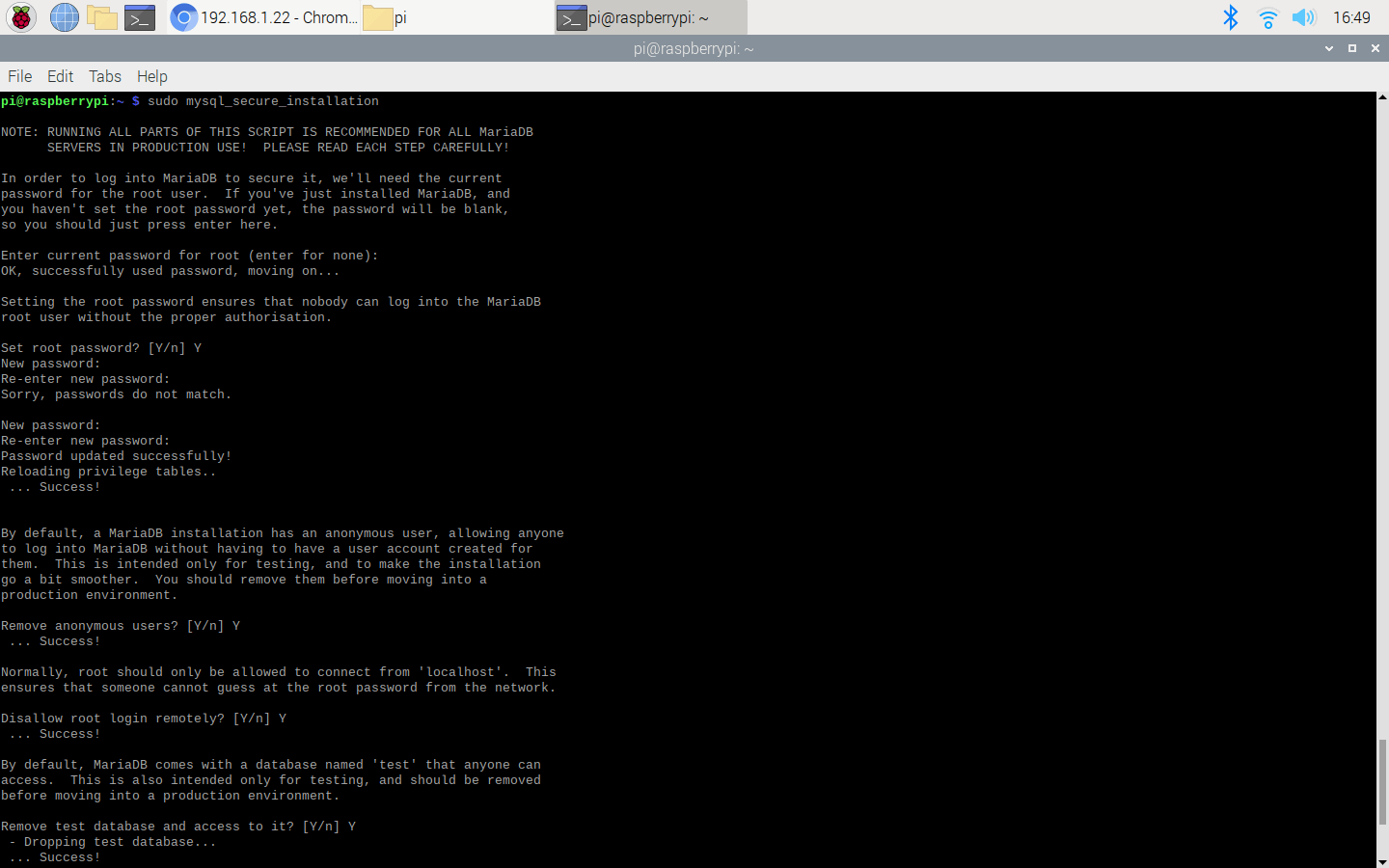

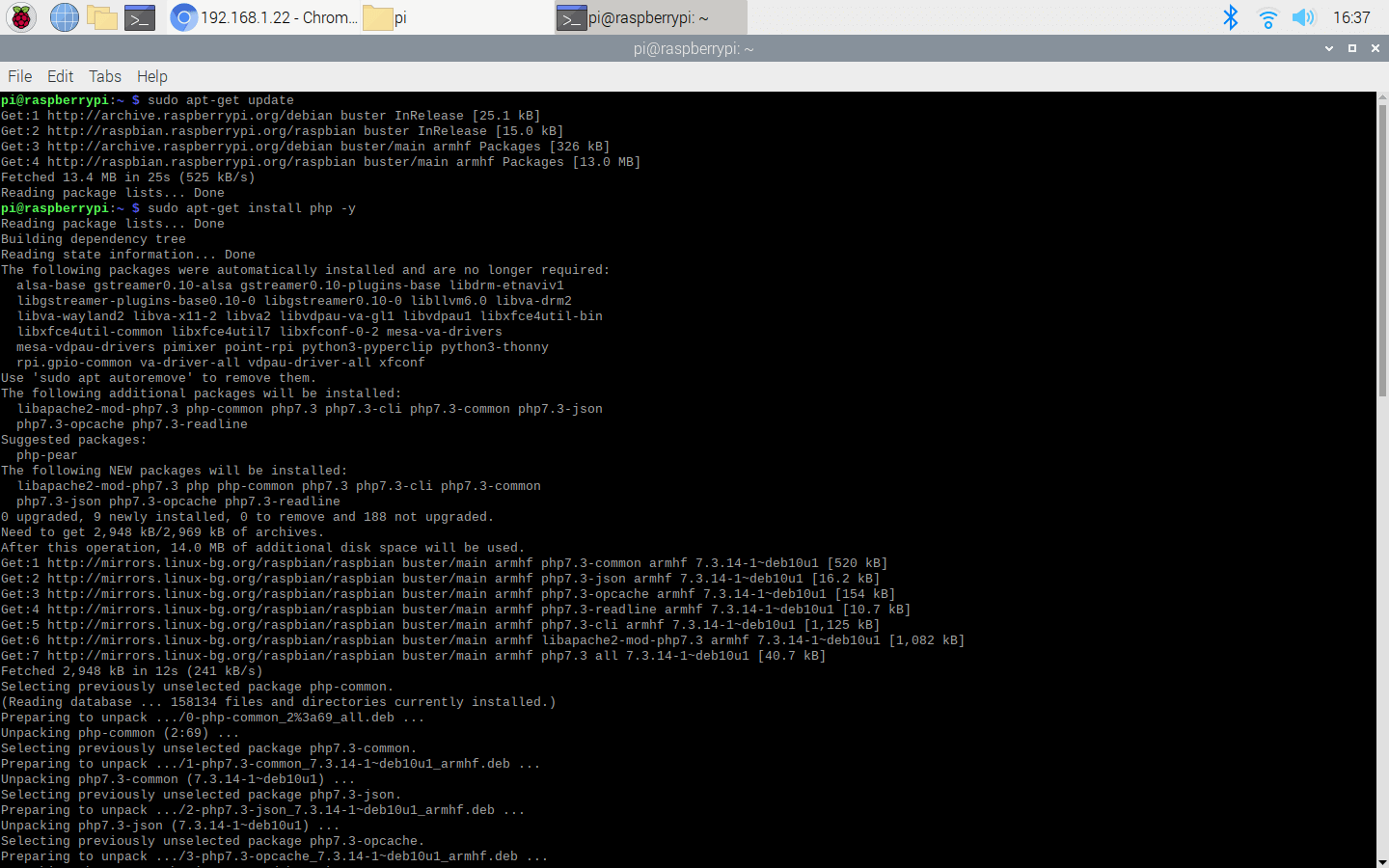

create database foodirradiation;

GRANT ALL PRIVILEGES ON foodirradiation.* TO 'root'@'localhost' IDENTIFIED BY 'bot';

FLUSH PRIVILEGES;

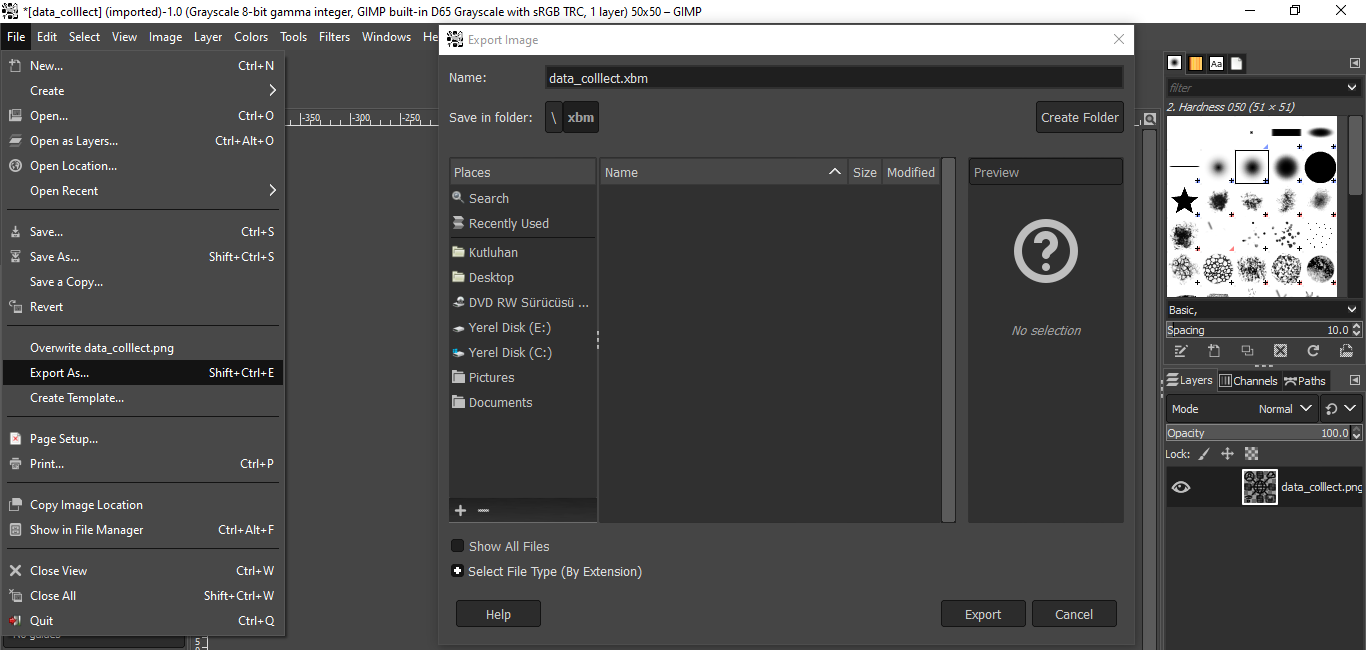

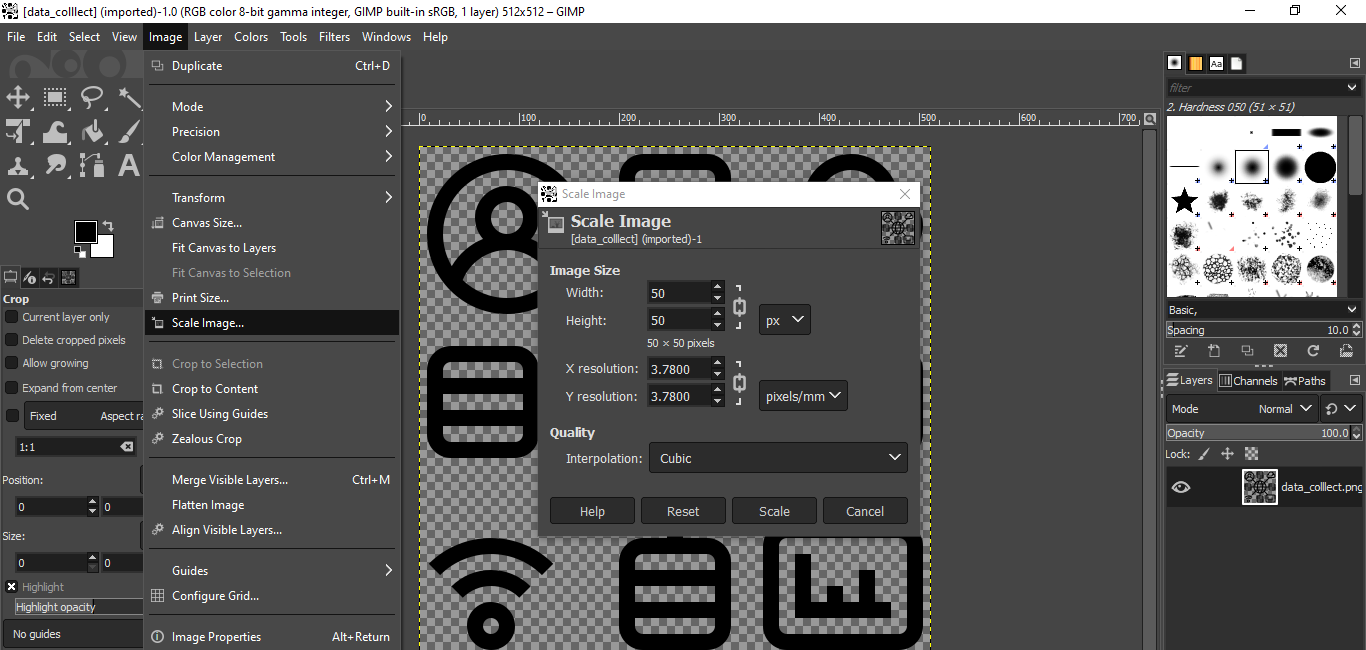

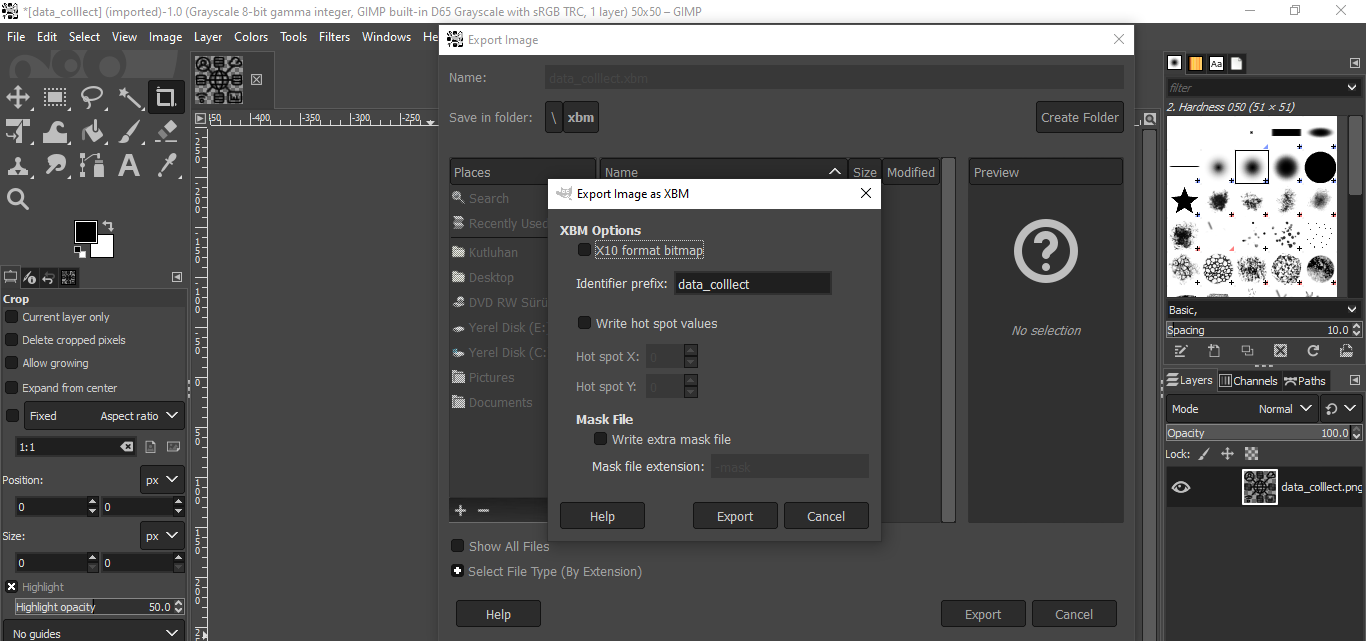

    u8g2.firstPage();
    do{
      //u8g2.setBitmapMode(true /* transparent*/);

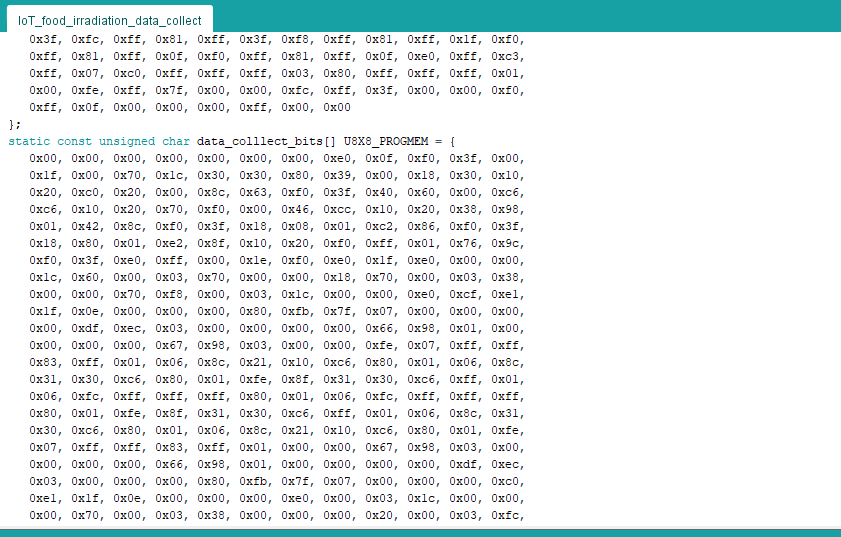

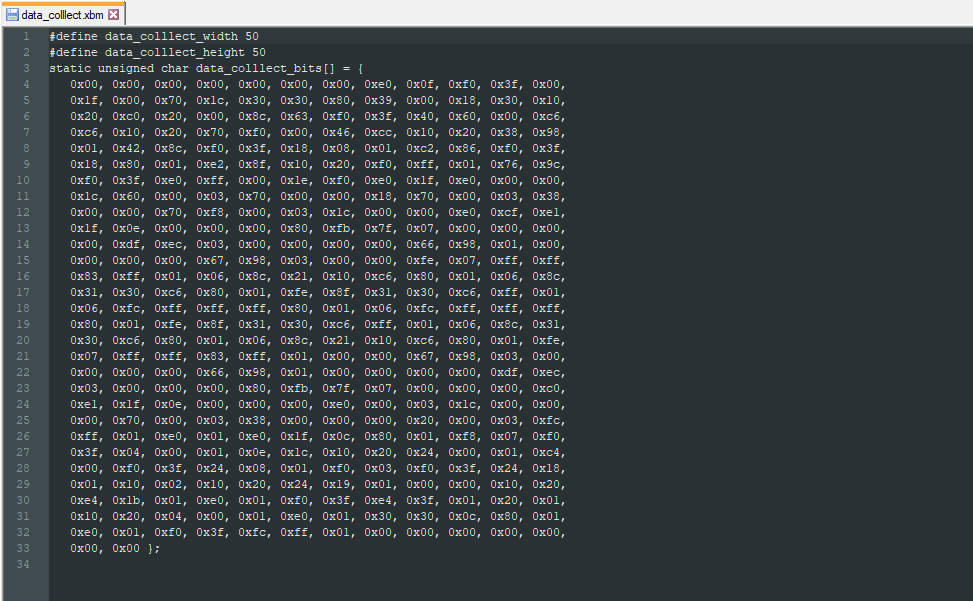

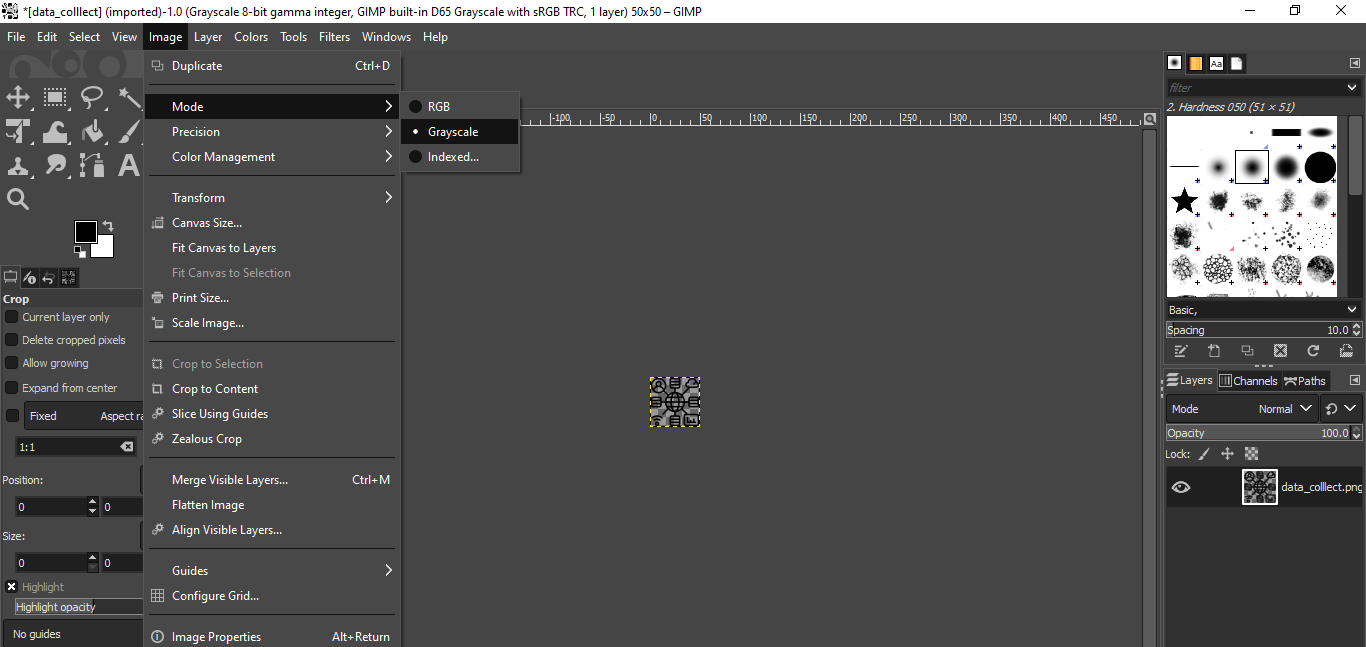

      u8g2.drawXBMP( /* x=*/36 , /* y=*/0 , /* width=*/50 , /* height=*/50 , data_colllect_bits);
    }while(u8g2.nextPage());

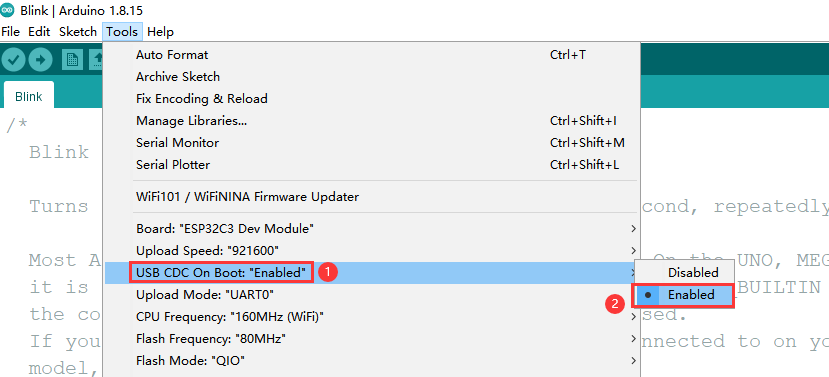

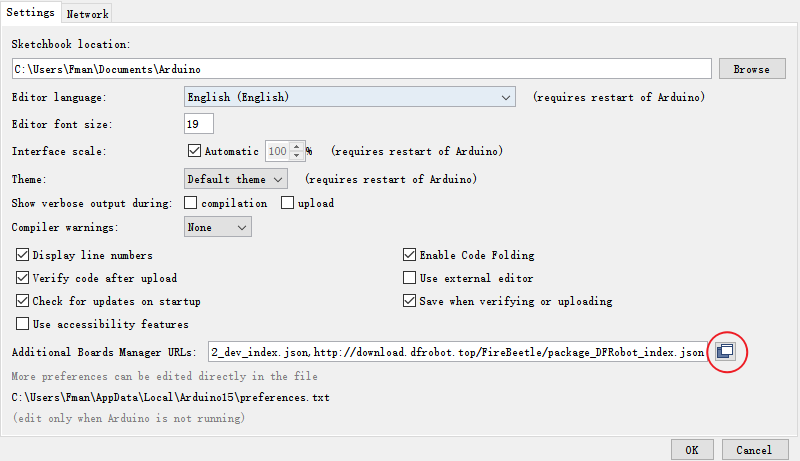

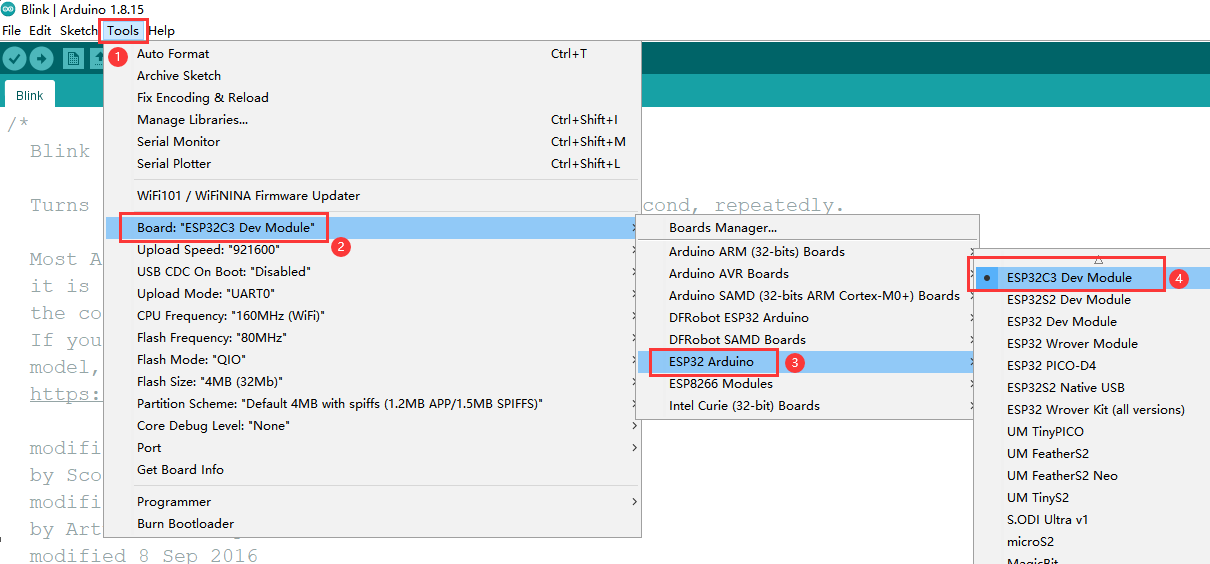

#include <WiFi.h>
#include <DFRobot_Geiger.h>
#include <DFRobot_HX711_I2C.h>
#include <U8g2lib.h>
#include <SPI.h>
#include "DFRobot_AS7341.h"

char ssid[] = "<_SSID_>";        // your network SSID (name)
char pass[] = "<_PASSWORD_>";    // your network password (use for WPA, or use as key for WEP)
int keyIndex = 0;                // your network key Index number (needed only for WEP)

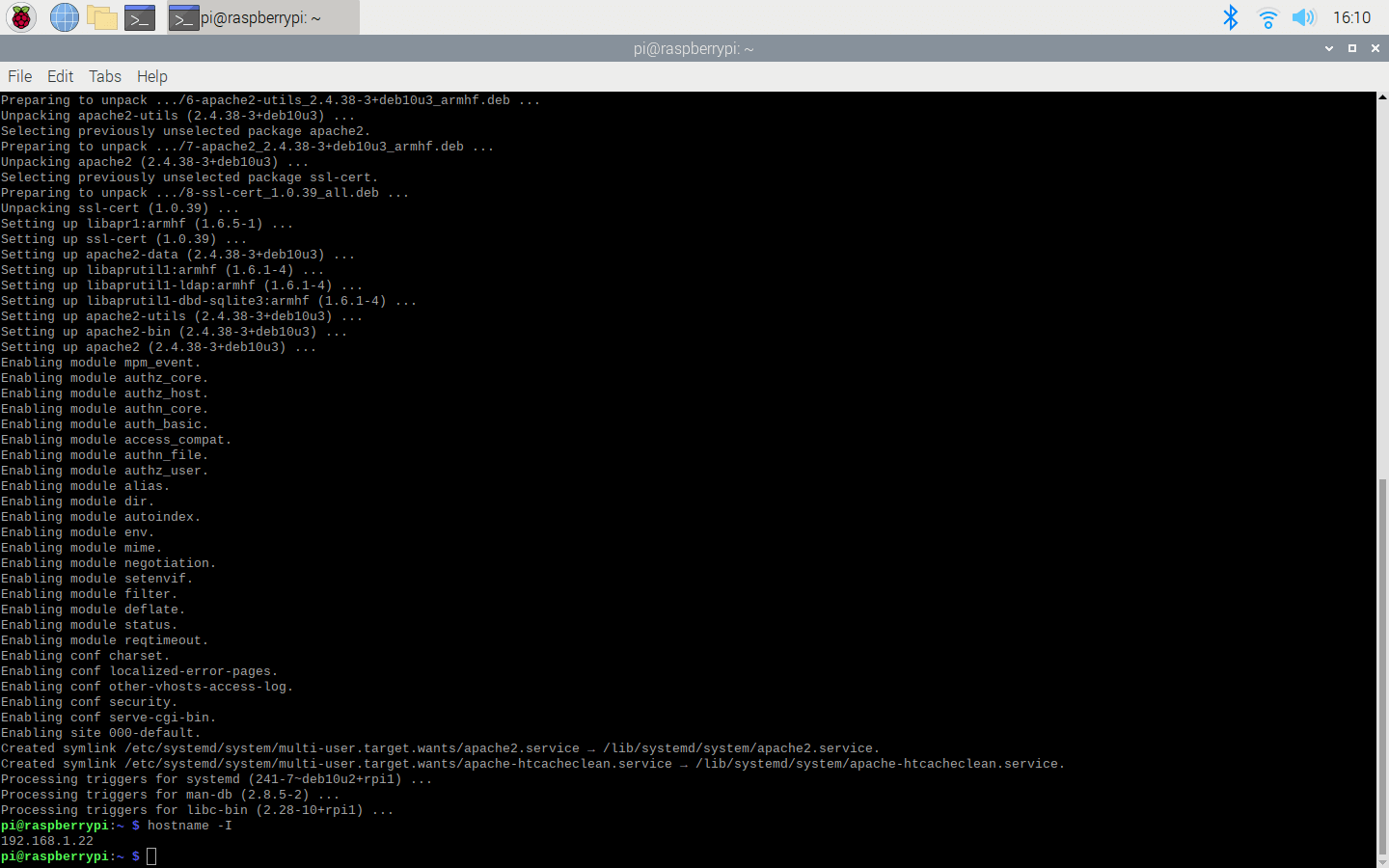

// Define the server (Raspberry Pi).
char server[] = "192.168.1.20";
// Define the web application path.
String application = "/food_irradiation_data_logger/get_data.php";

// Initialize the WiFi client library.
WiFiClient client; /* WiFiSSLClient client; */

DFRobot_Geiger geiger(5);

// Define the HX711 weight sensor.
DFRobot_HX711_I2C MyScale;

// Define the AS7341 object.
DFRobot_AS7341 as7341;
// Define AS7341 data objects:
DFRobot_AS7341::sModeOneData_t data1;
DFRobot_AS7341::sModeTwoData_t data2;

#define OLED_DC  1
#define OLED_CS  7
#define OLED_RST 2

U8G2_SSD1309_128X64_NONAME2_1_4W_HW_SPI u8g2(/* rotation=*/U8G2_R0, /* cs=*/ OLED_CS, /* dc=*/ OLED_DC,/* reset=*/OLED_RST);

  u8g2.begin();
  u8g2.setFontPosTop();
  //u8g2.setDrawColor(0);

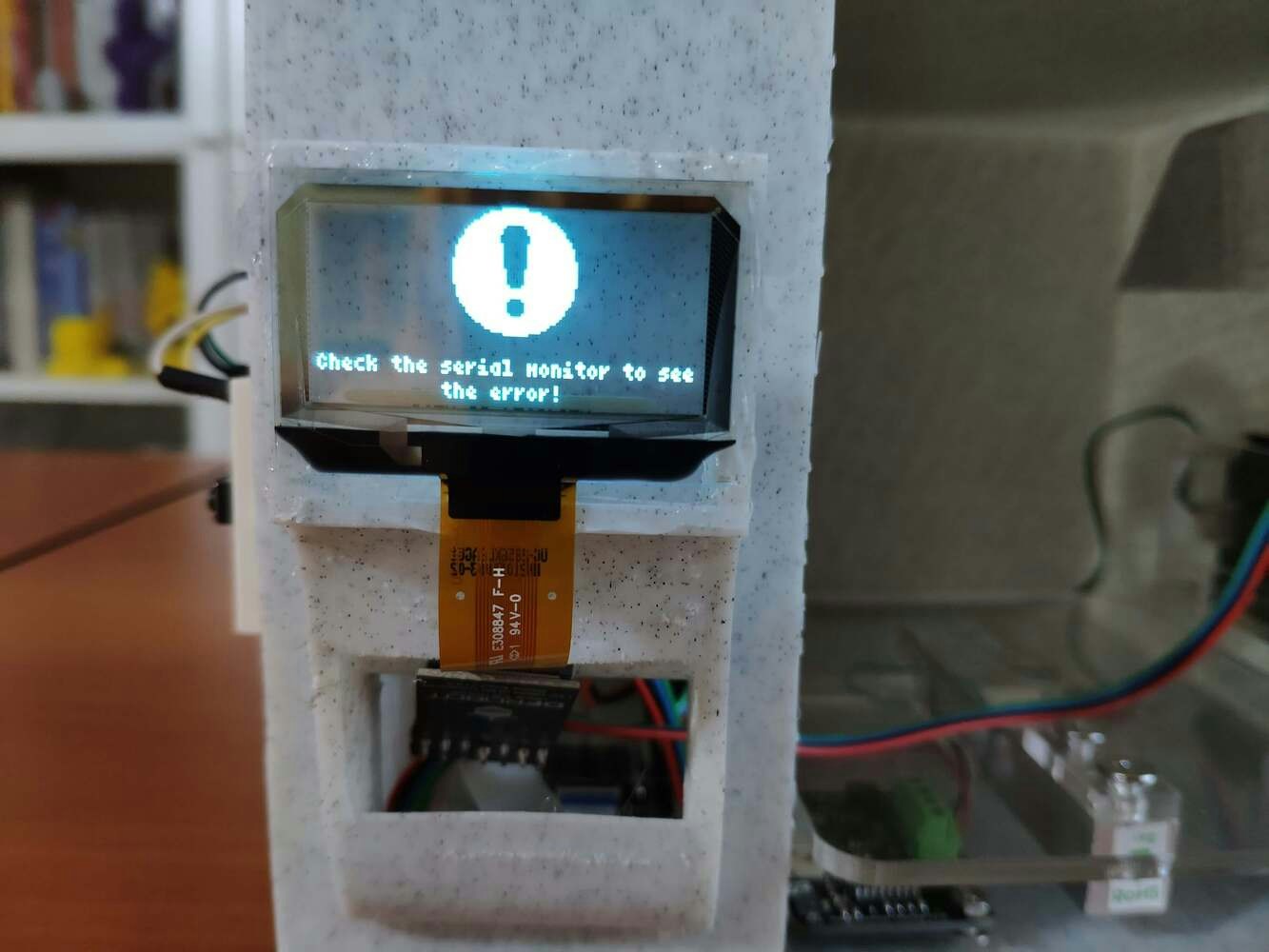

void err_msg(){
  // Show the error message on the SSD1309 transparent display.
  u8g2.firstPage();
  do{
    //u8g2.setBitmapMode(true /* transparent*/);
    u8g2.drawXBMP( /* x=*/44 , /* y=*/0 , /* width=*/40 , /* height=*/40 , error_bits);
    u8g2.setFont(u8g2_font_4x6_tr);
    u8g2.drawStr(0, 47, "Check the serial monitor to see");
    u8g2.drawStr(40, 55, "the error!");
  }while(u8g2.nextPage());
}

  while (!MyScale.begin()) {
    Serial.println("HX711 initialization is failed!");
    err_msg();
    delay(1000);
  }
  Serial.println("HX711 initialization is successful!");

  MyScale.setCalWeight(100);
  // Set the calibration threshold (g).
  MyScale.setThreshold(30);
  // Display the current calibration value.
  Serial.print("\nCalibration Value: "); Serial.println(MyScale.getCalibration());
  MyScale.setCalibration(MyScale.getCalibration());
  delay(1000);

  while (as7341.begin() != 0) {
    Serial.println("AS7341 initialization is failed!");
    err_msg();
    delay(1000);
  }
  Serial.println("AS7341 initialization is successful!");

  // Enable the built-in LED on the AS7341 sensor.
  as7341.enableLed(true);

  WiFi.begin(ssid, pass);
  // Attempt to connect to the WiFi network:
  while(WiFi.status() != WL_CONNECTED){
    // Wait for the connection:
    delay(500);
    Serial.print(".");
  }
  // If connected to the network successfully:
  Serial.println("Connected to the WiFi network successfully!");

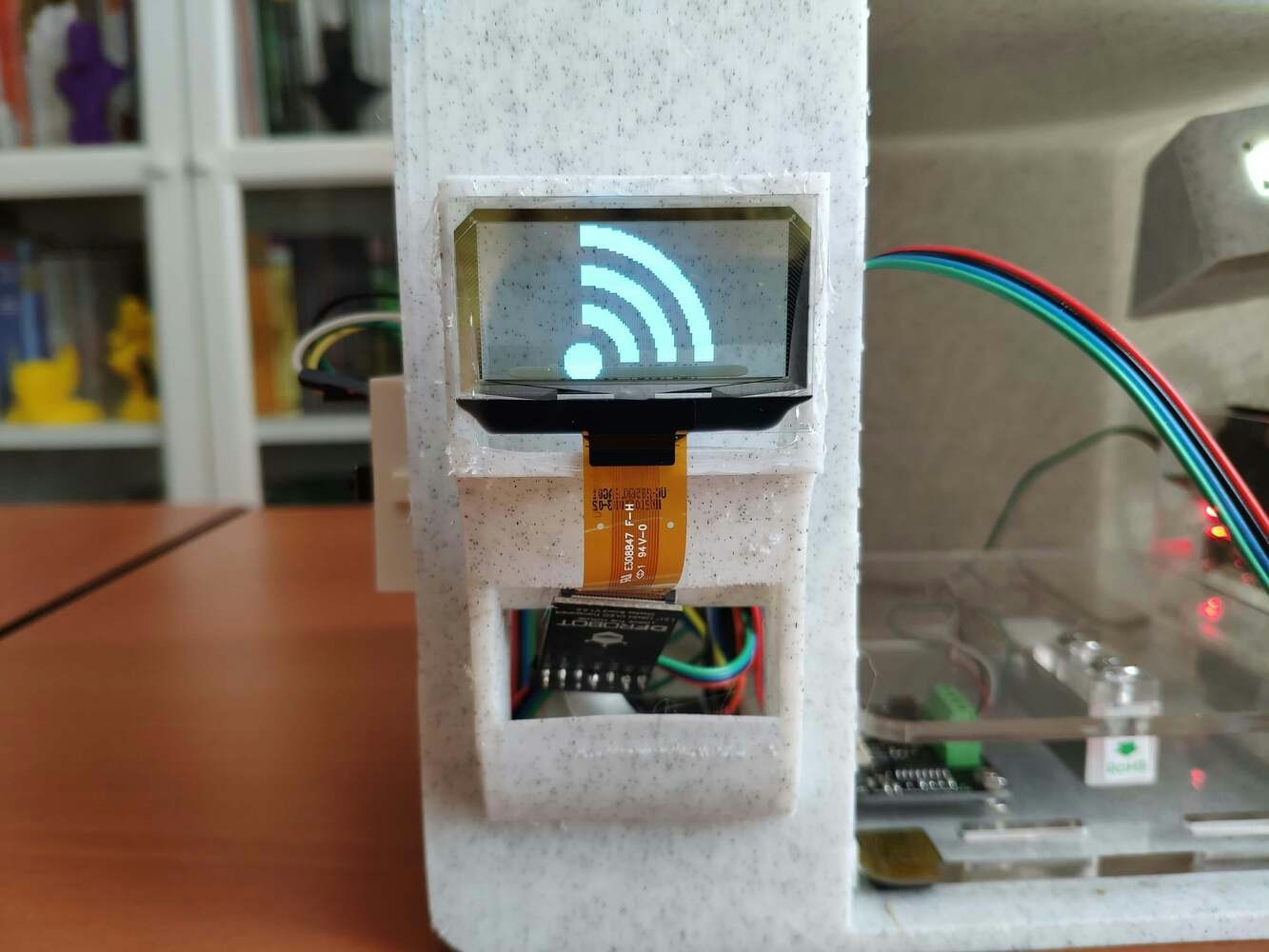

  u8g2.firstPage();
  do{
    u8g2.setFont(u8g2_font_open_iconic_all_8x_t);
    u8g2.drawGlyph(/* x=*/32, /* y=*/0, /* encoding=*/247);
  }while(u8g2.nextPage());
  delay(2000);

void get_Weight(){
  weight = MyScale.readWeight();
  if(weight < 0.5) weight = 0;
  Serial.print("\nWeight: "); Serial.print(weight); Serial.println(" g");
  delay(1000);
}

void get_Visual_Light(){
  // Start spectrum measurement:
  // Channel mapping mode: 1.eF1F4ClearNIR
  as7341.startMeasure(as7341.eF1F4ClearNIR);
  // Read the value of sensor data channel 0~5, under eF1F4ClearNIR
  data1 = as7341.readSpectralDataOne();
  // Channel mapping mode: 2.eF5F8ClearNIR
  as7341.startMeasure(as7341.eF5F8ClearNIR);
  // Read the value of sensor data channel 0~5, under eF5F8ClearNIR
  data2 = as7341.readSpectralDataTwo();
  // Print data:
  Serial.print("\nF1(405-425nm): "); Serial.println(data1.ADF1);
  Serial.print("F2(435-455nm): "); Serial.println(data1.ADF2);
  Serial.print("F3(470-490nm): "); Serial.println(data1.ADF3);
  Serial.print("F4(505-525nm): "); Serial.println(data1.ADF4);
  Serial.print("F5(545-565nm): "); Serial.println(data2.ADF5);
  Serial.print("F6(580-600nm): "); Serial.println(data2.ADF6);
  Serial.print("F7(620-640nm): "); Serial.println(data2.ADF7);
  Serial.print("F8(670-690nm): "); Serial.println(data2.ADF8);
  // CLEAR and NIR:
  Serial.print("Clear_1: "); Serial.println(data1.ADCLEAR);
  Serial.print("NIR_1: "); Serial.println(data1.ADNIR);
  Serial.print("Clear_2: "); Serial.println(data2.ADCLEAR);
  Serial.print("NIR_2: "); Serial.println(data2.ADNIR);
  delay(1000);
}

void activate_Geiger_counter(){
  // Initialize the Geiger counter module and enable the external interrupt.
  geiger.start();
  delay(3000);
  // If necessary, pause the count and turn off the external interrupt trigger.
  geiger.pause();

  // Evaluate the current CPM (Counts per Minute) by dropping the edge pulse within 3 seconds: the error is ±3CPM.
  Serial.print("\nCPM: "); Serial.println(geiger.getCPM());
  // Get the current nSv/h (nanoSieverts per hour).
  Serial.print("nSv/h: "); Serial.println(geiger.getnSvh());
  // Get the current μSv/h (microSieverts per hour).
  Serial.print("μSv/h: "); Serial.println(geiger.getuSvh());
}

void drawNumber(int x, int y, int __){
    char buf[7];
    u8g2.drawStr(x, y, itoa(__, buf, 10));
}

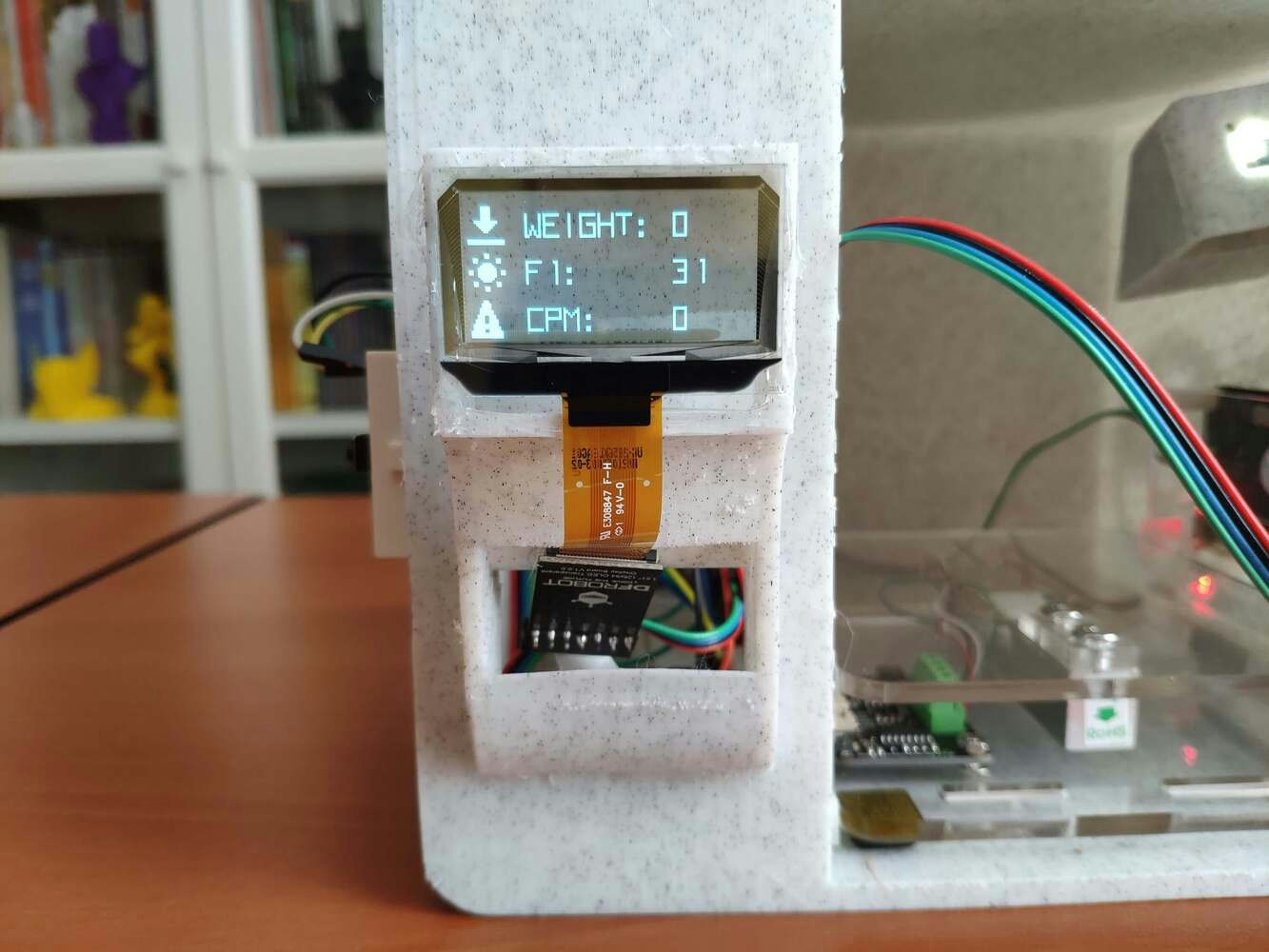

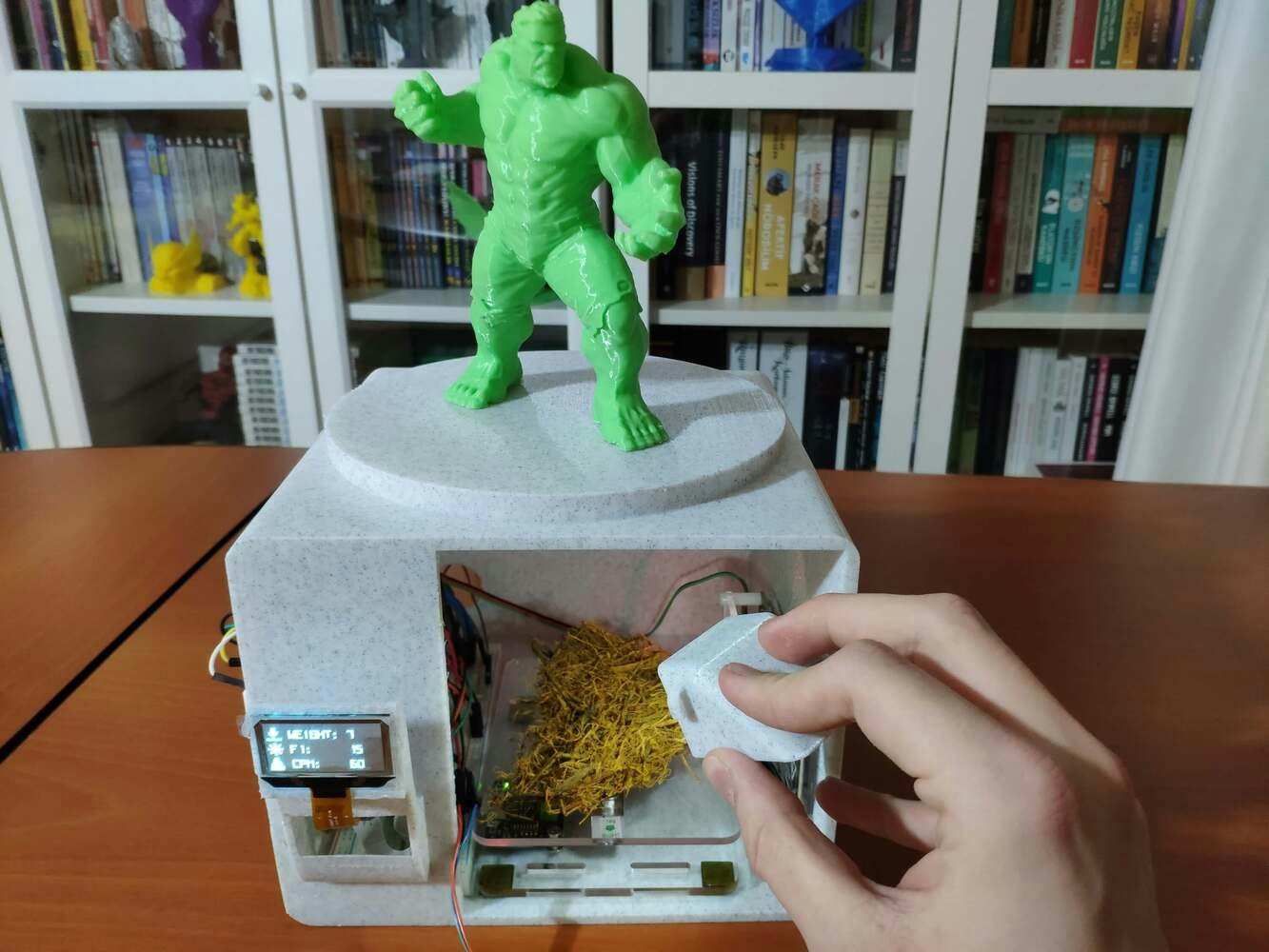

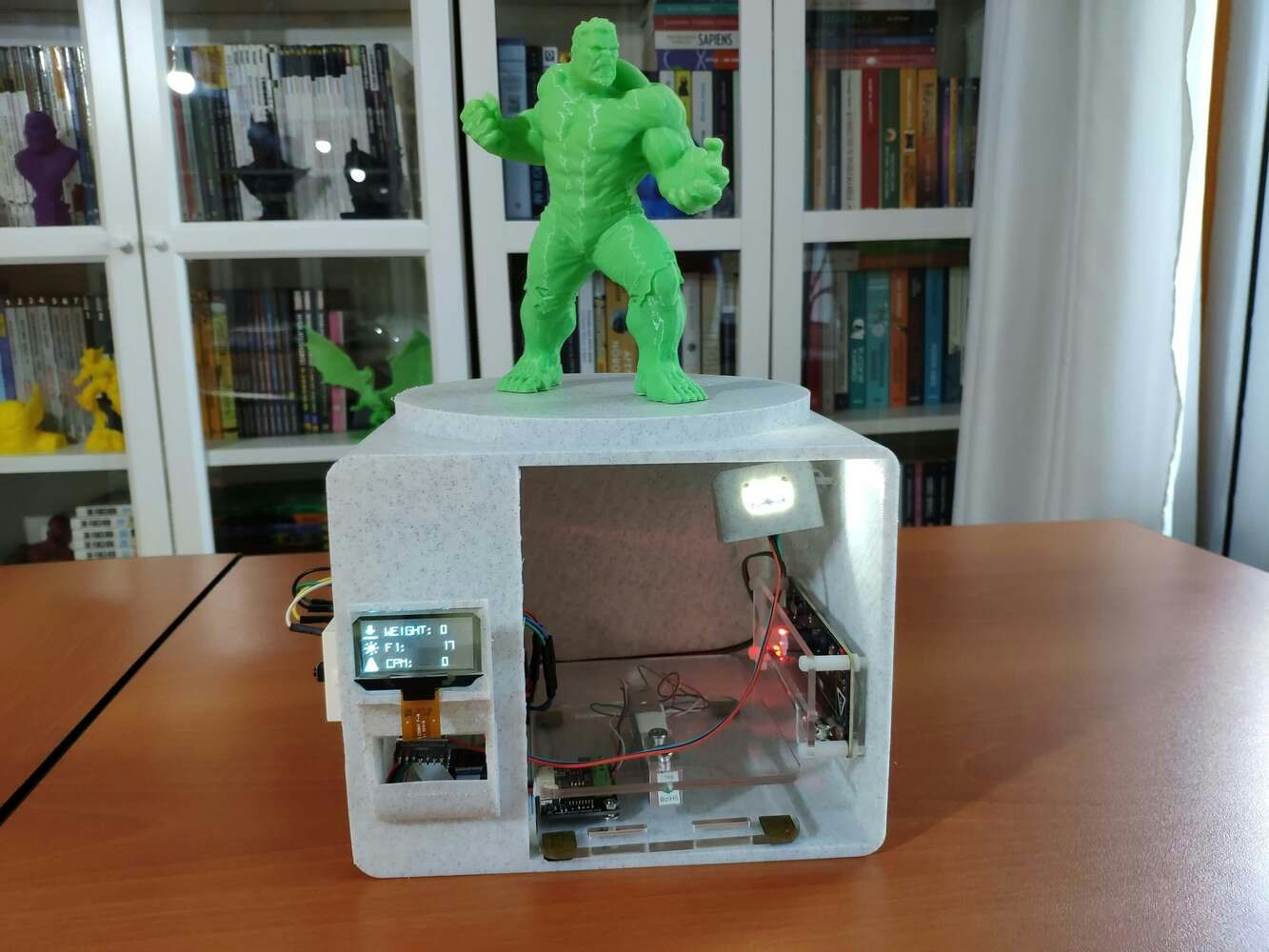

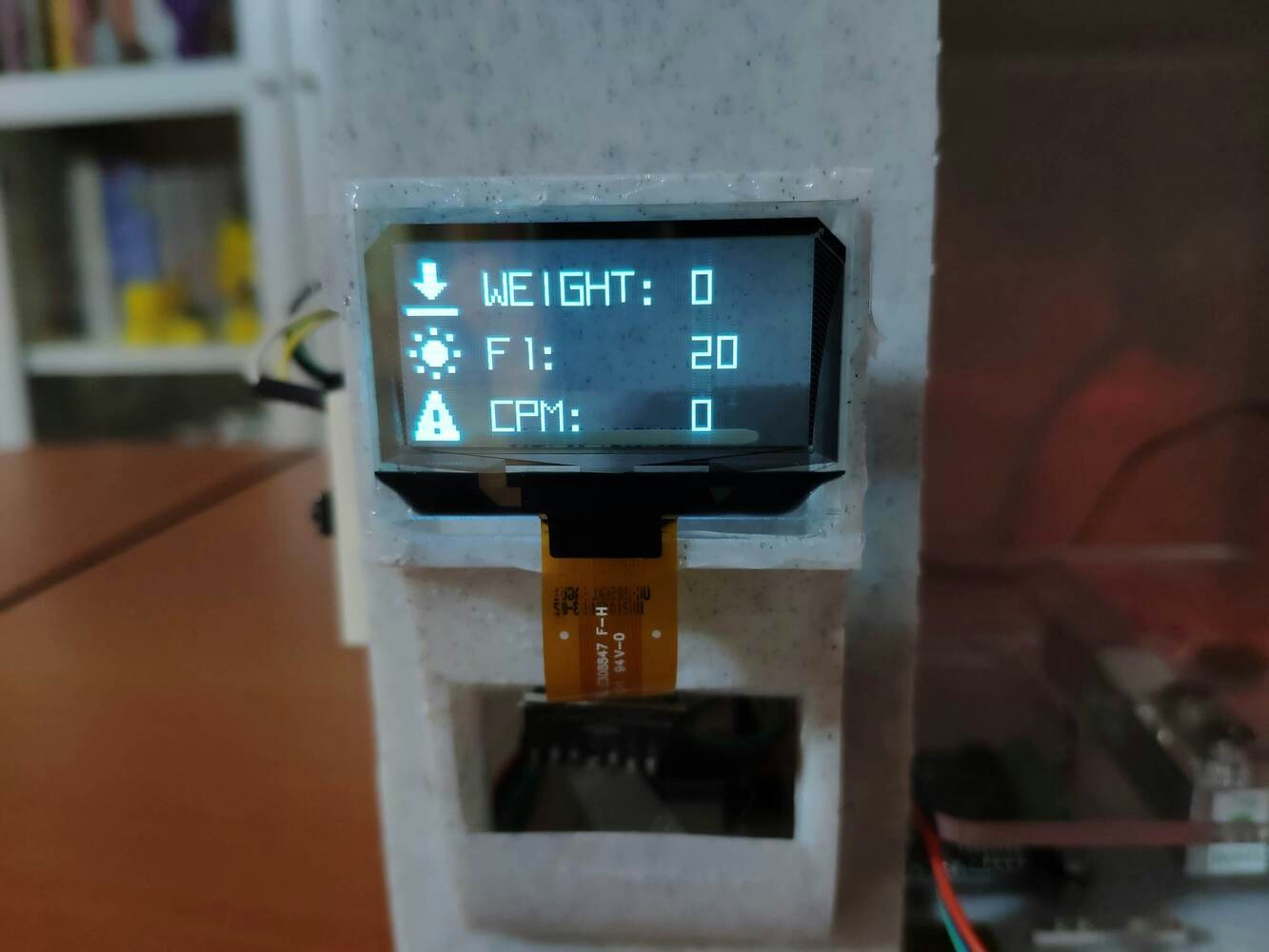

void home_screen(int y, int x, int s){
  u8g2.firstPage();
  do{
    u8g2.setFont(u8g2_font_open_iconic_all_2x_t);
    u8g2.drawGlyph(/* x=*/0, /* y=*/y-3, /* encoding=*/142);
    u8g2.drawGlyph(/* x=*/0, /* y=*/y+s-3, /* encoding=*/259);
    u8g2.drawGlyph(/* x=*/0, /* y=*/y+(2*s)-3, /* encoding=*/280);
    u8g2.setFont(u8g2_font_freedoomr10_mu);

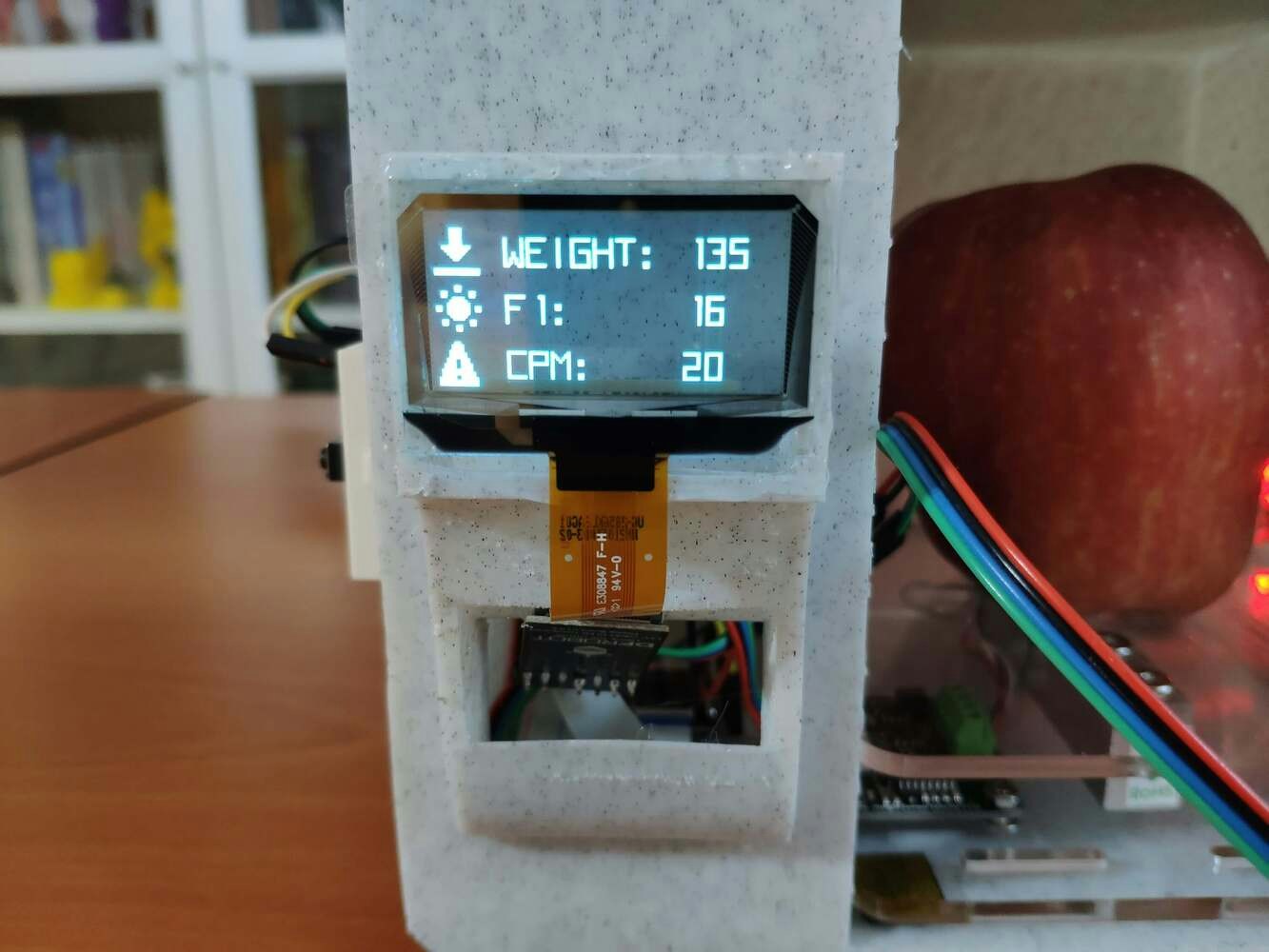

    u8g2.drawStr(25, y, "WEIGHT:"); drawNumber(x, y, weight);
    u8g2.drawStr(25, y+s, "F1:"); drawNumber(x, y+s, data1.ADF1);
    u8g2.drawStr(25, y+(2*s), "CPM:"); drawNumber(x, y+(2*s), geiger.getCPM());
  }while(u8g2.nextPage());
}

void make_a_get_request(String _class){
  // Connect to the web application named food_irradiation_data_logger. Change '80' with '443' if you are using SSL connection.
  if (client.connect(server, 80)){
    // If successful:
    Serial.println("\nConnected to the web application successfully!");
    // Create the query string:
    String query = application+"?weight="+String(weight)+"&F1="+data1.ADF1+"&F2="+data1.ADF2+"&F3="+data1.ADF3+"&F4="+data1.ADF4+"&F5="+data2.ADF5+"&F6="+data2.ADF6+"&F7="+data2.ADF7+"&F8="+data2.ADF8;
    query += "&CPM="+String(geiger.getCPM())+"&nSv="+String(geiger.getnSvh())+"&uSv="+String(geiger.getuSvh());
    query += "&class="+_class;
    // Make an HTTP Get request:
    client.println("GET " + query + " HTTP/1.1");
    client.println("Host: 192.168.1.20");
    client.println("Connection: close");
    client.println();
  }else{
    Serial.println("\nConnection failed to the web application!");
    err_msg();
  }
  delay(2000); // Wait 2 seconds after connecting...
  // If there are incoming bytes available, get the response from the web application.
  String response = "";
  while (client.available()) { char c = client.read(); response += c; }
  if(response != "" && response.indexOf("Data received and saved successfully!") > 0){
    Serial.println("Data registered successfully!");

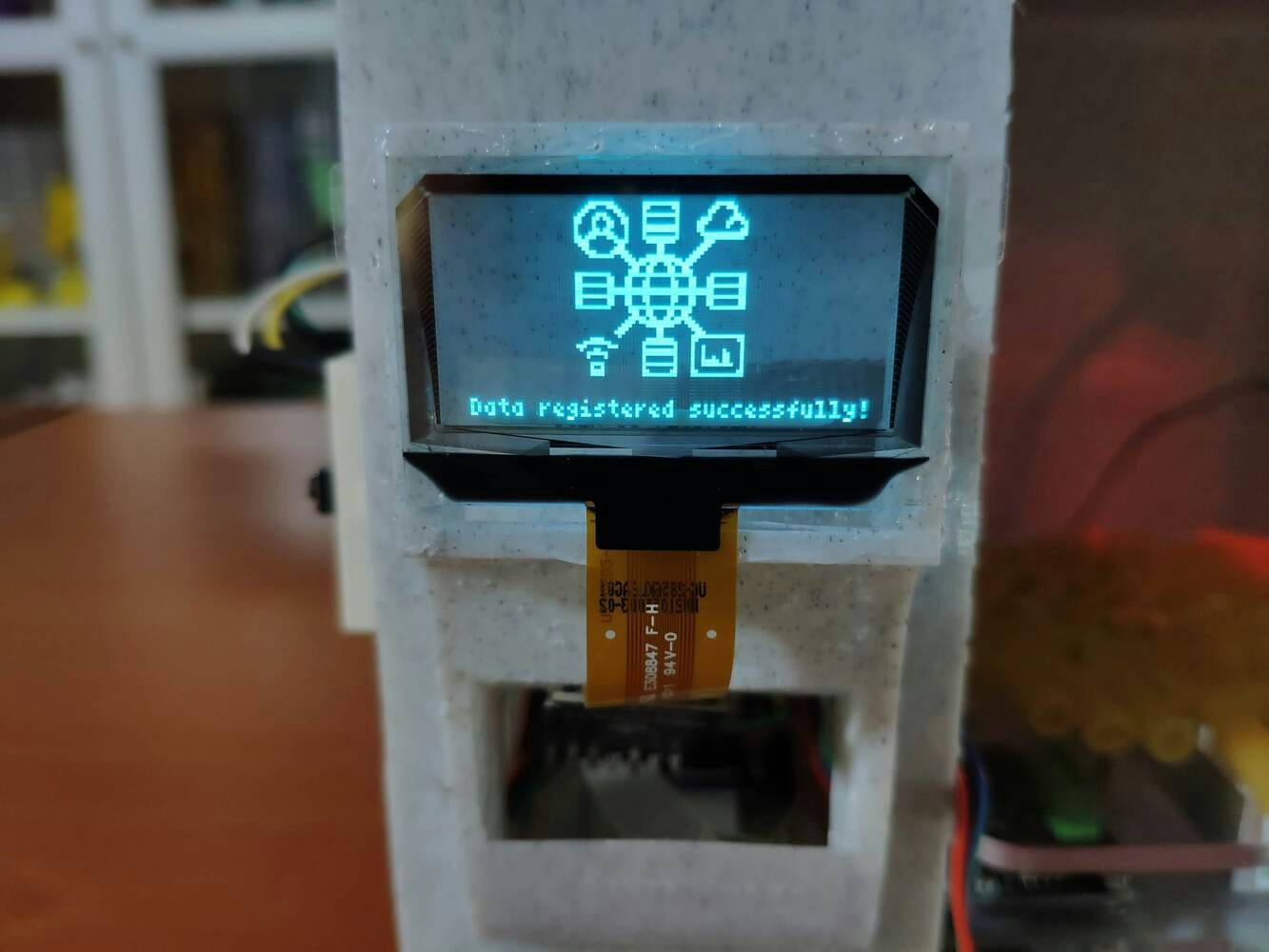

    u8g2.firstPage();
    do{
      //u8g2.setBitmapMode(true /* transparent*/);
      u8g2.drawXBMP( /* x=*/36 , /* y=*/0 , /* width=*/50 , /* height=*/50 , data_colllect_bits);
      u8g2.setFont(u8g2_font_4x6_tr);
      u8g2.drawStr(6, 55, "Data registered successfully!");
    }while(u8g2.nextPage());
  }
}

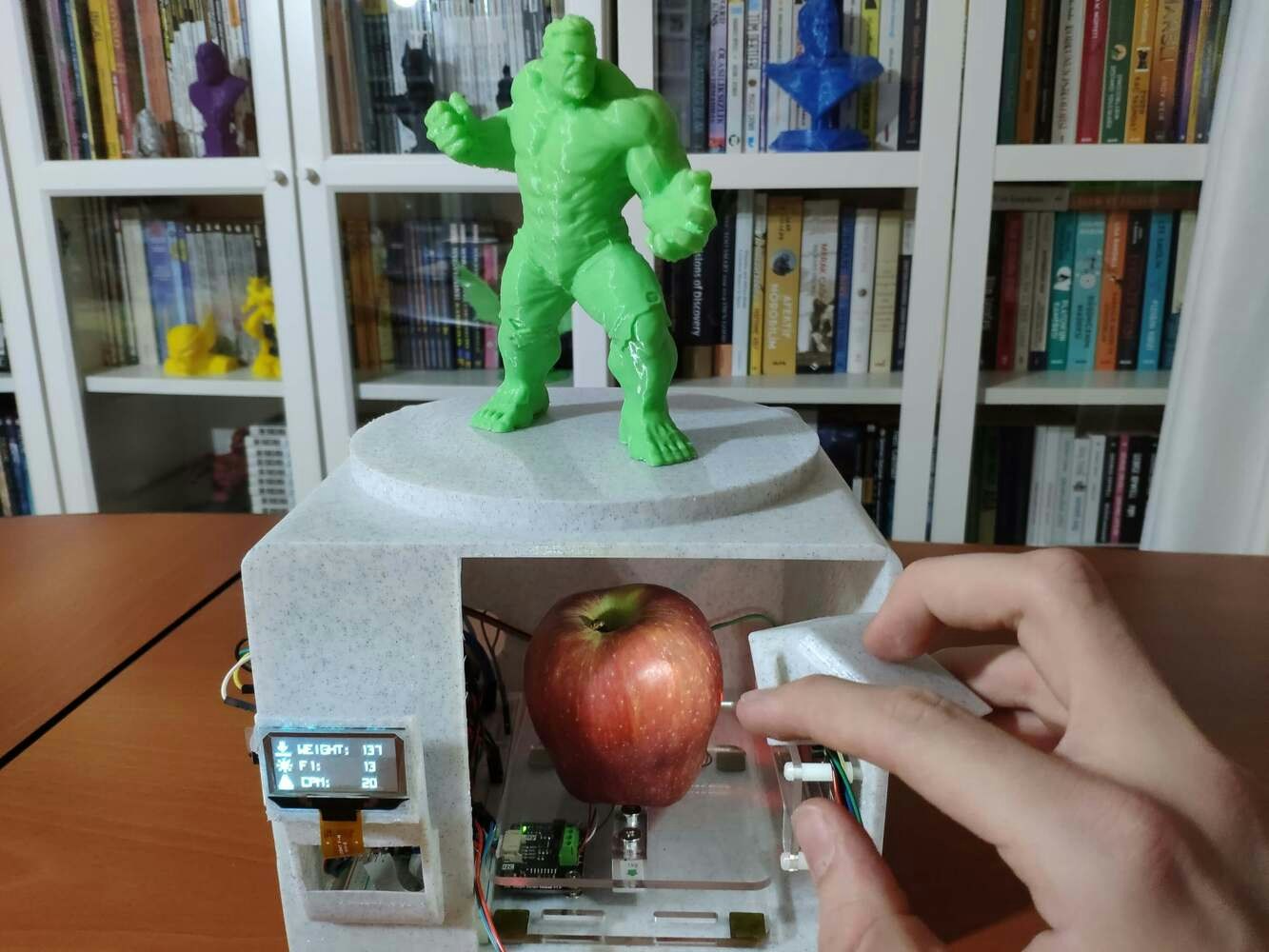

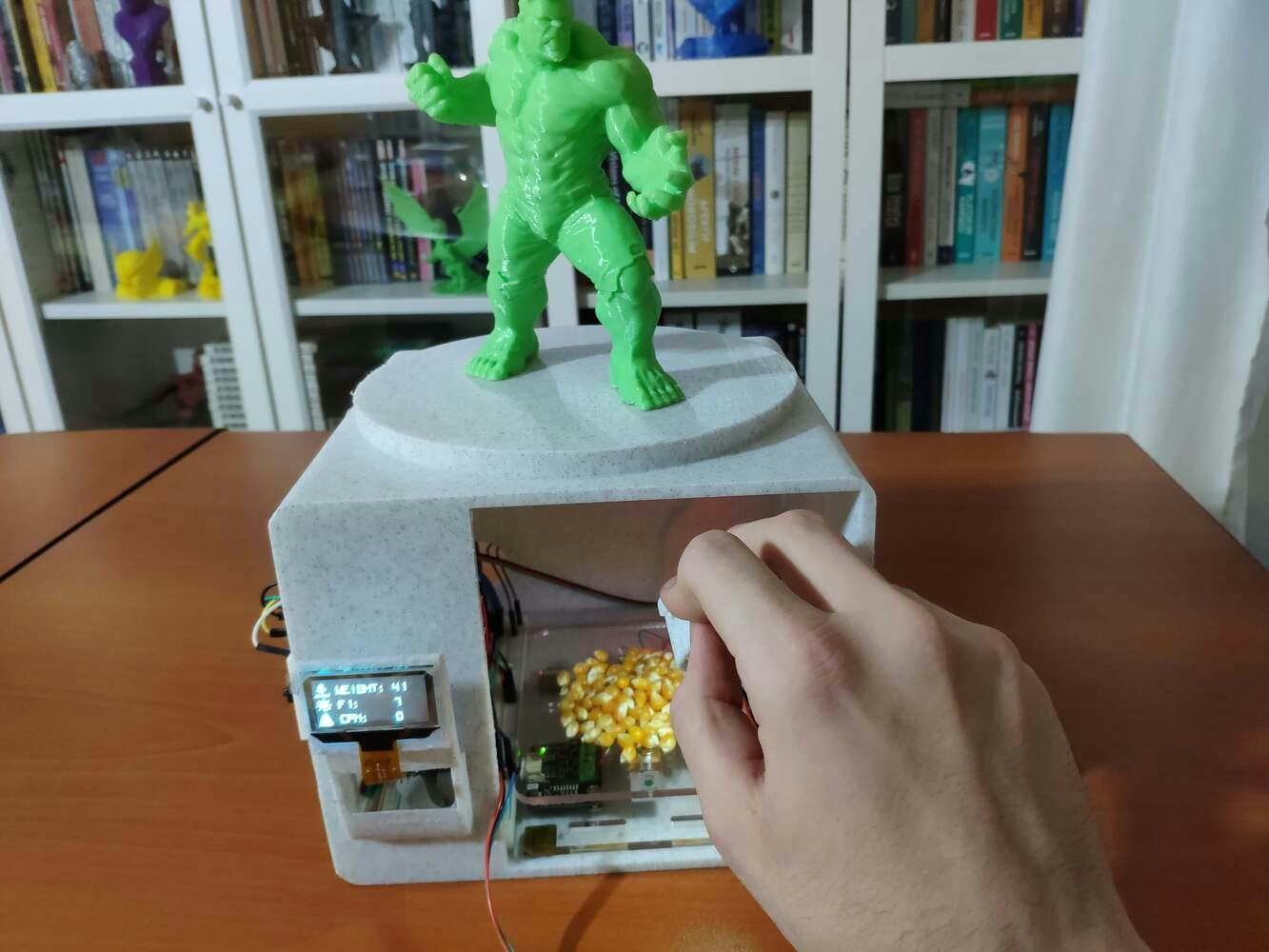

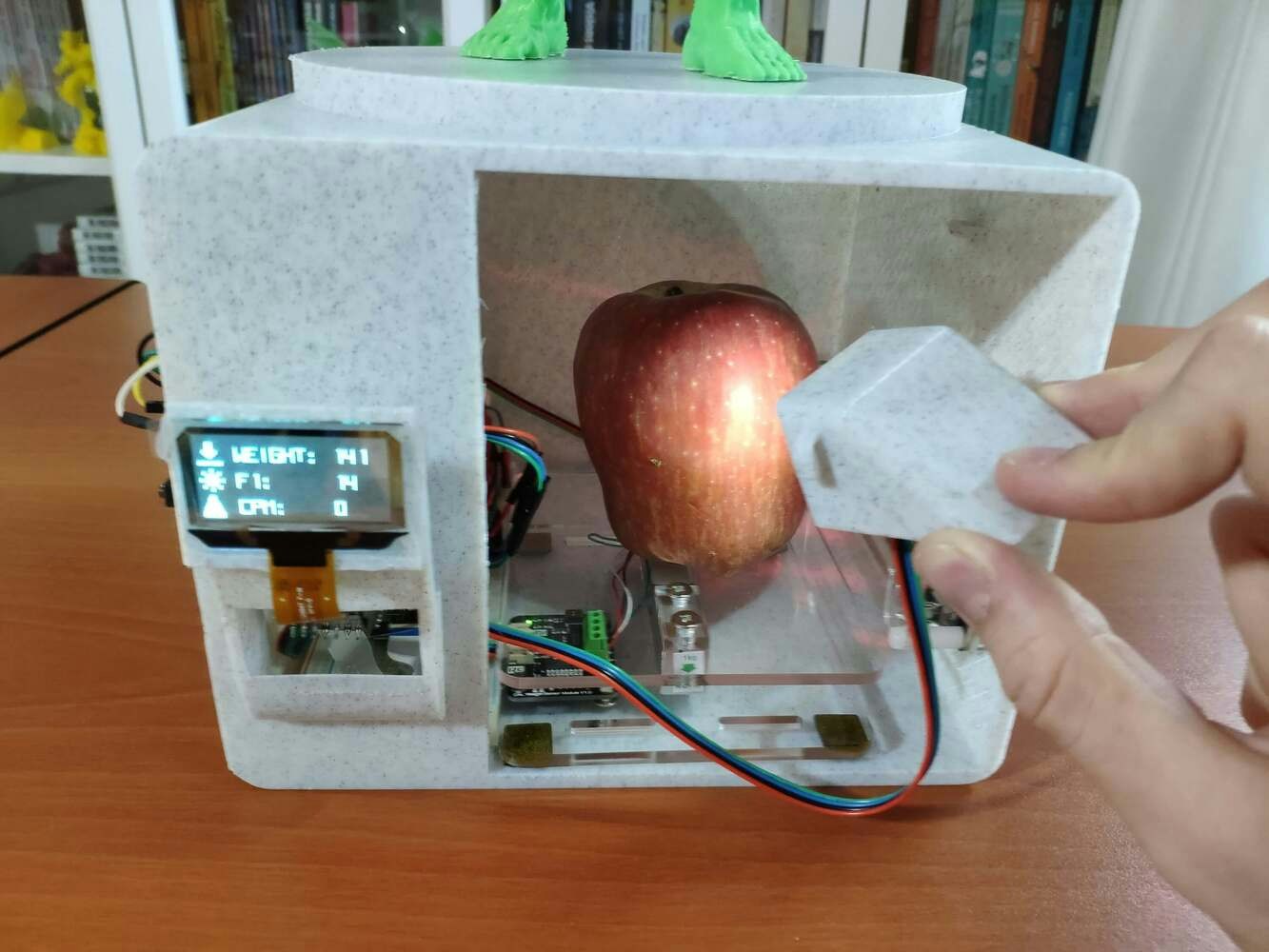

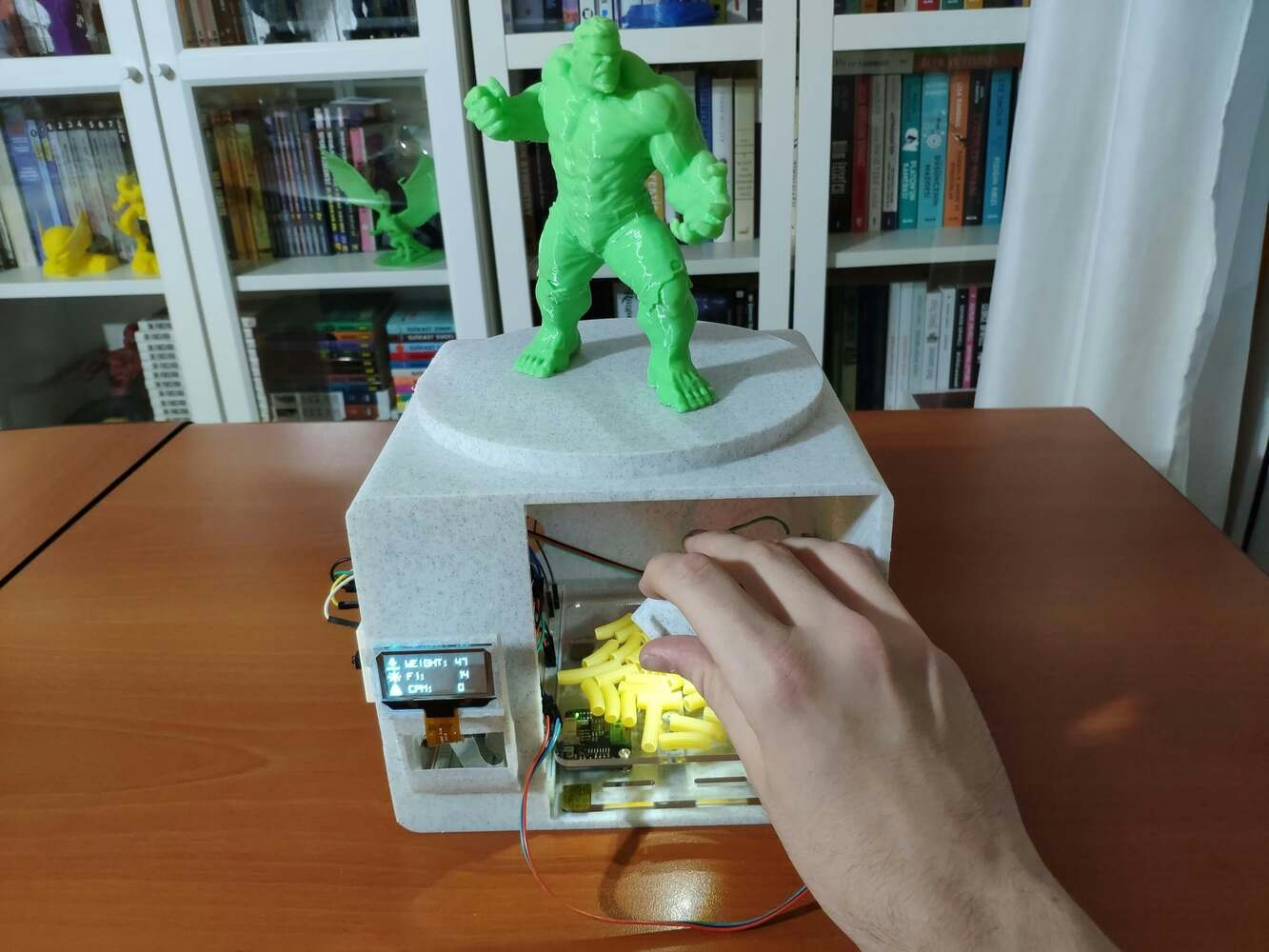

  if(!digitalRead(button_A)) make_a_get_request("0");
  if(!digitalRead(button_B)) make_a_get_request("1");
  if(!digitalRead(button_C)) make_a_get_request("2");

#include <IoT_AI-driven_Food_Irradiation_Classifier_inferencing.h>

#include <DFRobot_Geiger.h>
#include <DFRobot_HX711_I2C.h>
#include <U8g2lib.h>
#include <SPI.h>
#include "DFRobot_AS7341.h"

// Include the Edge Impulse model converted to an Arduino library:
#include <IoT_AI-driven_Food_Irradiation_Classifier_inferencing.h>

#define FREQUENCY_HZ        EI_CLASSIFIER_FREQUENCY
#define INTERVAL_MS         (1000 / (FREQUENCY_HZ + 1))

// Define the features array to classify one frame of data.
float features[EI_CLASSIFIER_DSP_INPUT_FRAME_SIZE];
size_t feature_ix = 0;

float threshold = 0.60;

// Define the food irradiation dose (class) names:
String classes[] = {"Hazardous", "Regulated", "Unsafe"};

static const unsigned char *class_icons[] U8X8_PROGMEM = {hazardous_bits, regulated_bits, unsafe_bits};

void run_inference_to_make_predictions(int multiply){
  // Scale (normalize) data items depending on the given model:
  float scaled_weight = weight / 10;
  float scaled_F1 = data1.ADF1 / 100;
  float scaled_F2 = data1.ADF2 / 100;
  float scaled_F3 = data1.ADF3 / 100;
  float scaled_F4 = data1.ADF4 / 100;
  float scaled_F5 = data2.ADF5 / 100;
  float scaled_F6 = data2.ADF6 / 100;
  float scaled_F7 = data2.ADF7 / 100;
  float scaled_F8 = data2.ADF8 / 100;
  float scaled_CPM = geiger.getCPM() / 100;
  float scaled_nSv = geiger.getnSvh() / 100;
  float scaled_uSv = geiger.getuSvh();

  // Copy the scaled data items to the features buffer.
  // If required, multiply the scaled data items while copying them to the features buffer.
  for(int i=0; i<multiply; i++){
    features[feature_ix++] = scaled_weight;
    features[feature_ix++] = scaled_F1;
    features[feature_ix++] = scaled_F2;
    features[feature_ix++] = scaled_F3;
    features[feature_ix++] = scaled_F4;
    features[feature_ix++] = scaled_F5;
    features[feature_ix++] = scaled_F6;
    features[feature_ix++] = scaled_F7;
    features[feature_ix++] = scaled_F8;
    features[feature_ix++] = scaled_CPM;
    features[feature_ix++] = scaled_nSv;
    features[feature_ix++] = scaled_uSv;
  }

  // Display the progress of copying data to the features buffer.
  Serial.print("\nFeatures Buffer Progress: "); Serial.print(feature_ix); Serial.print(" / "); Serial.println(EI_CLASSIFIER_DSP_INPUT_FRAME_SIZE);

  // Run inference:
  if(feature_ix == EI_CLASSIFIER_DSP_INPUT_FRAME_SIZE){
    ei_impulse_result_t result;
    // Create a signal object from the features buffer (frame).
    signal_t signal;
    numpy::signal_from_buffer(features, EI_CLASSIFIER_DSP_INPUT_FRAME_SIZE, &signal);
    // Run the classifier:
    EI_IMPULSE_ERROR res = run_classifier(&signal, &result, false);
    ei_printf("\nrun_classifier returned: %d\n", res);
    if(res != 0) return;

    // Print the inference timings on the serial monitor.
    ei_printf("Predictions (DSP: %d ms., Classification: %d ms., Anomaly: %d ms.): \n",
        result.timing.dsp, result.timing.classification, result.timing.anomaly);

    // Obtain the prediction results for each label (class).
    for(size_t ix = 0; ix < EI_CLASSIFIER_LABEL_COUNT; ix++){
      // Print the prediction results on the serial monitor.
      ei_printf("%s:\t%.5f\n", result.classification[ix].label, result.classification[ix].value);
      // Get the predicted label (class).
      if(result.classification[ix].value >= threshold) predicted_class = ix;
    }
    Serial.print("\nPredicted Class: "); Serial.println(predicted_class);

    // Detect anomalies, if any:
    #if EI_CLASSIFIER_HAS_ANOMALY == 1
      ei_printf("Anomaly : \t%.3f\n", result.anomaly);
    #endif

    // Clear the features buffer (frame):
    feature_ix = 0;
  }
}

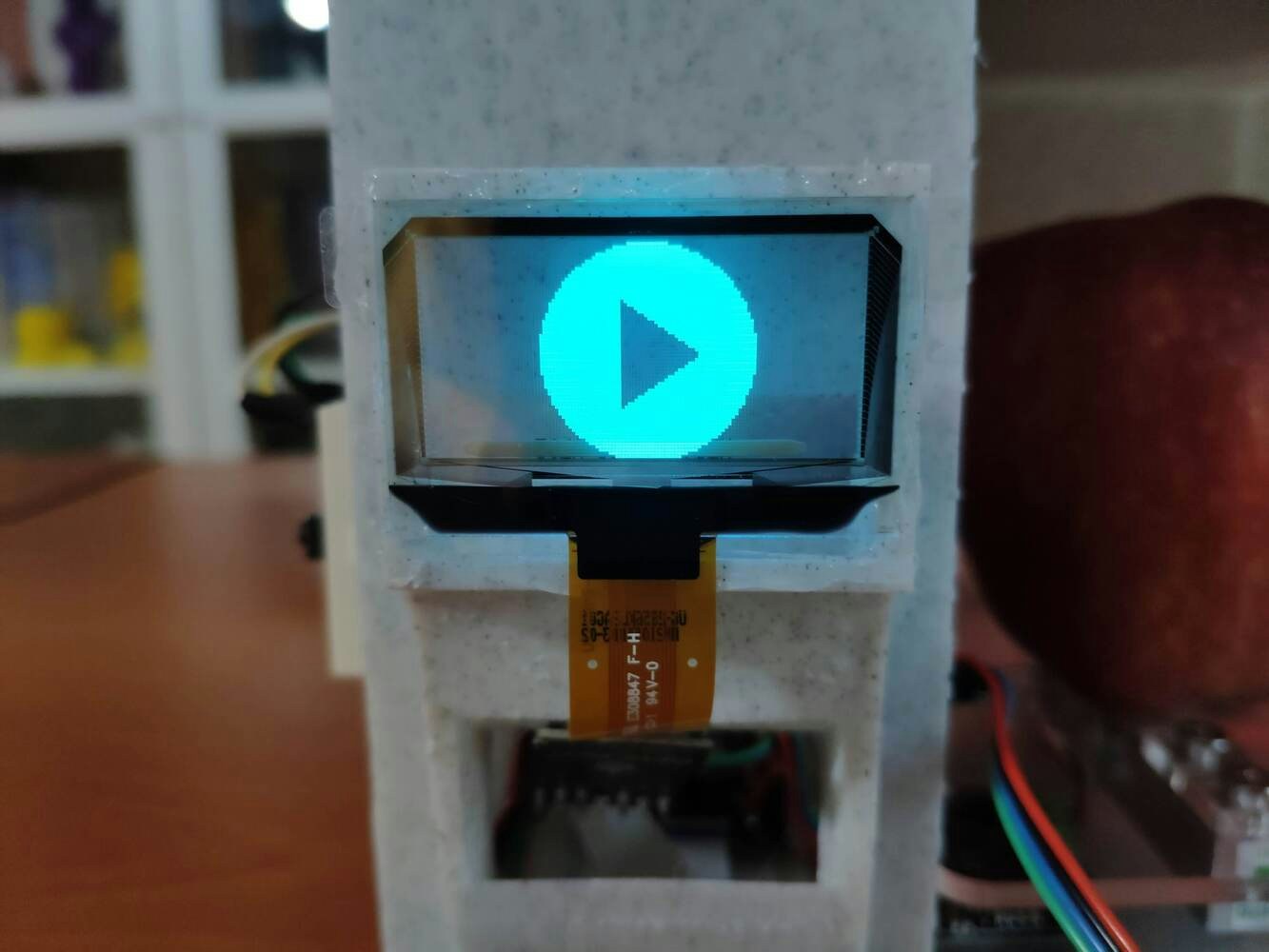

  if(!digitalRead(button_B)){
    model_activation = true;
    u8g2.firstPage();
    do{
      u8g2.setFont(u8g2_font_open_iconic_all_8x_t);
      u8g2.drawGlyph(/* x=*/32, /* y=*/0, /* encoding=*/233);
    }while(u8g2.nextPage());
  }
  while(model_activation){
    get_Weight();
    get_Visual_Light();
    activate_Geiger_counter();

    // Run inference:
    run_inference_to_make_predictions(1);

    // If the Edge Impulse model predicted a label (class) successfully:
    if(predicted_class != -1){

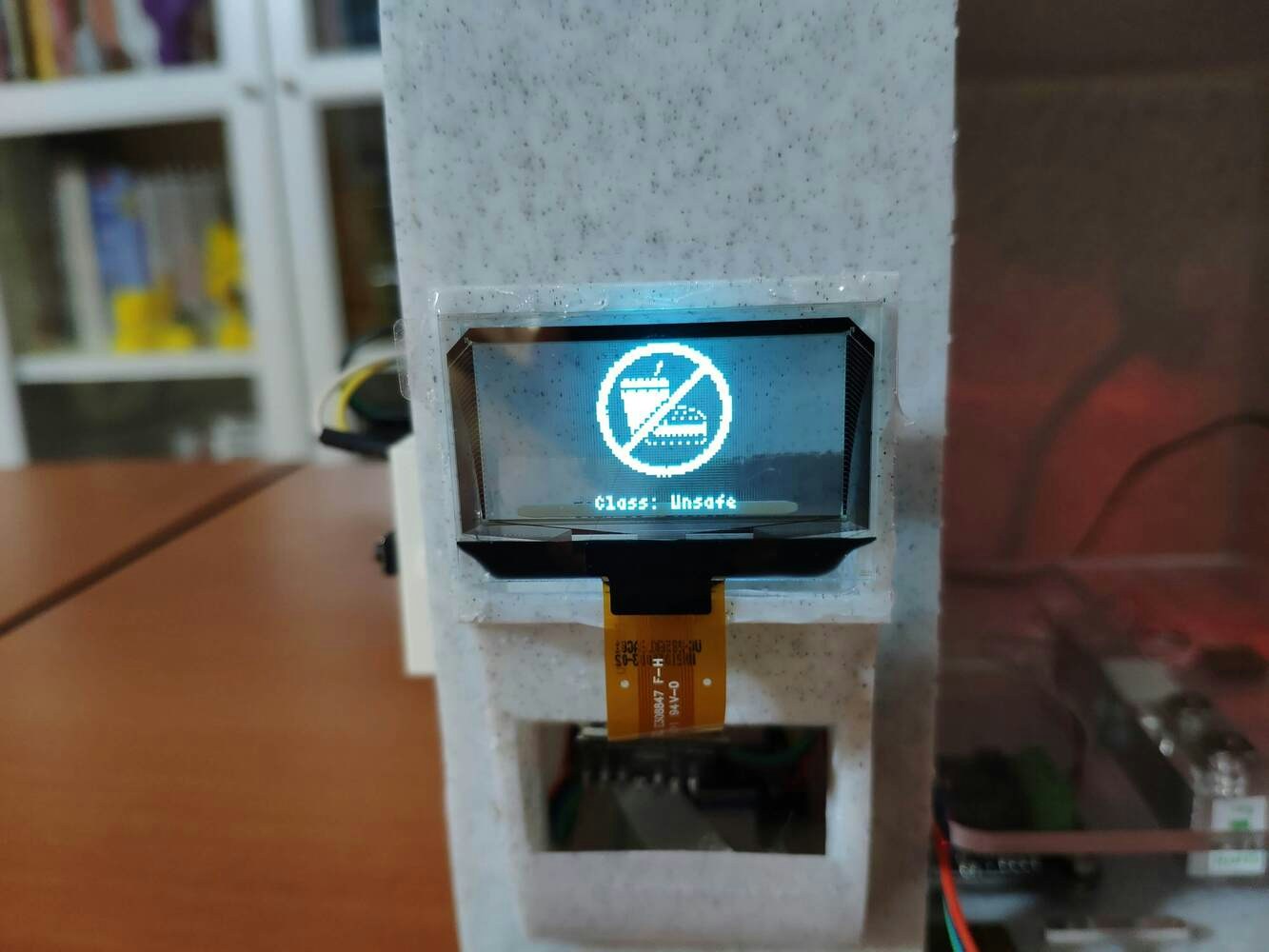

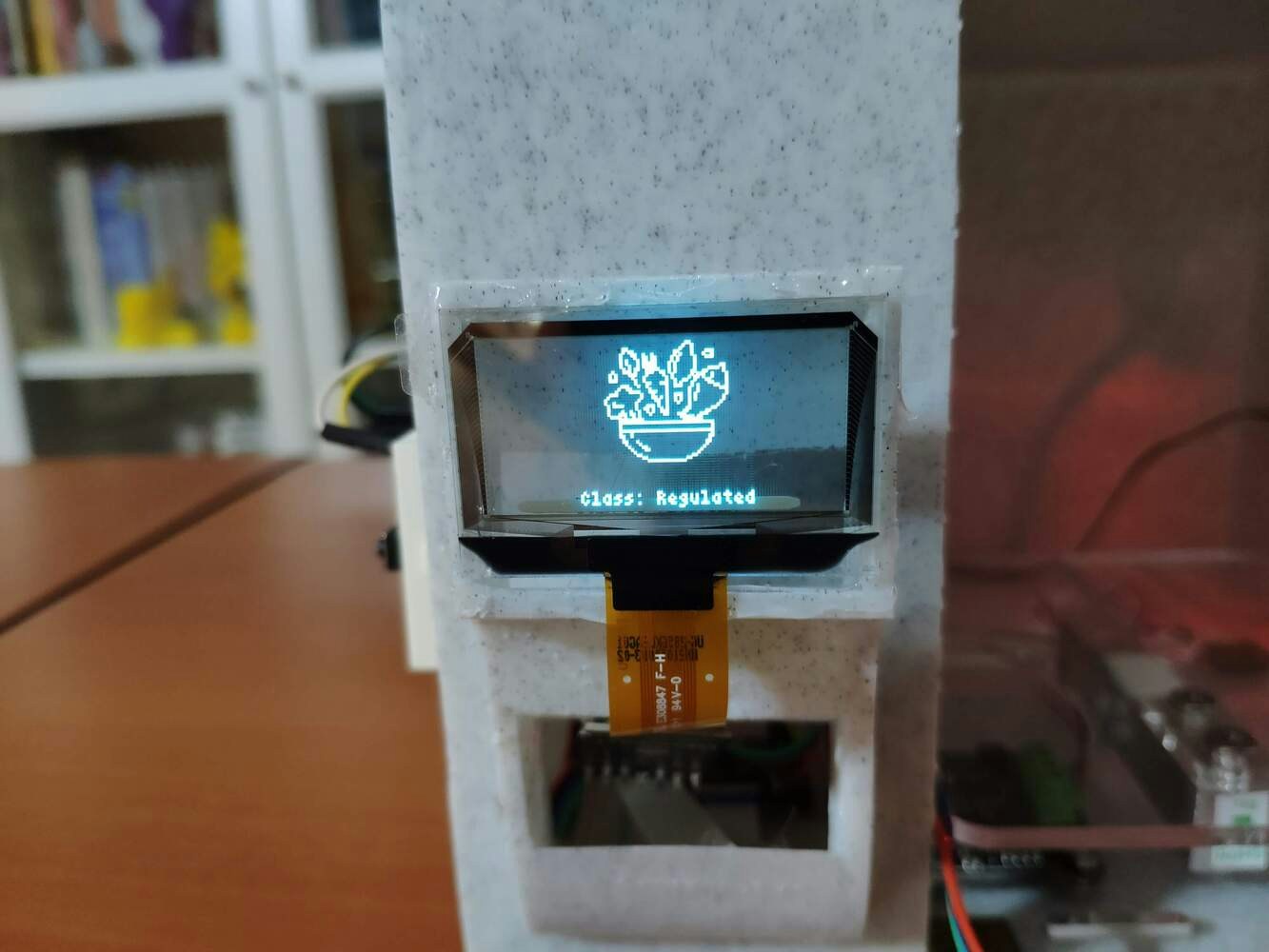

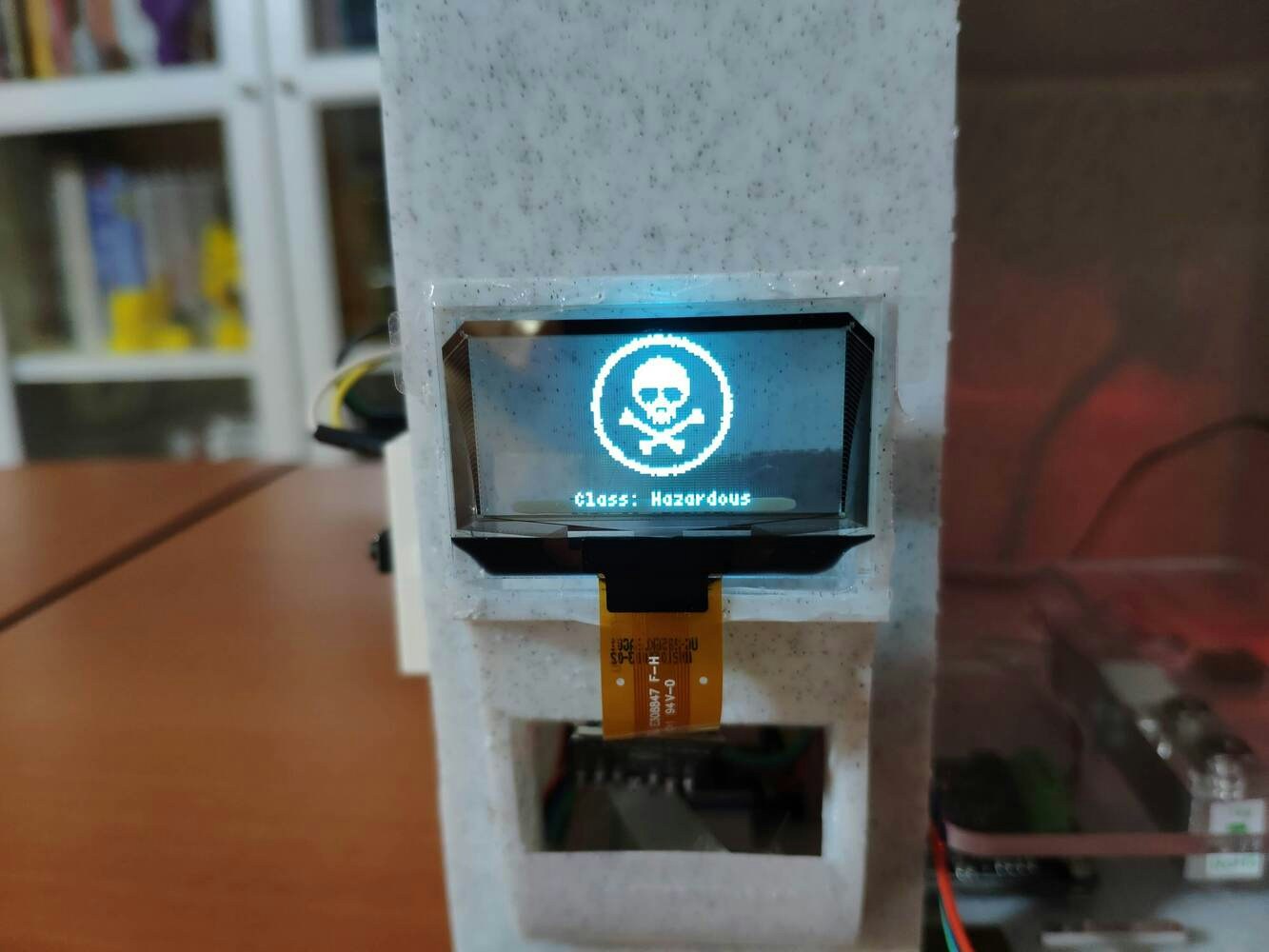

      // Display the predicted class:
      String c = "Class: " + classes[predicted_class];
      int str_x = c.length() * 4;
      u8g2.firstPage();
      do{
        //u8g2.setBitmapMode(true /* transparent*/);
        u8g2.drawXBMP( /* x=*/(u8g2.getDisplayWidth()-50)/2 , /* y=*/0 , /* width=*/50 , /* height=*/50 , class_icons[predicted_class]);
        u8g2.setFont(u8g2_font_4x6_tr);
        u8g2.drawStr((u8g2.getDisplayWidth()-str_x)/2, 55, c.c_str());
      }while(u8g2.nextPage());

      // Clear the predicted class (label).
      predicted_class = -1;

      // Stop the running inference and return to the home screen.
      model_activation = false;
    }
  }
