Smart Table Tennis Bat with Live Analytics - Arduino Nano 33 BLE Sense

Created By: Samuel Alexander Public Project Link: https://studio.edgeimpulse.com/public/732429/live Demo Video link: https://youtu.be/uuwvcWkOnFA GitHub Repo: https://github.com/SamuelAlexander/smart-table-tennis-bat-with-edge-impulse (Download code and STL files here)

Problem Exploration
Project Overview
Why This Tech Stack?
Hardware Requirements
Software Requirements
How it works
Dataset Collection
Impulse Design
Hardware Assembly
Software Implementation
User Interface & Experience
Conclusion

Problem Exploration

You’re practicing table tennis, working on technique improvements. Your forehand feels stronger today, but is it really? Are you hitting with better consistency than last week? Without a coach watching, there’s no way to know if you’re actually improving or just feeling confident. This highlights a core challenge in table tennis training: the lack of real-time, objective feedback.

Image credit: Wally Table Tennis

Current Pain Points:

Manual stroke counting is error-prone and distracting from technique
No objective feedback on stroke distribution during practice
No data tracking for performance improvement over time

What’s Needed:

Auto-count each stroke type (drives, loops, smashes)
Filter out noise and movements between strokes
Instant motivation with real-time feedback after each stroke
Standalone operation - no phone or PC required
Feels like a real bat - similar weight and balance

Xinhua News

Project Overview

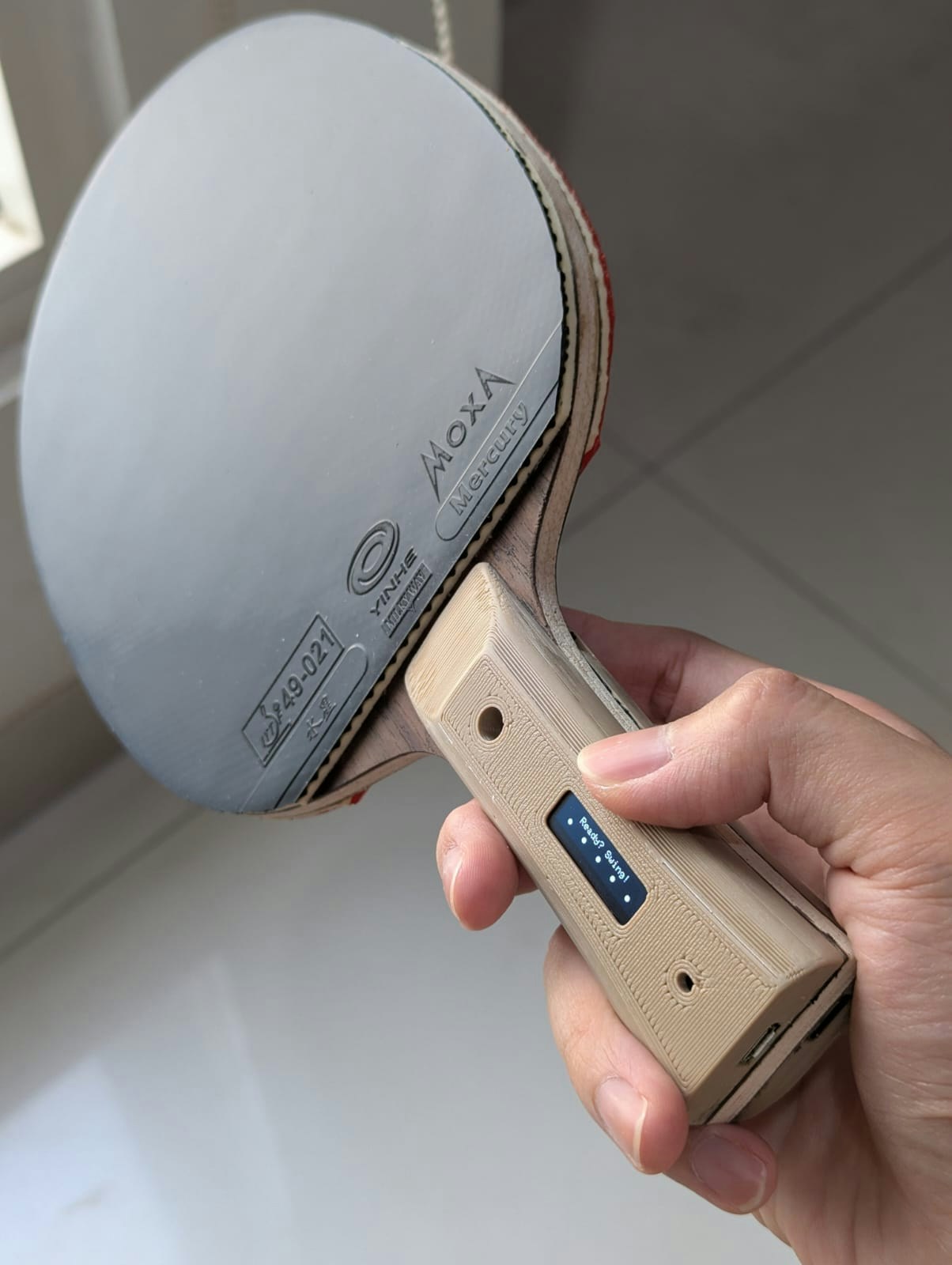

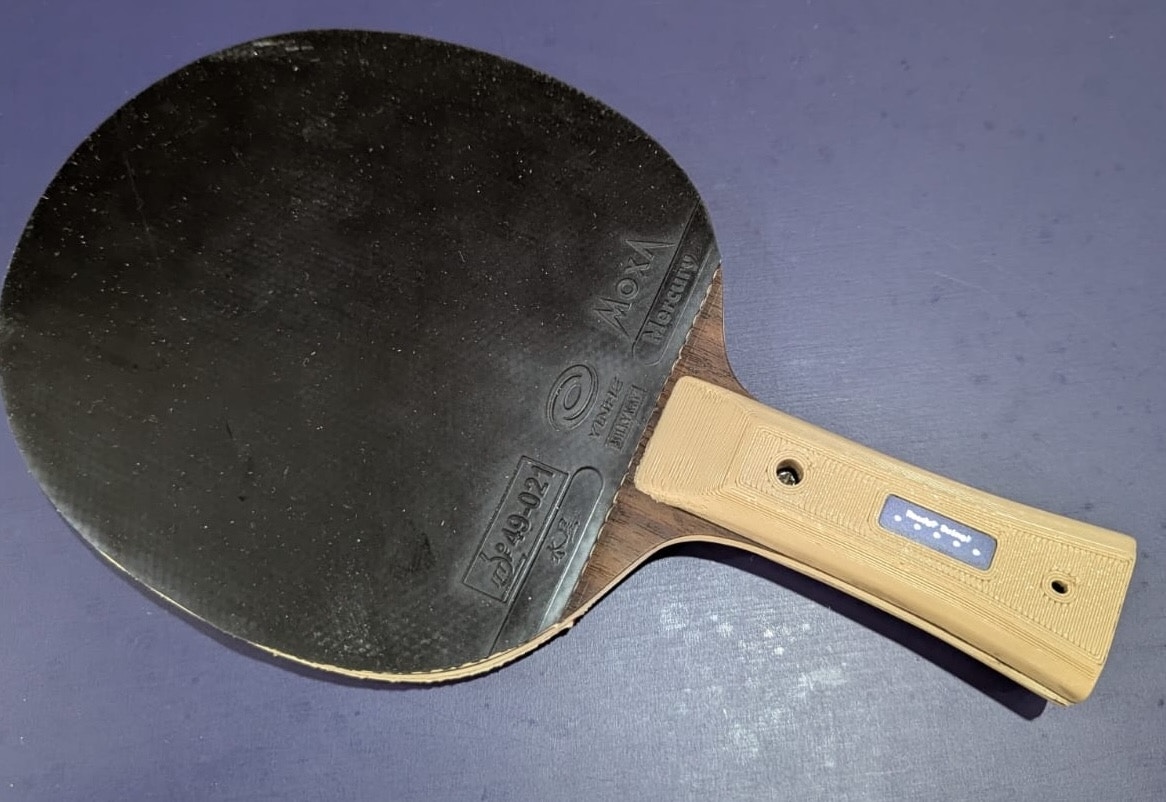

I built a smart table tennis bat by embedding an Arduino Nano 33 BLE Sense Rev2 in a 3D-printed handle, attached to a real blade and rubber. The bat’s BMI270 + BMM150 IMU captures motion data and feeds it to an AI model trained with Edge Impulse Studio.

Key Features:

Real-time stroke detection - recognizes 5 stroke types + idle
Fast response - new detection every 250ms with sliding windows
Smart filtering - confidence checks + 2g threshold to avoid false positives
OLED display - shows stroke counts and motivational messages
Battery powered - just charge and play, no cables
Real bat feel - careful weight distribution

+---------------------------+           50 Hz samples            +---------------------------+
| BMI270/BMM150 IMU        |  accX,accY,accZ,gyrX,gyrY,gyrZ  ->  | Arduino Nano 33 BLE Sense |
| (accelerometer + gyro)   |                                     | Rev2 (C++/Arduino)        |
+---------------------------+                                    | - Circular buffer (500 ms)|
                                                                 | - Sliding window (250 ms) |
                                                                 +------------+--------------+
                                                                              |
                                                                              v
                                                                +-------------+--------------+
                                                                | Spectral Analysis (FFT-32) |
                                                                | - 6 axes, frequency domain |
                                                                +-------------+--------------+
                                                                              |
                                                                              v
                                                                +-------------+--------------+
                                                                | Neural Network Classifier  |
                                                                | 20 -> 10 -> 6 (INT8)       |
                                                                +-------------+--------------+
                                                                              |
                                                         argmax, conf>0.75, accel>2g, cooldown
                                                                              |
                                                                              v
+---------------------------+                                   +---------------------------+
| LiPo Battery (400 mAh)    |                                   | SSD1306 128x32 OLED       |
| -> Power to Arduino/IMU   |                                   | - Stroke counts (BH/FH)   |
+---------------------------+                                   | - Messages, idle anim     |
                                                                +---------------------------+

System Architecture Diagram

Why This Tech Stack?

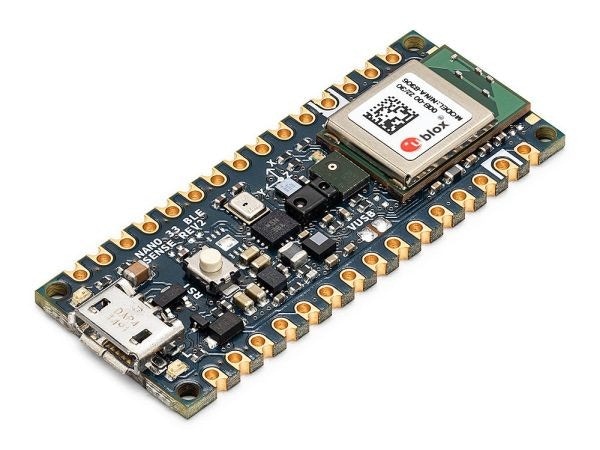

Arduino Nano 33 BLE Sense Rev2

Built-in IMU (BMI270/BMM150) for 6-axis motion data
Cortex-M4 core (64 MHz) runs TensorFlow Lite models
BLE 5.0 for future mobile app features
Tiny size (45×18mm) fits in bat handle
Low power for long battery life
Arduino ecosystem with many available libraries

Arduino Nano 33 BLE Sense Rev2

Edge Impulse Studio

Edge Impulse makes Edge AI simple:

Upload CSV data with automatic labeling
Built-in signal processing and feature extraction
AutoML finds the best model architecture
Deploy as Arduino library
Handles all the ML complexity in an intuitive UI
Performance analysis with charts and metrics

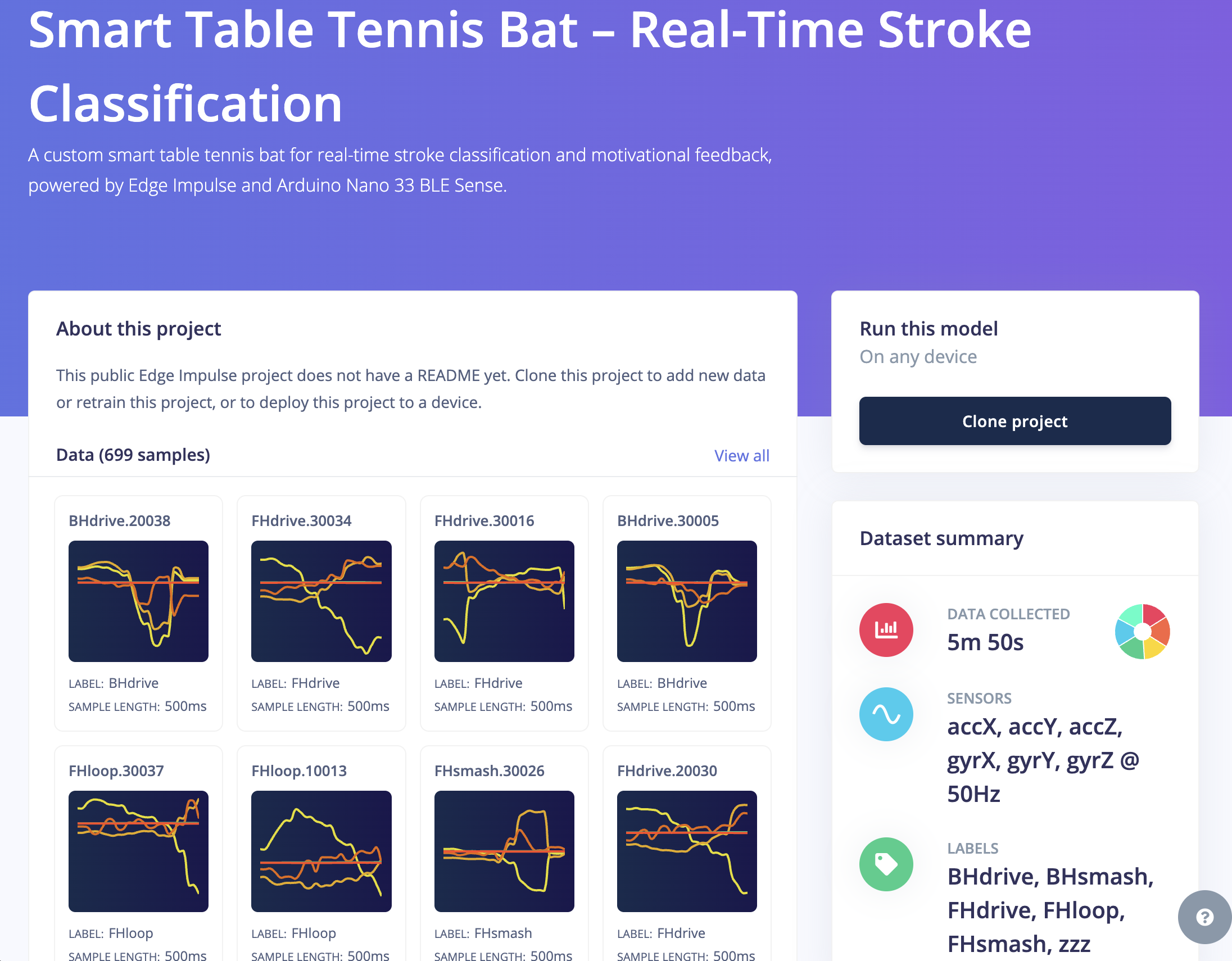

Edge Impulse Studio Project Dashboard

Hardware Requirements

Core Components:

Arduino Nano 33 BLE Sense Rev2 - Main microcontroller with built-in IMU
SSD1306 128×32 OLED Display - I2C interface for real-time stats and feedback
LiPo Battery (400mAh recommended) + JST connector
Boost converter (steps LiPo output up to 5V for Arduino Vin)
3D-printed handle components (STL files provided)
Table tennis blade (pre-made blade with removed handle or custom order)
Table tennis rubbers (2.1mm thickness recommended)

Tools & Materials:

Soldering iron and solder
PVAC glue
Table tennis glue/adhesive
3D printer (PLA filament)
Wire strippers
Small screwdriver set

Total Estimated Cost: $95-210 USD

Software Requirements

Development Environment:

Arduino IDE 2.0+
Edge Impulse CLI (optional, for data collection)
Edge Impulse Studio account (free tier is sufficient)

Arduino Libraries:

#include "Arduino_BMI270_BMM150.h"  // IMU sensor library
#include <Wire.h>                   // I2C communication
#include "Adafruit_SSD1306.h"       // OLED display
#include "Adafruit_GFX.h"           // Graphics library
#include "[ProjectName]_inferencing.h" // Generated Edge Impulse library

How it works

We sample 6-axis motion at 50 Hz and keep a 500 ms rolling window with a 250 ms hop, which balances quick updates with stable predictions. Each window is turned into FFT-32 spectral features on all axes and fed to a compact INT8 neural network (20→10→6) that classifies five stroke types plus idle. Spectral features capture the rhythmic patterns that separate drives, loops and smashes more reliably than raw signals, which is why the model can give consistent feedback while you are still hitting. A lightweight decision layer uses argmax, confidence above 0.75, an acceleration gate above 2g, and a short cooldown to cut false positives from handling and ball bounces. The OLED updates immediately with counts and messages so you get actionable feedback mid-drill, and the full loop completes in about 250 to 500 ms.

Performance:

On-device inference runs in about 12 ms with the INT8 model. End-to-end response from stroke to display is typically 250 to 500 ms. Battery life is around 2.5 hours per session. Offline evaluation shows 96.4% validation accuracy and 88.7% test accuracy.

Dataset Collection

Stroke Categories:

BHdrive: Backhand drive (equal ratio of spin and hit)
BHsmash: Backhand smash (flat hit offensive shot)
FHdrive: Forehand drive (equal ratio of spin and hit)
FHloop: Forehand loop (spinning offensive shot)
FHsmash: Forehand smash (flat hit offensive shot)
zzz: Idle state (no stroke, subtle movement in between shots)

Data Collection Process:

The data collection uses a simple web app on your phone that connects to the Arduino via Bluetooth. Two parts work together:

1. Arduino Data Collection Firmware

The Arduino runs specialized firmware (table-tennis-data-collection-bluetooth.ino) that handles: Swing Detection Algorithm:

// Motion thresholds for automatic stroke detection
#define ACCEL_THRESHOLD 2.0  // 2G acceleration
#define GYRO_THRESHOLD 200.0 // 200 degrees/second
#define COOLDOWN_MS 200      // 200ms between detections

// Automatic swing detection
float totalAccel = sqrt(ax*ax + ay*ay + az*az);
float totalGyro = sqrt(gx*gx + gy*gy + gz*gz);

if (totalAccel > ACCEL_THRESHOLD && totalGyro > GYRO_THRESHOLD) {
    swingDetected = true;
    // Capture 500ms window: 100ms pre-trigger + 400ms post-trigger
}

Data Capture:

Keeps the last 500ms of motion data in memory
When stroke detected, saves full 500ms (100ms before + 400ms after)
Sends data to phone as CSV via Bluetooth

2. Web App Interface

The web app runs in your phone browser: Bluetooth Connection:

// Connect to Arduino via Web Bluetooth API
bleDevice = await navigator.bluetooth.requestDevice({
    filters: [{ name: 'TT-Stroke-Collector' }],
    optionalServices: ['12345678-1234-1234-1234-123456789abc']
});

Data Processing & Organization:

// Automatically organize strokes by type
const filename = `${strokeType}${(index + 1).toString().padStart(4, '0')}.csv`;
zip.file(filename, swing.csv);

3. How to Collect Data:

Setup: Open web app on phone, upload firmware to Arduino
Connect: App finds Arduino and connects via Bluetooth
Pick stroke: Enter type like “FHdrive” or “BHsmash”
Hit balls: System auto-detects and saves each stroke
Monitor: See swing count and time in real-time
Download: Get ZIP with numbered CSV files (FHdrive0001.csv, etc.)

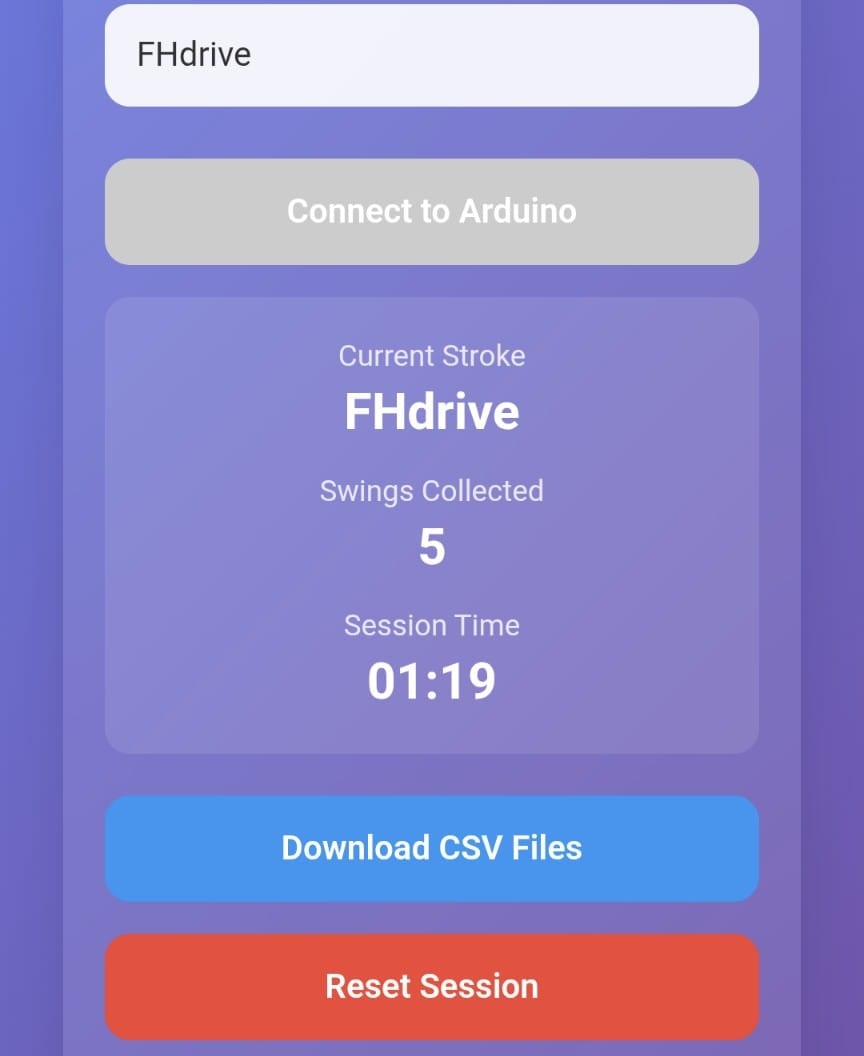

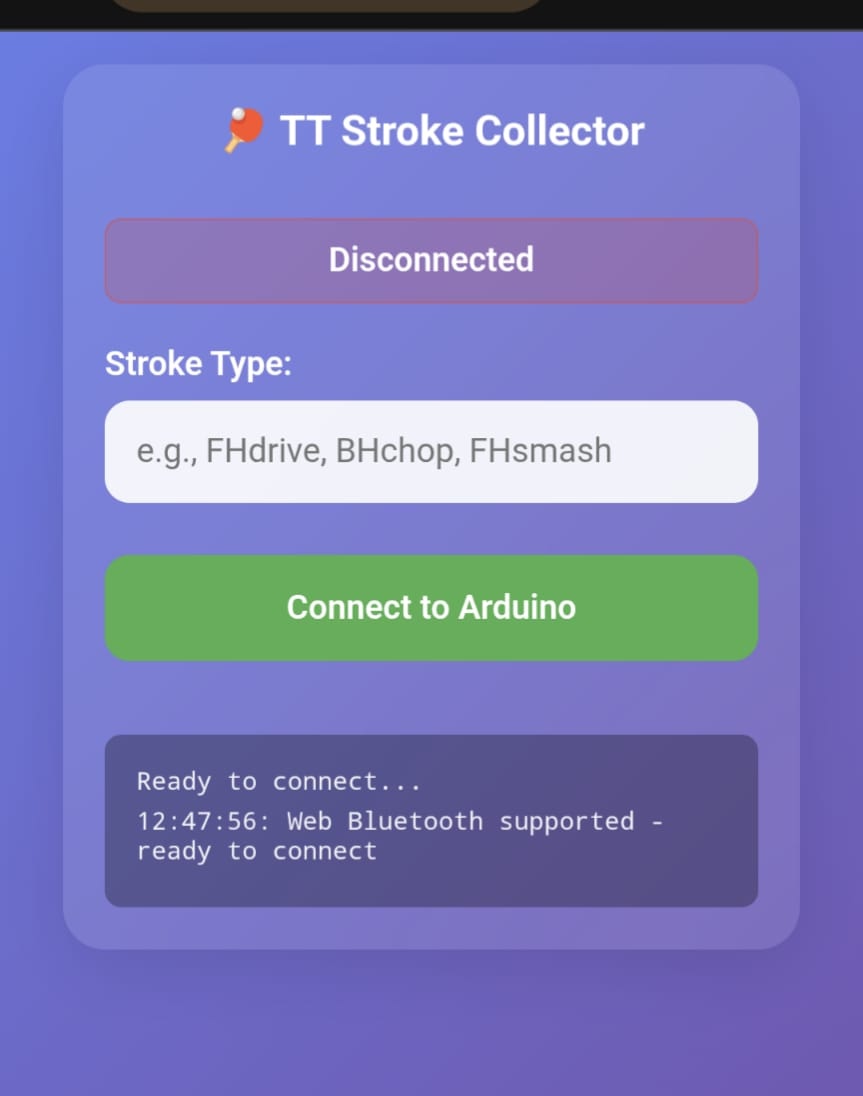

Web interface of the data collection app

Download ZIP of CSV files for each stroke type

Technical Specifications:

Sampling Rate: 50Hz for accelerometer and gyroscope (6 channels total)
Window Size: 500ms (25 samples per window)
Detection Method: Combined acceleration (>2g) and angular velocity (>200°/s) thresholds
Data Format: CSV with headers: Timestamp,accX,accY,accZ,gyrX,gyrY,gyrZ
Total Dataset: ~50 seconds per class (100 samples of 500ms windows per stroke type and idle)
File Organization: Individual CSV per stroke, bundled in labeled ZIP files

Data Collection Tips:

Record in realistic playing conditions (on table, with ball)
Include variation in stroke intensity and angle
Capture edge cases (gentle shots, missed swings)
Record idle data during normal handling and setup

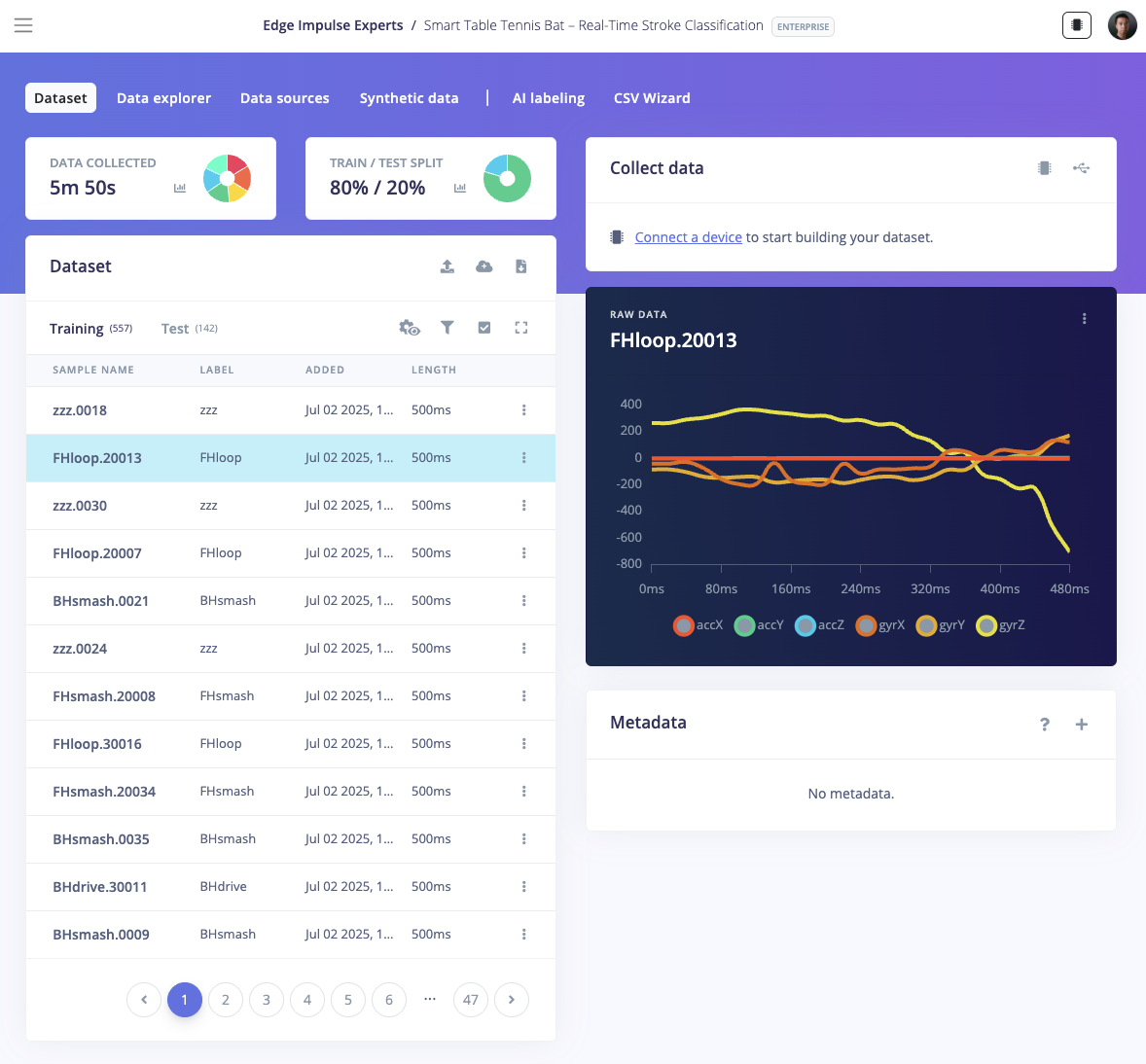

Upload to Edge Impulse Studio

Open Edge Impulse Studio and create a new project (or open your existing project).
Go to Data acquisition → Upload data.
Drag and drop the ZIP exported by the web app (or multiple CSVs).
Set Sensor type to Inertial and Sample rate to 50 Hz (if not auto-detected from CSV headers).
Ensure labels are correct (filenames like FHdrive0001.csv will map to the FHdrive label). Fix any mislabeled files if needed.
Keep the 80/20 train/test split you recorded, or use Studio’s Split function to create it.
Verify each sample shows 6 axes (accX/accY/accZ, gyrX/gyrY/gyrZ) and that label counts look balanced.

Impulse Design

The impulse design transforms raw 6-axis IMU data into stroke classifications through a two-stage pipeline: spectral analysis for feature extraction, followed by neural network classification. Instead of using raw sensor values, we extract frequency domain features that better capture the distinctive motion signatures of different strokes. This approach proves more effective because table tennis strokes have characteristic frequency patterns—drives have different spectral content than loops or smashes.

Edge Impulse Configuration:

1. Time Series Data Setup:

Input Axes: 6 (accX, accY, accZ, gyrX, gyrY, gyrZ)
Window Size: 500ms
Frequency: 50Hz

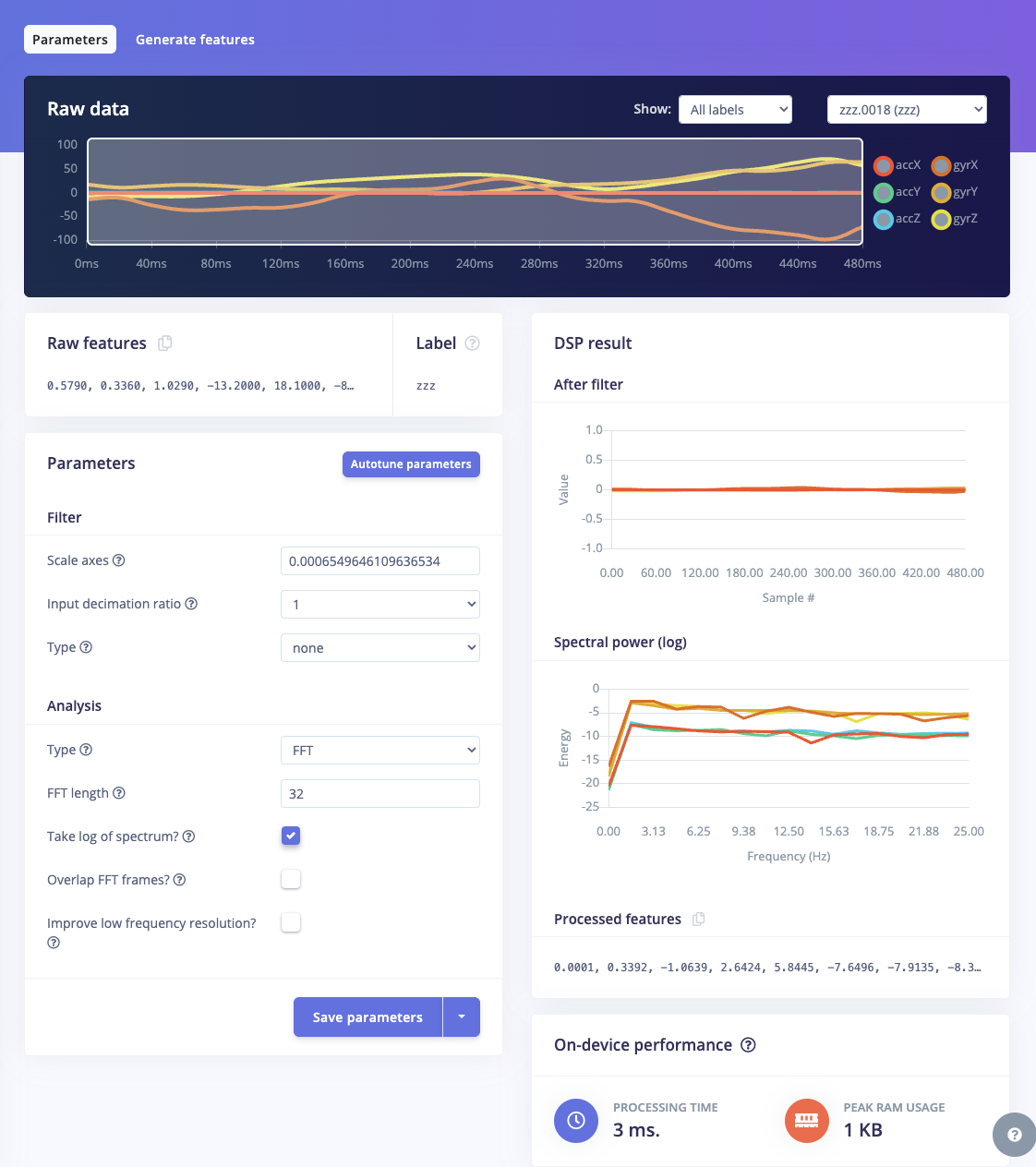

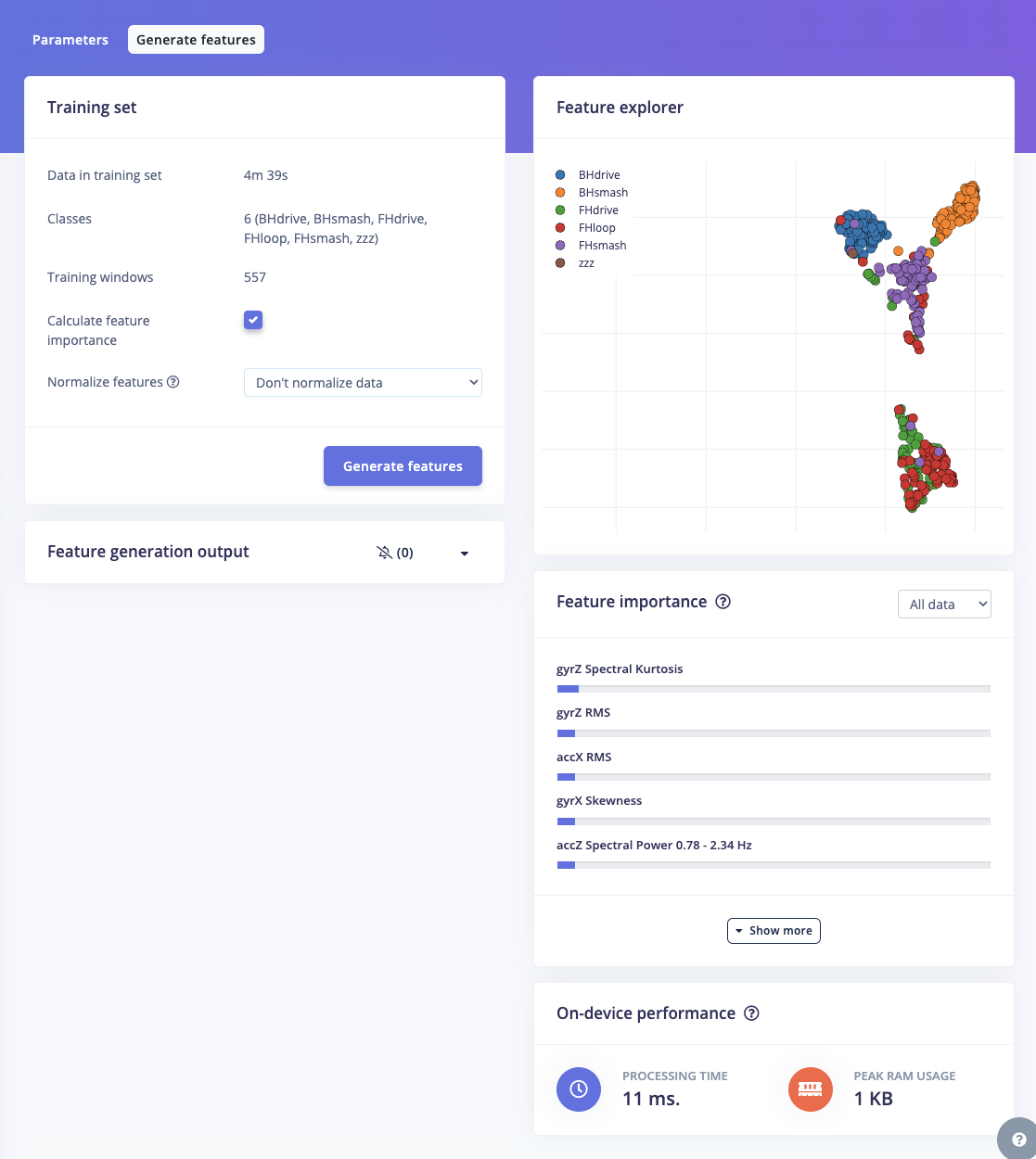

2. Spectral Analysis:

Analysis Type: FFT (Fast Fourier Transform)
FFT Length: 32
Parameters: Autotune (or basic parameters on free tier)

3. Classifier Configuration:

Type: Neural Network Classifier
Output Features: 6 (BHdrive, BHsmash, FHdrive, FHloop, FHsmash, zzz)

4. Neural Network Architecture:

Input Layer: 126 features (25 samples × 6 axes, after DSP processing)
Dense Layer 1: 20 neurons (ReLU activation)
Dense Layer 2: 10 neurons (ReLU activation)
Output Layer: 6 classes (softmax activation)

Note: Edge Impulse automatically configured this default architecture when selecting the “Classifier” model, which proved effective for our stroke classification task.*

5. Training Configuration:

Training Cycles: 500 epochs
Learning Rate: 0.0002
Loss Function: Categorical crossentropy
Validation Split: 20%

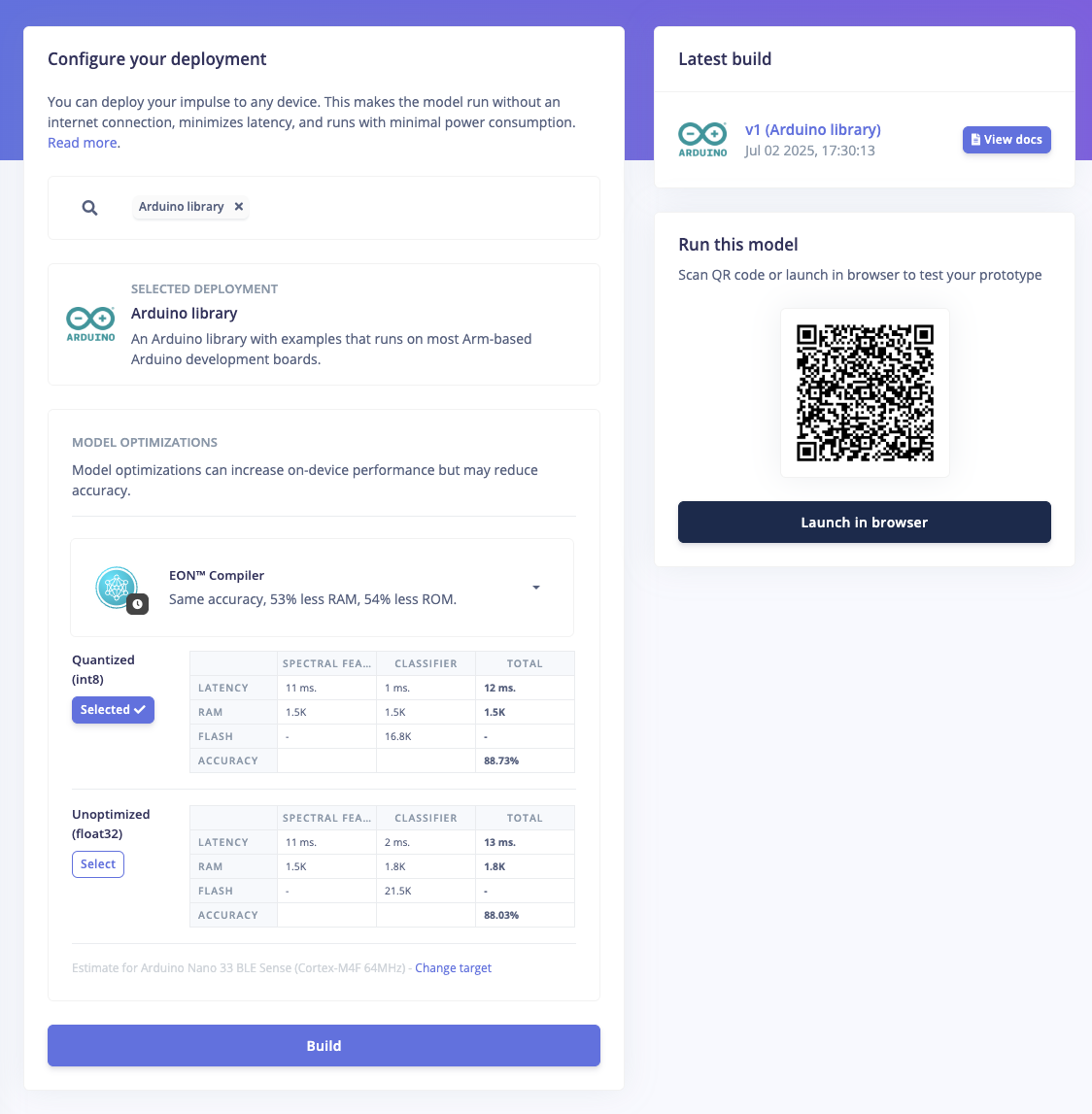

6. Model Optimization:

EON Tuner: Automated architecture search for optimal size/performance
Quantization Options: Both Float32 and INT8 models available
Memory Usage:
- Float32: 1.8KB RAM, 21.5KB Flash
- INT8: 1.5KB RAM, 16.8KB Flash

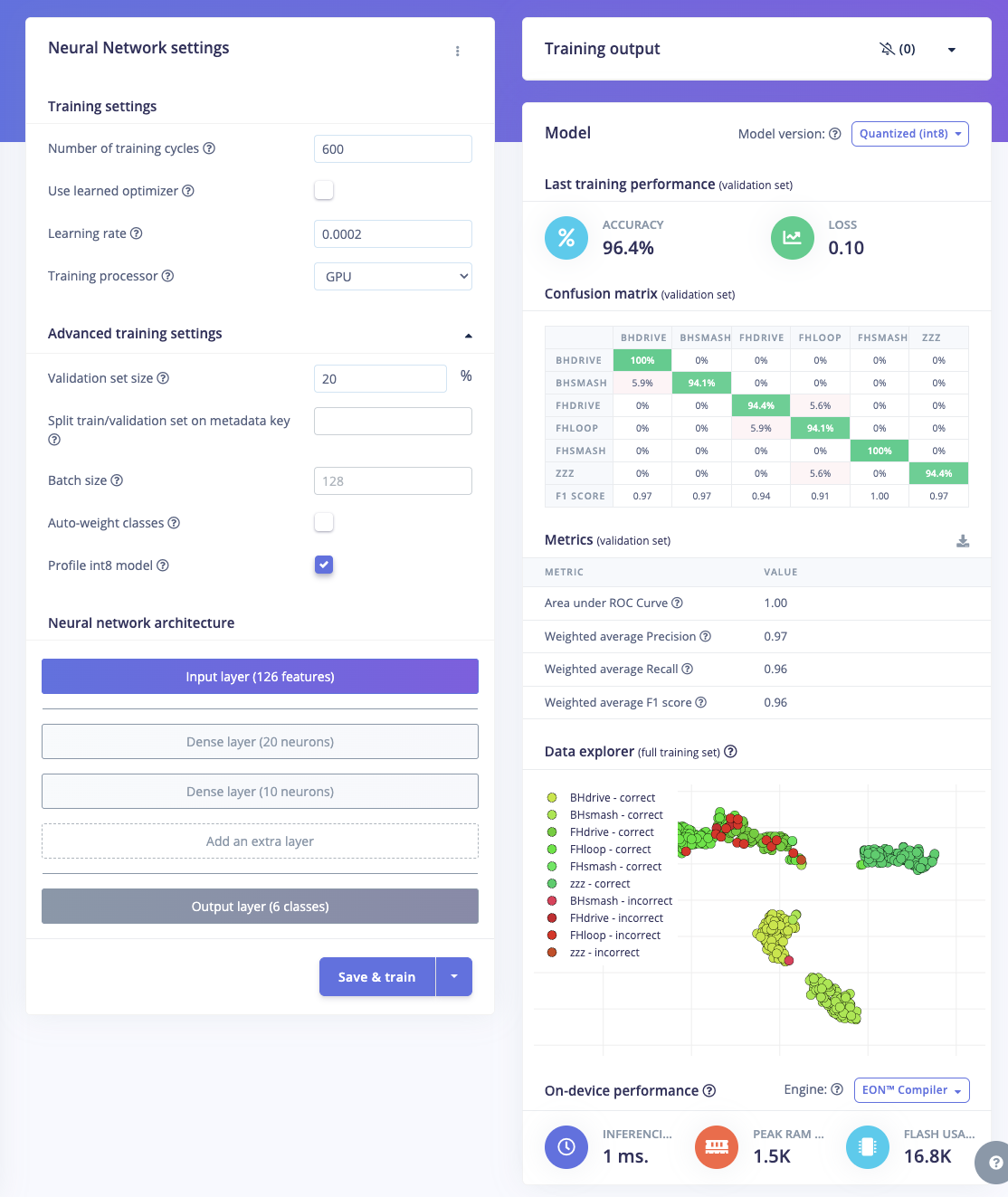

Training parameters and performance metrics for validation set

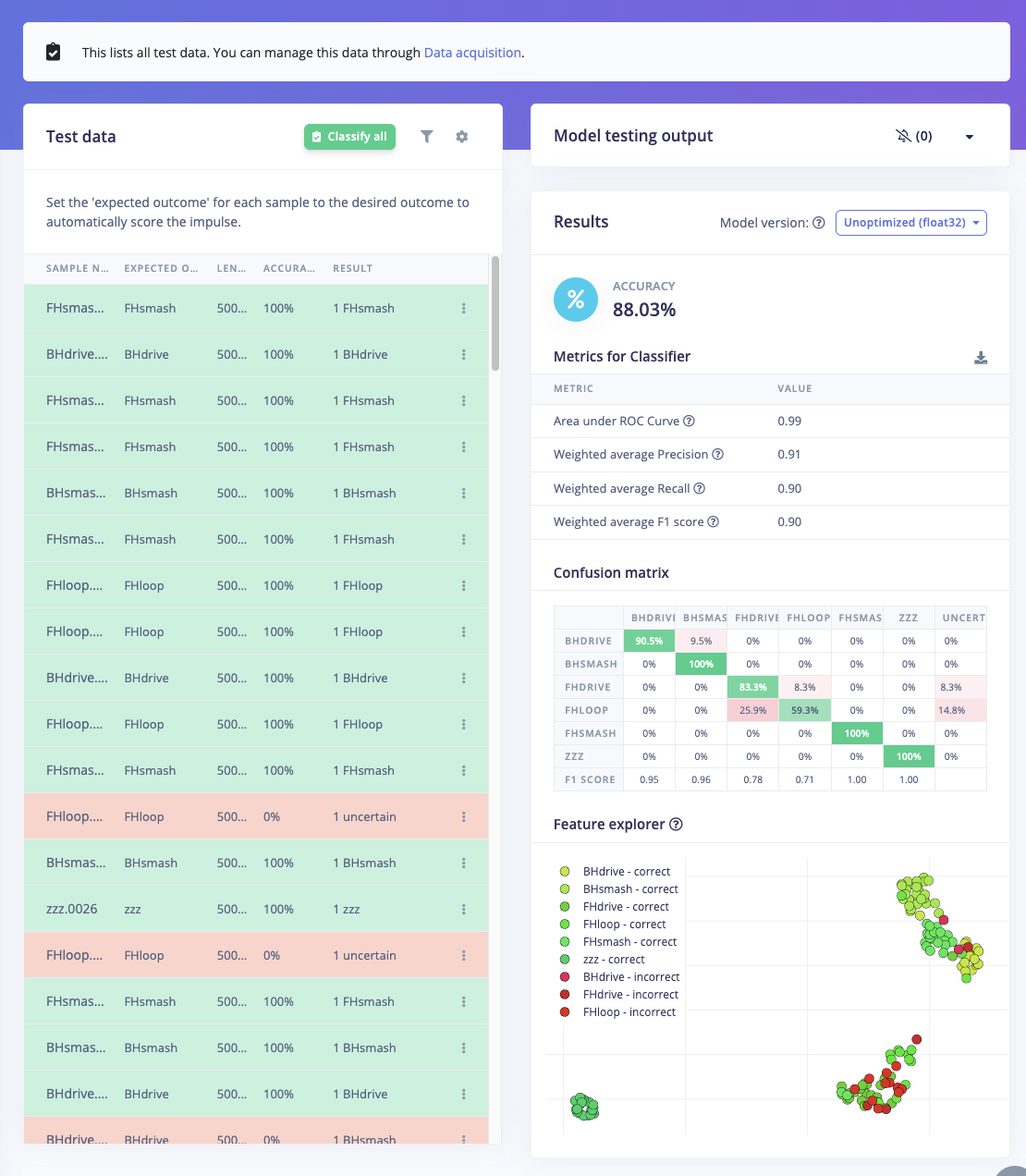

Model performance on testing dataset

Model Performance:

Model Type	Validation Accuracy	Test Accuracy	Inference Time	RAM Usage	Flash Usage
Float32	96.4%	88.0%	13ms	1.8KB	21.5KB
INT8	96.4%	88.7%	12ms	1.5KB	16.8KB

For this project, we deployed the INT8 model for memory optimization while maintaining excellent accuracy.

Summary

This design achieves excellent performance through smart feature engineering. The spectral analysis extracts meaningful frequency patterns from raw motion data, while the compact neural network efficiently processes these features for real-time classification. The INT8 quantization delivers the final optimization—maintaining high accuracy while fitting comfortably within Arduino memory constraints for 12ms inference speed.

Hardware Assembly

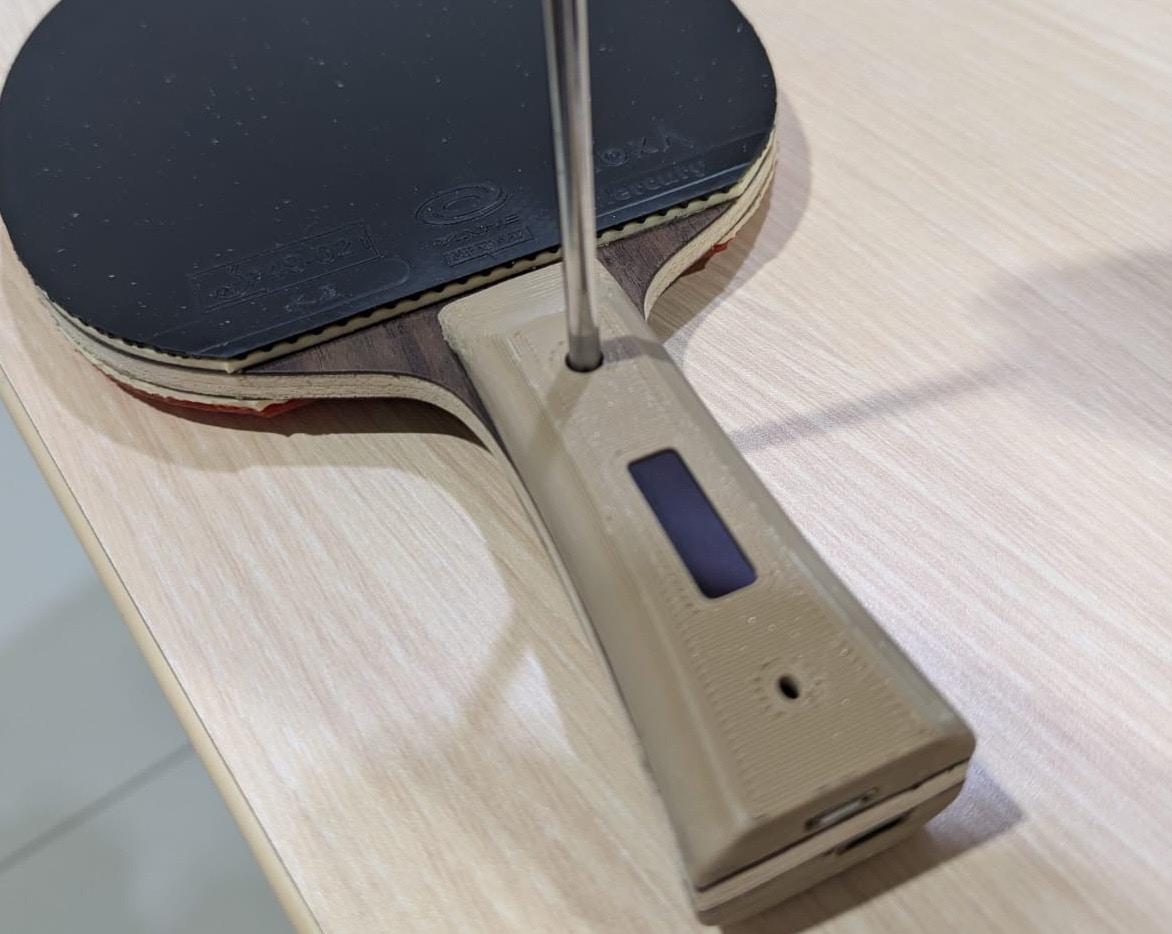

I custom ordered a table tennis blade without a handle so the build would feel like a real racket. I then designed a two part handle in Fusion 360 with hollow interiors and printed both halves. The internal cavities and simple mounts hold the Arduino Nano 33 BLE Sense Rev2, the SSD1306 OLED, a boost converter, the LiPo battery, and a small power switch. The layout keeps the weight balanced, routes the wiring inside, and leaves both the power switch and the USB port accessible for charging and firmware updates.

Step 1: Prepare the 3D-Printed Handle

Print handle components using provided STL files
Test-fit Arduino Nano and OLED display
Sand/file mounting points if needed

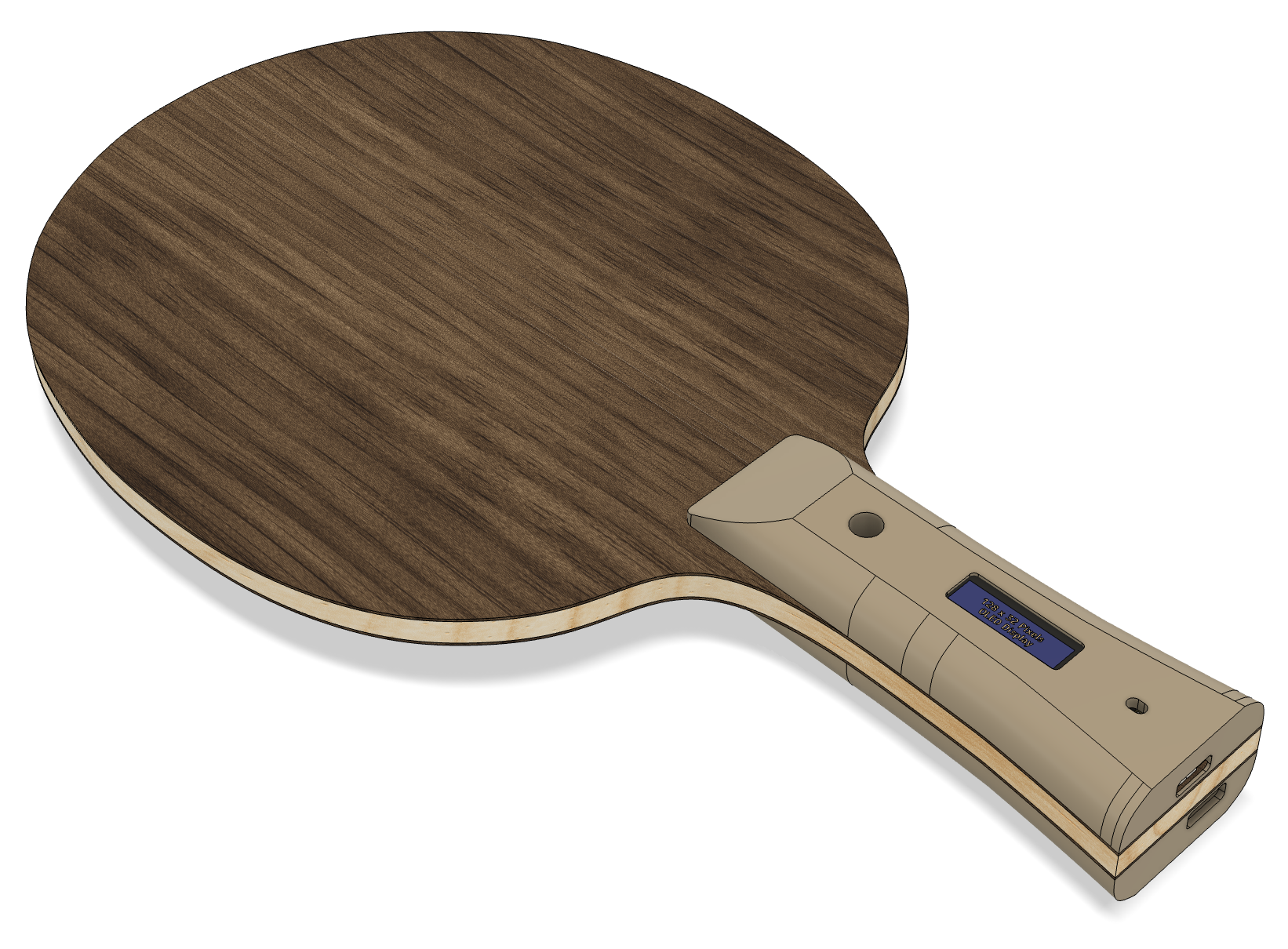

Fusion360 CAD model

Step 2: Electronics Assembly

Solder connections:
- OLED VCC → 3.3V
- OLED GND → GND
- OLED SDA → A4 (SDA)
- OLED SCL → A5 (SCL)
- Battery → boost converter
- Boost converter → Arduino Vin/GND

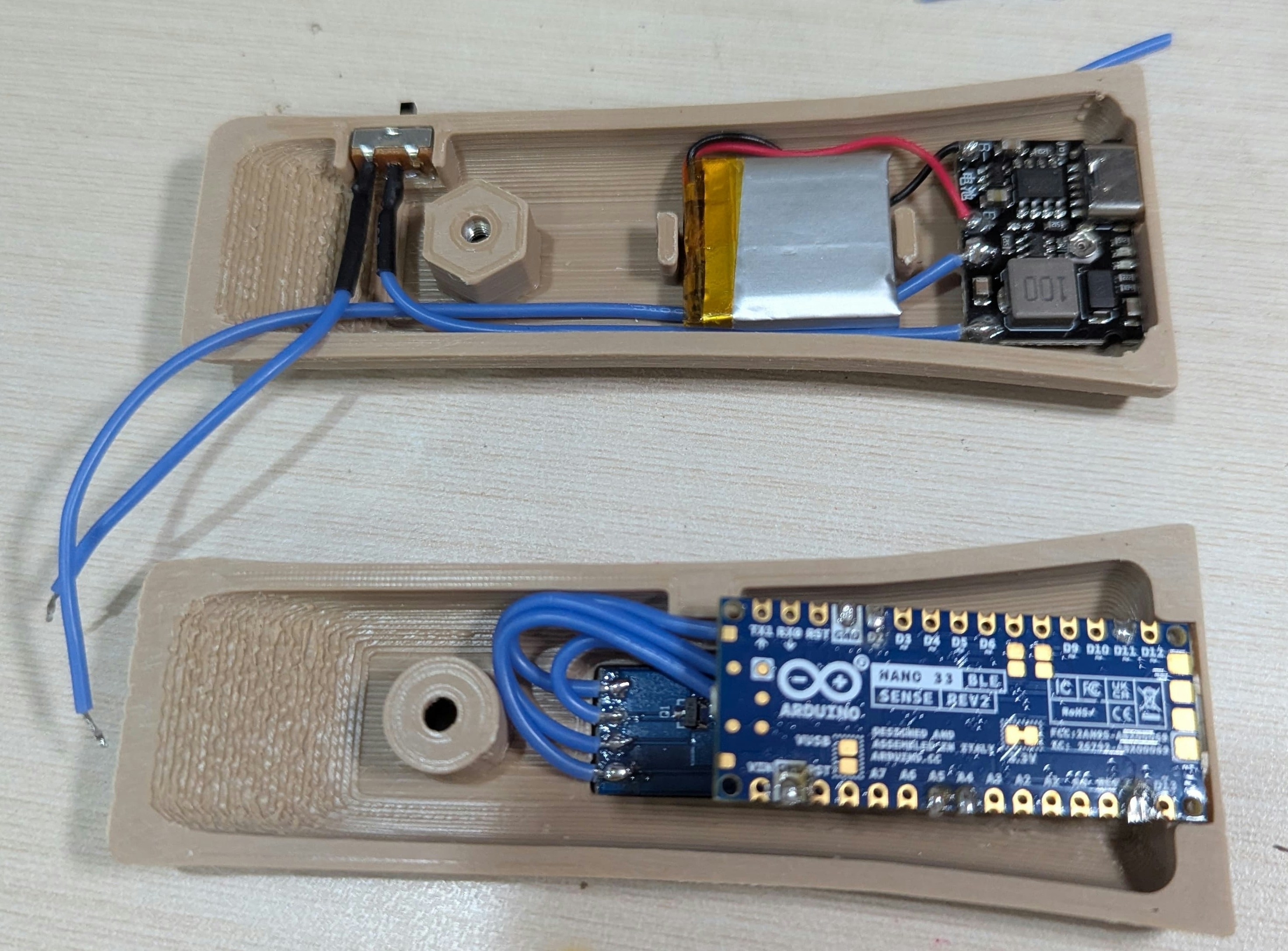

Component placement:
- Arduino positioned for USB access during development
- OLED display visible through handle opening
- Battery and boost converter positioned on the other half of the handle

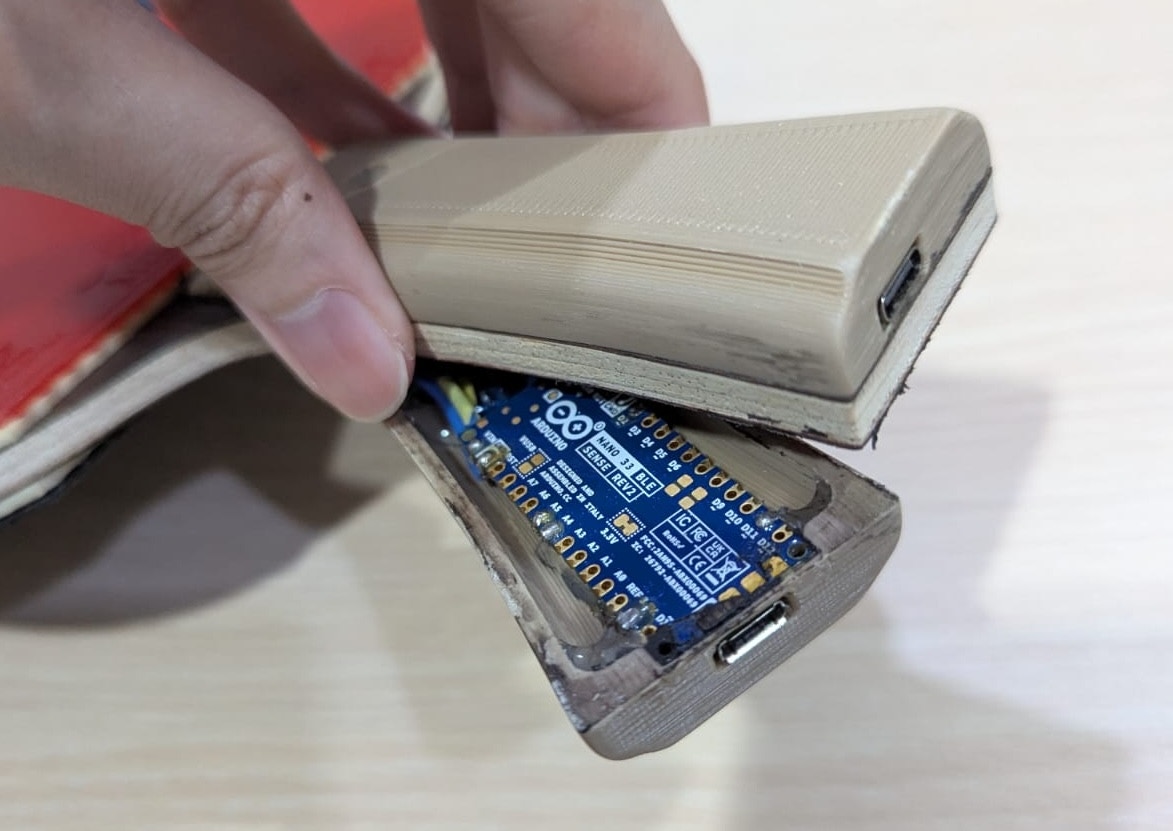

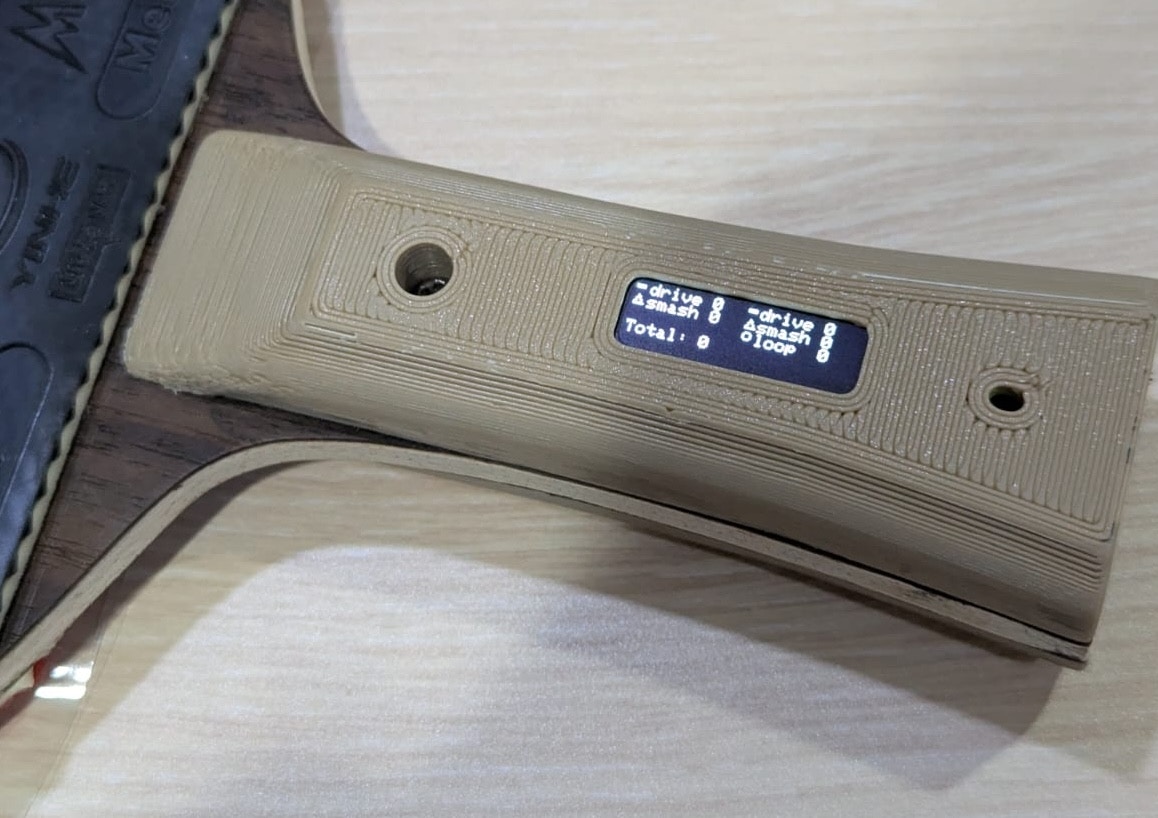

Step 3: Handle Integration

Secure Arduino and OLED in printed housing
Route battery, boost converter, and power switch through handle
Seal electronics compartment
Test all connections before final assembly

Assembly Tips:

Keep IMU orientation consistent with training data
Ensure OLED is easily readable during play
Test electronics before permanent assembly
Consider weight distribution for natural bat feel

Software Implementation

This sketch samples IMU data, builds overlapping windows, runs the Edge Impulse classifier, gates detections, and drives the OLED via a small state machine.

Setup and model integration

#include <Wire.h>
#include <Arduino_BMI270_BMM150.h>
#include <Adafruit_GFX.h>
#include <Adafruit_SSD1306.h>
#include <table_tennis_2_inferencing.h>

#define SCREEN_WIDTH       128
#define SCREEN_HEIGHT      32
#define OLED_RESET         -1
Adafruit_SSD1306 display(SCREEN_WIDTH, SCREEN_HEIGHT, &Wire, OLED_RESET);

Timing, windowing and thresholds

#define SAMPLE_INTERVAL_MS    20    // 50Hz sampling
#define WINDOW_SIZE           EI_CLASSIFIER_DSP_INPUT_FRAME_SIZE
#define AXIS_COUNT            EI_CLASSIFIER_RAW_SAMPLES_PER_FRAME
#define WINDOW_SAMPLES        (WINDOW_SIZE / AXIS_COUNT)  // e.g. 25
#define HOP_SAMPLES           ((WINDOW_SAMPLES + 1) / 2)   // ~half window (~12 or 13)
#define CONF_THRESH           0.50f
#define ACCEL_THRESH_G        2.0f

Buffering and sampling

typedef float BufferRow[AXIS_COUNT];
static BufferRow imuBuffer[WINDOW_SAMPLES];
static uint16_t bufIndex = 0;
static uint16_t sampleCount = 0;    // counts until window full
static uint16_t sampleCounter = 0;  // counts since last inference

void readIMU(){
float ax=0,ay=0,az=0;
if(IMU.accelerationAvailable()) IMU.readAcceleration(ax,ay,az);
float gx=0,gy=0,gz=0;
if(IMU.gyroscopeAvailable())    IMU.readGyroscope(gx,gy,gz);
BufferRow &r = imuBuffer[bufIndex];
bufIndex = (bufIndex+1)%WINDOW_SAMPLES;
if(sampleCount<WINDOW_SAMPLES) sampleCount++;
sampleCounter++;
}

Classification

typedef struct { uint8_t index; float confidence; } InferenceResult;

InferenceResult runInference(){
static float sig[WINDOW_SIZE];
for(uint16_t i=0;i<WINDOW_SAMPLES;i++){
uint16_t p=(bufIndex+i)%WINDOW_SAMPLES;
for(uint8_t j=0;j<AXIS_COUNT;j++) sig[i*AXIS_COUNT+j]=imuBuffer[p][j];
}
signal_t signal;
if(numpy::signal_from_buffer(sig,WINDOW_SIZE,&signal)!=0) return {0,0.0f};
ei_impulse_result_t res;
if(run_classifier(&signal,&res,false)!=EI_IMPULSE_OK) return {0,0.0f};
size_t best=0;
for(size_t i=1;i<EI_CLASSIFIER_LABEL_COUNT;i++)
if(res.classification[i].value>res.classification[best].value) best=i;
return {(uint8_t)best,res.classification[best].value};
}

State machine and OLED updates

enum State { STATE_OPENING, STATE_MAIN, STATE_FLASH, STATE_IDLE };

void loop(){ uint32_t now=millis();
if(now-lastIMUread>=SAMPLE_INTERVAL_MS){ lastIMUread=now; readIMU(); }
switch(currentState){
case STATE_MAIN:
if(sampleCount>=WINDOW_SAMPLES && sampleCounter>=HOP_SAMPLES){
sampleCounter-=HOP_SAMPLES;
InferenceResult inf=runInference();
if(inf.confidence>CONF_THRESH && inf.index<IDLE_LABEL_INDEX && accelAboveThreshold()){
totalStrokes++; flashStart=now; drawFlash(inf.index); currentState=STATE_FLASH;
}
}
if(now-lastDisplay>=ANIM_INTERVAL_MS){ lastDisplay=now; drawMainScreen(); }
break;
// ... FLASH and IDLE states omitted for brevity ...
}
}

This loop performs overlapping inference on each hop, applies confidence and acceleration gates, and renders either the main counters or a brief flash message before returning to live detection.

User Interface & Experience

The UI is built for glanceability: a small state machine switches between an opening animation, live counters, a brief centered confirmation after each detection, and a subtle idle animation when you pause. The main screen shows only BH/FH drives, smashes, loop, and a total in a consistent layout you can read while playing. Updates arrive in about 250 to 500 ms, messages are short and positive, and there is nothing to configure mid‑drill, just power on, swing, and get feedback. Text UI mockups (128x32 OLED):

Opening (4 frames)
●  ●  ●  ●  ●
[bouncing balls animation]

Main (live counters)
BH                      FH
[=] drive: 12          [=] drive:  9
[Δ] smash:  7          [Δ] smash:  5
                       [o] loop:   6

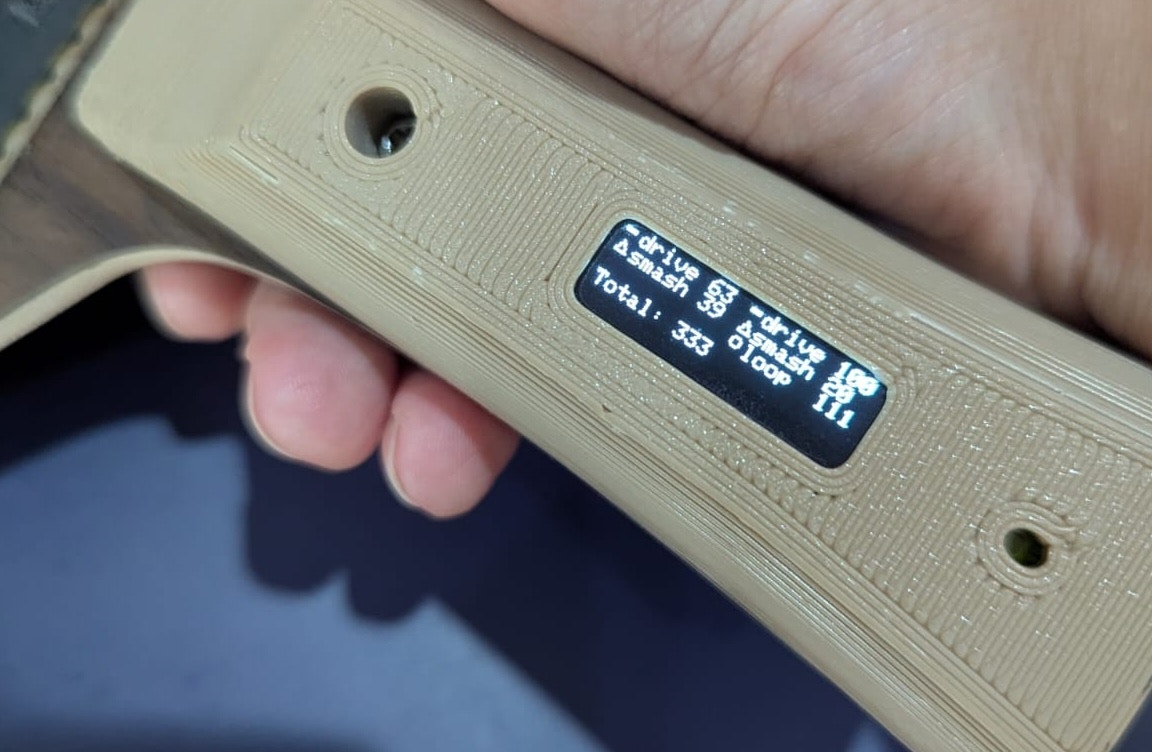

Total: 39

Flash (3 s)
+------------------------------+
|          Clean drive!        |
+------------------------------+

Idle (after 10 s)
Ready? Swing!
●  ●  ●  ●  ●
[bouncing balls animation]

State flow
OPENING -> MAIN -> (valid detection) -> FLASH -> (3 s) -> MAIN
MAIN -> (10 s idle) -> IDLE -> (valid detection) -> FLASH

Conclusion

This project turns a pro-feel blade into a smart training tool that gives objective, real-time feedback without getting in the way. The INT8 model runs in about 12 ms and the full loop updates the OLED in roughly 250 to 500 ms, so confirmations land while you are still hitting. Accuracy holds at 96.4% on validation and 88.7% on held-out test data. The model footprint is small (about 1.5 KB RAM, 16.8 KB Flash) and battery life is around 2.5 hours per session. With FFT-based features and simple decision gates, you get reliable stroke recognition and motivating feedback, all inside a bat that still feels like the real thing.

OVERVIEW

EXPERT NETWORK

​Table of Contents

​Problem Exploration

​Current Pain Points:

​What’s Needed:

​Project Overview

​Key Features:

​Why This Tech Stack?

​Arduino Nano 33 BLE Sense Rev2

​Edge Impulse Studio

​Hardware Requirements

​Core Components:

​Tools & Materials:

​Software Requirements

​Development Environment:

​Arduino Libraries:

​How it works

​Performance:

​Dataset Collection

​Stroke Categories:

​Data Collection Process:

​1. Arduino Data Collection Firmware

​2. Web App Interface

​3. How to Collect Data:

​Data Collection Tips:

​Upload to Edge Impulse Studio

​Impulse Design

​Edge Impulse Configuration:

​1. Time Series Data Setup:

​2. Spectral Analysis:

​3. Classifier Configuration:

​4. Neural Network Architecture:

​5. Training Configuration:

​6. Model Optimization:

​Model Performance:

​Summary

​Hardware Assembly

​Step 1: Prepare the 3D-Printed Handle

​Step 2: Electronics Assembly

​Step 3: Handle Integration

​Assembly Tips:

​Software Implementation

​Setup and model integration

​Timing, windowing and thresholds

​Buffering and sampling

​Classification

​State machine and OLED updates

​User Interface & Experience

​Conclusion

Table of Contents

Problem Exploration

Current Pain Points:

What’s Needed:

Project Overview

Key Features:

Why This Tech Stack?

Arduino Nano 33 BLE Sense Rev2

Edge Impulse Studio

Hardware Requirements

Core Components:

Tools & Materials:

Software Requirements

Development Environment:

Arduino Libraries:

How it works

Performance:

Dataset Collection

Stroke Categories:

Data Collection Process:

1. Arduino Data Collection Firmware

2. Web App Interface

3. How to Collect Data:

Data Collection Tips:

Upload to Edge Impulse Studio

Impulse Design

Edge Impulse Configuration:

1. Time Series Data Setup:

2. Spectral Analysis:

3. Classifier Configuration:

4. Neural Network Architecture:

5. Training Configuration:

6. Model Optimization:

Model Performance:

Summary

Hardware Assembly

Step 1: Prepare the 3D-Printed Handle

Step 2: Electronics Assembly

Step 3: Handle Integration

Assembly Tips:

Software Implementation

Setup and model integration

Timing, windowing and thresholds

Buffering and sampling

Classification

State machine and OLED updates

User Interface & Experience

Conclusion
